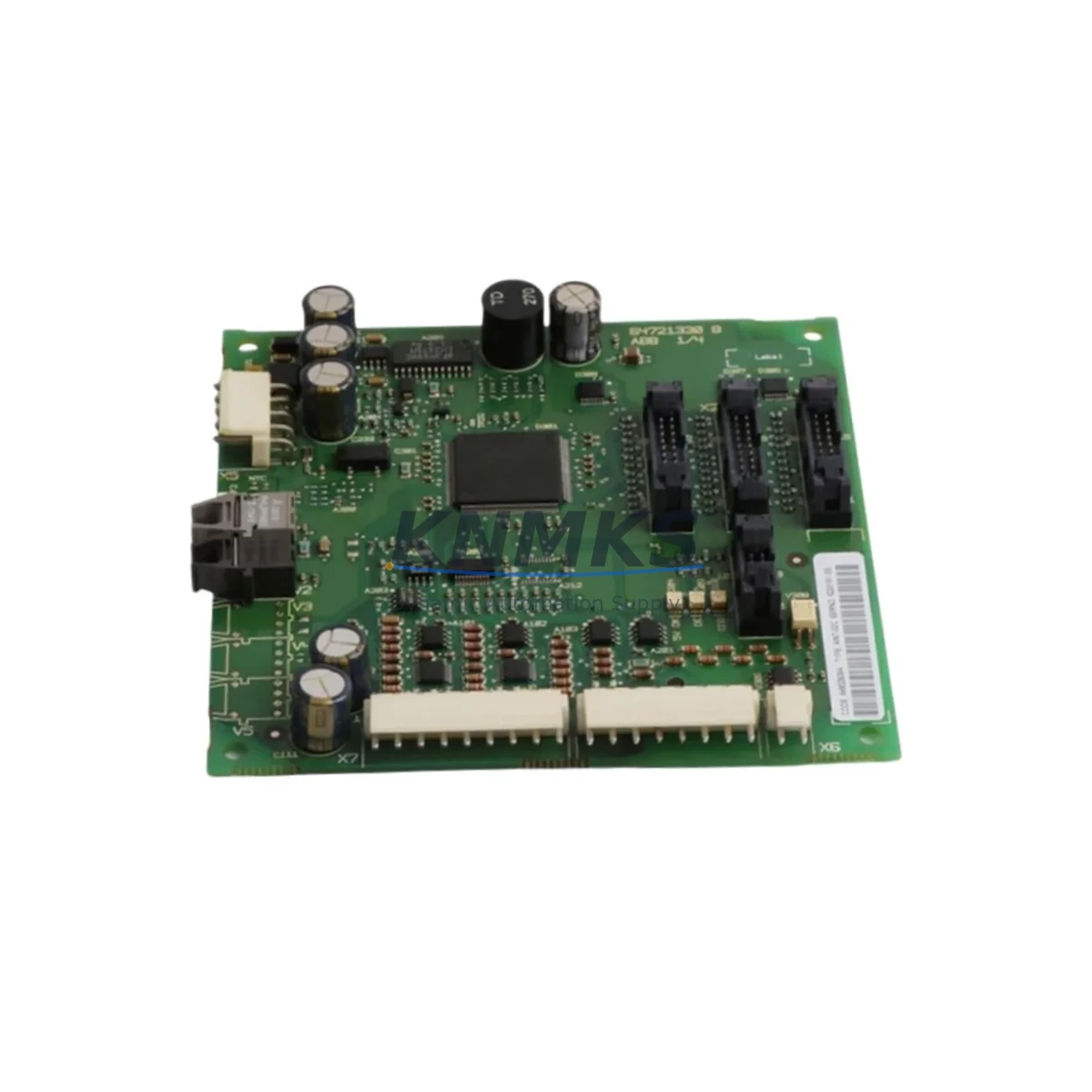

The ABB AINT-02C (68257867) is an original drive control interface board engineered for the ACS800 series variable frequency drives. In industrial facilities where continuous production is non-negotiable, this board serves as a critical link between the drive’s control logic and its power stage. When the AINT-02C fails or degrades, the entire drive becomes inoperable — halting motors, conveyors, compressors, pumps, and any process tied to that axis of motion. Maintaining a verified spare in your cabinet inventory is the single most effective strategy to reduce mean time to repair (MTTR) and protect production throughput.

At KNMKS, every AINT-02C 68257867 unit is sourced as an original ABB component, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Our inventory is maintained specifically for maintenance engineers and procurement teams who cannot afford lead-time uncertainty on critical drive spares. Whether you are managing a single ACS800 installation or a multi-drive system across several production lines, having this board on your approved spare parts list is a sound engineering and procurement decision.

The ACS800 platform is widely deployed in pulp and paper, oil and gas, mining, water treatment, and heavy manufacturing. The AINT-02C interface board is common across multiple ACS800 frame sizes, making it a high-priority spare for any facility running this drive family. Its role in signal routing, feedback processing, and control communication means that a fault on this board typically presents as a drive trip, loss of speed reference, or communication fault — all of which result in immediate process interruption.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the AINT-02C 68257867, the scope of inspection should extend beyond the board itself. The ACS800 drive is a system, and a control interface board failure is frequently accompanied by — or caused by — degradation in adjacent components. A disciplined site inspection during the replacement window will prevent repeat failures and maximize the value of the planned downtime.

Power Supply Integrity: Verify the APOW-01 or equivalent internal power supply module is delivering stable DC rails to the control board. Voltage ripple or dropout on the 24 VDC supply is a common root cause of interface board faults. Replace the power supply module if output is outside tolerance.

Control Wiring and Terminal Blocks: Inspect all control wiring terminations on the AINT-02C connector rows. Loose, corroded, or over-torqued terminals cause intermittent signal faults that are difficult to diagnose under load. Re-terminate any suspect connections and verify torque to ABB specification.

I/O and Fieldbus Communication Modules: If the drive uses an optional fieldbus adapter — such as the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module — inspect the adapter seating and communication cable integrity. A degraded fieldbus connection can generate faults that appear to originate from the control board.

Encoder and Feedback Cabling: For closed-loop ACS800 applications using the RTAC-01 or similar pulse encoder interface, inspect encoder cables for shielding continuity and connector condition. Encoder signal degradation causes speed reference errors that stress the control interface board.

Relay Outputs and Digital I/O: Test all relay output contacts on the control board for continuity and correct switching. Relay contacts used for run/fault signaling are subject to wear and should be verified during any planned maintenance window.

Backplane and Drive Frame Connectors: Inspect the backplane connector between the AINT-02C and the drive’s power board. Oxidized or damaged connector pins are a frequent cause of board-level faults in drives operating in humid or dusty environments. Clean with approved contact cleaner and inspect for mechanical damage.

Fuses and Protection Devices: Check all control circuit fuses within the drive cabinet. A blown control fuse can cause the AINT-02C to lose supply and generate a fault that mimics board failure. Replace any suspect fuses with correctly rated originals.

Documenting the condition of each inspected component during the replacement creates a maintenance record that supports future fault analysis and spare parts planning. KNMKS recommends maintaining a minimum of one AINT-02C 68257867 in site inventory for every three to five ACS800 drives in service.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm drive DC bus is fully discharged before opening the drive cabinet. ACS800 drives retain hazardous DC voltage for several minutes after AC supply isolation.

Step 2 — Document Current Configuration: Record all drive parameters using the ACS800 control panel (ACS-CP-C or DriveWindow) before removing any hardware. Save parameter backup to panel memory or PC. Note the firmware version and any application macro in use.

Step 3 — Remove the Faulty AINT-02C: Disconnect all ribbon cables and control wiring connectors from the board in sequence. Label each connector if not already marked. Remove the board mounting screws and extract the board using ESD precautions.

Step 4 — Inspect and Clean: Before installing the replacement AINT-02C 68257867, inspect the drive frame, backplane connector, and all mating connectors for damage, corrosion, or contamination. Clean as required.

Step 5 — Install Replacement Board: Install the new AINT-02C, reconnect all cables and connectors in reverse order of removal. Verify all connectors are fully seated. Restore control wiring to terminal blocks per the original wiring diagram.

Step 6 — Power-Up and Parameter Restore: Apply power and restore drive parameters from backup. Verify motor data, control mode, and application macro settings. Run a no-load test before reconnecting the mechanical load.

Step 7 — Functional Verification: Confirm drive responds correctly to start/stop commands, speed reference, and fault reset. Verify fieldbus communication if applicable. Log the replacement in the site maintenance record.

This workflow is applicable whether replacing a failed board on an emergency basis or performing a planned swap during scheduled maintenance. The AINT-02C 68257867 from KNMKS is tested prior to shipment, reducing the risk of installing a defective spare and extending the downtime window.

Spare Parts Support FAQ

Q1: Is the AINT-02C 68257867 compatible with all ACS800 frame sizes?
The AINT-02C is used across multiple ACS800 frame sizes, but compatibility depends on the specific drive variant and firmware revision. Before ordering, confirm your drive’s type designation (e.g., ACS800-01, ACS800-04, ACS800-07) and the existing board reference number. KNMKS technical support can assist with compatibility verification prior to purchase.

Q2: What pre-shipment testing does KNMKS perform on the AINT-02C 68257867?
Each unit undergoes functional verification before dispatch, including power-on testing and interface signal checks. Units are shipped in ESD-safe packaging to prevent transit damage. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment.

Q3: Can KNMKS support long-term supply agreements for the AINT-02C and related ACS800 spares?
Yes. KNMKS supports 12–36 month supply agreements for critical drive spares, including the AINT-02C 68257867 and associated ACS800 components. Long-term agreements provide price stability, reserved inventory, and priority dispatch — reducing procurement risk for facilities with multiple ACS800 drives in service. Contact [email protected] to discuss terms.

Q4: What is the recommended inventory strategy for the AINT-02C 68257867?
For facilities operating three or more ACS800 drives, maintaining one AINT-02C in site inventory is the minimum recommended position. For critical processes where drive downtime directly impacts production output or safety systems, a two-unit inventory buffer is advisable. Annual review of spare parts consumption and drive age should inform restocking decisions. KNMKS can provide inventory consultation as part of our spare parts support service.
