ABB AINT-02C 64802909A Maintenance-Proven Spare for ACS800

Overview

ABB AINT-02C 64802909A Maintenance-Proven Spare for ACS800

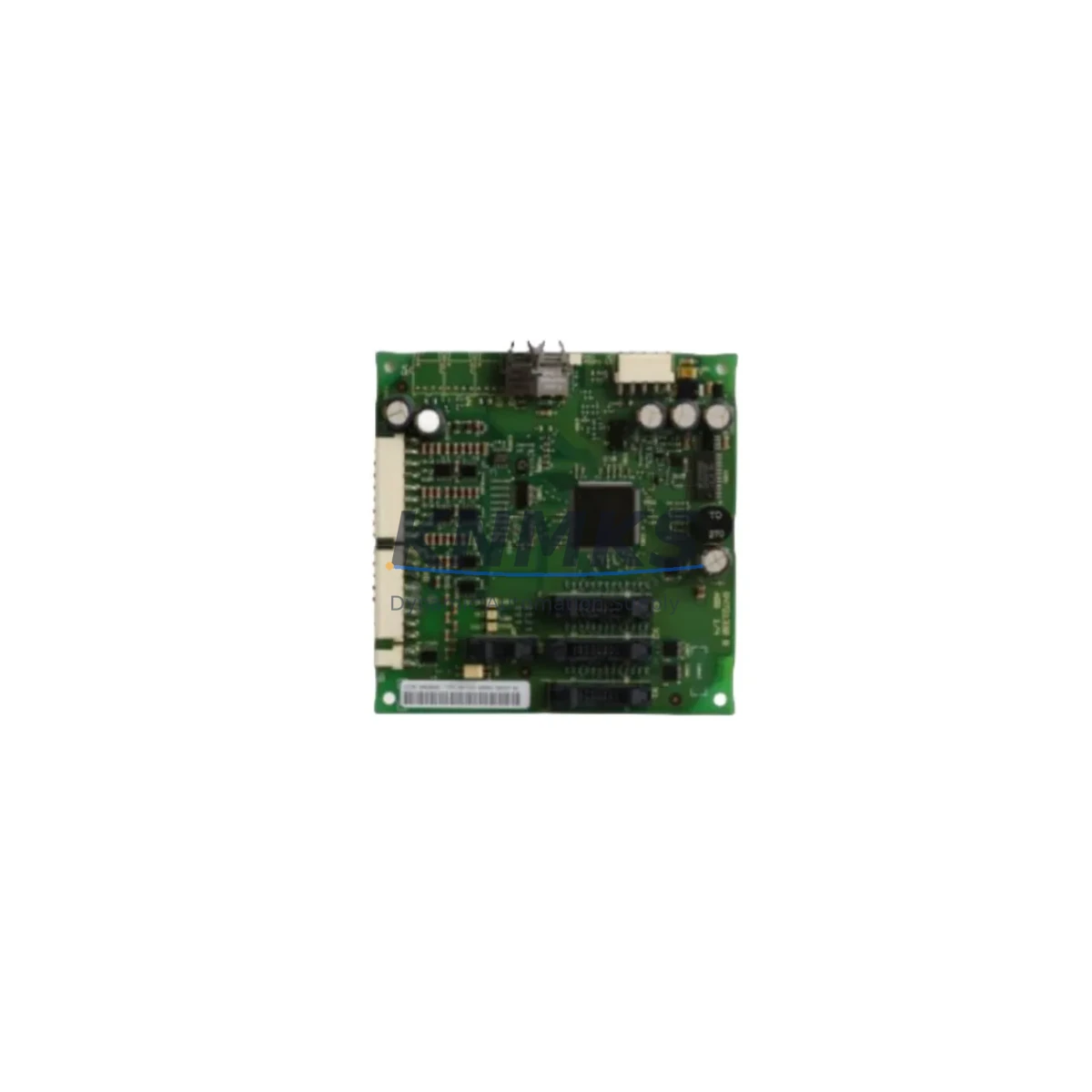

The ABB AINT-02C (part number 64802909A) is the original drive interface board designed for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across pulp and paper, metals, marine, and process automation sectors. Maintaining a verified stock of the AINT-02C is a proven strategy for maintenance engineers who cannot afford unplanned downtime caused by drive communication failures or interface board degradation.

As the primary communication and control interface between the ACS800 drive control unit and external I/O, fieldbus, and supervisory systems, the AINT-02C handles critical signal routing that directly affects drive responsiveness, fault diagnostics, and process continuity. When this board fails — whether due to thermal cycling, voltage transients, or age-related component fatigue — the entire drive becomes non-operational, halting the connected motor and process line. Having a pre-tested, ready-to-install AINT-02C 64802909A on the shelf is the single most effective way to reduce mean time to repair (MTTR) for ACS800-driven systems.

Every unit supplied by KNMKS is sourced from verified industrial channels, inspected against ABB’s original specifications, and subjected to pre-shipment functional testing. A support terms confirmed by quotation is included as standard, covering manufacturing defects and operational failures under normal industrial use conditions. Long-term supply agreements are available for multi-site operations requiring guaranteed stock over 12–36 month horizons.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the AINT-02C 64802909A in an ACS800 drive is rarely an isolated task. Experienced maintenance engineers treat interface board replacement as a trigger for a broader cabinet inspection, because the conditions that degrade the AINT-02C — sustained heat, vibration, and power quality issues — affect surrounding components equally.

During the same maintenance window, engineers should verify the condition of the APOW-01C power supply board, which provides the 24 VDC logic rail that feeds the AINT-02C. A degraded APOW-01C can cause intermittent resets and false fault codes that mimic interface board failure. Similarly, the AINT-02C’s fieldbus adapter slot should be inspected for connector wear — if the drive uses an RDCO-02 DeviceNet adapter or an RETA-01 Ethernet adapter, these modules should be reseated or replaced if communication errors persist after the interface board swap.

The RMIO-11C main control board works in close coordination with the AINT-02C and should be checked for firmware version compatibility after any interface board replacement. Mismatched firmware between the RMIO and AINT boards is a documented cause of post-replacement communication instability in ACS800 systems.

On the power side, inspect the drive’s DC bus fuses and input line fuses — typically located in the drive’s input section — for signs of thermal discoloration or partial blow. Fuse degradation often accompanies the same transient events that damage interface boards. The AGPS-21C gate driver board and AINT-02C’s I/O terminal block wiring should also be checked for loose connections, particularly on analog reference inputs and digital output channels used for process feedback.

For drives integrated into DCS or SCADA systems via Profibus or Modbus, confirm that the RPBA-01 Profibus adapter or equivalent communication module is correctly addressed and that the PLC program’s drive parameter mapping remains valid after the board replacement. A full drive parameter backup using the ACS800’s panel or DriveWindow software before and after replacement is strongly recommended as part of any AINT-02C maintenance procedure.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Use the ACS800 control panel (ACS-CP-C or CDP312R) or ABB DriveWindow software to export a full parameter backup. Store the backup file in the plant’s maintenance management system (CMMS) against the drive asset tag.

Step 2 — Safe Isolation: Isolate the drive from mains supply and allow the DC bus to discharge fully (minimum 5 minutes after power-off, verify with a calibrated DC voltmeter at the bus terminals). Lock out / tag out (LOTO) per site safety procedures.

Step 3 — Board Removal: Disconnect all ribbon cables and I/O connectors from the AINT-02C. Note connector positions with a photograph before removal. Remove the board using the retaining clips — avoid flexing the PCB.

Step 4 — Inspection & Cleaning: Inspect the drive interior for dust accumulation, moisture ingress, or signs of overheating on adjacent boards. Clean with dry compressed air (max 2 bar) before installing the replacement board.

Step 5 — AINT-02C 64802909A Installation: Install the new board, reconnect all cables in the documented sequence, and verify seating of any fieldbus adapter modules. Restore the parameter backup via panel or DriveWindow. Confirm drive ID and motor data parameters are intact.

Step 6 — Commissioning Check: Power up the drive in local control mode. Verify no active faults on the panel. Run the motor at low speed (10–15 Hz) and confirm speed reference tracking, I/O response, and fieldbus communication status before returning the drive to automatic process control.

This workflow minimizes downtime to under 2 hours for a prepared maintenance team with the AINT-02C 64802909A spare on hand, compared to 3–10 days of production loss waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the AINT-02C 64802909A compatible with all ACS800 frame sizes?
The AINT-02C is the standard interface board used across the ACS800 single drive series (R2 to R8 frames) and ACS800 multidrive cabinet configurations. Compatibility should be confirmed against the drive’s type designation label and the existing board part number before ordering. KNMKS technical support can assist with compatibility verification based on your drive’s full type code.

Q2: What pre-shipment testing is performed on each AINT-02C unit?
Each AINT-02C 64802909A supplied by KNMKS undergoes functional verification including power-on logic testing, connector integrity check, and communication interface validation prior to packaging. A test report is available on request. Units are packed in anti-static ESD-safe packaging with desiccant for transit protection.

Q3: Can KNMKS support long-term supply agreements for multi-site ACS800 fleets?
Yes. KNMKS offers 12 to 36-month supply agreements for the AINT-02C 64802909A and related ACS800 spare parts. These agreements include reserved stock allocation, priority dispatch, and fixed pricing to protect against market availability fluctuations — particularly important for legacy drive platforms approaching end-of-manufacture status.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and operational failures arising under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated input tolerance, or physical mishandling. Support requests are processed with a replacement-first policy to minimize site downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AINT-02C 64802909A
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AINT-02C 64802909A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
