ABB AIMA-01C 64535943D Migration-Ready Analog I/O Module

Overview

ABB AIMA-01C 64535943D Migration-Ready Analog I/O Module for Legacy Control Systems

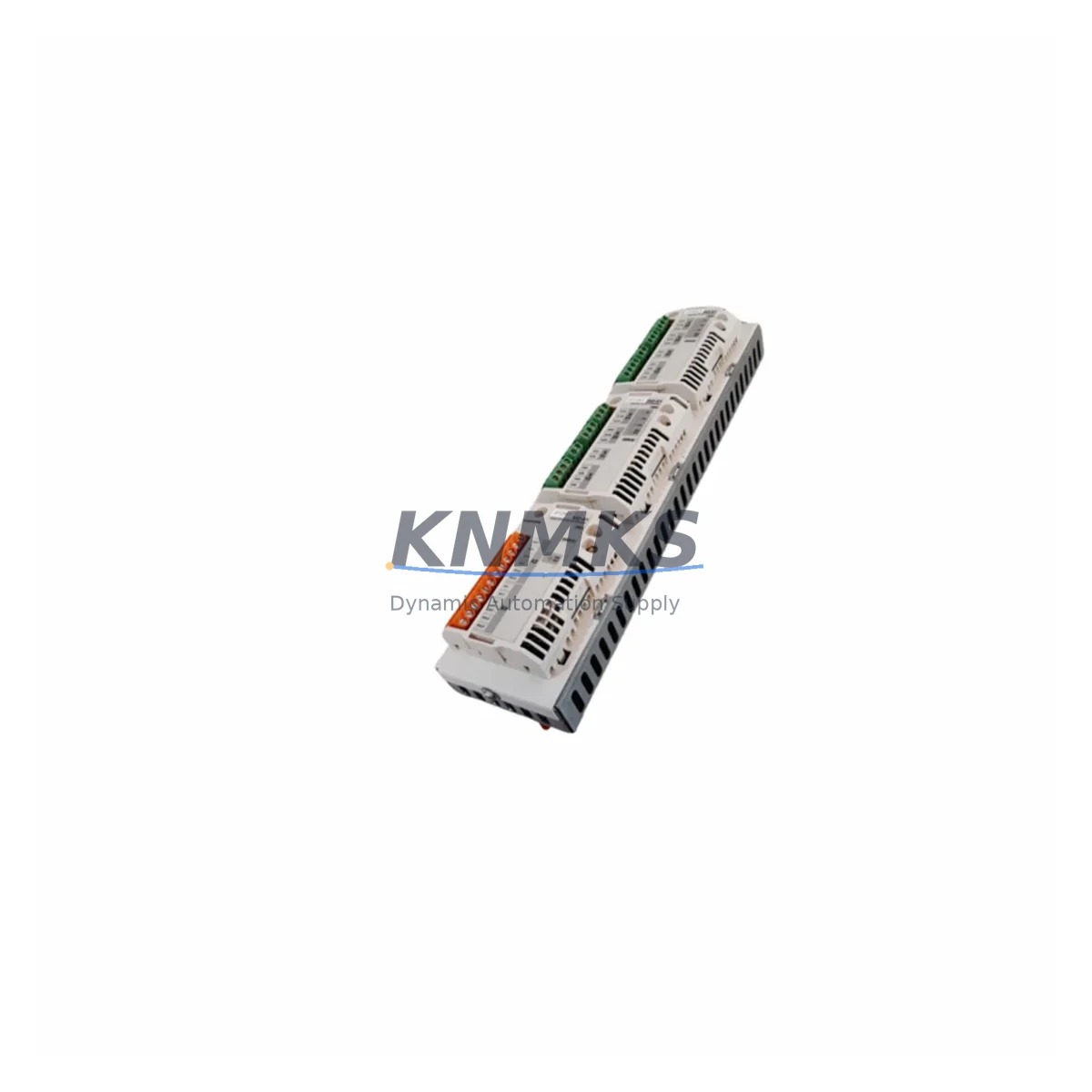

The ABB AIMA-01C (part number 64535943D) is a migration-ready analog I/O module designed for seamless integration into ABB AC500 PLC platforms and legacy automation architectures undergoing modernization. As industrial facilities transition away from end-of-life control hardware, the AIMA-01C serves as a verified drop-in replacement that preserves existing wiring layouts, terminal assignments, and signal conditioning logic — dramatically reducing retrofit engineering hours and unplanned downtime.

This module supports both analog input and output channels, making it a versatile component in process control cabinets where legacy signal chains must be maintained during phased migration. Whether your facility is upgrading from an older ABB Advant or AC31 platform to the AC500 architecture, or consolidating distributed I/O across multiple control zones, the AIMA-01C provides the electrical and functional compatibility required to maintain production continuity throughout the transition.

Each unit supplied by KNMKS is sourced from verified inventory, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation — ensuring your engineering team receives a field-ready module with full traceability documentation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AIMA-01C into a legacy control environment requires a structured pre-retrofit assessment. Engineering teams should begin by auditing the existing AC500 rack configuration — confirming available slot positions, backplane bus load, and the capacity of the installed PS501 or PS502 power supply module. Adding analog I/O channels increases bus current draw, and undersized power modules are a common cause of intermittent faults during post-retrofit commissioning.

Terminal wiring is the next critical checkpoint. The AIMA-01C uses a removable screw-terminal block that is physically compatible with standard AC500 field wiring practice. However, engineers should verify that legacy signal cables — particularly those carrying 4–20mA transmitter loops from pressure, temperature, or flow instruments — are correctly shielded and grounded at the cabinet entry point. Signal isolation may be required if the legacy system used separate signal conditioners or isolators between field devices and the original I/O module.

For facilities migrating from distributed I/O architectures using PROFIBUS DP, the AIMA-01C should be paired with a CM572-DP communication module to maintain fieldbus connectivity. Alternatively, sites transitioning to EtherCAT-based I/O topologies can integrate the AIMA-01C within an AC500 rack alongside the CM577-ETHCAT coupler, preserving the existing analog signal chain while modernizing the network layer. In either case, the TA521 terminal adapter and TB521 terminal base should be confirmed as present in the rack assembly before module insertion.

HMI screen updates are frequently overlooked during analog I/O retrofits. If the facility operates a CP600 or CP400 series operator panel connected to the AC500 CPU, analog tag addresses must be verified against the updated I/O configuration in Automation Builder. Mismatched tag references will cause HMI display errors that are not immediately visible during PLC-only commissioning. A full HMI simulation run against the updated program is recommended before live handover.

Finally, program logic compatibility should be confirmed at the function block level. Analog scaling blocks (SCALE, LIMIT, or custom FB libraries) referencing the original module’s channel addresses must be updated to reflect the new slot assignment. Retaining the original program structure while updating only the I/O addressing minimizes regression risk and preserves the validated control logic developed for the legacy system.

Downtime Control During System Migration

Minimizing production downtime during an analog I/O module replacement requires a disciplined migration sequence. The recommended approach is to complete all pre-staging work — including Automation Builder configuration updates, terminal block pre-wiring on a spare rack, and HMI tag verification — before the scheduled maintenance window begins. This reduces in-cabinet work time to module swap, cable transfer, and online commissioning only.

Before powering down the existing rack, engineers should capture a full online backup of the AC500 CPU program, including all retentive data and I/O force tables. This backup serves as the recovery baseline if commissioning of the AIMA-01C reveals unexpected signal behavior. The PS501 or PS502 power module should be de-energized before module removal to protect both the backplane bus and field-side wiring from transient voltages.

During the live commissioning phase, Automation Builder’s online monitoring mode allows engineers to verify each analog channel’s raw value and scaled engineering unit output before releasing control to the process. Channels should be verified against known reference signals — such as a calibrated 4–20mA loop calibrator or a precision voltage source — to confirm that signal scaling, offset, and range limits are correctly applied in the program.

For critical process loops where control continuity is essential, a temporary manual control strategy should be agreed with the operations team before the migration window opens. This may involve switching PID controllers to manual mode, locking valve positions, or activating bypass interlocks. Documenting the pre-migration process state and restoring it systematically after commissioning is the most reliable method for protecting production continuity and reducing the risk of process upsets during the changeover.

Retrofit Support FAQ

Q: Is the AIMA-01C 64535943D a direct replacement for older ABB analog I/O modules used in AC500 systems?
A: Yes. The AIMA-01C is designed as a compatible replacement within the AC500 S500 I/O family. Engineers should verify slot addressing and firmware version compatibility in Automation Builder before installation. Pre-shipment functional testing is completed on every unit supplied by KNMKS.

Q: What wiring changes are required when replacing a legacy analog module with the AIMA-01C?
A: In most AC500 retrofit scenarios, no wiring changes are required at the field-side terminal block. The removable terminal block can be transferred directly from the legacy module if the pinout is identical. Engineers should confirm channel-to-terminal mapping against the original wiring diagram before transfer.

Q: How is inventory availability and lead time managed for the AIMA-01C?
A: KNMKS maintains multi-region stock of the AIMA-01C 64535943D to support both emergency replacements and scheduled outage windows. Units are available for global dispatch with standard lead times of 3–7 business days. Contact [email protected] for current stock confirmation and expedited shipping options.

Q: What does the support terms confirmed by quotation cover for the AIMA-01C?
A: The support terms confirmed by quotation cover functional defects identified under normal operating conditions from the date of dispatch. Each unit is pre-tested before shipment, and a test report is available on request. Support requests are processed directly through KNMKS with replacement dispatch prioritized to minimize system downtime.
