ABB AI820 3BSE008544R1 Maintenance-Proven Spare Part

Overview

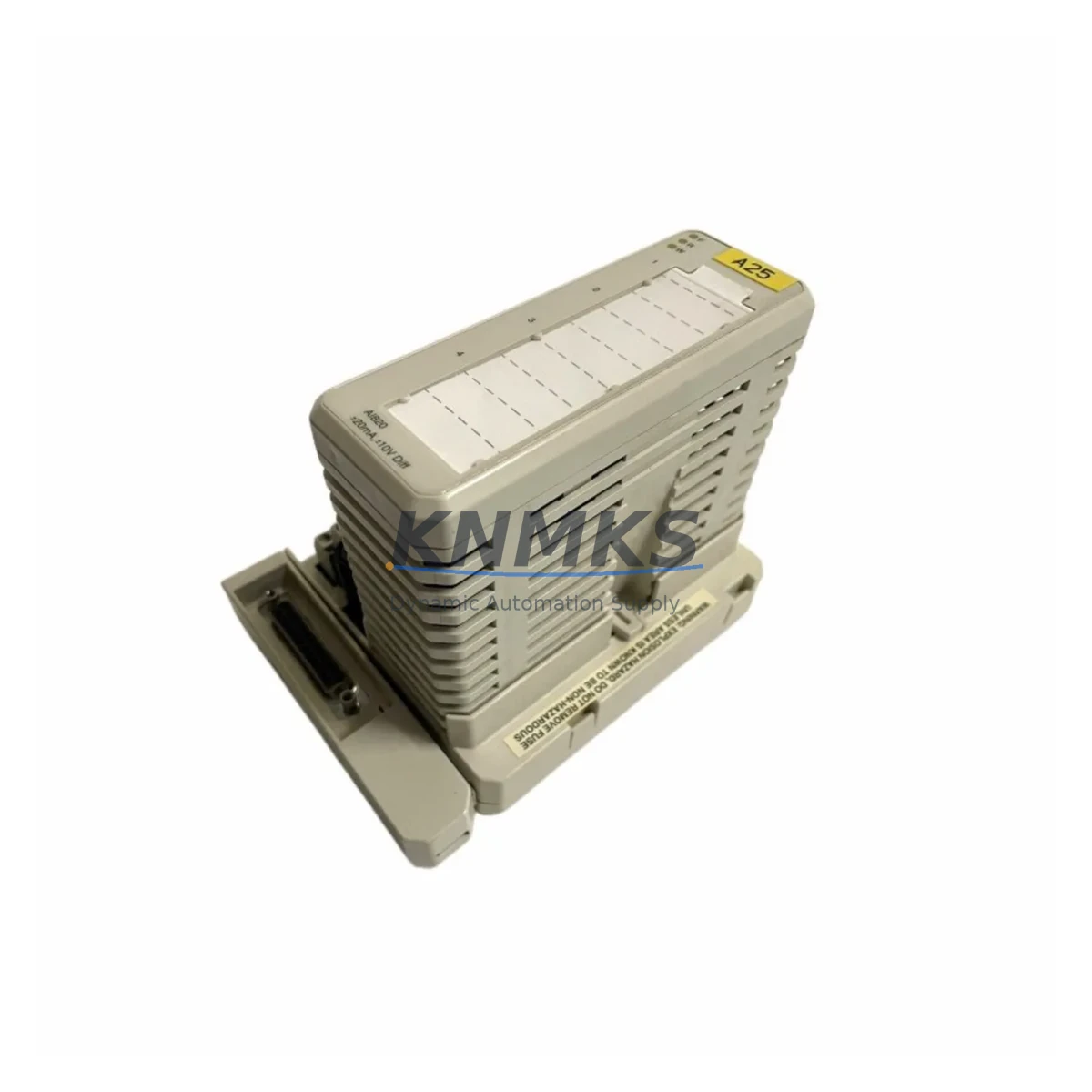

ABB AI820 3BSE008544R1 Maintenance-Proven Spare Part for Factory Uptime

The ABB AI820 (3BSE008544R1) is an original analog input module engineered for the AC500 PLC platform — one of ABB’s most widely deployed programmable automation controllers in process, energy, and discrete manufacturing environments. Sourced directly from authorized supply chains and pre-shipment tested to OEM specifications, this spare part is stocked to support rapid field replacement, scheduled maintenance windows, and long-term spare parts inventory programs. Every unit ships with a support terms confirmed by quotation and full documentation support.

For maintenance engineers managing aging AC500 control cabinets, the AI820 3BSE008544R1 represents a critical node in the analog signal chain. Its failure — or degraded accuracy — can trigger nuisance alarms, process deviations, or unplanned shutdowns. Keeping a verified replacement on the shelf is the single most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AI820 3BSE008544R1 in the field, a disciplined maintenance engineer will not stop at the module itself. The analog input chain extends from the field sensor through signal wiring, terminal blocks, the module, the backplane, and ultimately the CPU — any weak link can mask or mimic a module fault.

Begin by inspecting the TB811 or TB821 terminal base that the AI820 seats into. Worn or corroded terminal contacts are a common cause of intermittent channel errors that are incorrectly attributed to the module. Next, verify the 24 V DC supply rail feeding the S500 I/O station — voltage sag or ripple above 5% can cause analog measurement drift across all channels simultaneously. If the cabinet includes a PS501 or PS502 power supply module, check its output under load before declaring the AI820 faulty.

For multi-rack AC500 installations, inspect the TA526 or TA527 expansion cable connecting remote I/O stations to the CPU rack. Signal integrity issues on the expansion bus can produce sporadic analog read errors that appear module-specific. While the cabinet is open, it is also good practice to verify the CM589-PNIO or CM572-DP communication module firmware version — mismatched firmware between the CPU and communication modules can cause I/O scan cycle anomalies that affect analog update rates.

Finally, review the fuse protection on each analog input channel loop. Field-side short circuits or transient overvoltage events are the leading cause of premature AI820 failure. Installing channel-level fuse terminals or signal isolators upstream of the module significantly extends service life and protects the replacement unit from the same fault that damaged the original.

Site Replacement Workflow

The AI820 3BSE008544R1 is a hot-swap-capable module within the AC500 S500 I/O system when the CPU is configured for modular I/O replacement — however, site safety procedures should always govern whether a live swap is permissible. The recommended replacement sequence is as follows:

1. Fault Isolation: Use the AC500 CPU diagnostic log (accessible via Automation Builder or PS501 Control Builder) to confirm the AI820 is the faulted module. Note the slot address and channel error codes before powering down.

2. Power-Down & Lockout: De-energize the I/O station supply. Apply LOTO (Lockout/Tagout) per site procedure. Disconnect field wiring from the terminal base — label each wire before removal.

3. Module Extraction: Release the AI820 from the terminal base by pressing the release lever and sliding the module upward. The terminal base (TB811/TB821) remains in place — field wiring does not need to be disturbed if the terminal base is retained.

4. Replacement Insertion: Slide the new AI820 3BSE008544R1 into the terminal base until it clicks. Restore power. The AC500 CPU will automatically recognize the module at the configured slot address — no re-parameterization is required if the replacement module matches the original type code.

5. Functional Verification: Force each analog input channel from the CPU diagnostic interface and verify the engineering unit values match expected field signals. Document the replacement in the site maintenance log.

This workflow minimizes downtime to under 30 minutes for a trained technician and eliminates the risk of wiring errors that can damage the replacement module.

Spare Parts Support FAQ

Q1: Is the AI820 3BSE008544R1 compatible with all AC500 CPU variants?
The AI820 is compatible with the full AC500 S500 I/O family, including PM554, PM564, PM573, PM583, PM591, and PM595 CPU modules. It is not compatible with the older AC31 or AC80 platforms. Always verify the CPU firmware version supports the module type code before installation.

Q2: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and functional failure under normal operating conditions (24 V DC supply, rated temperature range, correct installation). It does not cover damage caused by incorrect wiring, overvoltage events, or installation in non-compatible hardware. Support requests are processed with photographic evidence and a fault description — replacement or refund is issued within 10 business days.

Q3: How is the module tested before shipment?
Every AI820 3BSE008544R1 unit undergoes a functional bench test prior to dispatch: power-on verification, channel-by-channel analog input simulation (4–20 mA and 0–10 V), and communication bus handshake confirmation. Test records are available on request for quality-critical procurement.

Q4: Can you support long-term or blanket purchase orders for AC500 spare parts?
Yes. We support annual blanket orders, consignment stock arrangements, and multi-SKU spare parts kits for AC500 maintenance programs. Contact our team to discuss volume pricing, lead time commitments, and custom kitting for your site’s critical spare parts list.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AI820 3BSE008544R1
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AI820 3BSE008544R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
