ABB AI581-S 1SAP282000R0001 Fail-Safe Analog Input SIL3

Overview

ABB AI581-S 1SAP282000R0001 Fail-Safe Analog Input SIL3 – Critical Industrial Field Reliability

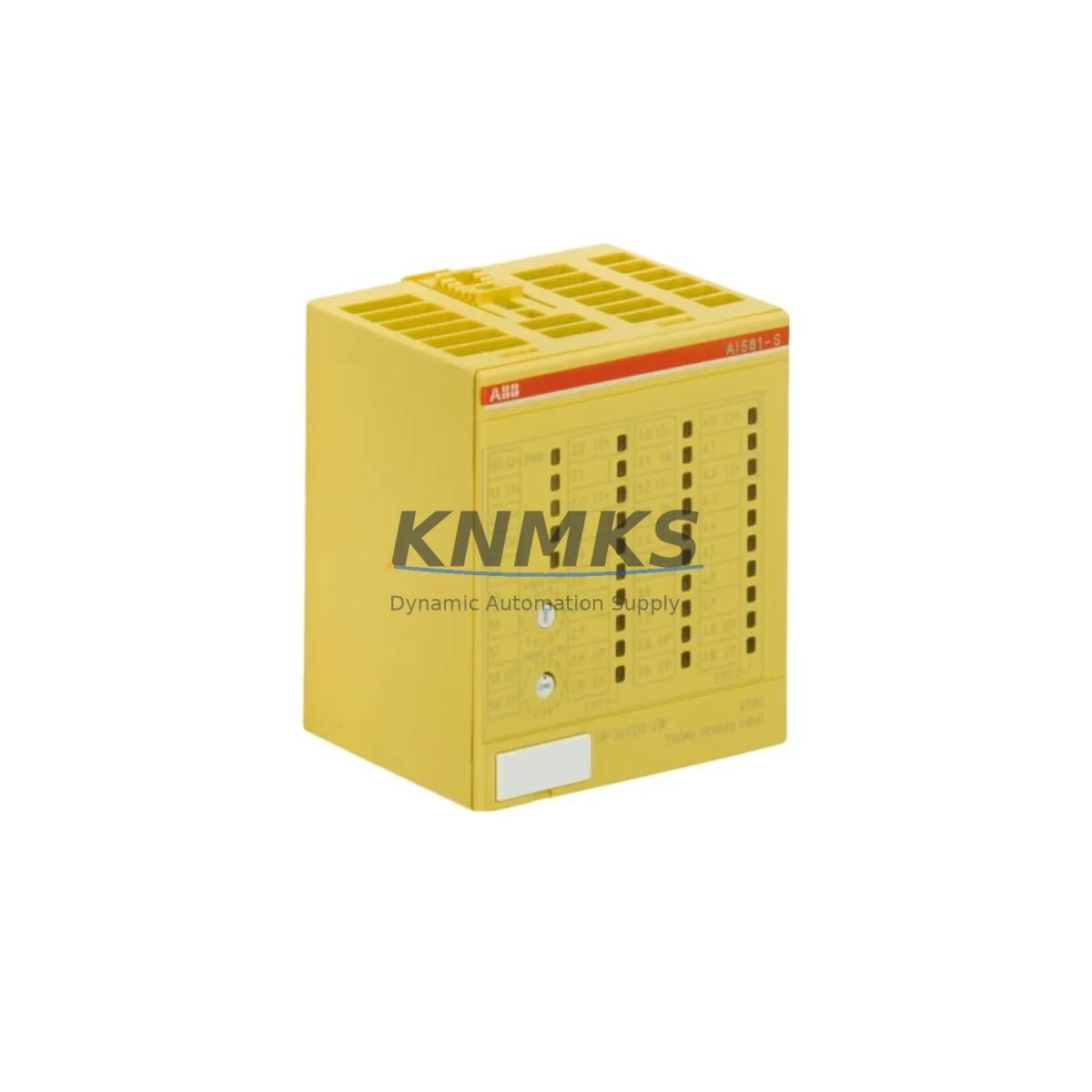

The ABB AI581-S (1SAP282000R0001) is a SIL3 / PLe-rated safety analog input module engineered for the AC500-S Safety PLC platform. Designed to operate in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this module delivers uncompromising fail-safe signal acquisition and control loop protection. Its architecture ensures that analog process signals are acquired, validated, and transmitted to the safety CPU with full diagnostic coverage, eliminating the risk of undetected signal drift, channel cross-talk, or silent data corruption that could trigger unplanned shutdowns or dangerous machine states.

In high-electromagnetic-interference environments such as heavy motor drive cabinets, arc furnace control rooms, and variable-frequency drive enclosures, the AI581-S maintains signal integrity through hardware-level galvanic isolation and differential input design. This makes it a preferred choice for safety instrumented systems (SIS) where 4–20 mA transmitter signals from pressure, temperature, flow, and level sensors must be processed without deviation. The module’s self-diagnostic routines continuously monitor input channel health, power rail stability, and internal reference accuracy — flagging faults before they propagate into the safety logic layer.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the AI581-S within a safety-rated control cabinet requires a coordinated approach to power quality, communication integrity, and redundant signal validation. In a typical AC500-S safety architecture, the AI581-S operates alongside the ABB DC532 digital input module for discrete safety interlock signals and the ABB AO523 analog output module for closed-loop control of final control elements such as control valves and variable-speed drives. The safety CPU — commonly the ABB PM573-ETH or PM595-4ETH-XC — orchestrates the safety logic, while the ABB TB523 terminal base provides the mechanical and electrical interface for the AI581-S within the modular rack.

Power supply integrity is critical in safety-rated cabinets. Surge events, voltage sags, and high-frequency conducted noise from adjacent drives can corrupt analog reference rails and introduce measurement errors. Pairing the AI581-S with a ABB CP-E 24/5.0 redundant power supply ensures that the 24 VDC rail feeding the safety module remains within specification even during grid disturbances. For installations in dusty, humid, or high-vibration environments — such as cement plants, offshore platforms, or mining headframes — cabinet thermal management and IP-rated enclosure selection are equally important to sustaining the AI581-S’s long-term measurement accuracy and SIL3 claim.

Communication between the AI581-S and the safety CPU traverses the internal AC500-S backplane bus, which is inherently protected against external network intrusion. However, for distributed safety architectures using PROFIBUS DP or PROFINET IO field networks, ensuring proper cable shielding, grounding topology, and network segmentation prevents communication anomalies that could trigger nuisance safety trips or, worse, mask genuine fault conditions.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the AI581-S is deployed in emergency shutdown systems (ESD) and fire-and-gas (F&G) detection loops where SIL3 integrity is mandated by IEC 61511. It acquires 4–20 mA signals from pressure transmitters monitoring reactor vessel integrity, ensuring that the safety PLC receives accurate, validated data to initiate safe-state transitions before overpressure events escalate.

In power generation and grid substations, the module supports turbine protection systems and generator excitation control loops. Its high diagnostic coverage prevents undetected analog channel failures that could lead to turbine overspeed or generator loss-of-field events — both of which carry catastrophic consequences for grid stability and personnel safety.

In mining and mineral processing, the AI581-S monitors conveyor belt load cells, crusher motor current signals, and slurry pump pressure transmitters within safety instrumented functions (SIF). Its tolerance for high-vibration and wide-temperature environments makes it suitable for surface and underground installations where standard I/O modules fail prematurely.

In water and wastewater treatment, the module integrates into chlorination dosing control and pump station safety loops, where signal accuracy directly impacts both process efficiency and public health compliance. Its continuous self-diagnostics reduce the frequency of proof tests required to maintain SIL3 claim, lowering lifecycle maintenance costs.

In metallurgical and steel production environments, the AI581-S withstands the intense electromagnetic interference generated by electric arc furnaces and induction heating systems, maintaining reliable signal acquisition for temperature and flow safety loops in ladle handling and continuous casting operations.

Safety and Quality FAQ

Q1: Does the AI581-S 1SAP282000R0001 come with a support terms confirmed by quotation?
Yes. Every unit is covered by a support terms confirmed by quotation from the date of shipment, covering parts and labor for any manufacturing or functional defects. Support requests are processed directly through our technical support team at [email protected].

Q2: What pre-shipment testing is performed on each unit?
Each AI581-S undergoes a full functional test prior to dispatch, including channel-by-channel analog input verification, power rail stability check, and communication interface validation against the AC500-S backplane protocol. Test records are available upon request.

Q3: Is this module compatible with existing ABB AC500-S safety PLC installations?
Yes. The AI581-S is fully compatible with the ABB AC500-S safety CPU family, including PM573-ETH, PM583-ETH, and PM595-4ETH-XC processors. It is configured via ABB Automation Builder with the standard AC500-S safety library, requiring no hardware modifications to existing racks.

Q4: Can long-term supply be guaranteed for critical spare parts planning?
We maintain multi-region stock of the AI581-S 1SAP282000R0001 to support emergency replacement and planned maintenance schedules. For critical infrastructure operators requiring guaranteed availability windows of 6–24 months, contact our team to discuss dedicated stock reservation agreements.
