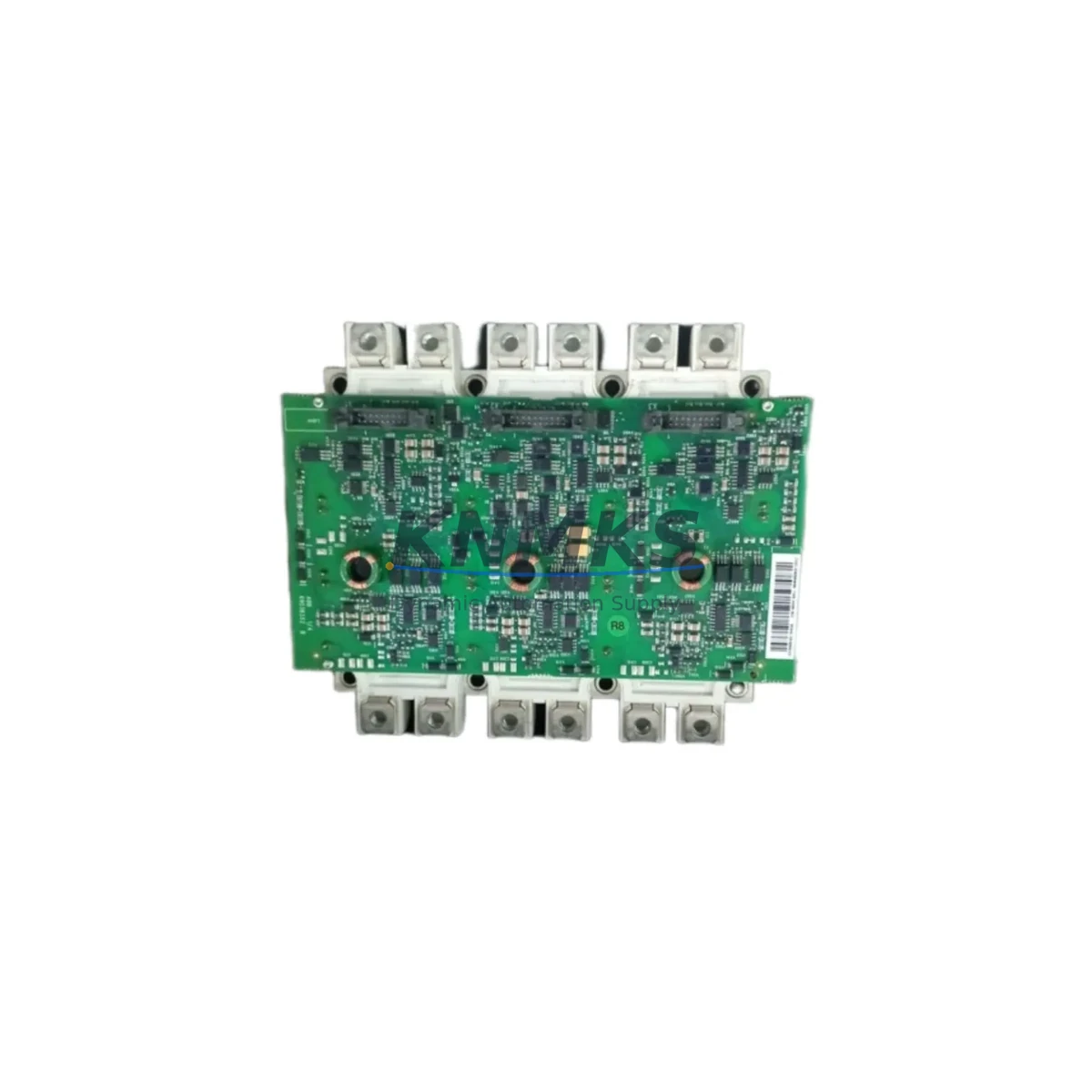

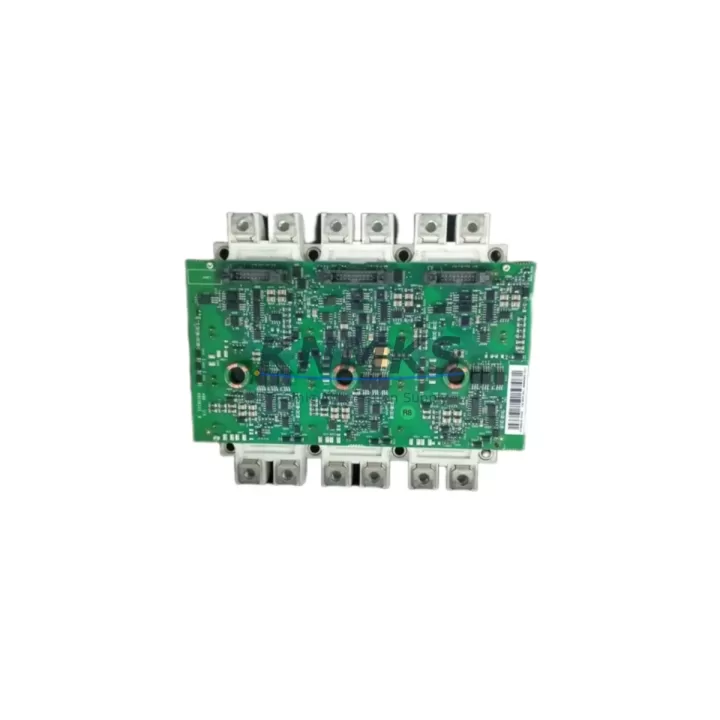

ABB AGDR-81C FS450R17KE3 Migration-Ready IGBT Gate Driver

Overview

ABB AGDR-81C FS450R17KE3 Migration-Ready IGBT Gate Driver for Legacy ACS800 Control Systems

The ABB AGDR-81C paired with the FS450R17KE3 IGBT module represents one of the most reliable retrofit solutions available for aging ACS800 medium-voltage drive platforms. As original ABB ACS800 installations approach end-of-service life and spare parts become increasingly difficult to source through standard distribution channels, the AGDR-81C gate driver unit provides a direct, wiring-compatible replacement path that preserves existing control cabinet architecture while restoring full drive functionality. This unit is sourced from verified supply chains, pre-shipment tested under load conditions, and backed by a support terms confirmed by quotation — making it a dependable choice for maintenance engineers managing legacy automation assets in steel, paper, cement, oil & gas, and water treatment industries.

When planning a replacement of the IGBT power stack in an ACS800 drive, the AGDR-81C gate driver board interfaces directly with the FS450R17KE3 IGBT module (1700V / 450A rating), maintaining the original gate signal timing, fault feedback loop, and thermal protection logic. Engineers should confirm DC bus voltage levels, gate resistor values, and fiber optic signal integrity from the AINT or RDCU control board before commissioning. The existing APOW-01 power supply module feeding the gate driver must be verified for output voltage stability, as degraded auxiliary power is a common root cause of nuisance IGBT fault trips in aged ACS800 cabinets.

For sites running ACS800 units in parallel inverter configurations, the AGDR-81C replacement must be synchronized with the existing phase-leg timing. Technicians should document the current RMIO or RDCU firmware version and confirm that the replacement gate driver is compatible before energizing. In cases where the drive communicates via PROFIBUS-DP or Modbus RTU through an NPBA-12 or NMBA-01 fieldbus adapter, no protocol reconfiguration is required — the gate driver replacement is transparent to the communication layer.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 IGBT stack retrofit begins well before the replacement unit arrives on site. Maintenance teams should pull the drive’s fault history log from the RDCU or RMIO control board using DriveWindow or DriveStudio software to confirm whether the failure is isolated to the gate driver or extends to the FS450R17KE3 IGBT module itself. In many cases, a single desaturation fault event caused by a weakened gate driver will trigger cascading IGBT damage — meaning both the AGDR-81C and the FS450R17KE3 module may need simultaneous replacement to restore reliable operation.

Before removing the failed gate driver, photograph all fiber optic cable routing and terminal wiring connections. The AGDR-81C connects to the AINT interface board via two fiber optic cables (TX/RX); incorrect reconnection is a leading cause of commissioning delays. The APOW-01 auxiliary power supply module should be tested independently — output ripple above 200mV at 24VDC is sufficient to cause intermittent gate driver faults even with a new AGDR-81C installed. If the APOW-01 is original to the drive and has accumulated more than 80,000 operating hours, proactive replacement is recommended as part of the same maintenance window.

For ACS800 multidrive installations using a common DC bus, the replacement sequence must account for the inverter module address settings stored in the RDCU board’s parameter group 97. These settings govern the phase-leg firing sequence and must be re-entered or verified after any power stack intervention. Sites using DDCS fiber ring communication between the master RDCU and satellite inverter units should confirm ring continuity before re-energizing. Where HMI panels running Panel Builder or DriveWindow display custom motor control screens, no screen reconfiguration is needed — the AGDR-81C replacement does not alter the drive’s parameter set or communication node address.

In retrofit projects involving older ACS800 cabinets with original busbars and terminal blocks, engineers should inspect the DC bus capacitor bank condition and the snubber circuit integrity on the IGBT module mounting plate. Degraded snubber capacitors can generate voltage spikes that stress a new gate driver within weeks of installation. Replacing the FS450R17KE3 module and AGDR-81C gate driver as a matched set — along with a thermal interface pad inspection — is the recommended practice for maximizing mean time between failures in the retrofitted drive.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 IGBT gate driver replacement requires advance preparation and a disciplined commissioning sequence. The recommended approach is to pre-stage the replacement AGDR-81C and FS450R17KE3 module in the maintenance workshop, bench-test the gate driver with a signal generator to verify switching waveforms, and prepare all fiber optic cables and terminal labels before the planned maintenance window opens.

On-site, the replacement sequence should follow ABB’s standard ACS800 power module exchange procedure: isolate and lock out the drive, discharge the DC bus to below 50VDC (verified with a calibrated meter), remove the failed gate driver and IGBT module, install the replacement set, reconnect fiber optics and auxiliary power, and perform a low-voltage insulation test before re-energizing. The entire exchange — when parts are pre-staged and the team is familiar with the cabinet layout — can typically be completed within a 4–6 hour maintenance window, preserving the original motor control program, PID parameters, and speed reference scaling stored in the RDCU board.

Where production continuity is critical, sites with a spare ACS800 inverter module or a hot-standby drive configuration can execute a module swap without halting the process line. For single-drive installations without redundancy, coordinating the replacement with a scheduled production changeover or shift break is the most effective strategy for downtime control. All replacement units shipped from our inventory are pre-tested and include a commissioning checklist to support rapid on-site verification.

Retrofit Support FAQ

Q1: Is the AGDR-81C a direct drop-in replacement for the original ABB gate driver in ACS800 drives?
Yes. The AGDR-81C is the original ABB-specified gate driver for the FS450R17KE3 IGBT module used in ACS800 power stacks. It mounts directly to the IGBT module using the original bolt pattern and connects to the AINT interface board via the same fiber optic connectors. No wiring adaptation or firmware change is required on the drive control board.

Q2: How do I confirm whether I need to replace only the AGDR-81C or also the FS450R17KE3 IGBT module?
Review the drive’s fault log for desaturation (IGBT fault) codes. If the fault occurred during normal load conditions without an upstream overcurrent event, the gate driver is the likely primary failure. If the fault was preceded by a short-circuit or overcurrent trip, the FS450R17KE3 module should be tested for gate-emitter and collector-emitter integrity using a diode test before assuming the gate driver alone is at fault. We recommend replacing both as a matched set when the drive has accumulated significant operating hours.

Q3: What pre-shipment testing is performed on the AGDR-81C before dispatch?
Each AGDR-81C unit undergoes gate signal output verification, fault feedback loop testing, auxiliary power input range testing (22–26 VDC), and insulation resistance measurement before packaging. A test record is available upon request. Units are shipped in anti-static packaging with foam protection to prevent transit damage.

Q4: What support terms and after-sales support is provided?
All AGDR-81C units are covered by a support terms confirmed by quotation from the date of invoice, covering manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support commissioning queries, wiring verification, and fault diagnosis via email or phone. In-stock units typically ship within 1–3 business days of order confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AGDR-81C FS450R17KE3
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AGDR-81C FS450R17KE3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
