ABB AGDR-76C 68436800A Spare Part for ACS800

Overview

ABB AGDR-76C 68436800A Spare Part for ACS800

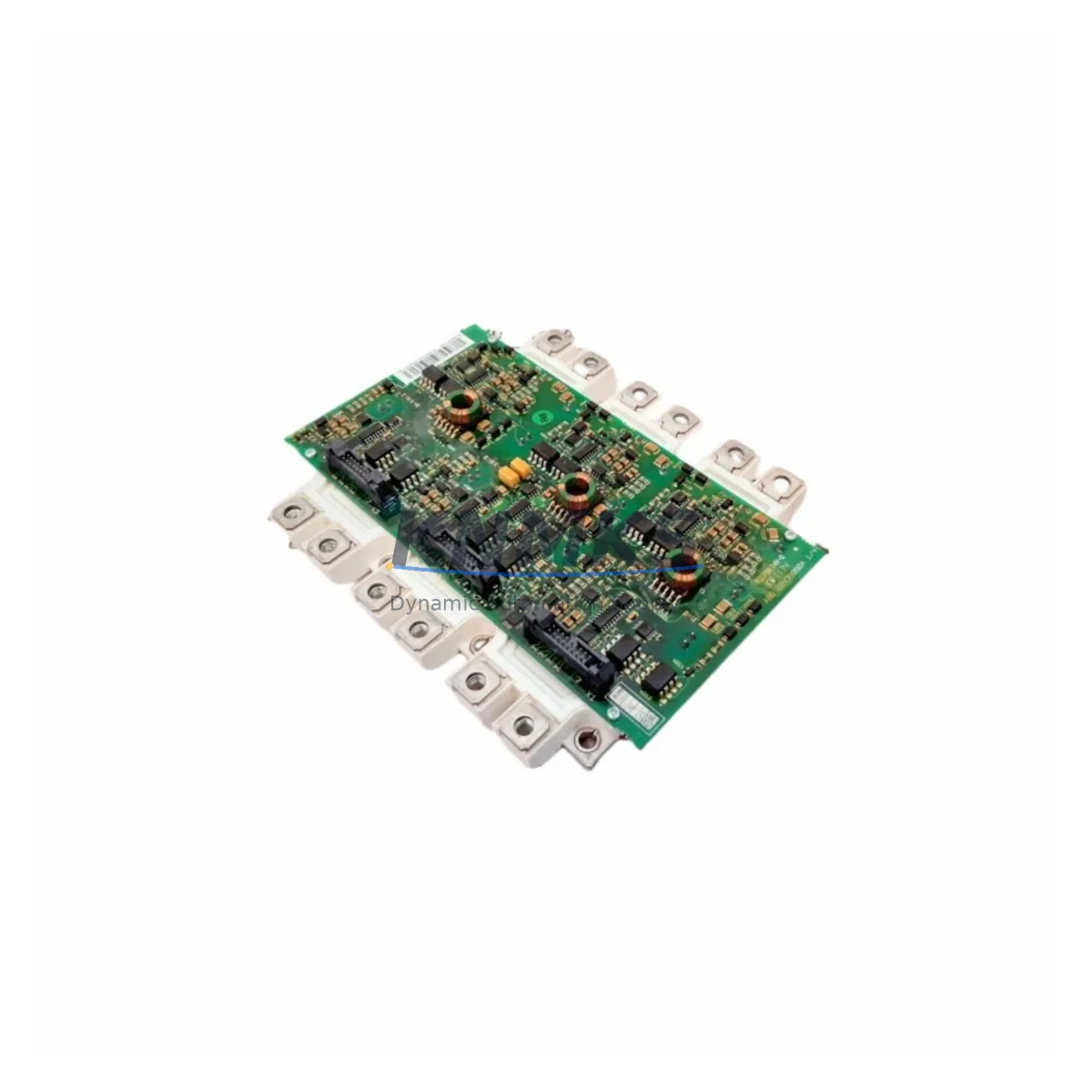

The ABB AGDR-76C (part number 68436800A) is an original IGBT gate driver board engineered for ABB ACS800 series AC drives. For maintenance engineers managing aging drive cabinets, this board represents a critical spare that directly governs IGBT switching performance, thermal protection response, and fault isolation within the power stage. Whether you are responding to an unplanned drive trip, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a high-availability production line, the AGDR-76C 68436800A delivers the electrical compatibility and mechanical fit required for a reliable, low-risk replacement.

The ACS800 platform remains widely deployed across pulp and paper, metals, mining, water treatment, and heavy manufacturing facilities worldwide. As original ABB production of certain ACS800 sub-assemblies transitions to end-of-life, sourcing verified original spare boards becomes increasingly important for maintenance teams committed to extending system service life without full drive replacement. The AGDR-76C is one of the most frequently requested gate driver boards in this series, and confirmed stock availability with pre-shipment testing is a key procurement consideration for any site running ACS800 units in critical process roles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for ACS800-based systems requires a broader view than the gate driver board alone. When the AGDR-76C 68436800A is identified as a fault source or scheduled replacement item, a thorough site inspection should extend to the surrounding electrical circuit and control architecture.

Begin with the internal switch-mode power supply (SMPS) that feeds auxiliary voltages to the gate driver board. A degraded SMPS can cause intermittent gate driver faults that appear as IGBT failures but originate upstream. Inspect the AINT-02C or AINT-14C interface board, which handles the communication link between the drive control unit and the power stage — a faulty interface board can corrupt gate timing signals and cause nuisance trips even after a gate driver replacement. The APOW-01C power supply board should also be checked for capacitor aging and output voltage stability before the new AGDR-76C is commissioned.

On the I/O and control side, verify the RDIO-01 digital I/O extension module and any RAIO-01 analog I/O modules for correct signal levels, particularly if the drive fault was accompanied by process signal anomalies. For drives integrated into a fieldbus network, inspect the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen adapter for connector integrity and termination resistance — communication faults can mask or compound gate driver issues during fault diagnosis. Terminal blocks and wiring harnesses within the drive cabinet should be inspected for thermal discoloration, loose crimps, and insulation degradation, especially on high-current DC bus connections adjacent to the IGBT module stack.

For sites maintaining a strategic spare parts inventory, it is recommended to stock the AGDR-76C 68436800A alongside the AINT interface board and the APOW power supply board as a matched set. This approach minimizes diagnostic uncertainty during emergency callouts and reduces mean time to repair (MTTR) when a power stage fault occurs during a critical production window.

Site Replacement Workflow

A structured replacement workflow minimizes downtime and protects the integrity of the existing drive program and parameter set. Before beginning any physical work, upload the current drive parameter set using DriveWindow or DriveStudio software and store a backup on a separate device. Record all active fault codes and event log entries — this data is essential for root cause analysis and may be lost if the drive control board is also replaced or reset during the process.

Isolate the drive from the AC supply and confirm zero voltage on the DC bus using a calibrated meter before opening the drive cabinet. Allow sufficient discharge time for DC bus capacitors — typically a minimum of five minutes after supply isolation, confirmed by voltage measurement. Remove the faulty AGDR-76C board by releasing the backplane connector retention mechanism and carefully extracting the board without stressing adjacent wiring or fiber optic cables connected to the AINT interface board.

Install the replacement AGDR-76C 68436800A, ensuring the backplane connector is fully seated and retention screws are torqued to specification. Before restoring power, verify that the hardware revision suffix on the replacement board matches the original — mismatched revisions can cause compatibility issues with the drive firmware. Power up the drive in local control mode and run a short no-load test cycle to confirm gate driver operation before reconnecting the motor load. Check the drive event log for any new fault codes and verify that all I/O signals are responding correctly before returning the drive to automatic process control.

Document the replacement date, board serial number, and post-installation test results in the site maintenance record. This documentation supports support requests and provides a traceable maintenance history for future audits or insurance inspections.

Spare Parts Support FAQ

Q1: Is the AGDR-76C 68436800A compatible with all ACS800 variants?
The AGDR-76C 68436800A is designed for specific ACS800 power stage configurations. Compatibility depends on the drive frame size, IGBT module type, and hardware revision of the existing gate driver assembly. Always cross-reference the part number and hardware revision label on the original board before ordering. Our technical team can assist with compatibility verification based on your drive nameplate data and existing board markings.

Q2: How is each unit tested before shipment?
Every AGDR-76C 68436800A unit undergoes a functional pre-shipment test covering gate signal output integrity, protection circuit response, and auxiliary power input verification. Test results are recorded and available upon request. Units that do not pass all test criteria are not dispatched. This process ensures that the board you receive is ready for installation without additional bench testing on site.

Q3: What is the lead time and long-term supply availability?
We maintain confirmed stock of the AGDR-76C 68436800A and can confirm availability and lead time at the time of inquiry. For sites with multiple ACS800 units in service, we recommend discussing a blanket order or reserved stock arrangement to ensure supply continuity as original ABB production of legacy ACS800 components continues to wind down. Long-term supply planning is a core part of our service for industrial maintenance customers.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified electrical parameters. In the event of a support terms claim, we provide a replacement unit or repair service with priority handling to minimize site downtime. Support terms support is available directly through [email protected].
