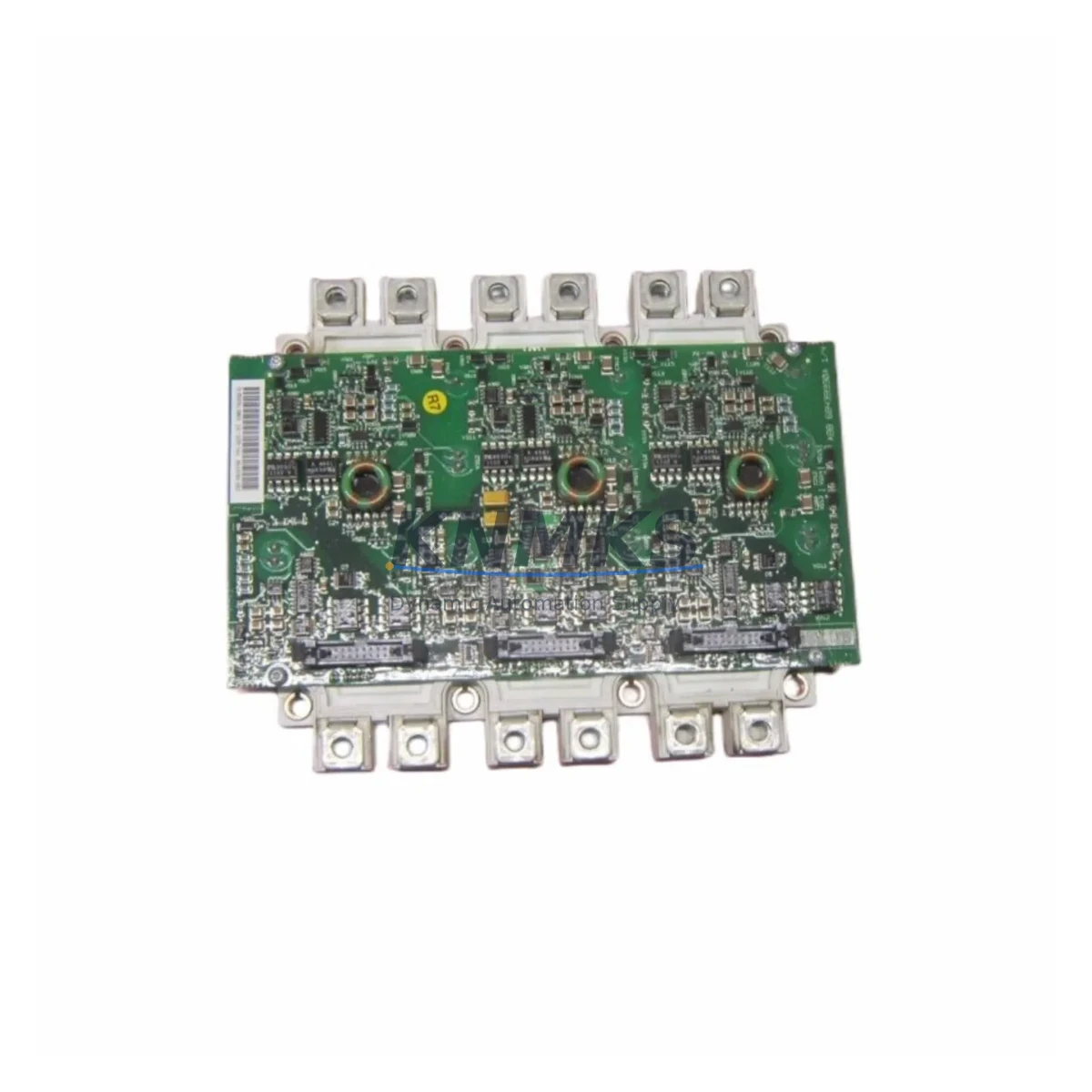

ABB AGDR-72C 68436788A Fail-Safe IGBT Gate Driver

Overview

ABB AGDR-72C 68436788A Fail-Safe IGBT Gate Driver: Fault Protection and Critical Industrial Field Reliability

The ABB AGDR-72C (Part No. 68436788A) is a precision-engineered IGBT gate driver module designed for uninterrupted operation in the most demanding industrial control environments. Purpose-built for ABB ACS800 and ACS880 series variable frequency drives, this gate driver delivers fail-safe switching control, robust fault isolation, and consistent signal integrity — even under high electromagnetic interference, voltage transients, and thermally stressed cabinet conditions.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, port logistics systems, and marine propulsion control rooms — an IGBT gate driver failure can cascade into unplanned downtime, equipment damage, or safety interlock violations. The AGDR-72C is engineered to eliminate these risks through hardware-level fault detection, galvanic isolation, and surge-hardened signal paths that maintain control loop integrity when it matters most.

Every unit shipped from KNMKS undergoes pre-delivery functional testing, including gate signal verification, isolation resistance measurement, and power-on self-check validation. This ensures that replacement modules arrive ready for immediate installation without additional bench testing — reducing mean time to repair (MTTR) in critical field scenarios.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ACS800 or ACS880 drive cabinet, the AGDR-72C does not operate in isolation — it functions as a critical node within a layered protection architecture. When paired with the ABB AINT-02C auxiliary interface board, the gate driver receives clean, noise-filtered control signals from the drive’s main control unit, reducing the risk of spurious switching events caused by cabinet-level EMI from adjacent contactors or bus bars.

For power supply stability, the AGDR-72C relies on a regulated 24 VDC auxiliary supply. Deploying an ABB CP-D 24/1.0 DIN-rail power supply or equivalent redundant SMPS unit within the same cabinet ensures that gate driver logic remains powered during input voltage sags or brief supply interruptions — a common failure mode in facilities with weak grid infrastructure or frequent motor starts on shared feeders.

In safety-critical interlock circuits, the AGDR-72C is often installed alongside ABB RDCO-03C DDCS communication option boards, which handle fiber-optic control links between the drive’s inverter section and the main control board. Maintaining signal integrity across this fiber link is essential: any communication fault detected by the RDCO-03C will trigger a controlled gate shutdown via the AGDR-72C, preventing uncontrolled IGBT conduction and protecting both the motor and the mechanical load.

For thermal management within high-density drive cabinets, integrating ABB RETA-02 Ethernet adapter modules or drive-level temperature monitoring cards allows operators to track heatsink and ambient temperatures in real time. When cabinet temperatures approach the AGDR-72C’s operating ceiling, proactive fan speed adjustment or load shedding can be triggered before thermal stress degrades gate driver performance. Additionally, ABB RDIO-01C digital I/O extension modules are commonly used in the same control rack to expand fault signal routing — ensuring that AGDR-72C fault outputs are captured, logged, and escalated to the plant DCS or SCADA system without relay bounce or signal loss.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area motor control centers driving compressors, pumps, and agitators, the AGDR-72C provides the gate-level fault isolation needed to prevent uncontrolled motor runaway during process upsets. Its desaturation detection capability ensures that IGBT overcurrent events are clamped within microseconds — protecting both the drive inverter and the connected process equipment from catastrophic failure.

Power Generation & Grid Substations: Variable speed drives controlling boiler feed pumps, cooling water systems, and auxiliary generators depend on gate driver reliability for continuous operation. A failed gate driver in this context can force a unit trip, resulting in generation loss and grid instability. The AGDR-72C’s surge-hardened design and hardware fault detection make it a preferred replacement module in power plant maintenance programs.

Mining & Mineral Processing: High-inertia loads such as ball mills, conveyor drives, and slurry pumps subject drive inverters to repeated high-current switching cycles. The AGDR-72C is rated for these demanding duty cycles and provides consistent gate charge/discharge performance across the full load range — reducing the risk of IGBT thermal runaway during extended heavy-load operation.

Water & Wastewater Treatment: In pump stations and aeration blower drives operating in humid, corrosive environments, the AGDR-72C’s conformal coating compatibility and galvanic isolation protect the gate driver circuitry from moisture ingress and chemical contamination — extending service life and reducing unplanned maintenance interventions.

Metallurgy & Steel Mills: Rolling mill drives and crane hoist systems require precise torque control and rapid fault response. The AGDR-72C’s low propagation delay and hardware-level protection ensure that fault conditions are isolated before mechanical damage occurs — supporting both personnel safety and equipment protection in high-energy environments.

Port Logistics & Marine Applications: Ship-to-shore crane drives and vessel propulsion systems operating in salt-air, high-vibration environments benefit from the AGDR-72C’s robust mechanical design and EMI-resistant signal paths. Reliable gate driver operation in these conditions is essential for maintaining cargo throughput and vessel maneuverability.

Safety and Quality FAQ

Q1: What support terms coverage does the ABB AGDR-72C 68436788A carry?
Every AGDR-72C unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and gate signal integrity issues. Support requests are supported by our technical team with rapid replacement dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Each AGDR-72C undergoes a structured pre-delivery inspection including: gate signal output verification, galvanic isolation resistance measurement, power-on self-check, and visual inspection for component integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the AGDR-72C 68436788A compatible with both ACS800 and ACS880 drive platforms?
Yes. The AGDR-72C is designed for use across ABB’s ACS800 and ACS880 drive families in applicable inverter configurations. For specific frame size and inverter module compatibility, consult the ABB ACS800/ACS880 hardware manual or contact our technical sales team with your drive nameplate data for confirmation before ordering.

Q4: Can KNMKS support long-term or repeat supply of the AGDR-72C for planned maintenance programs?
Yes. KNMKS maintains standing inventory of the AGDR-72C 68436788A to support both emergency replacement and scheduled preventive maintenance programs. We offer volume pricing, reserved stock agreements, and global delivery details confirmed by RFQ to minimize lead times for critical spare parts programs across petrochemical, power, mining, and manufacturing sectors.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AGDR-72C 68436788A
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AGDR-72C 68436788A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
