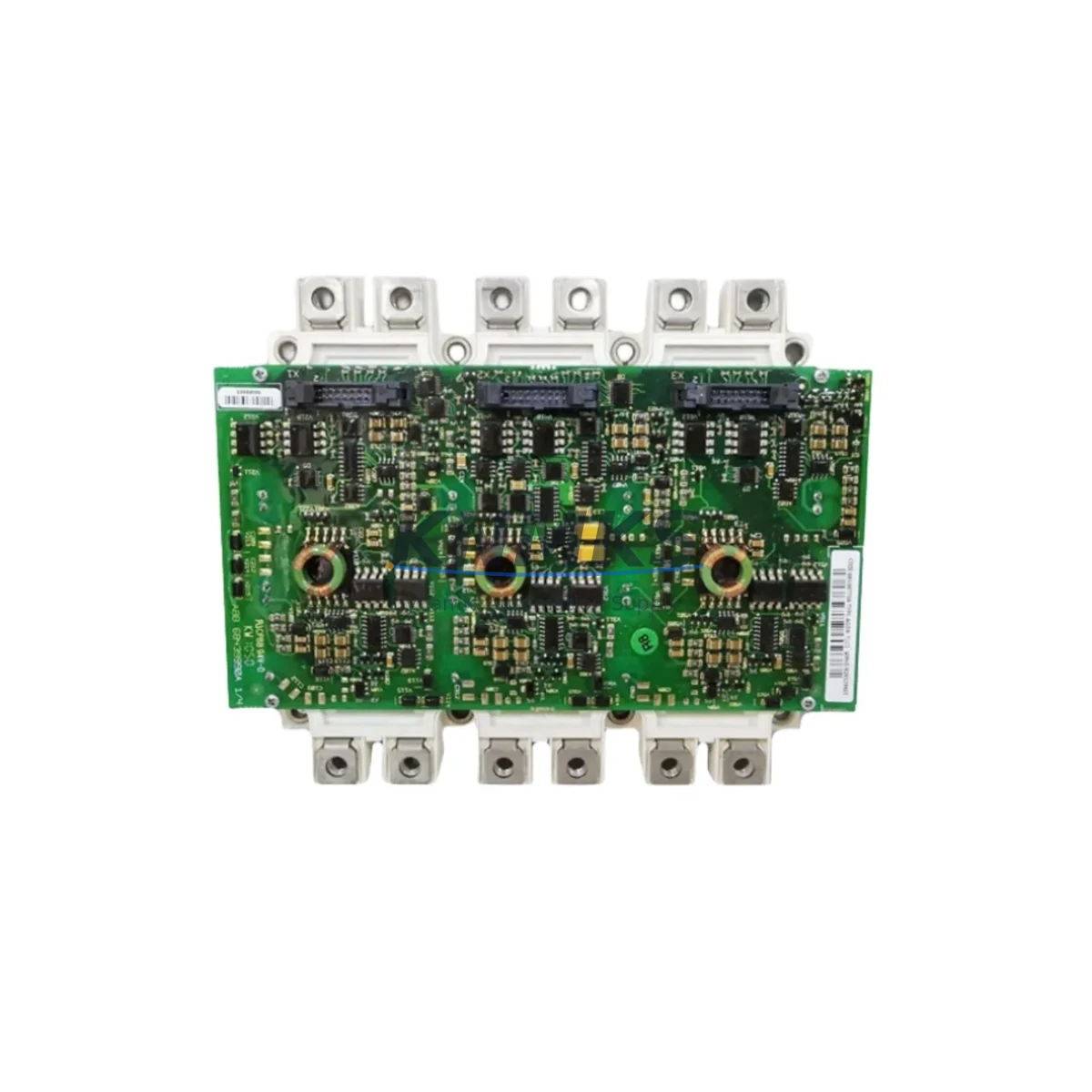

ABB AGDR-71CS FS450R17KE3 Migration-Ready IGBT Gate Driver

Overview

ABB AGDR-71CS FS450R17KE3 Migration-Ready IGBT Gate Driver for Legacy Control Systems

The ABB AGDR-71CS paired with the FS450R17KE3 IGBT module represents one of the most critical gate driver assemblies in the ACS800 medium-voltage drive platform. As legacy ACS800 installations continue to age across global manufacturing facilities — including steel mills, paper lines, cement plants, and water treatment stations — the demand for verified, migration-ready replacement gate drivers has never been higher. This unit is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency breakdown recovery and planned retrofit programs.

When an ACS800 drive trips on an IGBT fault or gate driver failure, the root cause is frequently traced to the AGDR-71CS board itself — degraded gate resistors, failed optocouplers, or thermal fatigue on the driver output stage. Replacing the AGDR-71CS without also verifying the condition of the FS450R17KE3 IGBT module is a common mistake that leads to repeat failures. Our supply includes both components individually and as a matched assembly, allowing maintenance teams to perform a complete gate driver and IGBT stack replacement in a single intervention.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AGDR-71CS retrofit within an ACS800 drive system requires more than simply swapping the gate driver board. Maintenance engineers must approach the replacement as part of a broader power stack health assessment. Before removing the failed AGDR-71CS, the AINT board (the drive’s main control interface) should be inspected for fault history logs — these logs often reveal whether the gate driver failure was an isolated event or a symptom of a wider DC bus overvoltage condition or cooling system degradation.

The FS450R17KE3 IGBT module itself must be tested for gate-emitter threshold voltage and collector-emitter leakage before the new AGDR-71CS is installed. If the IGBT module shows signs of partial degradation, replacing only the gate driver will result in a repeat failure within weeks. In many ACS800 multidrive configurations, the APOW power supply board feeds auxiliary voltage to multiple gate driver assemblies across the inverter bridge — a failing APOW board can cause cascading AGDR-71CS failures across all three phases simultaneously.

For facilities running ACS800 drives in a common DC bus topology, the retrofit window must be coordinated carefully. The NDBU-95C or NDBU-85C DC bus branching unit controls power distribution across multiple inverter modules — any gate driver replacement in this configuration requires the entire DC bus section to be de-energized and verified with a calibrated voltage meter before work begins. Similarly, if the drive communicates with a DCS or SCADA system via the RDCO-01 or RDCO-03 DDCS fiber optic communication module, the communication link must be re-established and verified after the gate driver replacement to ensure the drive responds correctly to remote start/stop and speed reference signals.

In installations where the ACS800 drives an induction motor through a du/dt filter or sine filter, the filter’s output terminals and capacitor bank condition should be checked during the retrofit — a degraded filter can cause voltage spikes that stress the new IGBT gate driver immediately after commissioning. The AGDR-71CS replacement should always be followed by a no-load test run, a partial load ramp, and a full load verification before the production line is returned to service.

Downtime Control During System Migration

Unplanned downtime caused by IGBT gate driver failure in an ACS800 drive can halt an entire production line within seconds. The key to minimizing total downtime is pre-positioning a verified replacement AGDR-71CS and FS450R17KE3 assembly at the facility before a failure occurs. Our stocked inventory and same-day dispatch capability are specifically designed to support emergency breakdown scenarios where every hour of downtime carries significant production cost.

For planned retrofit programs, the recommended approach is to perform the AGDR-71CS replacement during a scheduled maintenance window. The original PLC program logic — whether running on an ABB AC500, Siemens S7-300, or Allen-Bradley ControlLogix platform — does not require modification for a gate driver swap. The drive’s parameter set, stored in the ACS800 control panel or uploaded to a PC tool via the DriveWindow software, should be backed up before any hardware intervention and restored after commissioning to ensure speed references, torque limits, and protection thresholds are preserved exactly.

If the ACS800 drive is integrated into a larger automation cell with an ABB Panel 800 or similar HMI, the HMI faceplate and alarm configuration do not require changes after a gate driver replacement — the drive’s fault codes and status signals remain identical. This means the control room operator can resume normal monitoring immediately after the drive is recommissioned, without any HMI reprogramming or screen reconfiguration. The total intervention time for a skilled drive technician performing an AGDR-71CS and FS450R17KE3 replacement in a prepared environment is typically 2 to 4 hours, including functional testing and load verification.

Retrofit Support FAQ

Q1: Is the AGDR-71CS a direct drop-in replacement for all ACS800 drive variants?
The AGDR-71CS is the standard gate driver for ACS800 drives using the FS450R17KE3 IGBT module in the 160–250 kW power range. It is a direct mechanical and electrical replacement. However, always verify the exact drive type code on the ACS800 nameplate and cross-reference with the ABB spare parts list to confirm the correct gate driver variant for your specific frame size. Some ACS800 multidrive inverter modules use a different gate driver variant — confirm before ordering.

Q2: What commissioning steps are required after replacing the AGDR-71CS?
After installation, perform the ACS800 IGBT test routine via the drive’s control panel (parameter group 99 or the startup wizard). Verify that all six gate driver channels report no fault. Run the drive at no load to confirm correct rotation direction and speed reference tracking. Then perform a stepped load test to 25%, 50%, and 100% rated load while monitoring drive temperature, output current balance, and DC bus voltage stability. Document all readings before returning the drive to production.

Q3: Can the AGDR-71CS be used with a replacement IGBT module from a different manufacturer?
The AGDR-71CS is designed and calibrated for the FS450R17KE3 Infineon IGBT module. Using a substitute IGBT module with different gate charge characteristics or threshold voltage may result in incorrect gate timing, increased switching losses, or premature gate driver failure. We recommend using the FS450R17KE3 as the matched IGBT module for all AGDR-71CS replacements. If an alternative IGBT module must be used, consult ABB technical support for gate resistor adjustment guidance.

Q4: What does the support terms confirmed by quotation cover, and what is the supply lead time?
All AGDR-71CS units are pre-shipment tested under simulated gate drive conditions before dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Units are stocked and available for same-day or next-day dispatch depending on order confirmation time. For urgent breakdown requirements, contact our team directly to confirm real-time stock availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AGDR-71CS FS450R17KE3
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AGDR-71CS FS450R17KE3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
