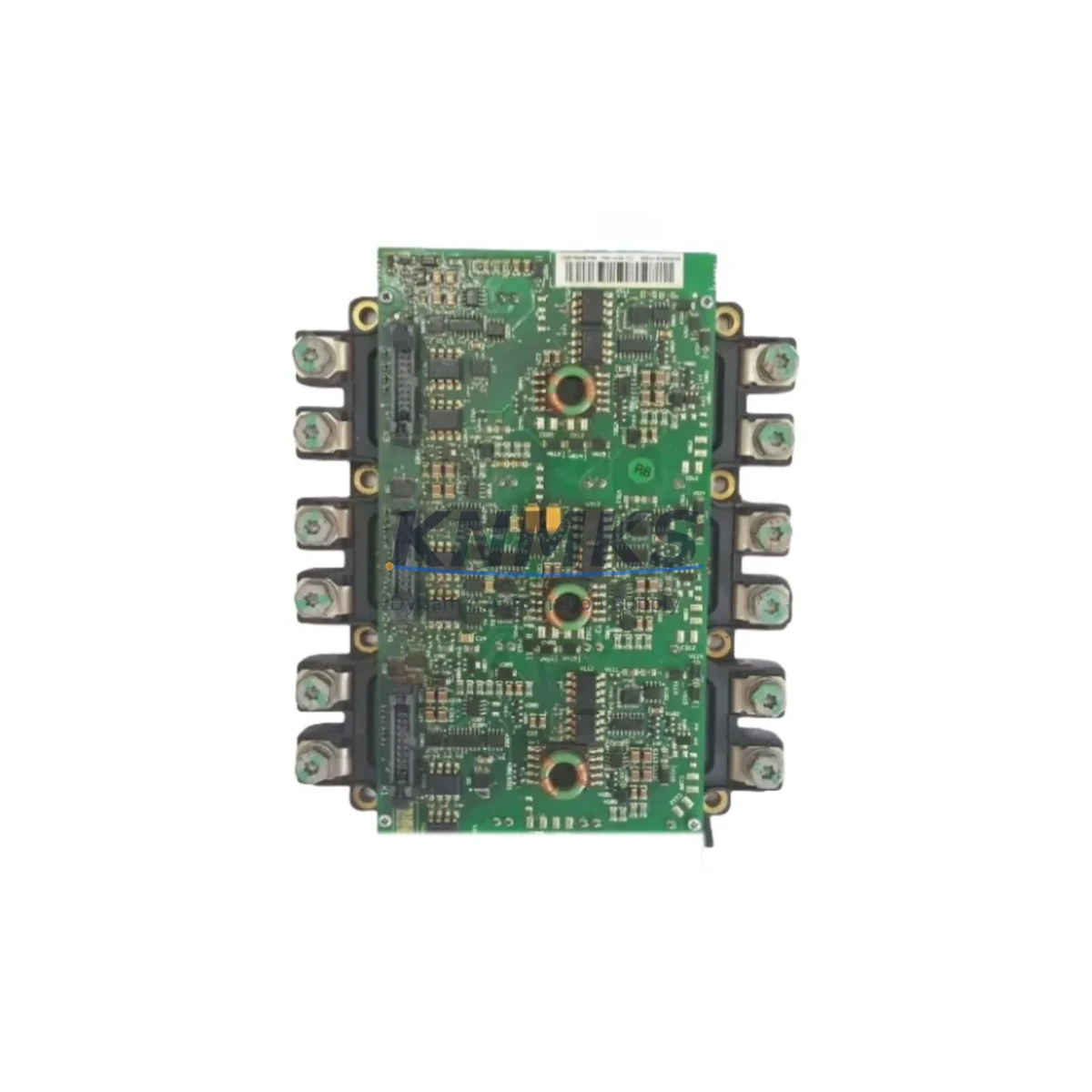

ABB AGDR-71C 6MBI450U-120 Fail-Safe IGBT Gate Driver

Overview

ABB AGDR-71C 6MBI450U-120 Fail-Safe IGBT Gate Driver for Industrial Control Reliability

The ABB AGDR-71C 6MBI450U-120 is a precision-engineered IGBT gate driver module designed for mission-critical industrial drive applications, most notably the ABB ACS800 series of AC drives. In continuous production environments where unplanned downtime carries severe operational and financial consequences, this gate driver delivers the fail-safe switching performance and robust fault isolation that modern industrial control cabinets demand. Engineered to ABB’s stringent quality standards and manufactured in Germany, the AGDR-71C provides a reliable interface between the drive control board and the 6MBI450U-120 IGBT power module, ensuring precise, low-latency gate signal delivery under the most demanding field conditions.

Industrial facilities operating in petrochemical refining, electric power generation, mining extraction, water treatment, metallurgical processing, and continuous manufacturing all share a common vulnerability: control interruption at the drive level cascades rapidly into process-wide shutdowns. The AGDR-71C addresses this risk directly. Its isolated gate drive circuitry prevents shoot-through faults, suppresses voltage spikes generated by high-frequency IGBT switching, and maintains signal integrity even in environments characterized by severe electromagnetic interference (EMI), ground potential fluctuations, and high-frequency noise from adjacent variable frequency drives (VFDs) or motor starters. In control cabinets where multiple drives share a common DC bus — a topology common in steel rolling mills, port crane systems, and offshore vessel propulsion — the AGDR-71C’s robust isolation architecture is essential to preventing cross-drive fault propagation.

Signal drift and spurious gate triggering are among the most insidious failure modes in high-power drive systems. The AGDR-71C’s gate drive output is tightly regulated to eliminate the threshold ambiguity that causes nuisance trips or, worse, uncontrolled IGBT conduction. In dusty, humid, or high-vibration environments — such as cement plant conveyor drives, underground mine hoists, or shipboard auxiliary drives — where connector oxidation and PCB contamination can degrade signal margins over time, the AGDR-71C’s robust design tolerances provide a meaningful safety margin that generic replacement boards cannot match. Paired with the ABB ACS800 drive’s internal diagnostics and the RDCO-02 or RDCO-03 communication adapter boards, the AGDR-71C integrates seamlessly into the drive’s fault detection and safe-state logic, enabling rapid fault identification and controlled shutdown rather than catastrophic failure.

Power supply stability is equally critical to gate driver reliability. In industrial environments where supply voltage fluctuations, inrush events from large motor starts, or utility grid disturbances are routine, the AGDR-71C’s internal power conditioning ensures that gate drive voltage remains within specification throughout transient events. This is particularly important in applications where the AGDR-71C operates alongside ABB’s AINT-02 or AINT-14 interface boards and APOW-01 power supply modules within the ACS800 inverter section — components that collectively define the drive’s safe operating envelope. Surge events that would destabilize a lesser gate driver are absorbed without compromising switching accuracy or triggering false fault conditions.

Thermal management is a persistent challenge in densely populated control cabinets. The AGDR-71C is rated for continuous operation across a wide ambient temperature range, and its low self-heating design minimizes its contribution to cabinet thermal load. In high-ambient installations — such as outdoor substations in tropical climates or furnace-adjacent drive rooms in steel plants — this thermal discipline directly extends the service life of the surrounding 6MBI450U-120 IGBT module and associated DC bus capacitors. When the AGDR-71C is eventually scheduled for preventive replacement as part of a planned maintenance cycle, its form-factor compatibility with the original ABB assembly ensures a straightforward swap without mechanical modification, minimizing the maintenance window and restoring the drive to full operational status quickly.

Every AGDR-71C 6MBI450U-120 unit supplied by KNMKS undergoes pre-shipment functional verification, including gate signal output testing, isolation resistance measurement, and power supply regulation checks. This outgoing quality control process ensures that the unit arriving on-site is ready for immediate installation, eliminating the risk of receiving a latent-defective component that only fails under load. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure, with responsive technical support available to assist with installation verification and fault diagnosis.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable operation of the AGDR-71C 6MBI450U-120 within an ACS800 inverter section depends on the integrity of the surrounding control architecture. The ABB AINT-02 inverter interface board provides the low-voltage control signal routing between the drive’s main control board and the gate driver, and its condition directly affects the quality of the gate command signals received by the AGDR-71C. Similarly, the ABB APOW-01 auxiliary power supply module must deliver stable, regulated auxiliary voltage to the gate driver’s internal power conditioning stage — any ripple or dropout on this supply can manifest as erratic switching behavior or spurious fault trips. In ACS800 installations where the ABB RDCO-02 DDCS communication adapter is used for fieldbus integration, ensuring that the communication board’s optical fiber connections are clean and properly seated is equally important, as communication faults can trigger drive safe-state responses that interact with the gate driver’s operating state.

At the power module level, the Fuji 6MBI450U-120 IGBT module that the AGDR-71C drives is a 450-ampere, 1200-volt six-pack module whose gate threshold characteristics are precisely matched to the AGDR-71C’s output drive strength. Substituting a gate driver with mismatched output impedance or drive voltage can cause the IGBT to switch more slowly than designed, increasing switching losses and junction temperature — a failure mode that is silent until thermal runaway occurs. For DC bus protection, ABB’s BAMU-01 brake chopper unit or equivalent dynamic braking resistor assemblies should be verified as functional during any gate driver replacement, since regenerative braking events place the highest instantaneous stress on the IGBT switching circuit. Maintaining a documented spare inventory of the AGDR-71C alongside the AINT-02 and APOW-01 modules ensures that the complete inverter section can be restored to service within a single maintenance shift, minimizing production impact from drive-related stoppages.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the ACS800 drives equipped with AGDR-71C gate drivers control critical rotating equipment including boiler feed pumps, compressor trains, and cooling tower fans. A gate driver failure in these applications can trigger emergency shutdown sequences that require hours of controlled restart procedures, making the reliability of the AGDR-71C a direct factor in plant availability metrics. In electric power generation facilities — including thermal, hydro, and wind — ACS800 drives manage auxiliary systems such as induced draft fans, cooling water pumps, and pitch control actuators, where control interruption during peak generation periods carries grid stability implications.

In underground mining operations, ACS800 drives with AGDR-71C gate drivers power hoist systems, conveyor drives, and ventilation fans in environments characterized by coal dust, high humidity, and significant vibration — conditions that accelerate degradation of lesser-quality gate driver boards. The AGDR-71C’s robust construction and wide environmental tolerance make it a preferred choice for these demanding installations. Water and wastewater treatment facilities rely on ACS800 drives for pump and blower control in processes where continuous operation is mandated by regulatory requirements; an unplanned drive outage can result in permit violations and environmental incidents, making the fail-safe characteristics of the AGDR-71C directly relevant to compliance risk management.

In metallurgical and steel processing plants, the high ambient temperatures, heavy electromagnetic interference from arc furnaces and induction heaters, and the continuous-duty cycle of rolling mill drives create an exceptionally demanding environment for gate driver electronics. The AGDR-71C’s thermal discipline and EMI immunity are critical performance attributes in these installations. Port and terminal crane applications — including ship-to-shore cranes, rubber-tyred gantry cranes, and stacker-reclaimers — subject drive electronics to vibration, salt air, and wide temperature swings; the AGDR-71C’s proven field reliability in these environments makes it a trusted component for port electrification projects globally.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the AGDR-71C 6MBI450U-120?
The support terms confirmed by quotation cover all functional failures and manufacturing defects from the date of shipment. If the unit fails to perform its specified gate driving function under normal operating conditions within the confirmed support period, KNMKS will provide a replacement unit or full technical support to resolve the issue. The support terms applies to units installed in compatible ABB ACS800 drive configurations and operated within the specified environmental and electrical ratings.

Q2: What pre-shipment testing is performed on each AGDR-71C unit?
Each unit undergoes a structured outgoing quality inspection that includes gate signal output verification across the full drive cycle, isolation resistance measurement between control and power circuits, and auxiliary power supply regulation testing. This process ensures that latent defects are identified before shipment, so the unit is ready for immediate installation upon arrival at the customer’s facility.

Q3: Is the AGDR-71C 6MBI450U-120 a direct drop-in replacement for the original ABB assembly?
Yes. The AGDR-71C 6MBI450U-120 is form-factor and functionally compatible with the original ABB ACS800 inverter section assembly. No mechanical modification or firmware reconfiguration is required for standard replacement. Customers are advised to verify the drive’s firmware version and any site-specific parameter settings before returning the drive to service, as is standard practice for any drive component replacement.

Q4: Can KNMKS support long-term supply of the AGDR-71C for multi-site maintenance programs?
Yes. KNMKS maintains regional stock of the AGDR-71C 6MBI450U-120 to support blanket purchase orders and scheduled maintenance programs across multiple sites. For customers managing large ACS800 drive fleets in petrochemical, power, or mining operations, we recommend establishing a standing spare inventory agreement to eliminate lead-time risk for this critical component. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, and multi-site delivery logistics.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AGDR-71C 6MBI450U-120
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AGDR-71C 6MBI450U-120
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
