Overview

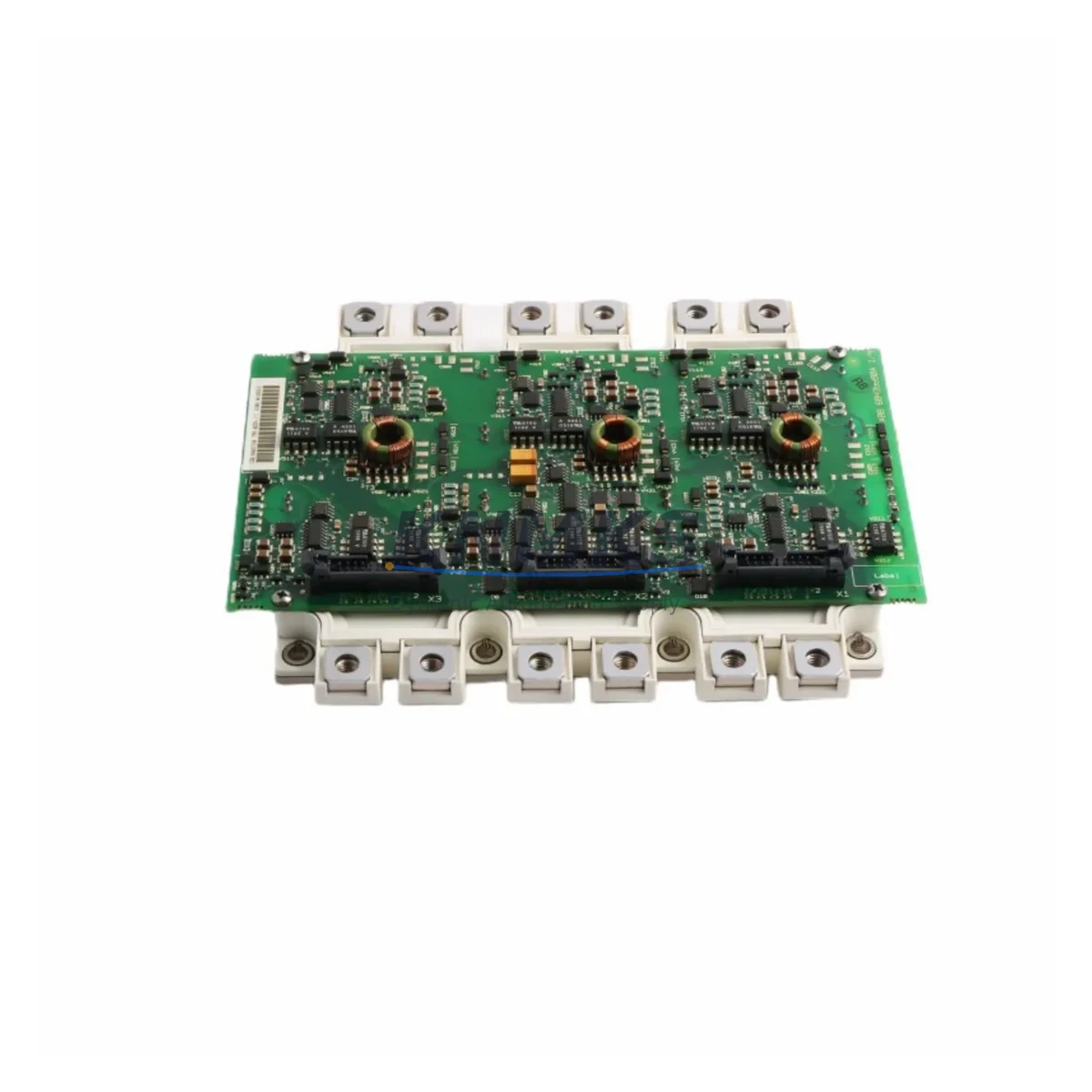

ABB AGDR-71C 68436770 Migration-Ready IGBT Gate Driver: Legacy System Migration and Compatible Upgrade
The ABB AGDR-71C (68436770) is a migration-ready IGBT gate driver board engineered for direct replacement and retrofit integration within ABB ACS800 series variable frequency drives. As legacy ACS800 installations age and original spare parts reach end-of-life, the AGDR-71C provides a verified drop-in solution that preserves existing wiring topology, backplane interface geometry, and drive control logic — minimizing retrofit risk and unplanned downtime across industrial automation environments.
Engineers undertaking ACS800 drive cabinet upgrades or control system modernization projects will find the AGDR-71C fully compatible with the standard IGBT module interface used across the ACS800 platform. The board maintains the original gate signal timing, fault feedback loop, and thermal protection architecture, enabling direct substitution without reprogramming the drive’s main control board (RMIO) or modifying the existing motor control application software.
Before installation, retrofit planners should verify DC bus voltage rating, gate resistor values, and fiber optic cable routing from the AINT or APOW power supply board to the AGDR-71C. Confirm that the IGBT module type (e.g., Semikron or ABB-branded IGBT stack) matches the gate drive current specification of the replacement board. Backplane connector alignment and module address DIP switch settings must be validated against the original drive configuration documentation prior to energization.
For multi-drive cabinet retrofits, the AGDR-71C is commonly deployed alongside the AINT-14C interface board, which manages the fiber optic communication link between the main control unit and the gate driver layer. Replacement projects that also involve the APOW-01C auxiliary power supply board should sequence the installation to restore DC auxiliary power before testing gate drive output signals. Where the ACS800 system includes an RDCO-03 DDCS communication adapter for fieldbus integration (e.g., PROFIBUS or DeviceNet), communication link continuity should be verified after gate driver replacement to confirm that the drive’s process data exchange with the PLC or DCS remains intact.
In retrofit scenarios involving older ACS800-04 or ACS800-07 cabinet drives, technicians should also inspect the IOEC I/O extension module wiring and confirm that analog and digital I/O signal references have not shifted due to ground loop changes introduced during the gate driver swap. HMI panel displays connected via the CDP312R control panel should be used to monitor drive status codes and fault history immediately after commissioning the replacement AGDR-71C.
All AGDR-71C 68436770 units supplied by KNMKS are pre-tested under load simulation conditions prior to shipment, with functional verification of gate pulse output, fault relay response, and thermal sensor interface. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.
Migration Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Drive Series | ABB ACS800-01, ACS800-04, ACS800-07, ACS800-11, ACS800-17 |
| Replaces / Supersedes | AGDR-71C (68436770) — direct OEM equivalent |
| Backplane Interface | Standard ACS800 IGBT gate driver slot; no mechanical modification required |
| Communication Compatibility | Fiber optic gate signal interface; compatible with AINT-14C and APOW-01C |
| Installation Requirements | Verify DC bus discharge before removal; confirm gate resistor and IGBT module match |
| Commissioning Notes | Check DIP switch module address; validate fault feedback via CDP312R or DriveWindow |
| Firmware Dependency | No firmware update required on AGDR-71C; RMIO firmware version should be ≥ AS7R7250 |
| Origin | Germany (DE) |
| Support terms | 12 months from shipment date — manufacturing defects and functional failure |
| Pre-Shipment Testing | Gate pulse output, fault relay, thermal sensor interface — all verified before dispatch |
Retrofit Planning for Existing Automation Systems
A successful AGDR-71C retrofit begins with a thorough audit of the existing ACS800 drive cabinet. Identify the current IGBT module type and cross-reference its gate drive current requirement against the AGDR-71C specification sheet. In multi-inverter configurations, each IGBT stack will have a dedicated gate driver board; replacement should be staged to avoid simultaneous loss of multiple drive phases.
Power supply sequencing is critical: the APOW-01C auxiliary power supply board must be confirmed operational before the AGDR-71C is energized. If the APOW board is also being replaced as part of a broader cabinet upgrade, complete that installation first and verify +24 VDC auxiliary rail stability before inserting the gate driver board. The AINT-14C interface board’s fiber optic transmitters should be inspected for contamination or mechanical damage during the gate driver swap, as degraded fiber connections are a common source of nuisance gate drive faults post-retrofit.
For systems where the ACS800 drive communicates with a Siemens S7-300 or S7-400 PLC via PROFIBUS through an RDCO-03 adapter, confirm that the PLC program’s drive fault handling logic does not trigger an emergency stop sequence during the brief communication interruption that occurs when the gate driver board is reseated. Coordinate with the control system engineer to temporarily mask drive fault inputs in the PLC during the physical swap window.
Where the retrofit involves upgrading from an earlier AGDR revision, verify that the IGBT module’s gate-emitter threshold voltage is within the new board’s drive range. Use a DriveWindow PC tool connected via the NDPA-02 USB-to-panel adapter to read the drive’s parameter set and confirm that motor control mode (DTC or scalar) and speed reference scaling remain unchanged after the gate driver replacement.
Downtime Control During System Migration
Minimizing production downtime during an AGDR-71C replacement requires pre-staging all replacement components and tools before the maintenance window opens. A complete spare kit for an ACS800 gate driver retrofit typically includes the AGDR-71C board, replacement fiber optic patch cables, a torque screwdriver calibrated to the backplane connector specification, and a laptop loaded with DriveWindow for post-installation parameter verification.
Before de-energizing the drive, capture a full parameter backup using DriveWindow or the CDP312R control panel’s parameter upload function. This backup preserves the motor control application, speed reference ramps, fault trip limits, and fieldbus node address — ensuring that if the RMIO board requires a parameter restore after the gate driver swap, the original configuration can be reloaded in minutes rather than hours.
DC bus discharge time for ACS800 cabinet drives typically ranges from 5 to 15 minutes depending on drive rating and bus capacitor bank size. Do not begin gate driver removal until the DC bus voltage indicator confirms safe levels. Once the AGDR-71C is installed and the cabinet is re-energized, use the CDP312R panel to step through the drive’s startup sequence, monitoring for gate drive fault codes (e.g., F-0022 or F-0023) that would indicate a fiber optic link or gate signal issue requiring further investigation before returning the drive to automatic control.
Retrofit Support FAQ
Q: Is the AGDR-71C 68436770 a direct drop-in replacement for all ACS800 variants?
A: The AGDR-71C is compatible with the majority of ACS800 series drives that use the standard IGBT gate driver slot. Always cross-reference the drive’s hardware manual and confirm the IGBT module type before ordering. KNMKS technical support can assist with compatibility verification based on your drive’s nameplate data.
Q: Does replacing the AGDR-71C require reprogramming the drive?
A: No reprogramming is required. The AGDR-71C does not store drive application parameters. However, we recommend performing a parameter backup before the swap and verifying key parameters (motor data, control mode, reference scaling) after installation using DriveWindow or the CDP312R panel.
Q: What pre-shipment testing is performed on each AGDR-71C unit?
A: Every AGDR-71C 68436770 supplied by KNMKS undergoes functional testing of gate pulse output integrity, fault relay response time, and thermal sensor interface continuity before dispatch. A test report is available upon request.
Q: What support terms and after-sales support does KNMKS provide?
A: All units carry a support terms confirmed by quotation from the shipment date, covering manufacturing defects and functional failure under normal operating conditions. KNMKS maintains stock of AGDR-71C and related ACS800 spare components to support urgent replacement requirements. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
