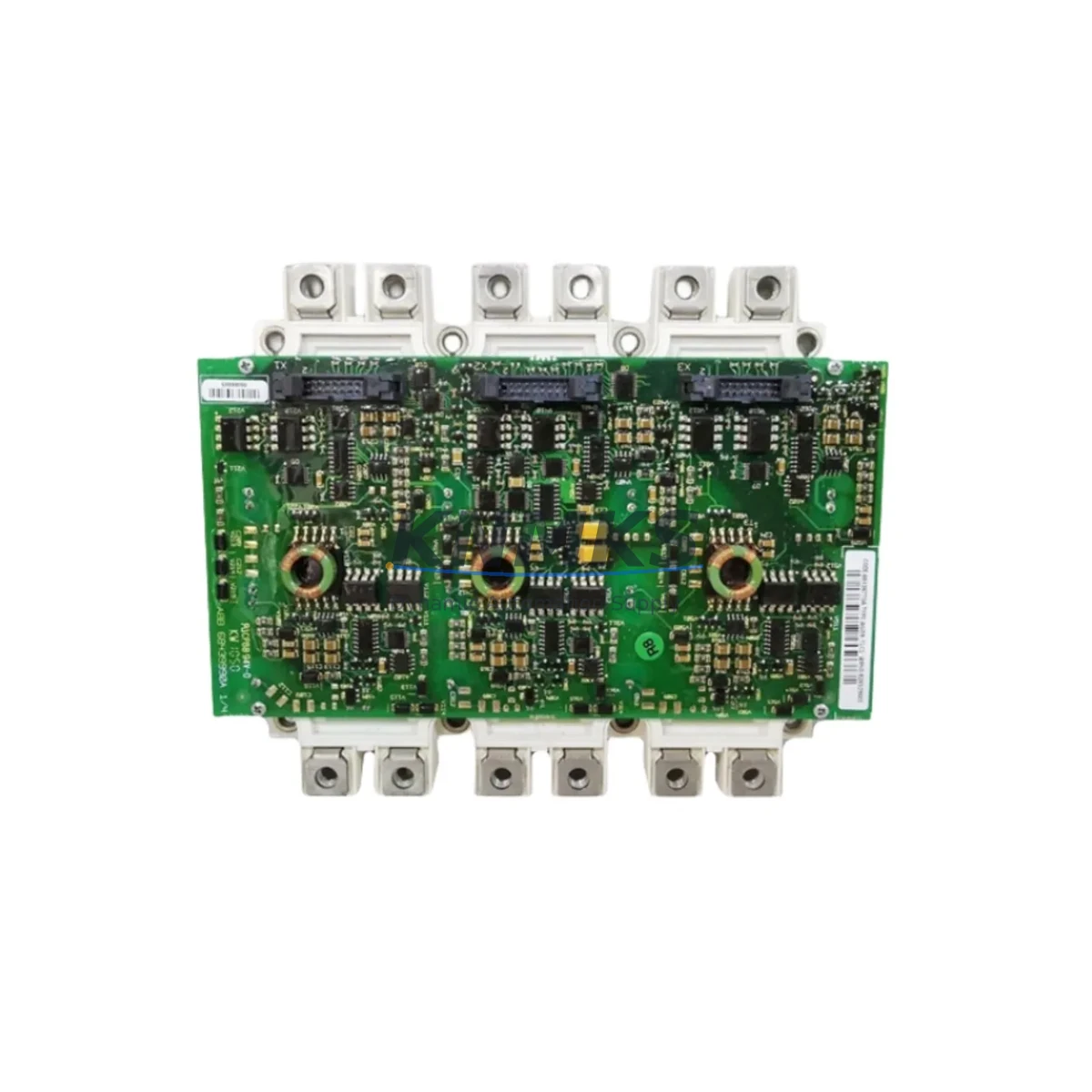

ABB AGDR-61C FS450R17KE3 Migration-Ready IGBT Gate Driver

Overview

ABB AGDR-61C FS450R17KE3 Migration-Ready IGBT Gate Driver for Legacy Control Systems

The ABB AGDR-61C (part references: FS450R17KE3 / 64783831) is a migration-ready IGBT gate driver assembly designed for direct replacement in ABB ACS800 series variable frequency drives. As ABB progressively phases out legacy drive components, the AGDR-61C remains a critical spare for facilities operating ACS800-01, ACS800-04, ACS800-07, and ACS800-11 platforms that cannot yet justify a full drive replacement. This unit is pre-tested prior to shipment, backed by a support terms confirmed by quotation, and supported by in-stock inventory for rapid dispatch.

When planning a gate driver replacement, engineers must verify several parameters before committing to a swap. The AGDR-61C interfaces directly with the IGBT module FS450R17KE3 mounted on the drive’s power stage. Confirm that the existing IGBT module part number matches — substituting a gate driver without verifying the IGBT type risks mismatch in gate voltage thresholds, switching timing, and short-circuit protection response. The AGDR-61C operates at a nominal gate supply voltage of ±15 V and must be checked against the drive’s internal DC bus auxiliary supply rail before installation.

Terminal wiring during replacement requires careful attention. The gate driver connects to the IGBT module via a dedicated gate-emitter interface, and the fiber optic signal cables from the AINT or RDCU control board must be re-routed without bending radius violations. In ACS800 cabinets where the AGDR-61C is mounted alongside the AINT-02C or AINT-11C interface board, technicians should document the existing fiber optic channel assignments before disconnecting — channel mapping errors are a common source of post-replacement faults. The RDCU-02C or RDCU-12C drive control unit retains the application program and parameter set, so no firmware re-flashing is required for a like-for-like gate driver swap.

For sites running multi-drive configurations, the ACS800 system may share a common DC bus through a BAMU or BCON bus adapter module. Before isolating the affected drive for gate driver replacement, confirm that the bus adapter is capable of sustaining the remaining drives independently. Failure to do so can cause undervoltage trips across the entire drive line during the maintenance window, extending unplanned downtime beyond the gate driver swap itself.

Where the retrofit scope extends beyond a single gate driver, facilities often address the AINT interface board, the APOW-01C power supply module, and the AGPS-11C gate power supply in the same maintenance cycle. Replacing these components together reduces the risk of a secondary failure shortly after the primary repair and is consistent with best practice for aging ACS800 installations. If the drive’s DDCS fiber optic communication link to a higher-level controller — such as an AC800M or a third-party DCS — has been intermittent, this is also the appropriate time to inspect and replace the DDCS adapter board.

HMI screen updates are generally not required for a gate driver replacement, as the AGDR-61C swap does not alter the drive’s parameter structure or communication node address. However, if the site’s Panel Bus or Fieldbus adapter (e.g., FPBA-01 for PROFIBUS or FENA-11 for EtherNet/IP) has been generating communication fault codes alongside the gate driver fault, both issues should be investigated concurrently to avoid a repeat shutdown after the gate driver is restored.

Installation space confirmation is straightforward for the AGDR-61C: the unit mounts directly to the IGBT module using the existing mechanical interface, and no additional bracket or spacer is required for standard ACS800 frame sizes R7 and R8. For custom cabinet builds or third-party enclosures, verify the clearance between the gate driver PCB and adjacent busbars to prevent creepage distance violations under high-humidity operating conditions.

All units supplied by KNMKS are tested under load conditions prior to shipment. The support terms confirmed by quotation cover manufacturing defects and verified functional failure under normal operating conditions. In-stock availability supports same-week dispatch for most regions, minimizing production downtime for facilities without on-site spares.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AGDR-61C retrofit begins with a structured audit of the existing ACS800 power stage. Before ordering, retrieve the drive’s fault history from the RDCU control unit using the DriveWindow Light or DriveStudio software tool — repeated IGBT overcurrent or gate fault codes confirm the gate driver as the failure source rather than the IGBT module itself. If the IGBT module FS450R17KE3 shows signs of thermal stress or gate oxide degradation, replacing the gate driver alone will not resolve the fault, and the IGBT module must be addressed in the same intervention.

For sites planning a broader control system upgrade, the AGDR-61C replacement is often the first step in a phased modernization. Subsequent phases may include upgrading the AINT-02C interface board to the AINT-11C variant for improved diagnostics, replacing the APOW-01C auxiliary power supply module if it is approaching end-of-life, and migrating the drive’s fieldbus communication from legacy PROFIBUS (FPBA-01) to EtherNet/IP (FENA-11) to align with plant-wide network standardization. The AGPS-11C gate power supply should also be inspected during the same maintenance window, as it shares the same service interval as the gate driver assembly.

For multi-axis or multi-drive installations sharing a common DC bus via a BAMU bus adapter, the retrofit plan must include a bus isolation procedure to prevent cross-drive interference during the replacement. Document the bus voltage levels, confirm the BCON bus connection module is functioning correctly, and schedule the gate driver swap during a planned production stop rather than an emergency repair to allow adequate commissioning time.

Downtime Control During System Migration

Minimizing downtime during an AGDR-61C replacement requires preparation before the maintenance window opens. Key steps include: downloading the full parameter set from the RDCU control unit using DriveWindow or DriveStudio before any hardware is disconnected; photographing all fiber optic cable routing and terminal connections; and confirming that a tested replacement AGDR-61C unit is on-site before the drive is taken offline.

The application program stored in the RDCU is not affected by a gate driver swap, so re-commissioning time is limited to functional verification: confirm gate driver power-up, check for active fault codes, perform a no-load test run, and verify motor current symmetry across all three phases before returning the drive to production. For ACS800 drives integrated into a DCS or SCADA system via DDCS or fieldbus, confirm that the communication link re-establishes correctly after power-up before releasing the drive to automatic control.

KNMKS recommends maintaining at least one spare AGDR-61C unit on-site for ACS800 installations in continuous production environments. Given the 12–36 month lead times historically associated with legacy ABB drive components, in-stock availability from KNMKS provides a reliable alternative to OEM procurement channels for facilities that cannot absorb extended downtime.

Retrofit Support FAQ

Q: Is the AGDR-61C a direct drop-in replacement for all ACS800 frame sizes?
A: The AGDR-61C is compatible with ACS800 frame sizes R7 and R8 where the FS450R17KE3 IGBT module is installed. For other frame sizes or IGBT module variants, contact KNMKS with your drive nameplate data to confirm compatibility before ordering.

Q: Do I need to re-flash the drive firmware after replacing the gate driver?
A: No. The AGDR-61C is a hardware-only replacement. The application program and parameter set stored in the RDCU-02C or RDCU-12C control unit are unaffected. Re-commissioning is limited to functional verification after power-up.

Q: What pre-shipment testing is performed on each unit?
A: Every AGDR-61C unit supplied by KNMKS undergoes a functional load test prior to dispatch. Test records are available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains in-stock inventory of the AGDR-61C to support same-week dispatch for most regions. Contact the sales team to confirm current stock levels and shipping options for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AGDR-61C-FS450R17KE3-64783831
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AGDR-61C-FS450R17KE3-64783831
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
