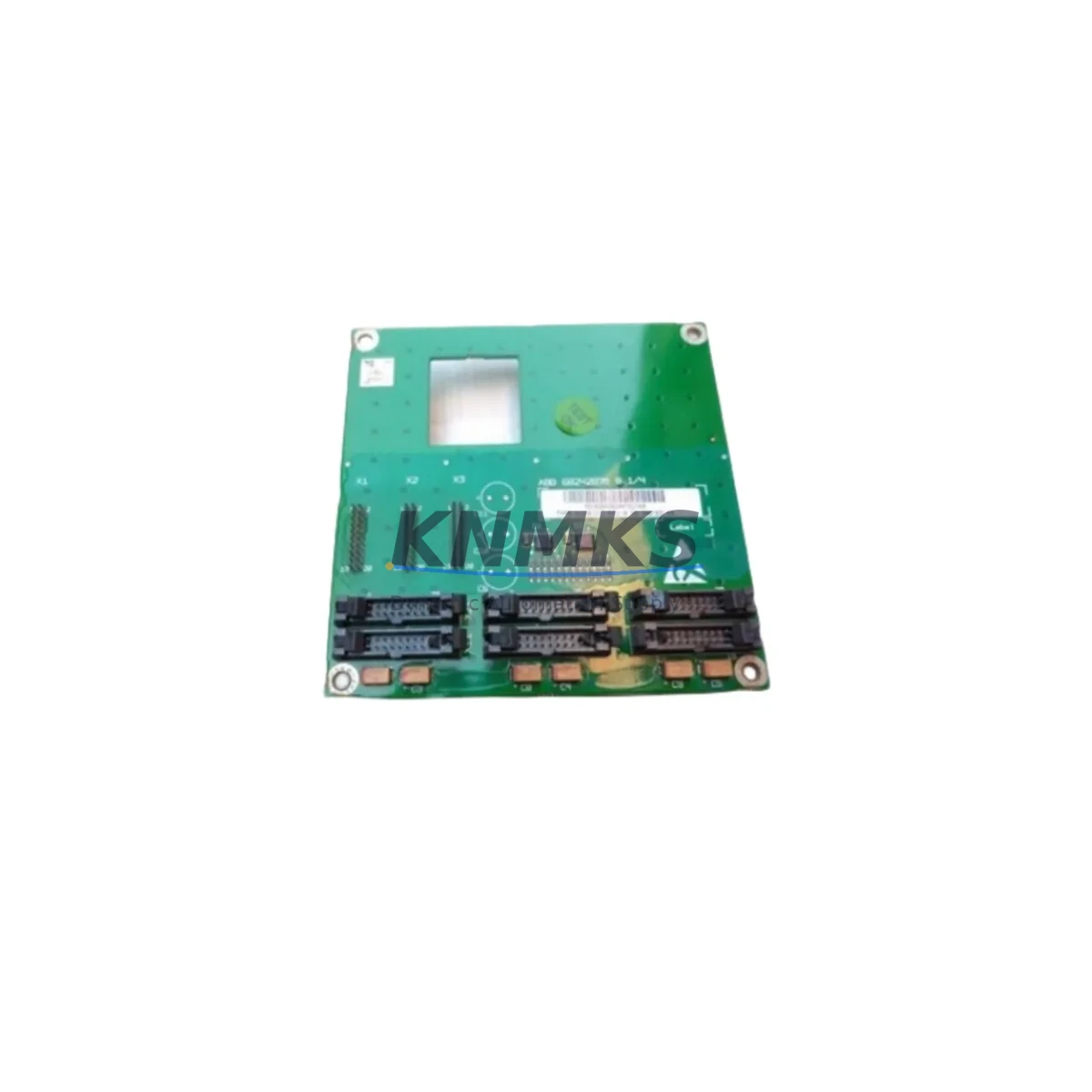

ABB AGBB-01C REV.B Migration-Ready IGBT Gate Driver

Overview

ABB AGBB-01C REV.B Migration-Ready IGBT Gate Driver for Legacy Control Systems

The ABB AGBB-01C REV.B is a precision-engineered IGBT gate driver board designed as a direct migration-ready replacement for aging ACS800 and ACS600 series AC drives deployed across continuous process industries. As legacy drive platforms approach end-of-life and original spare parts become increasingly scarce, the AGBB-01C REV.B provides a validated, wiring-compatible upgrade path that eliminates the need for full drive replacement — protecting capital investment while restoring full inverter control capability.

In retrofit scenarios, the AGBB-01C REV.B slots into the existing IGBT power module interface without requiring backplane redesign or terminal rewiring. Engineers undertaking ACS800 drive refurbishment must verify the DC bus voltage rating, gate signal timing compatibility, and fiber optic interface alignment before commissioning. The board’s REV.B revision incorporates improved gate charge management and enhanced short-circuit protection response, making it a preferred choice for high-cycle applications in petrochemical compressor drives, rolling mill main drives, and mine hoist control systems where unplanned inverter failure carries significant production risk.

When planning a retrofit around the AGBB-01C REV.B, the broader drive stack must be assessed holistically. The AINT-02C interface board, which manages the fiber optic communication link between the control unit and the IGBT gate driver, should be inspected for signal integrity and replaced concurrently if degradation is detected. Similarly, the APOW-01C power supply board that feeds the gate driver auxiliary circuits must be confirmed within voltage tolerance — a marginal power supply is a common root cause of intermittent gate drive faults that are misdiagnosed as IGBT failures. For drives operating in high-humidity or dusty environments, the AINT board’s optical connectors should be cleaned and re-seated as part of the commissioning checklist.

The ACS800 control board RMIO-11C governs the overall drive logic, speed reference processing, and fault management. During migration, firmware version compatibility between the RMIO and the gate driver interface must be confirmed — mismatched firmware revisions can produce nuisance overcurrent trips during initial run-up. Where the original RMIO board is retained, a full parameter backup via DriveWindow or DriveStudio should be completed before any hardware swap to protect the existing motor control tuning and application macro configuration.

For installations where the ACS800 communicates over PROFIBUS-DP or Modbus RTU to a supervisory PLC or DCS, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter should be verified for firmware compatibility with the replacement gate driver assembly. Communication link continuity during the retrofit window is critical in continuous process plants where the drive’s run/stop command and speed reference originate from the control room rather than a local operator panel. Maintaining the existing fieldbus node address and baud rate settings eliminates the need for PLC program modifications and reduces commissioning time significantly.

In control cabinet environments, thermal management must be re-evaluated after gate driver replacement. The AGBB-01C REV.B’s switching losses and thermal dissipation profile should be cross-referenced against the cabinet’s existing cooling capacity — particularly in retrofit projects where the original drive was installed in a sealed enclosure with forced-air cooling. If the IGBT module itself (such as the 5SNA0400J450300 or equivalent press-pack module) is being replaced alongside the gate driver, the thermal interface compound must be renewed and torque specifications for the module clamping assembly strictly observed to ensure reliable junction-to-heatsink thermal conductivity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AGBB-01C REV.B retrofit requires a structured pre-outage assessment covering the full drive assembly. Begin by documenting the existing hardware revision levels of all boards in the ACS800 drive stack: the RMIO-11C main control board, the AINT-02C fiber optic interface board, the APOW-01C auxiliary power supply, and any installed fieldbus adapter such as the RPBA-01 PROFIBUS module or RMBA-01 Modbus adapter. Cross-reference these against ABB’s hardware compatibility matrix to confirm the AGBB-01C REV.B will operate correctly within the existing assembly without requiring additional board upgrades.

For drives that have been in service for more than five years, it is advisable to replace the APOW-01C power supply board concurrently with the gate driver. Electrolytic capacitor aging in the auxiliary power supply is a well-documented failure mode in long-service ACS800 drives, and a marginal supply voltage can cause the new gate driver to exhibit erratic behavior that is difficult to distinguish from a faulty replacement board. Replacing both components during the same planned outage eliminates this diagnostic ambiguity and maximizes the value of the maintenance window.

Installation space within the drive cabinet must be confirmed before ordering. The AGBB-01C REV.B shares the same PCB footprint as the original revision, but engineers should verify that no unauthorized modifications have been made to the cabinet interior — particularly in retrofit projects involving third-party integrators — that might obstruct the board’s mounting points or fiber optic cable routing. The fiber optic cables connecting the AINT board to the gate driver are fragile and should be handled with care during removal and reinstallation; damaged fiber links are a common source of post-retrofit gate drive faults.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 gate driver replacement requires disciplined pre-outage preparation. All replacement components — AGBB-01C REV.B, spare fiber optic cables, and any concurrent board replacements — should be on-site and verified against the drive’s bill of materials before the maintenance window begins. A complete DriveStudio or DriveWindow parameter backup must be saved to a secure location; this protects the motor control tuning, application macro, and fault history log that may be needed for post-retrofit diagnostics.

During the swap, the original IGBT module should be inspected for signs of thermal stress, gate oxide degradation, or physical damage. If the module shows evidence of prior overcurrent events, replacing the gate driver alone may not restore reliable operation — the IGBT module itself may require replacement. Having a compatible spare module available on-site prevents a second unplanned outage if module damage is discovered during the maintenance window.

After installation, a controlled low-speed test run should be performed before returning the drive to full production load. Monitor DC bus voltage, output current balance across phases, and gate drive fault codes during the initial run-up. Confirm that the PROFIBUS or Modbus communication link is re-established and that the supervisory PLC or DCS is receiving valid speed feedback before releasing the drive to automatic control. This structured commissioning sequence typically adds less than two hours to the maintenance window but significantly reduces the risk of a repeat outage caused by an undetected installation issue.

Retrofit Support FAQ

Q: Is the AGBB-01C REV.B a direct drop-in replacement for the original AGBB-01C?
A: Yes. The REV.B revision maintains full mechanical and electrical compatibility with the original AGBB-01C. It uses the same PCB footprint, connector pinout, and fiber optic interface. No wiring modifications or backplane changes are required. The REV.B incorporates improved gate charge management and enhanced short-circuit protection, making it a preferred upgrade over the original revision.

Q: Which ACS800 drive variants are compatible with the AGBB-01C REV.B?
A: The AGBB-01C REV.B is compatible with ACS800 single-drive and cabinet-built drive variants that use the standard IGBT gate driver interface, as well as selected ACS600 series drives. Compatibility depends on the specific IGBT module type and drive power rating. Contact our technical team with your drive type code and serial number for confirmation before ordering.

Q: What pre-shipment testing is performed on the AGBB-01C REV.B?
A: Every AGBB-01C REV.B unit undergoes full functional testing prior to dispatch, including gate signal output verification, short-circuit protection response testing, and auxiliary power input tolerance checks. A test report is available upon request. All units are shipped with a support terms confirmed by quotation from the date of shipment.

Q: What is the lead time and stock availability?
A: The AGBB-01C REV.B is maintained availability confirmed by RFQ to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or multi-site retrofit programs, contact [email protected] to confirm availability and arrange priority allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AGBB-01C REV.B
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AGBB-01C REV.B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
