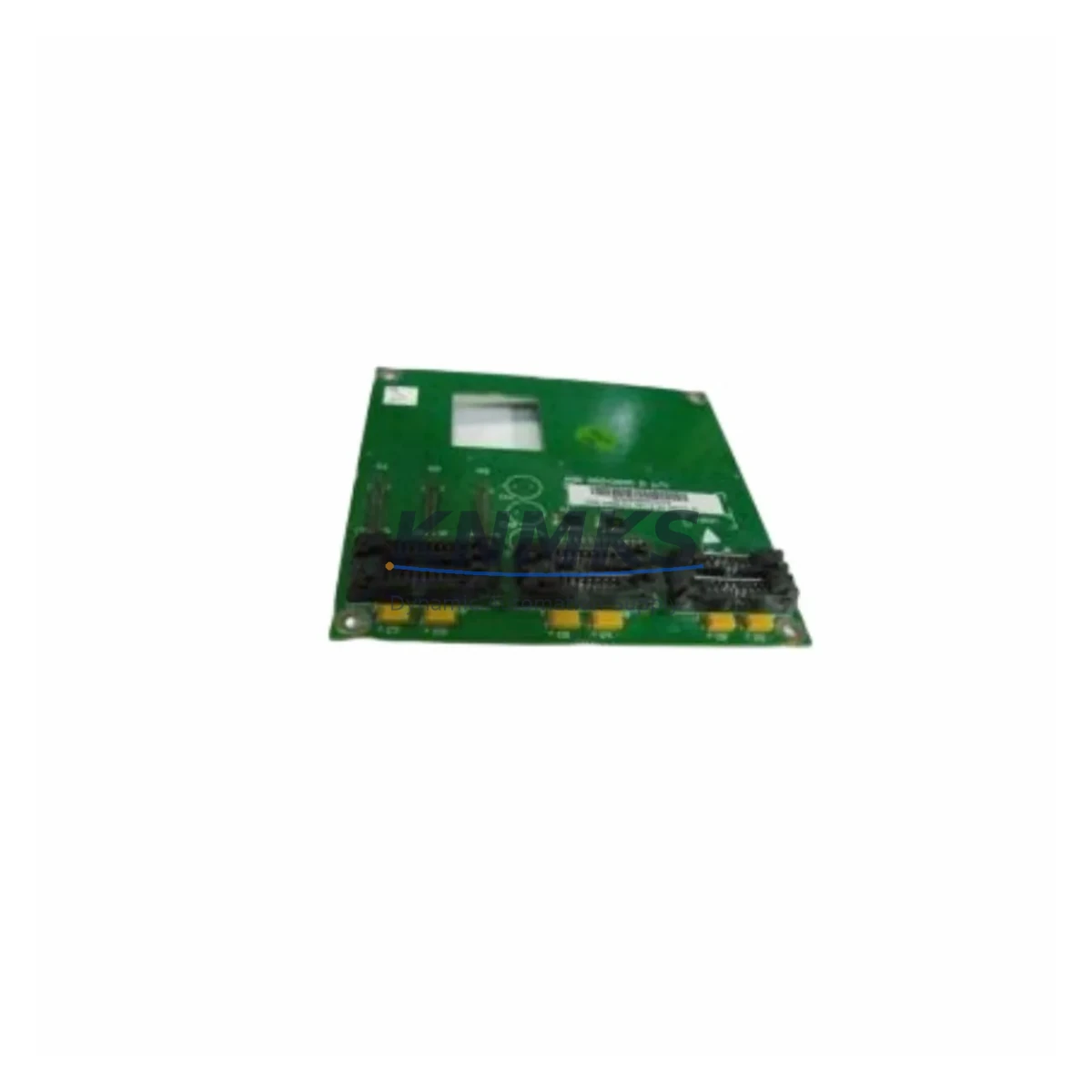

The ABB AGBB-01C is an original gate driver board designed for ABB ACS series variable frequency drives, including the widely deployed ACS600 and ACS800 platforms. In industrial facilities where drive-controlled motors are critical to production continuity, the AGBB-01C serves as a front-line maintenance spare — enabling rapid fault isolation, board-level replacement, and full drive restoration without extended downtime. Sourced as an original ABB component, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency procurement and planned spare parts inventory.

Maintenance engineers working on ABB ACS series drives frequently encounter gate driver faults as a root cause of drive trip events, IGBT misfiring, or uncontrolled output conditions. The AGBB-01C interfaces directly with the IGBT power module stack, translating control-level switching signals into precise gate pulses. When this board degrades — due to thermal cycling, capacitor aging, or transient overvoltage — the drive may exhibit erratic output, overcurrent faults, or fail to start under load. Stocking the AGBB-01C as a verified spare eliminates the diagnostic ambiguity of board-level faults and reduces mean time to repair (MTTR) significantly.

For procurement engineers managing multi-site MRO inventories, the AGBB-01C represents a high-priority line item for any facility running ACS600 or ACS800 drives in continuous-process or high-availability environments. Long-term supply availability, pre-shipment electrical verification, and documented compatibility with the ACS series platform reduce procurement risk and support annual maintenance budget planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AGBB-01C gate driver board during a scheduled or emergency maintenance event, a thorough inspection of the surrounding drive subsystems is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat the gate driver replacement as an opportunity to audit the complete drive cabinet.

Begin with the DC bus capacitor bank — capacitor degradation is a common co-failure with gate driver boards in aging ACS series drives, and replacing the AGBB-01C without addressing capacitor condition may result in a repeat fault within months. Next, inspect the AINT-02C or AINT-14C auxiliary interface board, which handles I/O signal routing and interlock logic; a damaged interface board can mask gate driver faults or introduce spurious trip signals after replacement.

Check the APOW-01C power supply board that feeds the gate driver and control electronics — undervoltage or ripple on the internal 24V or 15V rails is a frequent root cause of gate driver degradation. Verify the RMIO-11C or RMIO-12C control board for firmware integrity and parameter backup before any board swap, as control board faults can be misdiagnosed as gate driver failures.

For drives integrated into fieldbus networks, inspect the RDCO-01C or RDCO-04C DDCS communication module to confirm that the drive will re-establish network communication after restart. In cabinets with multiple drives, also check input fuses and AC chokes upstream of the drive — a blown fuse or degraded choke can cause the replacement board to fail prematurely under load. Finally, verify motor cable insulation resistance and encoder feedback wiring before energizing the drive post-replacement to avoid immediate overcurrent or encoder fault trips.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active fault codes from the drive panel or CDP control panel. Document the fault history log before de-energizing. This baseline is critical for post-replacement verification.

Step 2 — Safe De-energization: Isolate the drive from mains supply and allow the DC bus to fully discharge (minimum 5 minutes after power-off, or verify with a DC voltmeter). Do not proceed until bus voltage is below 50V DC.

Step 3 — Board Removal: Follow the ABB ACS series drive service manual for AGBB-01C removal. Note connector positions and cable routing before disconnection. Photograph the installation if the service manual is unavailable on-site.

Step 4 — Replacement Installation: Install the new AGBB-01C, ensuring all connectors are fully seated. Verify that no standoffs or mounting hardware are missing. Do not apply power until all connections are confirmed.

Step 5 — Parameter Restore and Commissioning: Restore drive parameters from backup. Perform a no-load test run before reconnecting the motor load. Monitor output current and drive temperature during the first 30 minutes of operation.

Step 6 — Documentation: Update the maintenance log with the replacement date, part number, and post-replacement test results. Schedule the next inspection interval based on drive operating hours and ambient conditions.

Spare Parts Support FAQ

Q1: Is the AGBB-01C compatible with all ACS series drive frame sizes?
The AGBB-01C is designed for specific frame sizes within the ACS600 and ACS800 series. Compatibility depends on the drive’s power rating and frame designation. Always cross-reference the drive’s service manual or contact our technical team with your drive nameplate data before ordering to confirm fitment.

Q2: What testing is performed before shipment?
Each AGBB-01C unit undergoes electrical function verification prior to dispatch. This includes continuity checks, gate signal output verification, and visual inspection for component damage. A test report is available upon request for quality-critical procurement.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and electrical failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Support requests are supported with return and replacement logistics.

Q4: Can you support long-term or blanket purchase orders for the AGBB-01C?
Yes. For facilities managing multi-site MRO inventories or planning annual maintenance budgets, we support long-term supply agreements and staged delivery schedules. Contact our sales team to discuss volume pricing, lead time commitments, and inventory reservation options.
