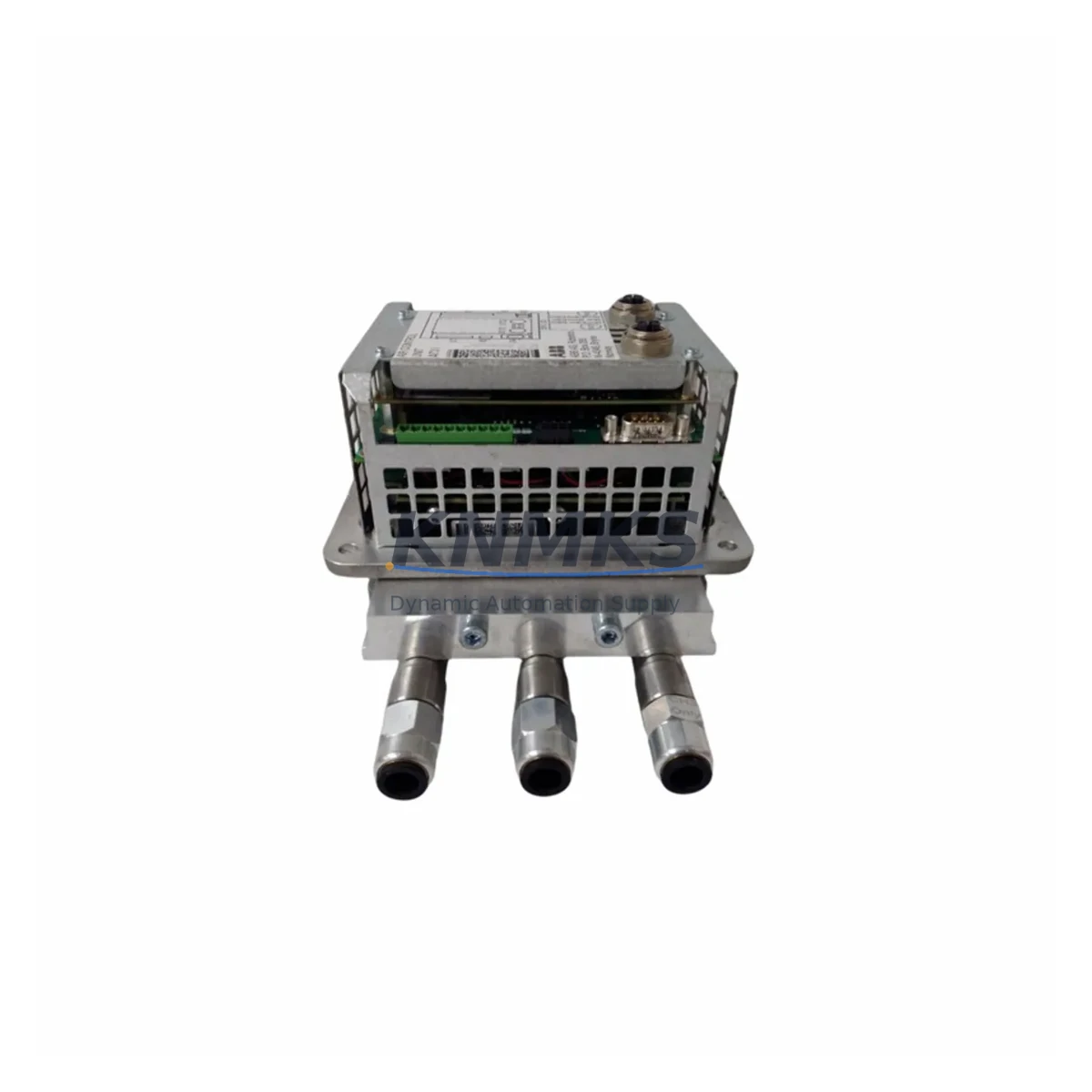

ABB ACU-01B 3HNA024871-001 Migration-Ready Axis Control

Overview

ABB ACU-01B 3HNA024871-001 Migration-Ready Axis Control Unit for Legacy IRC5 Systems

The ABB ACU-01B (3HNA024871-001) is a migration-ready Axis Control Unit designed for direct replacement and retrofit integration within ABB IRC5 robot controller cabinets. As ABB progressively phases out legacy IRC5 drive and control hardware, engineering teams managing multi-axis robotic cells face increasing pressure to source pre-tested, drop-in compatible modules that preserve existing program logic, axis calibration data, and fieldbus communication links without requiring full controller replacement.

The ACU-01B interfaces directly with the IRC5 single-cabinet and dual-cabinet configurations, managing axis position feedback, servo drive coordination, and safety signal routing. During a retrofit or emergency replacement, engineers must verify the backplane slot assignment, confirm the DSQC module addressing scheme, and ensure the replacement unit carries a matching firmware baseline compatible with the installed RobotWare version — typically RobotWare 5.x or 6.x depending on the cell vintage. Mismatched firmware between the ACU-01B and the main computer unit (MCU) such as the DSQC 639 or DSQC 1000 can result in axis initialization faults and SafeMove configuration loss.

Terminal wiring on the ACU-01B follows the IRC5 standard 24 VDC logic supply and resolver/encoder signal harness layout. Before hot-swapping the module, technicians should document the existing axis parameter file (MOC.cfg), back up the system configuration via RobotStudio or the FlexPendant, and confirm that the drive unit — typically the DSQC 668 or DSQC 669 axis computer — is powered down and isolated. The ACU-01B mounting bracket and connector pitch are identical to the original, eliminating the need for cabinet modification or cable extension.

For systems undergoing a broader IRC5 modernization, the ACU-01B replacement is frequently paired with a DSQC 639 main computer board refresh, updated DSQC 611 I/O modules for digital signal expansion, and a replacement teach pendant cable assembly. Where DeviceNet or PROFIBUS fieldbus cards are installed in the IRC5 cabinet, the fieldbus node address and baud rate settings must be re-confirmed post-swap to maintain PLC communication continuity with upstream Siemens S7 or Allen-Bradley ControlLogix controllers on the production line.

All ACU-01B units supplied by KNMKS are sourced from controlled inventory, subjected to pre-shipment functional testing under simulated IRC5 load conditions, and shipped with a support terms confirmed by quotation covering manufacturing defects and premature failure. Multi-region stock is maintained to support both emergency same-week dispatch and scheduled planned maintenance windows, minimizing unplanned downtime in automotive, foundry, and general manufacturing environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACU-01B retrofit begins well before the maintenance window opens. The engineering team should extract the full system backup via RobotStudio, capturing the MOC.cfg axis configuration, RAPID program modules, and SafeMove safety configuration. This backup is the recovery baseline if commissioning reveals unexpected axis parameter drift after the swap.

Within the IRC5 cabinet, the ACU-01B sits adjacent to the drive unit — commonly the DSQC 668 or DSQC 669 axis computer — and communicates over the internal backplane. If the existing DSQC 639 main computer board is also approaching end-of-life, a coordinated replacement of both the ACU-01B and the MCU during the same outage window eliminates a second planned shutdown. Similarly, if the cabinet’s DSQC 661 power supply unit shows signs of capacitor aging (output ripple, intermittent 24 VDC drops), replacing it alongside the ACU-01B prevents a recurrence fault within the confirmed support period.

For cells with expanded I/O requirements, the DSQC 611 digital I/O module and DSQC 652 digital I/O board are common companions in the same IRC5 cabinet. Their node addresses on the internal DeviceNet segment must be re-verified after the ACU-01B swap, as a cold restart of the controller can occasionally reset node enumeration order. Where a PROFIBUS DP card is installed for communication with a Siemens S7-300 or S7-400 PLC, the GSD file and slave address assignment should be confirmed in the PLC hardware configuration before the robot controller is brought back online.

Signal isolation between the IRC5 cabinet and external field devices — particularly resolver feedback lines and emergency stop chains — should be checked with a continuity tester before powering up. Any signal isolator modules in the cabinet wiring tray should be inspected for thermal damage, as a failed isolator can mimic an ACU-01B fault and delay commissioning. The FlexPendant teach pendant and its cable assembly should also be tested for communication integrity before the first axis jog command is issued.

Downtime Control During System Migration

Minimizing downtime during an ACU-01B replacement requires a structured pre-outage checklist and a clear go/no-go decision point before the cabinet is de-energized. The recommended sequence is: complete system backup → axis parameter documentation → spare parts staging (ACU-01B, any companion modules) → cabinet isolation → module swap → harness reconnection → power-up sequence → axis homing verification → SafeMove re-validation → production handover.

The ACU-01B swap itself typically takes under 30 minutes for a trained technician familiar with the IRC5 cabinet layout. The longest phase is usually SafeMove re-validation, which requires a certified safety engineer to confirm that the configured speed limits, zone boundaries, and emergency stop response times remain within the original safety assessment parameters. Where SafeMove is not installed, the re-commissioning time is significantly shorter.

To protect original program logic, the RAPID module files should never be edited during the hardware swap. The controller should be restored from the pre-swap backup rather than relying on the controller’s internal memory, which may have been affected by the fault condition that necessitated the ACU-01B replacement. Once axis homing is confirmed and all six axes respond correctly to jog commands, a short dry-run cycle without tooling load is recommended before returning the cell to full production speed.

KNMKS maintains multi-region stock of the ACU-01B to support same-week emergency dispatch, reducing the gap between fault occurrence and parts arrival. For facilities running multiple IRC5 cells, holding one ACU-01B as a cold spare on-site is a cost-effective strategy that eliminates lead-time risk entirely.

Retrofit Support FAQ

Q1: Is the ACU-01B 3HNA024871-001 a direct drop-in replacement for earlier ACU-01A units?
Yes. The ACU-01B is the designated successor to the ACU-01A within the IRC5 platform. The backplane connector, mounting dimensions, and harness pinout are identical. Firmware must be updated to match the installed RobotWare version via the controller’s boot application before the first power-up.

Q2: What pre-shipment testing is performed on each unit?
Every ACU-01B supplied by KNMKS undergoes functional testing under simulated IRC5 axis load conditions prior to dispatch. Test records are available on request. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions.

Q3: Can the ACU-01B be used in IRC5 cabinets running DeviceNet or PROFIBUS fieldbus cards?
Yes. The ACU-01B is compatible with IRC5 cabinets fitted with optional DeviceNet and PROFIBUS DP fieldbus cards. After replacement, the fieldbus node address and baud rate settings should be re-confirmed in both the robot controller configuration and the upstream PLC hardware configuration to restore communication continuity.

Q4: What is the typical lead time and do you hold stock for emergency orders?
KNMKS maintains multi-region stock of the ACU-01B 3HNA024871-001 to support both emergency same-week dispatch and scheduled planned maintenance. Contact [email protected] or call +86 18359268345 to confirm current stock availability and dispatch timeline for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ACU-01B 3HNA024871-001
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB ACU-01B 3HNA024871-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
