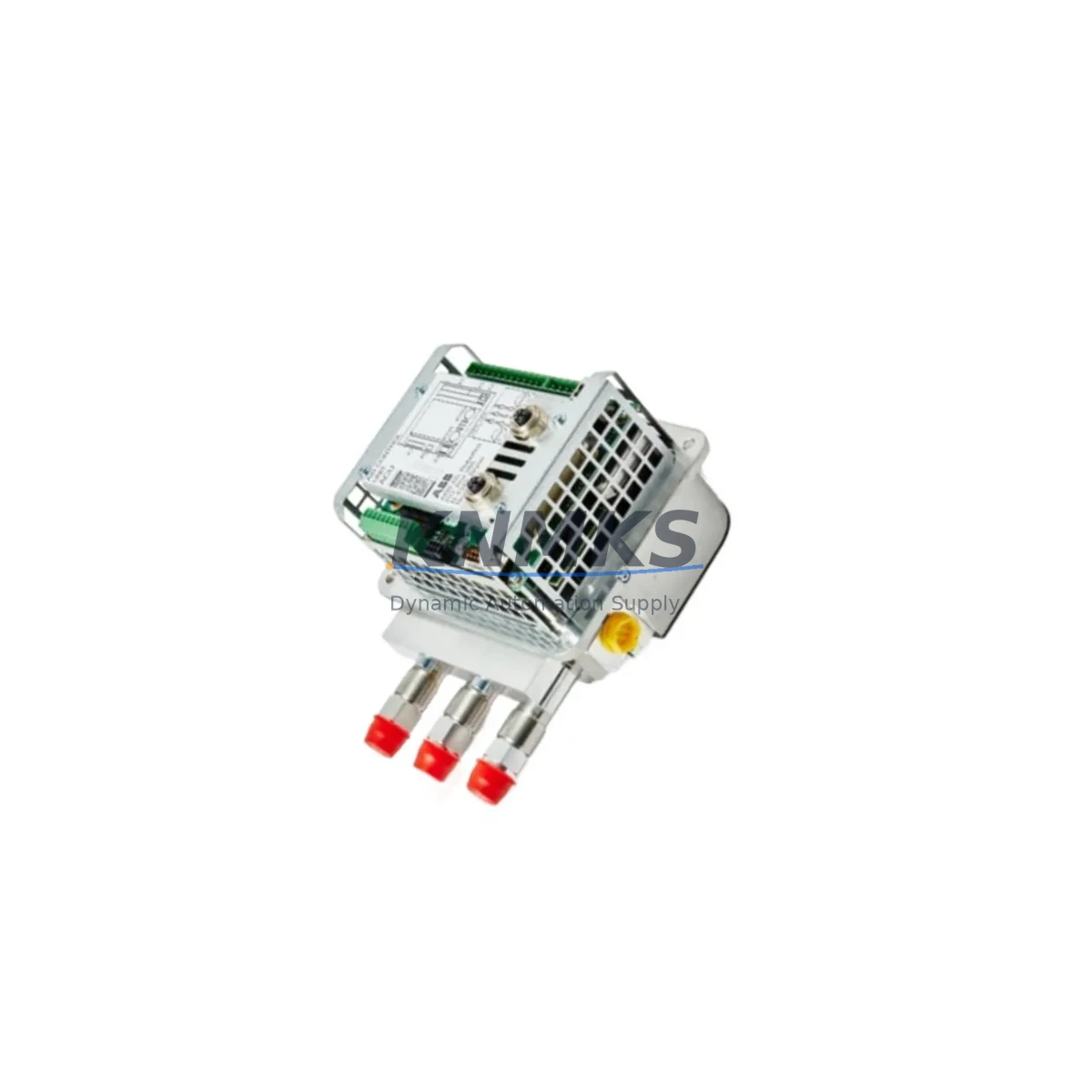

ABB ACU-01 3HNA013719-001 Maintenance-Proven Spare for Factory Uptime

Overview

ABB ACU-01 3HNA013719-001 Maintenance-Proven Spare for Factory Uptime

The ABB ACU-01 (3HNA013719-001 / 3HNA024871-001) is the Axis Computer Unit integrated within the ABB IRC5 robot controller cabinet, responsible for managing pneumatic brake control, axis supervision, and safety interlock signaling across the robot’s drive chain. As a maintenance-proven spare part, it is a critical line-replaceable unit (LRU) for facilities operating ABB IRB series robots — including IRB 1600, IRB 2400, IRB 4400, IRB 6600, and IRB 7600 platforms — where unplanned downtime directly impacts production throughput and OEE targets.

Each unit supplied by KNMKS is sourced as original ABB hardware, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a strategic spare parts buffer for a multi-robot cell, the ACU-01 is a high-priority stocking item that maintenance and procurement engineers should not leave to chance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When an IRC5 controller triggers axis-related fault codes — such as 20223 (Axis computer error), 20225 (Brake fault), or 38203 (Drive unit communication loss) — the ACU-01 is among the first modules to isolate during fault diagnosis. However, experienced maintenance engineers know that a single module fault rarely occurs in isolation. A thorough site inspection should extend to the surrounding electrical and control architecture to prevent repeat failures and ensure a clean return to production.

Start with the IRC5 Drive Module power supply (DSQC 374 / 3HAC025338-001): a degraded 24 VDC rail is a common root cause of intermittent ACU-01 faults and should be load-tested before the replacement unit is commissioned. Inspect the IRC5 Main Computer (DSQC 639 / 3HAC025097-001) for firmware version compatibility — mismatched firmware between the main computer and a replacement ACU-01 can prevent successful axis initialization. Check the Axis Computer communication harness and backplane connectors for fretting corrosion, particularly in high-vibration environments or cabinets exposed to thermal cycling.

The IRC5 I/O module (DSQC 652 / 3HAC025784-001) handles digital I/O signals that interact with the ACU-01’s safety chain; verify that all 24 VDC digital outputs are within tolerance and that no I/O channel is in a latched fault state. For robots equipped with pneumatic grippers or tool changers, inspect the solenoid valve manifold wiring and the pneumatic pressure sensor signals feeding into the ACU-01 — a blocked or leaking pneumatic circuit can generate false axis faults that mask the true hardware condition. Additionally, review the SafeMove or Electronic Position Switch (EPS) configuration if the robot operates in a collaborative or restricted-zone application, as ACU-01 replacement may require re-validation of safety-rated axis supervision parameters.

For facilities managing a fleet of IRC5 controllers, it is best practice to maintain at least one ACU-01 spare per four robots in active production. Pair this with a stocked IRC5 Customer I/O board (DSQC 643) and a set of brake resistor assemblies to cover the most common unplanned downtime scenarios without waiting on international freight.

Site Replacement Workflow

Replacing the ACU-01 on an IRC5 controller is a structured procedure that, when followed correctly, minimizes downtime to under two hours for a trained technician. Begin by performing a full system backup via RobotStudio or the FlexPendant — this preserves the robot’s calibration data, RAPID programs, and I/O configuration before any hardware is disturbed. Power down the IRC5 cabinet using the main disconnect switch and verify zero-energy state with a calibrated voltage tester across the 24 VDC and 230/400 VAC bus bars.

Remove the faulty ACU-01 by releasing the backplane locking tabs and disconnecting the harness connectors in sequence. Note the connector labeling — incorrect re-seating of the brake control or axis supervision harnesses is a common installation error that generates new fault codes post-replacement. Install the replacement 3HNA013719-001 unit, ensuring the backplane connector is fully seated and the locking tabs are engaged. Reconnect all harnesses in reverse order, referencing the IRC5 Product Manual (document 3HAC021313-001) for connector pinout verification.

On power-up, navigate to the IRC5 event log and confirm that axis computer initialization completes without fault. If the system was previously running a customized ACU-01 parameter set (common in multi-axis or external axis configurations), restore the backup and verify axis calibration offsets. Perform a low-speed manual jog of all axes before returning the robot to automatic production mode. Document the replacement in your CMMS with the new unit’s serial number and the support terms confirmed by quotation start date for future reference.

For facilities transitioning from the original 3HNA013719-001 to the successor 3HNA024871-001, both part numbers are functionally interchangeable within the IRC5 platform — no firmware changes or parameter modifications are required for a direct swap, simplifying the qualification process for maintenance teams managing legacy and current-generation IRC5 cabinets side by side.

Spare Parts Support FAQ

Q1: Is the 3HNA024871-001 a direct replacement for the 3HNA013719-001?
Yes. The 3HNA024871-001 is the successor part number for the ACU-01 and is a direct, plug-compatible replacement for the 3HNA013719-001 within all IRC5 controller variants. No firmware updates or parameter changes are required for the swap. KNMKS stocks both part numbers and can confirm cross-compatibility for your specific IRC5 serial number range on request.

Q2: What pre-shipment testing is performed on each ACU-01 unit?
Every ACU-01 unit shipped by KNMKS undergoes functional power-on verification and visual inspection for physical damage, connector integrity, and component condition prior to dispatch. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should we manage long-term spare parts inventory for IRC5 fleets?
For facilities operating five or more IRC5 controllers, we recommend a tiered spare parts strategy: maintain one ACU-01 unit on-site as a hot spare, and place a standing replenishment order to restore stock within 30 days of consumption. Given that the IRC5 platform has an extended service life — many installations remain in production 15–20 years after commissioning — securing original ABB hardware from verified supply channels now reduces exposure to obsolescence risk and counterfeit parts as the platform matures. KNMKS supports long-term supply agreements for high-volume MRO customers.

Q4: Can the ACU-01 be repaired, or should it always be replaced?
Board-level repair of the ACU-01 is technically possible but is generally not recommended for safety-critical robot applications. The ACU-01 participates in the IRC5 safety chain (brake control and axis supervision), and any repair must be validated against ABB’s functional safety specifications to maintain CE/machinery directive compliance. For most maintenance scenarios, replacement with a tested original spare is the faster, lower-risk, and more cost-effective path to restoring production uptime. KNMKS supplies tested original units with a support terms confirmed by quotation, eliminating the uncertainty associated with field-repaired boards.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HNA013719-001 / ACU-01 / 3HNA024871-001
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3HNA013719-001 / ACU-01 / 3HNA024871-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
