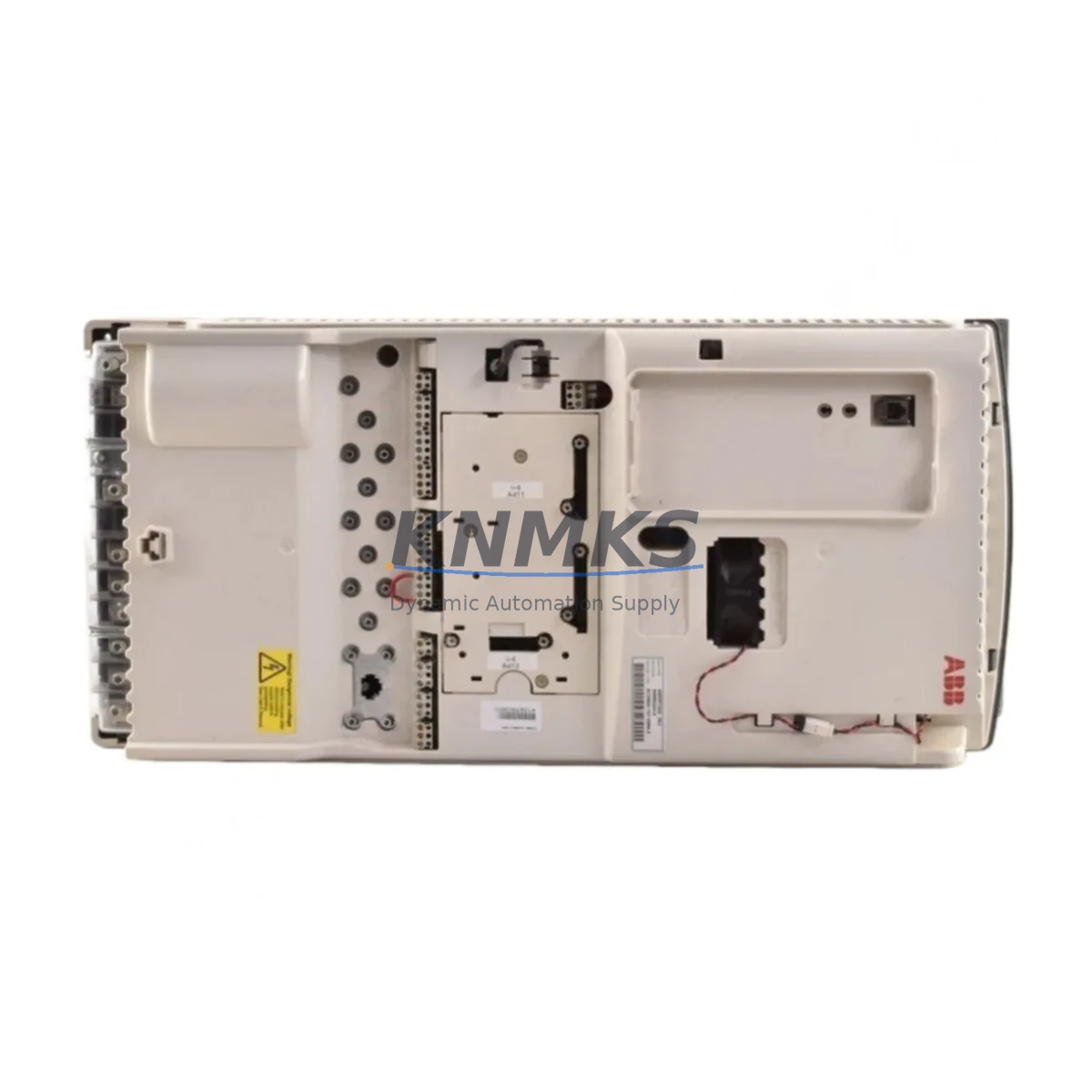

ABB ACS800-104-0060-5+Q950 Migration-Ready AC Drive

Overview

ABB ACS800-104-0060-5+Q950 Migration-Ready AC Drive: Legacy System Retrofit & Compatibility Upgrade

The ABB ACS800-104-0060-5+Q950 is a cabinet-mount AC drive engineered for direct integration into existing ACS800-series automation architectures. Designed to replace discontinued or end-of-life variable frequency drive modules in legacy control panels, this unit supports seamless migration from older ABB drive platforms without requiring full cabinet redesign or PLC reprogramming. The +Q950 option package includes a pre-configured PROFIBUS DP communication adapter, enabling plug-in compatibility with SIMATIC S7, ABB AC500, and other PROFIBUS-capable controllers already deployed in the field.

For engineers managing aging drive infrastructure in energy, petrochemical, water treatment, or heavy manufacturing environments, the ACS800-104-0060-5+Q950 provides a validated upgrade path that preserves existing motor wiring, terminal layouts, and control logic. The drive accepts standard 3-phase input and delivers precise torque and speed control through ABB’s Direct Torque Control (DTC) algorithm — the same core technology used across the ACS800 product family, ensuring parameter compatibility with existing drive configurations stored in ACS800 DriveWindow or Drive Composer software.

Before installation, engineers should verify the incoming supply voltage and confirm that the existing cabinet’s busbar capacity and fuse ratings match the drive’s input current specifications. Terminal block wiring — including analog reference inputs (AI1/AI2), digital inputs (DI1–DI6), relay outputs, and the motor thermistor input — should be mapped against the original drive’s I/O configuration to avoid signal conflicts. If the legacy installation used an RDCO-02 or RDCO-03 DDCS fiber optic communication board for master-follower or drive-to-drive communication, compatibility with the replacement unit’s DDCS port must be confirmed prior to commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ACS800-104-0060-5+Q950 into a legacy control system requires a structured pre-retrofit assessment. Begin by auditing the existing cabinet layout to confirm that the physical dimensions of the replacement drive match the available mounting space — particularly the depth clearance behind the cabinet door and the vertical DIN rail or mounting plate configuration. In multi-drive cabinets where an ACS800-04 or ACS800-07 wall-mount unit previously occupied the same bay, the transition to the ACS800-104 cabinet-mount format may require bracket adaptation or busbar repositioning.

Power supply verification is critical. Confirm that the incoming AC supply capacity — including transformer kVA rating, cable cross-section, and upstream circuit breaker sizing — is adequate for the replacement drive’s rated input current. If the original installation included an ABB ACH550 or ACS550 drive in a lower-power application that has since been upgraded, the supply infrastructure may need to be reassessed. Similarly, if the control cabinet houses an ABB NPBA-12 PROFIBUS adapter module or an NMBP-01 Modbus Plus board from a previous generation drive, these should be decommissioned and replaced with the integrated +Q950 PROFIBUS interface included with this unit.

For systems where the ACS800 communicates with an ABB AC500 PLC or a third-party SIMATIC S7-300/S7-400 controller via PROFIBUS DP, the GSD file for the ACS800 drive must be loaded into the PLC’s hardware configuration tool (STEP 7 or TIA Portal) to ensure correct cyclic data exchange. Verify that the drive’s PROFIBUS node address matches the address previously assigned to the legacy unit — this is typically set via the drive’s control panel or parameter group 51. If the system also includes an ABB Panel Builder 800 HMI or a third-party HMI connected via Modbus RTU, confirm that the HMI’s drive parameter address map is compatible with the ACS800 standard parameter list before going live.

In applications where the legacy drive controlled a critical pump, compressor, or conveyor, consider staging the retrofit during a planned maintenance window. Pre-load the motor parameters, application macro, and PID control settings into the replacement drive using Drive Composer offline mode before the shutdown begins. This reduces live commissioning time significantly. If the system uses an external ABB RETA-01 Ethernet adapter or RDNA-01 DeviceNet module for supervisory SCADA integration, verify adapter firmware compatibility with the ACS800-104 control board revision before installation.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement requires preparation that begins well before the scheduled maintenance window. For the ACS800-104-0060-5+Q950, the recommended approach is to perform a full parameter backup of the existing drive using ABB DriveWindow or Drive Composer prior to shutdown. Export the parameter file and store it alongside the motor data sheet and the original wiring diagram — this documentation package becomes the baseline for commissioning the replacement unit.

During the physical swap, label all control wiring before disconnection. The ACS800’s standard I/O terminal block layout is consistent across the ACS800-104 product range, but field wiring variations introduced during previous maintenance cycles can create unexpected mismatches. Pay particular attention to the analog input scaling (AI1 minimum/maximum values), the digital input logic (source vs. sink configuration), and the relay output assignments — these are the most common sources of commissioning delays in retrofit projects.

Once the replacement drive is mechanically installed and wired, perform a motor identification run (ID run) before enabling the process. This allows the drive’s DTC algorithm to characterize the connected motor and optimize torque response — a step that is especially important when the motor has been in service for several years and its electrical characteristics may have drifted from nameplate values. After the ID run, verify the PROFIBUS communication link by checking the drive’s diagnostic LEDs and confirming cyclic data exchange with the PLC. Only then should the process be restarted under load.

For critical applications where even a brief unplanned stop is unacceptable, consider maintaining a pre-configured spare unit on-site. Each ACS800-104-0060-5+Q950 unit shipped by KNMKS undergoes a full functional test before dispatch, and a parameter template can be pre-loaded on request to further reduce on-site commissioning time. Combined with the support terms confirmed by quotation coverage, this approach provides a complete risk mitigation strategy for high-availability automation environments.

Retrofit Support FAQ

Q: Is the ACS800-104-0060-5+Q950 a direct drop-in replacement for my existing ACS800-104 unit?
A: In most cases, yes. The ACS800-104-0060-5+Q950 shares the same mechanical form factor, terminal layout, and parameter structure as other ACS800-104 variants. However, you should verify the power rating, input voltage specification, and any option board configuration (such as encoder feedback or I/O extension modules) against your existing installation before ordering. If you are migrating from an ACS600 or ACS400 platform, parameter remapping will be required.

Q: How do I verify PROFIBUS communication after installation?
A: Set the drive’s PROFIBUS node address via parameter group 51 to match the address previously assigned in the PLC hardware configuration. Load the ACS800 GSD file into your PLC engineering tool (STEP 7 or TIA Portal), compile the hardware configuration, and download to the PLC. Check the drive’s PROFIBUS adapter LED status — a steady green indicates active data exchange. If the LED is flashing or red, verify the baud rate setting and cable termination at both ends of the PROFIBUS segment.

Q: What pre-shipment testing is performed on each unit?
A: Every ACS800-104-0060-5+Q950 unit undergoes a full functional test before dispatch, including power-up verification, I/O signal testing, and communication interface validation. A test report is available on request. Units are covered by a support terms confirmed by quotation against manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch to minimize lead times for urgent replacement requirements.

Q: Can I reuse my existing motor cables and terminal wiring?
A: Existing motor power cables can typically be reused if their cross-section and insulation rating are compatible with the replacement drive’s output current specification. Control wiring should be inspected and re-labeled before reconnection. Pay particular attention to shielding continuity on analog signal cables and the grounding of cable shields at the drive end — improper shielding is a common source of interference in retrofitted installations. If in doubt, contact our technical support team at [email protected] before proceeding.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

ACS800-104-0060-5+Q950
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB ACS800-104-0060-5+Q950
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
