ABB ACS355-03E-06A7-2 Maintenance-Proven Spare Part

Overview

ABB ACS355-03E-06A7-2 Maintenance-Proven Spare Part for Factory Uptime

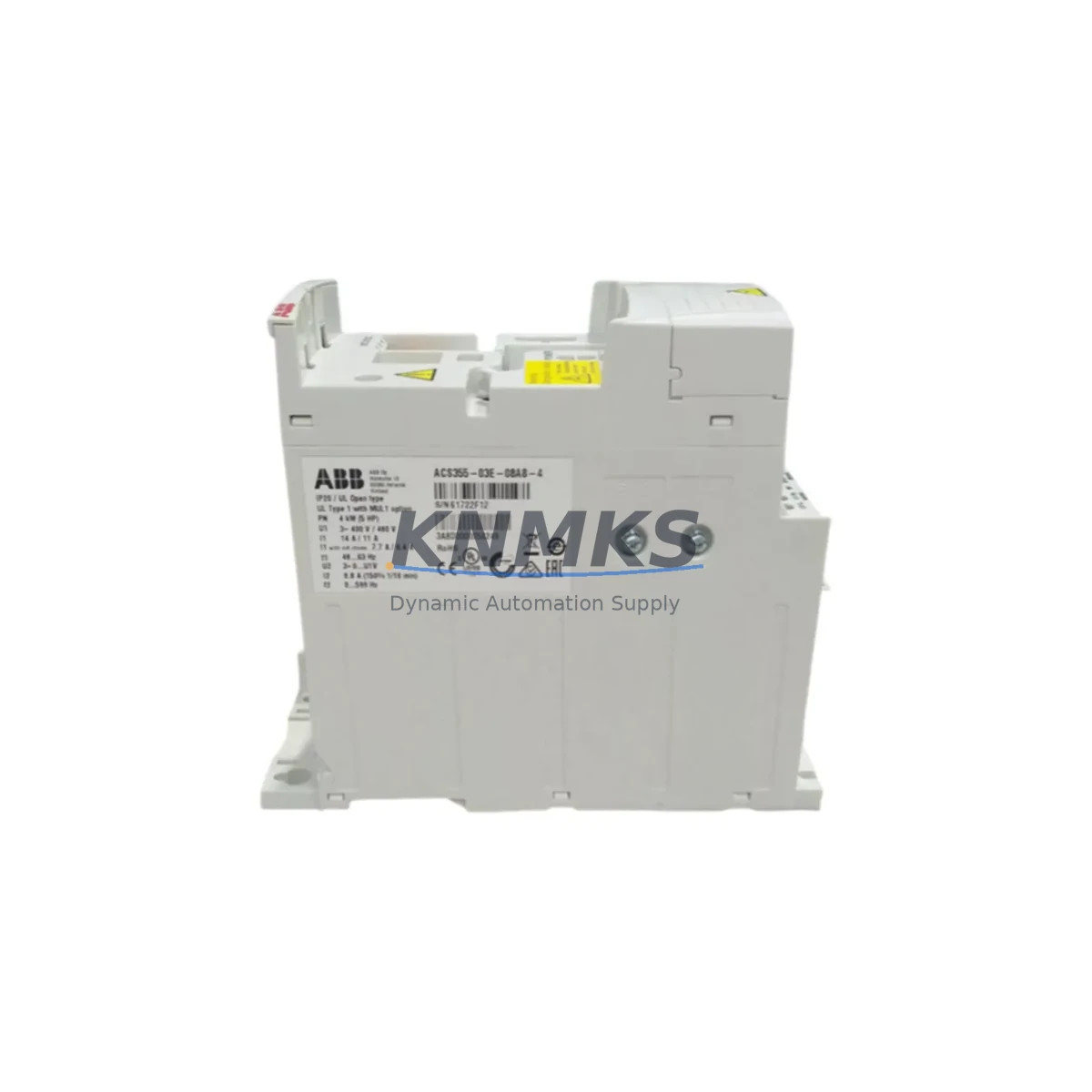

The ABB ACS355-03E-06A7-2 is a 1.5 kW three-phase AC variable frequency drive rated for 200–240 V input, delivering 6.7 A output current within the compact ACS355 series platform. Designed for continuous-duty industrial environments, this drive is a critical spare for maintenance engineers managing conveyor systems, pump stations, fan arrays, compressor skids, and general-purpose motor control panels. Sourced as an original ABB component, each unit is function-tested prior to dispatch and backed by a support terms confirmed by quotation, giving procurement teams the confidence to stock it as a long-cycle replacement asset.

For facilities running ABB ACS355 series drives across multiple production lines, maintaining at least one verified spare of the ACS355-03E-06A7-2 eliminates the risk of extended downtime caused by supplier lead times that can stretch from four to sixteen weeks on allocation-constrained SKUs. This unit ships from regional warehouse stock, enabling same-week dispatch for urgent breakdown recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the ACS355-03E-06A7-2 during annual shutdown or corrective maintenance, experienced maintenance engineers treat the drive swap as a system-level event rather than a single-component change. Before energizing the replacement unit, the following associated components should be inspected or replaced as part of the same work order:

Input power and protection: Verify the upstream ABB OTDC or equivalent disconnect switch, line fuses (typically gG-class, sized to 10 A for this frame), and EMC input filter (e.g., ABB NOCH0010-41 or equivalent) are within service life. A degraded input filter can introduce conducted emissions that shorten drive IGBT life.

Motor cable and output contactor: Inspect shielded motor cable continuity and insulation resistance (IR test at 500 V DC). If an output contactor is present in the circuit, confirm it is rated for VFD duty — standard AC3 contactors are not suitable for switching under load on inverter outputs.

Control wiring and I/O terminals: Check the ACS355 standard I/O terminal block (X1) for loose connections on analog input AI1/AI2 (speed reference), digital inputs DI1–DI6 (run/stop/fault reset), and relay outputs RO1/RO2 (run indication, fault). Corroded or intermittent I/O connections are a leading cause of nuisance trips misdiagnosed as drive failure.

Fieldbus and communication modules: If the drive uses an optional FCAN (CANopen), FDNA (DeviceNet), or FPBA (PROFIBUS-DP) adapter module, transfer the module to the replacement drive and verify node address and baud rate settings match the original configuration before commissioning.

Braking resistor and chopper: For applications with regenerative loads (hoists, centrifuges), inspect the external braking resistor connection and thermal cutout. An open-circuit braking resistor will trigger an overvoltage fault on the replacement drive within seconds of deceleration.

Control panel and HMI: If the installation uses an ABB ACS-CP-C or ACS-CP-D control panel, clone the parameter set from the outgoing drive before removal using the panel’s parameter copy function. This eliminates manual re-entry of motor nameplate data, ramp times, and application-specific PID settings on the replacement unit.

Site Replacement Workflow

Step 1 — Isolation and lockout: Isolate the drive from the main supply and apply LOTO. Wait a minimum of 5 minutes after power-off before opening the enclosure to allow DC bus capacitors to discharge below 50 V (verify with a calibrated multimeter on the DC bus terminals).

Step 2 — Parameter backup: If the existing drive is still partially functional, use the ACS-CP-C panel or ABB Drive Composer PC tool to export the full parameter list. Save the file with the asset tag and date for traceability.

Step 3 — Mechanical swap: The ACS355-03E-06A7-2 uses the standard R1 frame footprint. Remove the four mounting screws, disconnect input (L1/L2/L3), output (U/V/W), DC bus (if bussed), and control wiring. Install the replacement unit in the same orientation. Torque input terminals to 0.8 N·m and output terminals to 0.8 N·m per ABB specification.

Step 4 — Parameter restore and motor ID run: Restore the saved parameter set. If motor data has changed or the parameter backup is unavailable, enter motor nameplate data (voltage, current, frequency, speed, power) and run the ABB motor identification routine (parameter 9902 = ID MAGN or ID RUN) to optimize vector control performance.

Step 5 — Functional test before handover: Run the drive at 10 Hz, 25 Hz, and 50 Hz under no-load conditions. Confirm output current balance across all three phases. Check relay output RO1 for run indication. Log the test result against the work order before returning the line to production.

This workflow is compatible with direct replacement of earlier ACS310 series drives in the same power class, provided motor cable length and EMC filter ratings are re-evaluated for the new installation.

Spare Parts Support FAQ

Q1: Is the ACS355-03E-06A7-2 a direct replacement for the ACS310-03E-06A7-2?
Yes. The ACS355 series was introduced as the functional successor to the ACS310 in the same power and voltage class. Terminal layout, mounting footprint, and parameter structure are largely compatible. Motor nameplate data should be re-entered and a motor ID run performed after installation to ensure optimal performance with the connected load.

Q2: What is included in the support terms confirmed by quotation?
Each ACS355-03E-06A7-2 unit is function-tested before shipment. The support terms confirmed by quotation cover manufacturing defects and component failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the rated ambient temperature range. Support requests are processed with reference to the original invoice and shipment documentation.

Q3: Can you supply multiple units for blanket stock programs?
Yes. For maintenance teams managing multiple ACS355 installations across a facility or across sites, we support blanket purchase orders with staged delivery schedules. Regional warehouse stock enables short-notice dispatch for emergency breakdown coverage. Contact our sales team to discuss volume pricing and consignment stock arrangements.

Q4: How do I verify compatibility before installation?
Confirm the input voltage (200–240 V, 3-phase), output current rating (6.7 A), and frame size (R1) match the existing installation. Cross-reference the motor nameplate current against the drive output rating with a minimum 10% derating margin for continuous-duty applications. If the original drive used an optional fieldbus module or brake chopper, confirm these accessories are transferred or re-ordered separately, as they are not included with the base drive unit.
