ABB ACRB-03 3HNE08250-1 Maintenance-Proven Spare IRC5P

Overview

ABB ACRB-03 3HNE08250-1 Maintenance-Proven Spare Part for Factory Uptime

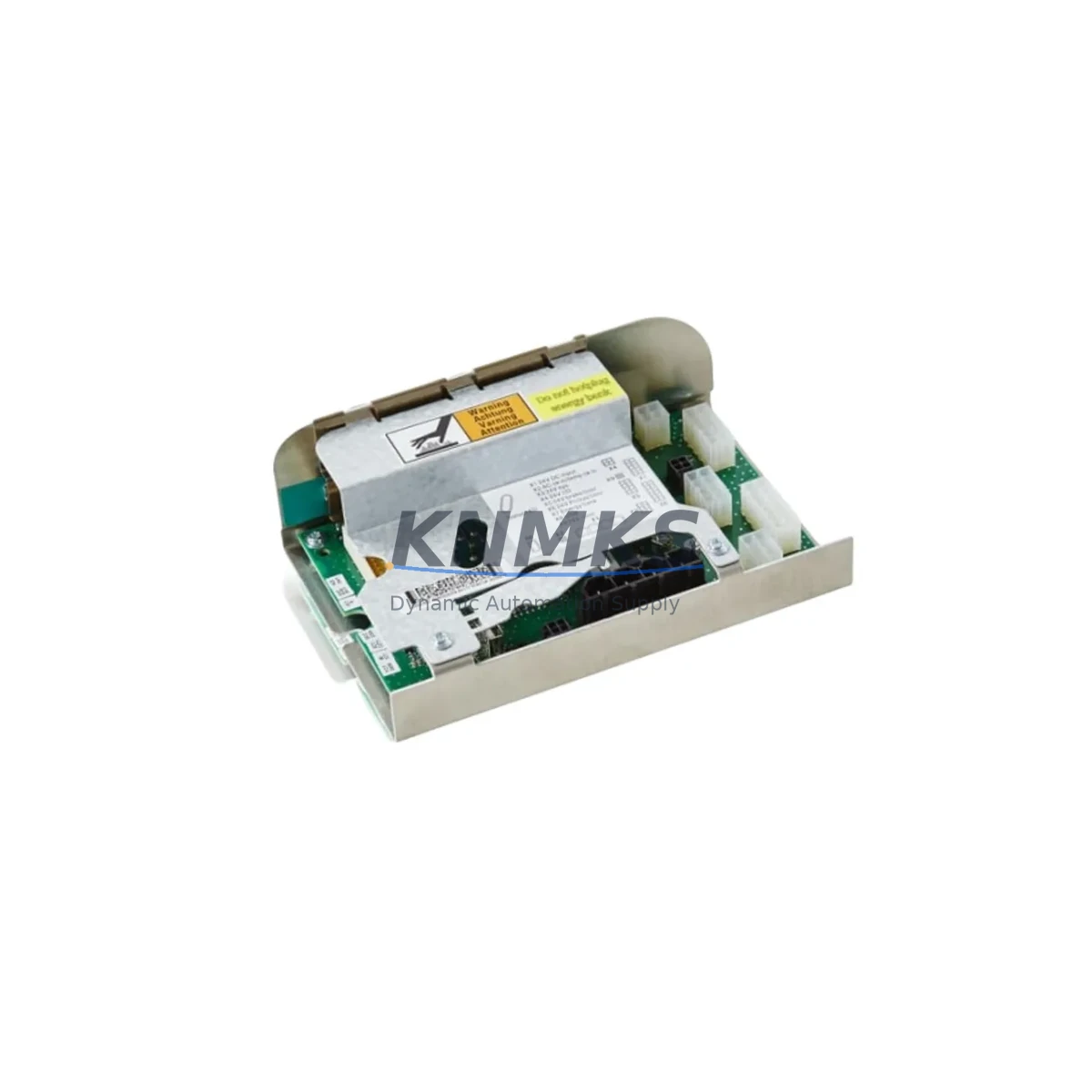

The ABB ACRB-03 (part numbers 3HNE08250-1 and 3HNE06225-1) is the Axis Computer Board installed in ABB IRC5P robot controllers. This board governs axis motion coordination, encoder feedback processing, and servo drive communication for the IRC5P panel-mounted controller platform. When this board fails or degrades, the robot halts — making a verified, pre-tested spare unit a critical asset in any maintenance engineer’s cabinet inventory.

At KNMKS, every ACRB-03 unit is sourced as an original ABB component, inspected against factory specifications, and tested prior to shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving procurement engineers the confidence to approve the purchase without secondary sourcing risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ACRB-03 is rarely an isolated task. In practice, maintenance engineers working on an IRC5P controller should treat this board replacement as an opportunity to audit the surrounding electrical environment. The IRC5P backplane distributes both power and communication signals to all installed boards, so a degraded DSQC 661 main computer board or a failing DSQC 662 I/O board can produce fault patterns that mimic axis computer failures — always cross-check fault logs before committing to a single-board replacement.

The 24 VDC supply rail feeding the ACRB-03 should be verified with a calibrated meter. A marginal DSQC 609 power supply unit that delivers voltage within tolerance under no-load conditions may still cause intermittent resets under full servo load. If the controller has accumulated more than 30,000 operating hours, proactive replacement of the PSU alongside the axis board is a sound investment in uptime continuity.

Encoder and resolver cables connecting the ACRB-03 to the robot arm’s joint motors are another common failure point. Inspect SMB (Serial Measurement Board) cables and their connectors at the robot base for chafing, connector corrosion, or pin back-out. A damaged SMB cable will generate axis position errors that are frequently misdiagnosed as ACRB-03 failures, leading to unnecessary board replacements.

For facilities running multiple IRC5P cells, the DSQC 378 fieldbus adapter or DSQC 652 digital I/O board should be included in the annual inspection cycle. These modules share the backplane environment with the ACRB-03 and are subject to the same thermal and vibration stresses. Stocking one spare unit of each critical board type — including the ACRB-03 — reduces mean time to repair (MTTR) from days to hours when an unplanned fault occurs during a production shift.

Procurement engineers should also note that the 3HNE08250-1 and 3HNE06225-1 part numbers are functionally interchangeable in most IRC5P configurations, but firmware revision compatibility should be confirmed against the controller’s installed RobotWare version before installation. KNMKS technical support can assist with compatibility verification prior to order confirmation.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active fault codes from the FlexPendant or IRC5P teach pendant. Axis-specific faults in the 50071–50075 range typically indicate ACRB-03 involvement. Cross-reference with the SMB cable status and encoder feedback signals before proceeding.

Step 2 — Controller Power-Down: Follow ABB IRC5P lockout/tagout procedure. Discharge the capacitor bank in the drive module before opening the controller cabinet. Verify zero-energy state with a voltage probe on the DC bus.

Step 3 — Board Extraction: Disconnect all backplane connectors from the ACRB-03 in sequence. Note the slot position — the replacement board must be installed in the identical slot to maintain axis mapping. Photograph the connector layout before removal if the installation is non-standard.

Step 4 — Replacement Installation: Seat the new ACRB-03 firmly into the backplane slot. Reconnect all cables in reverse order. Verify that the board’s LED indicators illuminate correctly during controller power-up (green status LED = normal operation).

Step 5 — System Verification: Perform a cold start of the IRC5P controller. Run the robot through a full-range jog cycle on each axis to confirm encoder feedback and motion control are functioning correctly. Clear fault logs and document the replacement in the maintenance record.

Step 6 — Spare Stock Update: Log the consumed spare unit and initiate a replenishment order to maintain minimum stock levels. For high-utilization cells, a minimum of one ACRB-03 spare per two IRC5P controllers is a widely adopted industry benchmark.

Spare Parts Support FAQ

Q1: Is the ACRB-03 (3HNE08250-1) compatible with all IRC5P controller variants?
The ACRB-03 is designed for the IRC5P panel-mounted controller platform. Compatibility with specific IRC5P hardware revisions and RobotWare versions should be confirmed before installation. KNMKS provides pre-sale compatibility verification — contact [email protected] with your controller serial number and RobotWare version for confirmation.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Support requests are supported with replacement or refund, subject to inspection of the returned unit. Physical damage caused by incorrect installation or overvoltage events is excluded.

Q3: How quickly can a replacement ACRB-03 be dispatched for an emergency shutdown situation?
KNMKS maintains stock of the ACRB-03 for immediate dispatch. Orders confirmed before the daily cut-off time are typically shipped the same business day via express courier. Estimated transit times vary by destination — contact +86 18359268345 for urgent shipment coordination.

Q4: Can KNMKS supply ACRB-03 units for long-term spare parts programs covering 3–5 years of production?
Yes. KNMKS supports long-term supply agreements for critical spare parts including the ACRB-03. Blanket orders with scheduled releases are available for maintenance departments managing multi-cell IRC5P installations. Contact [email protected] to discuss volume pricing and supply continuity terms.
