ABB AC10272001R0101 Migration-Ready Gate Drive Interface for Legacy Control Systems

Overview

ABB AC10272001R0101 Migration-Ready Gate Drive Interface for Legacy Control Systems

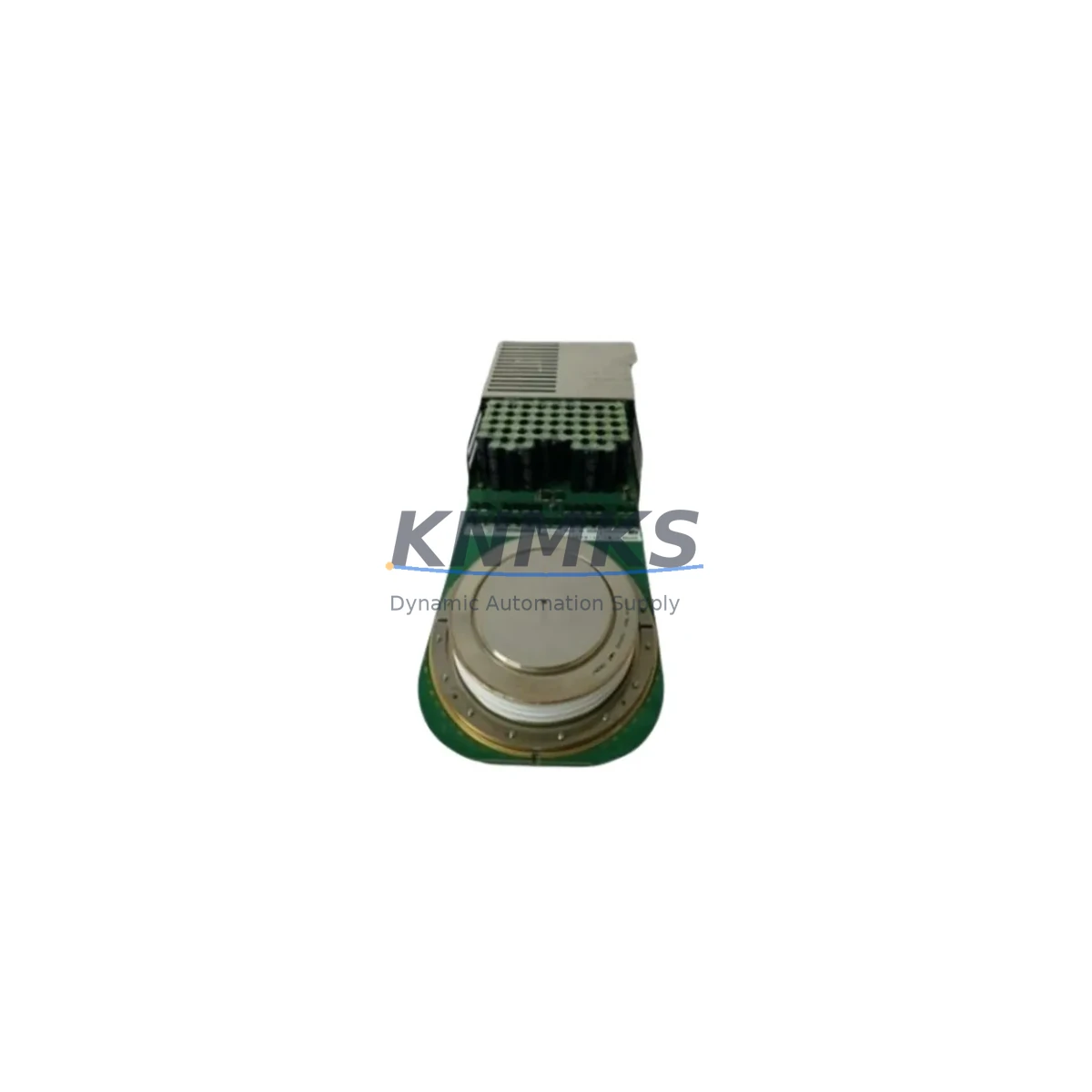

The ABB AC10272001R0101 is a migration-ready gate drive interface module engineered for direct replacement and retrofit deployment within ABB’s ACS800, ACS880, and DCS800 drive platforms. Originally cross-referenced as 5SXE 10-0181, 5SHY 35L4520, and 5SGY 35L4520, this module serves as the critical link between the drive control board and the IGBT power stack, making it a high-priority spare part for facilities operating legacy variable frequency drive (VFD) systems in continuous production environments.

For maintenance engineers managing aging ACS800 or DCS800 installations, the AC10272001R0101 represents a direct, form-fit-function replacement that eliminates the need for full drive cabinet redesign. Whether the objective is emergency breakdown recovery, planned preventive maintenance, or a phased migration toward the ACS880 platform, this module supports all three scenarios without requiring firmware re-flashing of the main control unit (RMIO or RDCU board) in most standard configurations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the AC10272001R0101 begins well before the module arrives on-site. Maintenance teams should first audit the existing drive cabinet to confirm the IGBT stack generation — ABB ACS800 units shipped across different production years may use either the 5SHY 35L4520 or the earlier 5SXE 10-0181 gate drive interface, and the AC10272001R0101 is validated against both. Before powering down the drive, document the current parameter set using DriveWindow Light or DriveStudio, paying particular attention to motor control mode (DTC or scalar), speed reference scaling, and any active fieldbus adapter settings on the RDCO or RCAN communication option board.

Terminal wiring on the gate drive interface is handled through the backplane connector rather than field-wired terminals, which significantly reduces reconnection errors during swap-out. However, engineers should inspect the fiber-optic DDCS cables connecting the RDCU control board to the gate drive interface for any signs of contamination or mechanical stress — a degraded fiber link is a common root cause of nuisance gate drive faults that are often misdiagnosed as module failure. Replacing the AC10272001R0101 alongside a fresh set of DDCS fiber patch cables is a recommended best practice for any ACS800 that has been in service for more than five years.

For sites migrating from a standalone ACS800 installation toward an ACS880 multi-drive architecture, the AC10272001R0101 can serve as an interim solution to restore production continuity while the new ACS880 inverter modules and BCU-12 or BCU-22 control units are being commissioned. In parallel, the RDIO digital I/O extension module and any FEN-31 HTL encoder interface boards should be inventoried, as these are frequently reused during the migration and their compatibility with the new control platform must be confirmed before cutover. Similarly, if the existing installation uses a Panel Bus connection to an ACS-CP-D or ACS-CP-C control panel, verify that the panel firmware supports the target drive type before reassigning it to the ACS880 system.

Power supply capacity is another critical checkpoint. The internal 24 VDC auxiliary power supply within the ACS800 drive cabinet feeds both the control electronics and the gate drive interface. When adding I/O extension modules such as the RDIO or upgrading to a higher-density I/O configuration, recalculate the total auxiliary current draw to ensure the existing APBU-44C or APBU-12C power buffer unit is not overloaded. Exceeding the auxiliary supply rating is a leading cause of intermittent gate drive faults and unexplained drive trips during high-load production cycles.

Downtime Control During System Migration

Minimizing unplanned downtime during a gate drive interface replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, upload the full parameter backup from the RDCU or RMIO control board using DriveWindow or DriveStudio and store it on a dedicated engineering laptop — not on the drive’s internal memory alone. This ensures that if the replacement module triggers an automatic parameter reset or if the drive prompts for a new motor identification run, the original tuning values can be restored within minutes rather than hours.

During the physical swap, follow ABB’s recommended ESD precautions for the AC10272001R0101: the gate drive interface contains sensitive IGBT firing circuitry that can be damaged by electrostatic discharge even when the drive cabinet is de-energized. Use a grounded wrist strap and place the removed module in an anti-static bag immediately. After installing the replacement module, perform a visual inspection of the backplane connector pins before re-energizing — bent or contaminated pins are a common source of post-replacement faults that are difficult to diagnose under time pressure.

Once the drive is re-energized, run the IGBT identification sequence if the drive firmware requests it, then verify gate pulse symmetry using the drive’s built-in diagnostics before reconnecting the motor load. For ACS800 units controlling critical process equipment such as compressors, extruders, or hoists, a no-load test run of at least 10 minutes is strongly recommended before returning the drive to automatic control. This approach protects the original program logic, maintains field control continuity, and reduces the risk of a second unplanned outage caused by an incomplete commissioning sequence.

Retrofit Support FAQ

Q1: Is the AC10272001R0101 a direct replacement for the 5SXE 10-0181 and 5SHY 35L4520?
Yes. The AC10272001R0101 is the current ABB part number that supersedes both the 5SXE 10-0181 and 5SHY 35L4520 gate drive interface modules. It is designed as a form-fit-function replacement for ACS800 and DCS800 drives using these earlier part numbers. Always verify the IGBT stack generation label inside the power module bay before installation to confirm compatibility with your specific drive frame size.

Q2: Do I need to re-commission the drive after replacing the gate drive interface?
In most cases, a full motor identification run is not required if the drive parameters are intact and the replacement module is installed correctly. However, ABB recommends running the IGBT identification sequence (accessible via DriveWindow or the drive’s local panel) after any gate drive interface replacement to confirm that firing pulse timing is within specification. If the drive was previously running in Direct Torque Control (DTC) mode, verify that the motor model data is still valid after the swap.

Q3: What pre-shipment testing is performed on the AC10272001R0101?
Every AC10272001R0101 unit supplied by KNMKS undergoes functional pre-shipment testing that includes gate pulse output verification, insulation resistance check, and visual inspection of the backplane connector and fiber-optic interface ports. Units are shipped in anti-static packaging with a test record. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: What is the typical lead time and inventory availability?
KNMKS maintains stock of the AC10272001R0101 to support emergency breakdown and planned maintenance requirements. Standard orders are processed and shipped within 1–3 business days. For sites requiring long-term supply agreements covering 12–36 months of planned maintenance, KNMKS offers inventory reservation programs — contact our sales team to discuss volume and scheduling requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AC10272001R0101 5SXE 10-0181 5SHY 35L4520 5SGY 35L4520
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB AC10272001R0101 5SXE 10-0181 5SHY 35L4520 5SGY 35L4520
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
