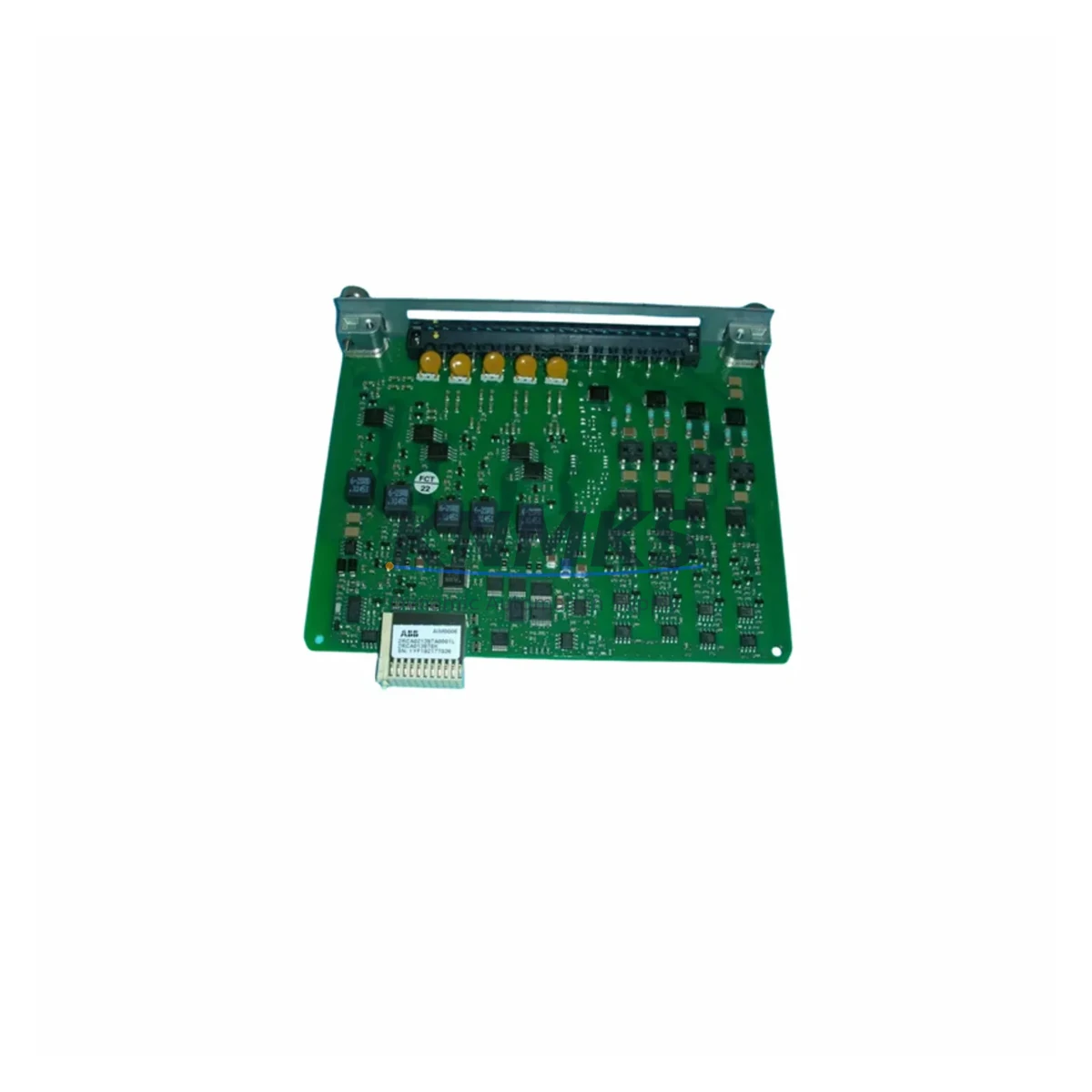

ABB 9280026.C Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 9280026.C Maintenance-Proven Spare Part for Factory Uptime

The ABB 9280026.C is an original processor module designed for the ABB AC500 PLC series — one of the most widely deployed programmable logic controller platforms in process automation, power distribution, and discrete manufacturing. Maintaining an in-stock spare of the 9280026.C is a proven strategy for reducing unplanned downtime, accelerating fault recovery, and extending the operational life of legacy AC500 control systems without requiring a full platform migration.

For maintenance engineers managing aging AC500 installations, the 9280026.C represents a critical node in the control architecture. Processor module failures are among the highest-impact fault events in a PLC cabinet: they halt all scan cycles, disable I/O communication, and can cascade into process shutdowns across interconnected systems. Having a pre-tested, support terms-backed replacement on the shelf transforms a potential multi-day outage into a controlled, sub-hour recovery.

Each unit supplied by KNMKS is sourced from verified channels, subjected to pre-shipment functional testing, and covered by a support terms confirmed by quotation. Global dispatch capability supports both emergency replacement scenarios and scheduled annual maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the ABB 9280026.C processor module, a disciplined maintenance engineer will not limit the scope to the CPU card alone. The AC500 control cabinet contains several interdependent components whose condition directly affects the reliability of the replacement and the stability of resumed operations.

Begin with the TB5xx terminal base that the 9280026.C mounts onto — inspect the backplane connector for oxidation, bent pins, or mechanical stress fractures caused by thermal cycling. A degraded terminal base will cause intermittent communication faults even with a new processor installed. Simultaneously, verify the AC500 power supply module (PS5xx series): processor modules are sensitive to voltage ripple and transient spikes, and an aging PSU is a common root cause of repeated CPU faults that are misdiagnosed as processor failures.

Check all SM5xx signal modules (digital and analog I/O) seated on the same backplane. During a processor swap, I/O modules should be inspected for loose terminal connections, blown channel fuses, and firmware version compatibility with the replacement CPU. If the system uses CM5xx communication modules for PROFIBUS DP or Modbus TCP connectivity, confirm that the communication parameters stored in the new processor’s project file match the field device configuration — mismatched baud rates or node addresses will prevent network recovery after restart.

For installations with CP600 or CP400 series HMI panels connected to the AC500 CPU, verify the HMI communication driver version and project compatibility before bringing the system back online. An HMI that cannot re-establish its data link to the new processor will generate operator alarms and may trigger safety interlocks. Also inspect 24 V DC distribution fuses and miniature circuit breakers in the control cabinet — a processor failure is sometimes preceded by a transient overcurrent event that may have stressed or partially tripped upstream protection devices.

Finally, if the AC500 system uses DC532 or DC522 digital output modules driving relay or contactor loads, check the output channel status and load-side wiring continuity. Inductive load switching without adequate suppression is a known stress factor for both processor and I/O modules in long-running AC500 installations.

Site Replacement Workflow

Step 1 — Backup and documentation: Before removing the 9280026.C, use ABB Automation Builder (PS501 Control Builder) to export the current PLC project, including all program blocks, I/O configuration, and communication settings. Store the backup on an isolated USB drive and confirm the file integrity checksum.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the AC500 cabinet and confirm zero-voltage state at the backplane power rails using a calibrated multimeter. Allow a minimum 60-second discharge period for capacitive components in the PSU.

Step 3 — Module extraction: Release the 9280026.C from the terminal base using the module locking lever. Avoid applying lateral force to the backplane connector. Place the removed module in an ESD-protective bag for failure analysis or return.

Step 4 — Replacement installation: Seat the new 9280026.C firmly onto the TB5xx terminal base until the locking lever engages. Verify that the module is flush and that no connector pins are misaligned.

Step 5 — Project restore and commissioning: Re-energize the cabinet. Download the backed-up project to the new processor via Automation Builder. Perform a full I/O force test to confirm all digital and analog channels respond correctly. Verify communication links to all CM5xx modules and connected HMI panels before releasing the system to production.

Step 6 — Documentation update: Record the replacement date, new module serial number, and test results in the site maintenance log. Update the spare parts inventory to trigger a reorder for the consumed 9280026.C unit.

Spare Parts Support FAQ

Q1: Is the ABB 9280026.C compatible with both AC500 V2 and V3 backplanes?
The 9280026.C is designed for the ABB AC500 platform and is compatible with the TB5xx terminal base family used across AC500 V2 and V3 generations. However, firmware version and Automation Builder project compatibility should always be verified against your specific installation revision before deployment. KNMKS can provide compatibility guidance based on your system’s existing CPU firmware version upon request.

Q2: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a support terms claim, contact KNMKS at [email protected] with the order reference, failure description, and photographic evidence of the fault condition. Replacement or repair will be dispatched within the agreed lead time.

Q3: How does KNMKS verify the condition of spare modules before shipment?
Every 9280026.C unit undergoes pre-shipment functional testing that includes power-on verification, communication interface checks, and visual inspection for connector integrity and component condition. A test report is available upon request. Units are packed in ESD-protective packaging with desiccant to prevent moisture ingress during transit.

Q4: Can KNMKS support long-term supply agreements for the 9280026.C and related AC500 components?
Yes. KNMKS maintains multi-region stock of AC500 processor modules, signal modules, and power supply units to support both emergency replacement orders and scheduled annual maintenance procurement. Long-term supply agreements with fixed pricing and reserved stock allocation are available for customers with recurring maintenance requirements. Contact [email protected] or +86 18359268345 to discuss a supply agreement tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

9280026.C
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 9280026.C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
