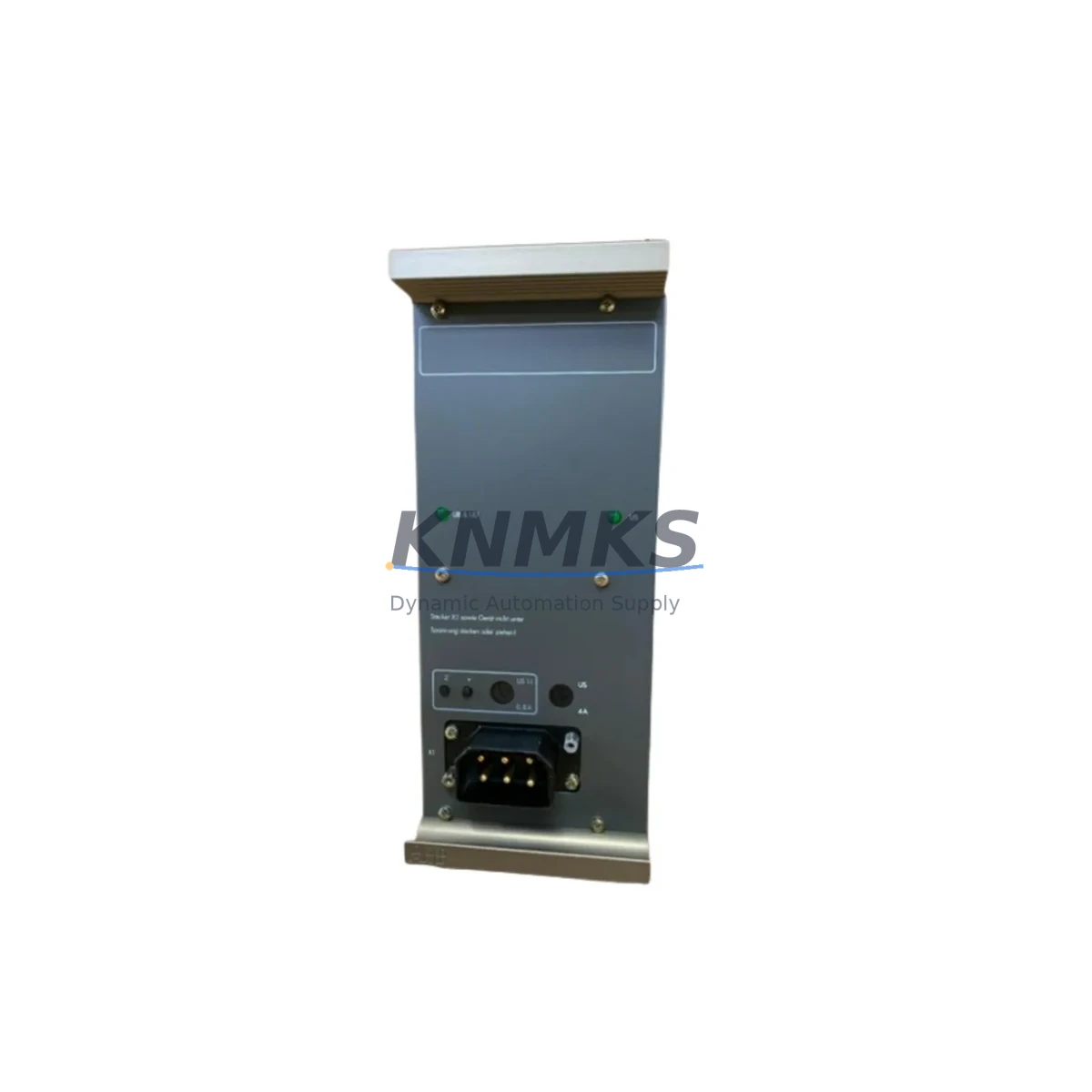

The ABB 89NG03 (catalog reference GJR4503500R0001) is a power supply module engineered for the ABB AC500 programmable logic controller platform — one of the most widely deployed modular PLC families in process automation, discrete manufacturing, and utility infrastructure. As production lines age and original equipment manufacturers phase out legacy support, maintaining a verified stock of the 89NG03 becomes a critical element of any plant’s spare parts strategy. This module provides stable DC power distribution to the AC500 CPU and I/O backplane, and its failure directly causes controller shutdown, unplanned downtime, and potential process safety events.

At KNMKS, every 89NG03 unit is sourced from verified supply channels, inspected against ABB’s original electrical specifications, and subjected to pre-shipment functional testing before dispatch. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and electrical performance, giving maintenance engineers and procurement teams the confidence to stock this module as a long-term replacement asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned replacement of the 89NG03 power supply module, the scope of inspection should extend well beyond the module itself. The AC500 platform distributes power and signals across a tightly integrated backplane, and a degraded power supply often masks or accelerates wear in adjacent components.

Begin by verifying the incoming 24 VDC supply rail feeding the control cabinet — a fluctuating or undersized industrial power supply (such as the ABB CP-E or equivalent 24 VDC DIN rail PSU) can cause premature failure of the 89NG03 and should be load-tested independently. Check all terminal blocks and wiring connections on the power distribution bus for oxidation, loose crimps, or thermal discoloration, as poor contact resistance generates heat that degrades module longevity.

Inspect the AC500 backplane itself for physical damage, bent connector pins, or contamination. The backplane carries both power and communication signals to all installed I/O modules — a compromised backplane can cause intermittent faults that are misdiagnosed as power supply failures. While the cabinet is open, audit the installed I/O modules (digital input, digital output, and analog I/O cards in the AC500 SM5xx series) for status LED anomalies, as a failing I/O module drawing excess current can stress the power supply.

Communication modules such as the AC500 CM5xx series (PROFIBUS, PROFINET, or Modbus TCP variants) should also be checked for firmware currency and connector integrity. A communication fault during a power cycle can corrupt the CPU program memory, compounding the downtime event. Similarly, if the installation includes an ABB CP600 or CP400 series HMI panel connected to the AC500 CPU, verify the HMI power supply and communication cable continuity as part of the same maintenance window.

Finally, inspect the cabinet’s fuse protection — individual branch fuses protecting the 24 VDC distribution to the PLC rack, I/O field devices, and relay outputs should be tested for continuity and rated correctly for the load. Replacing the 89NG03 without auditing the upstream fuse and surge protection components leaves the new module exposed to the same fault conditions that caused the original failure.

Site Replacement Workflow

Replacing the ABB 89NG03 on a live production site requires a structured approach to minimize controller downtime and avoid configuration loss. Before beginning, confirm that the AC500 CPU program and parameter data are backed up to the engineering workstation via ABB Automation Builder or the legacy Control Builder Plus environment. This step is non-negotiable — a power interruption during module swap without a current backup can result in program loss on older CPU variants.

Power down the control cabinet following the site’s lockout/tagout (LOTO) procedure. Remove the 89NG03 by releasing the backplane locking mechanism and sliding the module clear of the connector. Inspect the backplane connector on both the module and the rack for debris or pin damage before inserting the replacement unit. Seat the new 89NG03 firmly until the locking tab engages, then restore power and observe the module’s status LEDs during the boot sequence — a solid green RUN indicator confirms correct initialization.

After restoration, verify the CPU communication status with all I/O modules and confirm that the HMI (if present) re-establishes its data connection without alarm. Log the replacement date, module serial number, and pre/post voltage measurements in the site maintenance record. For facilities operating multiple AC500 racks or redundant controller configurations, the same replacement procedure applies to each rack independently, and cross-rack communication should be verified after both units are restored.

The 89NG03 is a direct form-fit-function replacement for the GJR4503500R0001 catalog position, requiring no firmware changes or parameter reconfiguration on the CPU side. This makes it suitable for emergency replacement scenarios where engineering support is not immediately available on site.

Spare Parts Support FAQ

Q1: What is the expected service life of the ABB 89NG03, and when should it be proactively replaced?
Under normal industrial operating conditions (ambient temperature within rated range, clean power supply, no excessive vibration), the 89NG03 power supply module typically delivers 8–12 years of reliable service. Proactive replacement is recommended when output voltage measurements show drift beyond ±2% of nominal, when the module runs noticeably hotter than baseline, or when the AC500 CPU logs intermittent power fault events. For critical production lines, maintaining at least one spare unit on-site eliminates the lead time risk entirely.

Q2: Is the GJR4503500R0001 compatible with all AC500 CPU variants, and are there any installation constraints?
The 89NG03 / GJR4503500R0001 is designed for the ABB AC500 modular PLC platform and is compatible with the standard AC500 backplane rack configurations used with PM5xx series CPUs. Compatibility should be confirmed against the specific rack and CPU generation in your installation using the ABB AC500 system catalog or by consulting your ABB documentation. KNMKS technical support can assist with compatibility verification prior to order.

Q3: How does KNMKS verify the 89NG03 before shipment, and what does the support terms confirmed by quotation cover?
Every 89NG03 unit undergoes functional electrical testing prior to dispatch, including output voltage verification and load response checks. The support terms confirmed by quotation cover manufacturing defects and electrical performance failures under normal operating conditions. Units that fail within the confirmed support period are replaced or refunded. KNMKS also offers long-term supply agreements (12–36 months) for facilities that require guaranteed stock availability for multi-site maintenance programs.

Q4: Can KNMKS support blanket purchase orders for the 89NG03 to cover annual maintenance budgets?
Yes. KNMKS supports scheduled blanket orders and consignment stock arrangements for the 89NG03 and other AC500 series spare parts. This is particularly valuable for facilities managing multiple AC500 installations across different production lines or geographic sites, where procurement lead time and budget cycle alignment are critical. Contact our sales team to discuss volume pricing, delivery scheduling, and multi-site supply agreements.
