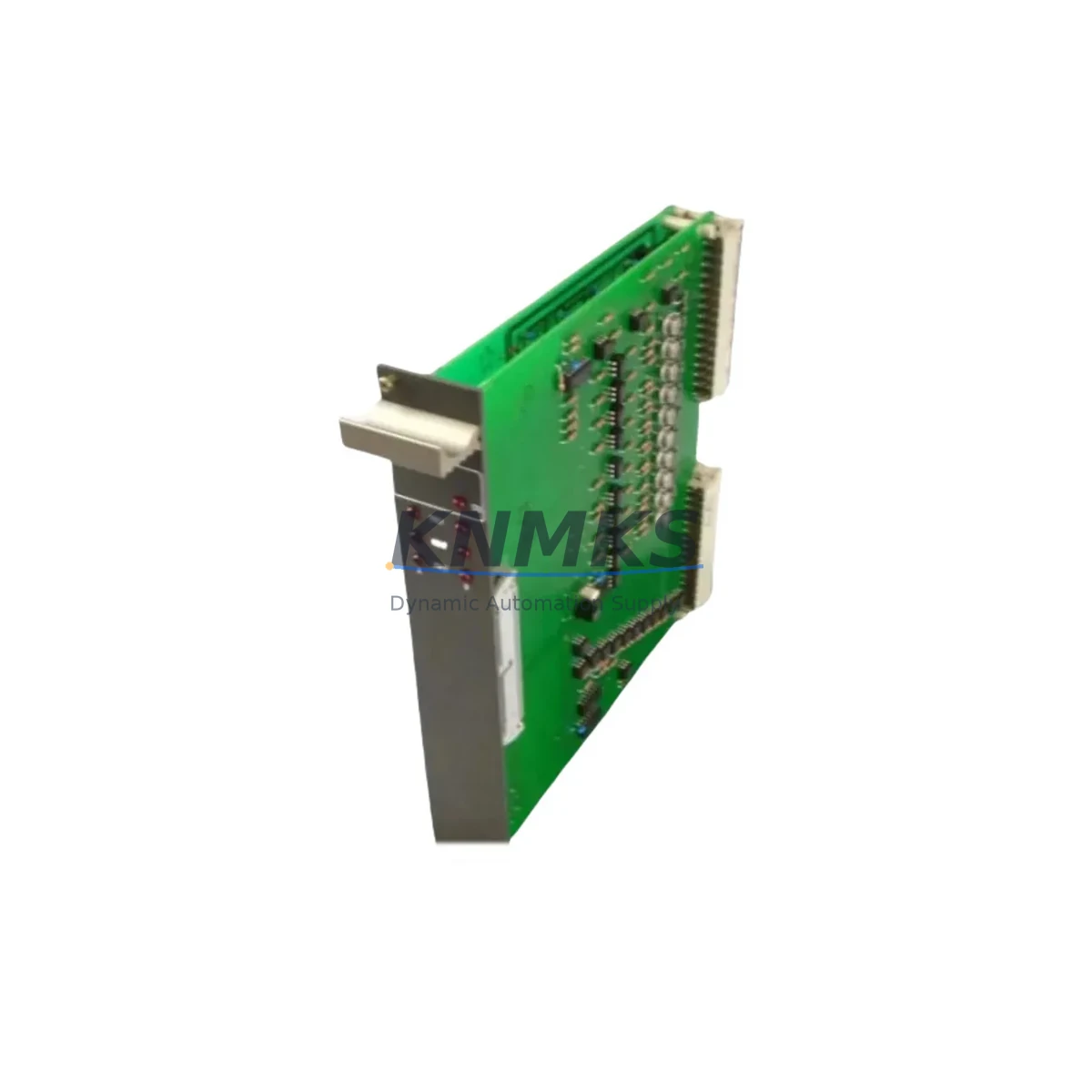

ABB 88UM01A Fail-Safe Digital Input Module for Industrial Control

Overview

ABB 88UM01A Fail-Safe Digital Input Module for Industrial Control Reliability

The ABB 88UM01A is an 8-channel digital input module engineered for fail-safe operation within ABB’s AC500 PLC platform and Freelance DCS architecture. Designed to meet the demanding requirements of continuous production environments, critical safety interlocks, and high-density control cabinets, the 88UM01A delivers deterministic signal acquisition with robust protection against the electrical and environmental hazards common to heavy industrial sites. Whether deployed in petrochemical processing, power generation, mining automation, or water treatment facilities, this module provides the signal integrity and operational resilience that safety-critical control loops demand.

In environments characterized by high electromagnetic interference, voltage transients, ground loops, and fluctuating supply rails, conventional digital input modules frequently exhibit signal drift, false triggering, or communication timeouts that cascade into unplanned shutdowns. The ABB 88UM01A addresses these failure modes through hardware-level surge suppression, optical isolation on each input channel, and wide-range input voltage tolerance — ensuring that field signals from proximity sensors, limit switches, and safety relay contacts are faithfully captured even under adverse conditions. Its compatibility with the AC500 backplane bus eliminates inter-module communication latency, supporting fast scan cycles essential for emergency shutdown (ESD) and safety instrumented system (SIS) applications.

Thermal stability is a persistent concern in enclosed control cabinets where heat dissipation is limited. The 88UM01A is rated for extended operating temperature ranges, reducing the risk of thermally induced logic errors or premature component failure in cabinets that also house power supply units such as the ABB CP-E 24/10.0 and communication processors like the ABB CM572-DP PROFIBUS DP master module. When integrated alongside the ABB DC532 digital combination module for mixed I/O requirements, the 88UM01A maintains signal isolation integrity across the shared backplane, preventing cross-channel interference that could compromise interlock logic.

For safety loop architectures requiring redundant input validation, the 88UM01A pairs effectively with the ABB AI523 analog input module to cross-reference process variable readings against discrete field states — a configuration widely adopted in burner management systems and compressor protection panels. In high-vibration environments such as offshore platforms and mining conveyors, the module’s robust mechanical design and DIN-rail mounting compliance ensure that connector integrity and signal continuity are maintained without periodic re-seating. The ABB TB521-ETH terminal base provides the secure field wiring interface that complements the 88UM01A’s channel density, simplifying cabinet wiring and reducing installation error risk.

KNMKS maintains verified stock of the ABB 88UM01A sourced from authorized distribution channels, with each unit subject to pre-shipment functional testing covering channel continuity, isolation resistance, and backplane communication handshake verification. All units are covered by a support terms confirmed by quotation against manufacturing defects and are shipped with full traceability documentation to support maintenance records and regulatory compliance requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet for safety-critical applications is built around layered protection — and the ABB 88UM01A occupies a central role in that architecture. At the power layer, regulated 24 V DC supply units such as the ABB CP-E 24/10.0 power supply provide stable rail voltage that the 88UM01A’s input circuitry depends on for accurate threshold discrimination. Voltage sags or ripple exceeding module tolerance can cause borderline input states to be misread, triggering spurious interlock activations or masking genuine fault signals. Pairing the 88UM01A with a quality power supply eliminates this risk at the source.

At the communication layer, the ABB CM572-DP PROFIBUS DP master module manages fieldbus data exchange between the AC500 CPU and remote I/O stations. In plants where the 88UM01A monitors distributed field devices — valve position switches, motor run contacts, or pressure switch outputs — reliable PROFIBUS communication ensures that input state changes are reported to the safety controller within the required cycle time. Communication anomalies or bus timeouts in this layer can delay fault detection, increasing the window of exposure to hazardous process states.

For cabinets handling both digital and analog field signals, the ABB DC532 digital combination module and ABB AI523 analog input module complement the 88UM01A by extending the I/O mix without requiring additional backplane slots. This consolidation reduces cabinet footprint, simplifies cable management, and lowers the number of potential failure points in the wiring harness. The ABB TB521-ETH terminal base further supports structured field wiring, providing clearly labeled screw terminals that reduce mis-wiring risk during commissioning and maintenance interventions — a critical factor in facilities where control cabinet access requires permit-to-work procedures.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the ABB 88UM01A is deployed in emergency shutdown systems where discrete field inputs — high-pressure switches, flame detector contacts, and valve position feedback — must be reliably captured under conditions of extreme heat, hydrocarbon vapor exposure, and continuous vibration from rotating machinery. The module’s optical isolation prevents ground faults in field wiring from propagating into the safety controller backplane, protecting the integrity of the entire ESD logic.

In power generation facilities — including thermal, hydro, and wind farms — the 88UM01A monitors turbine protection inputs, generator breaker status, and transformer fault contacts. The high EMI environment generated by large rotating machines and high-voltage switchgear demands the module’s robust noise immunity to prevent spurious trips that result in costly generation outages and grid instability.

In mining and mineral processing operations, conveyor belt safety switches, crusher overload contacts, and ventilation fan run-status signals are routed through digital input modules in environments with heavy dust loading, moisture ingress, and mechanical shock. The 88UM01A’s industrial-grade construction and wide operating temperature tolerance make it a dependable choice for surface and underground automation panels where replacement access is difficult and unplanned downtime carries significant safety and financial consequences.

In water and wastewater treatment plants, the module supports pump station control, chemical dosing interlock monitoring, and overflow alarm input processing in high-humidity enclosures. Its compatibility with the AC500 platform allows seamless integration with existing SCADA systems, enabling operators to monitor input states remotely and respond to field faults before they escalate to process upsets or regulatory compliance violations.

In metallurgical and steel production facilities, the 88UM01A handles furnace door position inputs, cooling water flow switch signals, and crane limit switch monitoring in environments with extreme thermal gradients and electromagnetic interference from induction heating equipment. Its deterministic scan performance supports the fast interlock response times required to protect both personnel and capital equipment in these high-consequence production environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 88UM01A?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. Units that fail under normal operating conditions within the confirmed support period are repaired or replaced at no charge. The support terms does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every ABB 88UM01A unit undergoes functional testing prior to dispatch, including channel continuity verification across all 8 input channels, isolation resistance measurement between channels and chassis ground, and backplane communication handshake testing to confirm AC500 bus compatibility. Test results are available upon request for quality documentation purposes.

Q3: Is the 88UM01A compatible with existing AC500 and Freelance DCS installations?
Yes. The 88UM01A is designed for direct backplane integration with ABB AC500 PLC systems and is compatible with Freelance DCS I/O architectures. It operates with standard AC500 terminal bases and is recognized by AC500 engineering tools without requiring firmware modifications. Compatibility with specific CPU firmware versions should be confirmed against ABB’s published compatibility matrix for your installation.

Q4: Can KNMKS support long-term supply for maintenance and spare parts programs?
Yes. KNMKS maintains ongoing stock of the ABB 88UM01A and related AC500 I/O modules to support blanket-stock agreements and scheduled maintenance programs. For facilities requiring guaranteed availability of critical spare parts, KNMKS can discuss reserved stock arrangements with defined lead-time commitments to eliminate procurement risk during planned shutdowns or emergency replacements.
