ABB 81Q03111A-A11 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 81Q03111A-A11 Maintenance-Proven Spare Part for Factory Uptime

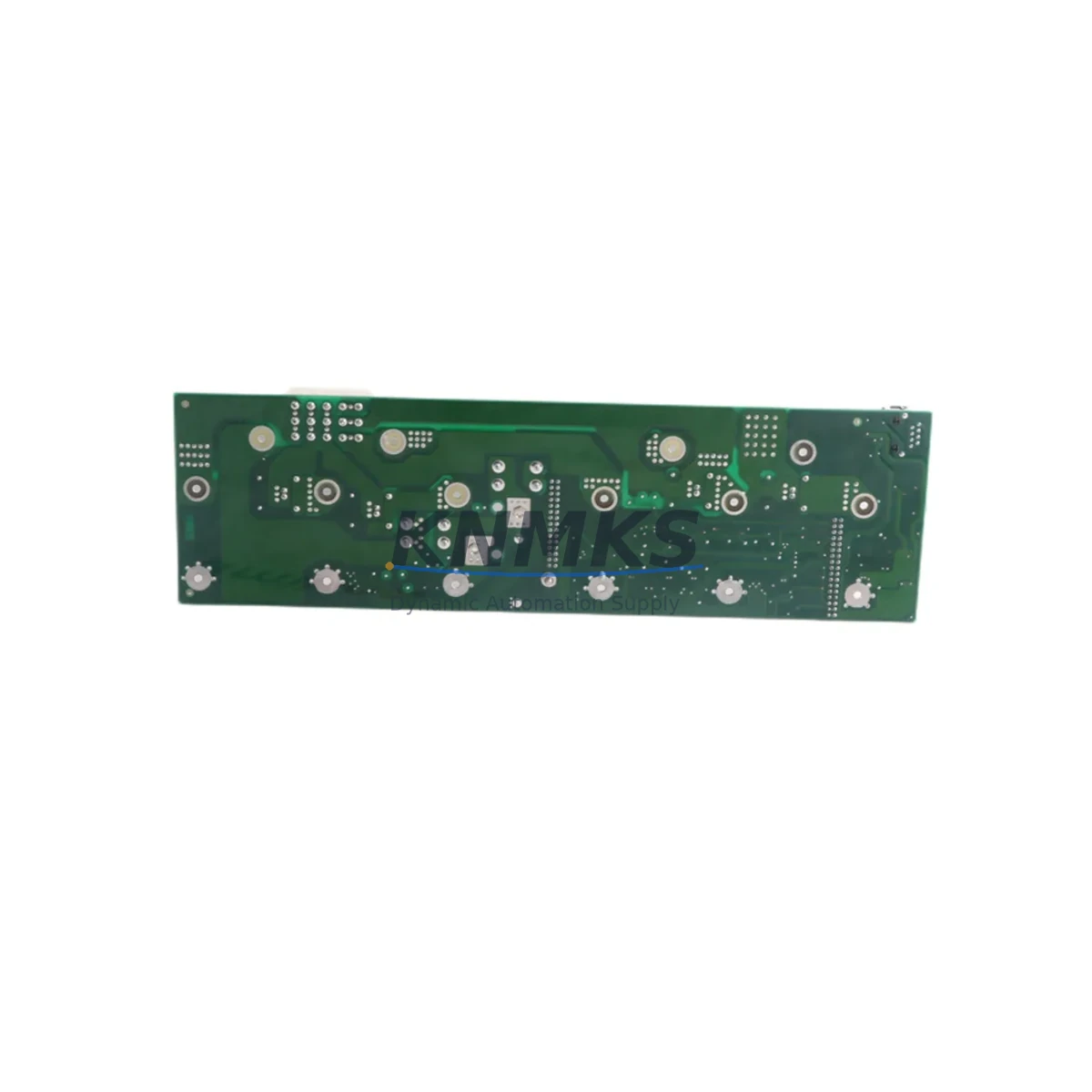

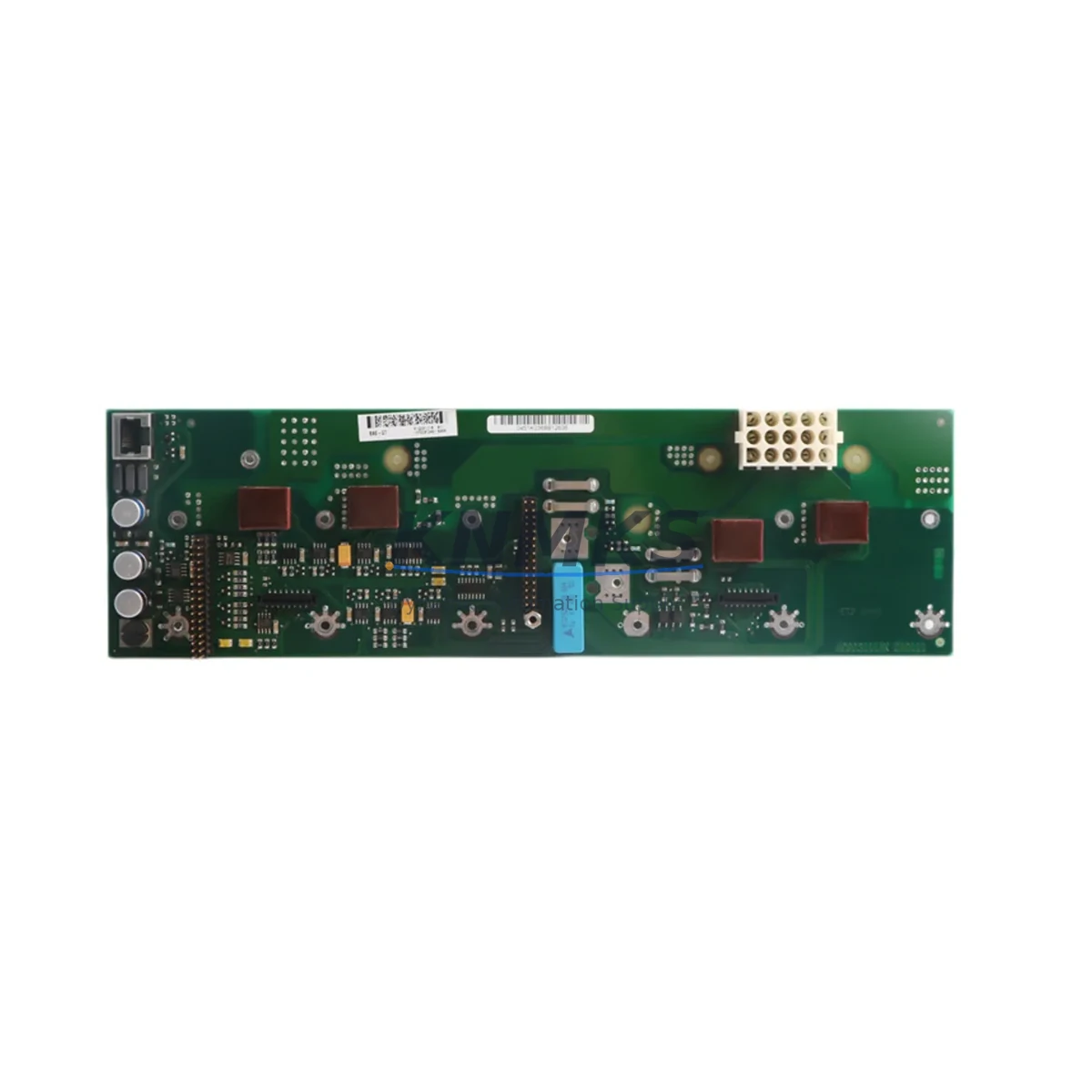

The ABB 81Q03111A-A11 is an original servo axis control board designed for the ABB BAS-GT series servo drive platform. In industrial maintenance environments where unplanned downtime translates directly into production loss, having a verified, shelf-ready replacement for this board is a cornerstone of any responsible spare parts strategy. Whether you are managing a high-throughput packaging line, a precision CNC machining cell, or a multi-axis robotic assembly station, the 81Q03111A-A11 delivers the signal integrity, axis synchronization, and drive communication reliability that BAS-GT systems demand.

Maintenance engineers and procurement teams working with ABB servo infrastructure understand that the control board is the nerve center of the drive axis. Degradation in this component — caused by thermal cycling, capacitor aging, or transient voltage events — typically manifests as intermittent axis faults, encoder feedback errors, or complete drive inhibit conditions. Stocking the 81Q03111A-A11 as a direct replacement eliminates the diagnostic ambiguity of board-level failures and restores the axis to full operation within a single maintenance window.

Each unit supplied by KNMKS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. We maintain long-term supply continuity for BAS-GT series components, supporting both emergency breakdown orders and planned annual overhaul procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB 81Q03111A-A11 control board during a scheduled or emergency maintenance event, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure full axis recovery. Maintenance engineers should begin by verifying the integrity of the 24 VDC control power supply feeding the drive cabinet — a degraded or undersized power supply module is a common root cause of control board stress in BAS-GT installations.

The encoder feedback cable and its associated signal conditioner or isolator should be inspected for insulation damage, connector corrosion, and shield continuity. Encoder signal quality directly affects the axis control board’s ability to maintain closed-loop position accuracy, and a marginal cable can cause recurring faults even after a board replacement. Similarly, the drive’s I/O interface — including digital input terminals for enable, fault reset, and speed reference — should be checked for correct wiring and terminal torque.

For multi-axis BAS-GT installations, the PROFIBUS DP or CANopen communication module connecting the drive to the PLC or motion controller should be verified for correct node addressing and bus termination. A communication fault on the fieldbus can mask or mimic a control board failure. If the cabinet includes an ABB ACS series power supply module or a dedicated DC bus capacitor bank, these should be inspected for capacitance degradation as part of the same maintenance window.

Fuse protection on the control circuit — typically 2A or 4A glass or ceramic fuses on the 24 VDC rail — should be replaced as a matter of course during any board-level intervention. Terminal blocks on the I/O rail adjacent to the drive should be checked for loose connections, particularly on analog reference and feedback channels. Where an HMI panel is integrated into the control cabinet for operator axis control, verify that the HMI communication link to the drive is restored and parameter sets are intact after board replacement. Completing this systematic check ensures that the 81Q03111A-A11 replacement delivers a durable, fault-free return to production rather than a temporary fix.

Site Replacement Workflow

The 81Q03111A-A11 is a direct replacement for the original ABB BAS-GT axis control board. Before beginning the replacement, isolate the drive from mains power and allow the DC bus to fully discharge — confirm with a voltmeter before touching internal components. Document the existing parameter set from the drive’s operator panel or via the ABB DriveWindow commissioning tool, as board replacement may reset drive parameters to factory defaults depending on firmware version.

Remove the faulty board by releasing the retention clips and disconnecting the encoder, I/O, and bus interface connectors in sequence. Install the 81Q03111A-A11, reconnect all interfaces, and restore drive parameters from the saved backup. Perform a no-load axis jog test before returning the axis to production to confirm encoder feedback, speed reference tracking, and fault-free operation. This workflow minimizes total downtime to a single shift window in most BAS-GT installations and eliminates the risk of commissioning errors that can arise from using non-original or incompatible replacement boards.

For sites managing legacy BAS-GT systems approaching end-of-life, maintaining a minimum stock of one 81Q03111A-A11 per drive cabinet — alongside compatible power supply modules and communication interface cards — is a proven strategy for extending system service life by five or more years without a full drive platform migration.

Spare Parts Support FAQ

Q: Is the 81Q03111A-A11 compatible with all BAS-GT series drive variants?
A: The 81Q03111A-A11 is designed for the ABB BAS-GT servo drive platform. Compatibility should be confirmed against the drive’s nameplate and existing board part number before ordering. Our technical team can assist with cross-referencing if you provide the full drive model and firmware version.

Q: What pre-shipment testing is performed on each unit?
A: Each 81Q03111A-A11 is functionally tested prior to dispatch to verify board-level integrity. Units are packed with ESD-protective materials and include a test record. Our support terms confirmed by quotation cover defects in materials and workmanship under normal industrial operating conditions.

Q: Can KNMKS support long-term or blanket purchase orders for BAS-GT spare parts?
A: Yes. We support scheduled delivery agreements and blanket PO arrangements for maintenance teams managing multiple BAS-GT installations. Contact admin@knmks.com to discuss volume pricing, lead time commitments, and consignment stock options.

Q: What is the recommended inventory strategy for the 81Q03111A-A11?
A: For critical production lines, we recommend maintaining at least one board in on-site stock per drive axis, with a secondary unit held at the maintenance store level. Given the lead time sensitivity of servo drive components, a 6–12 month forward stock position is advisable for facilities with high uptime requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

81Q03111A-A11 BAS-GT

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 81Q03111A-A11 BAS-GT
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
