ABB 6227BZ10200 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 6227BZ10200 Maintenance-Proven Spare Part for Factory Uptime

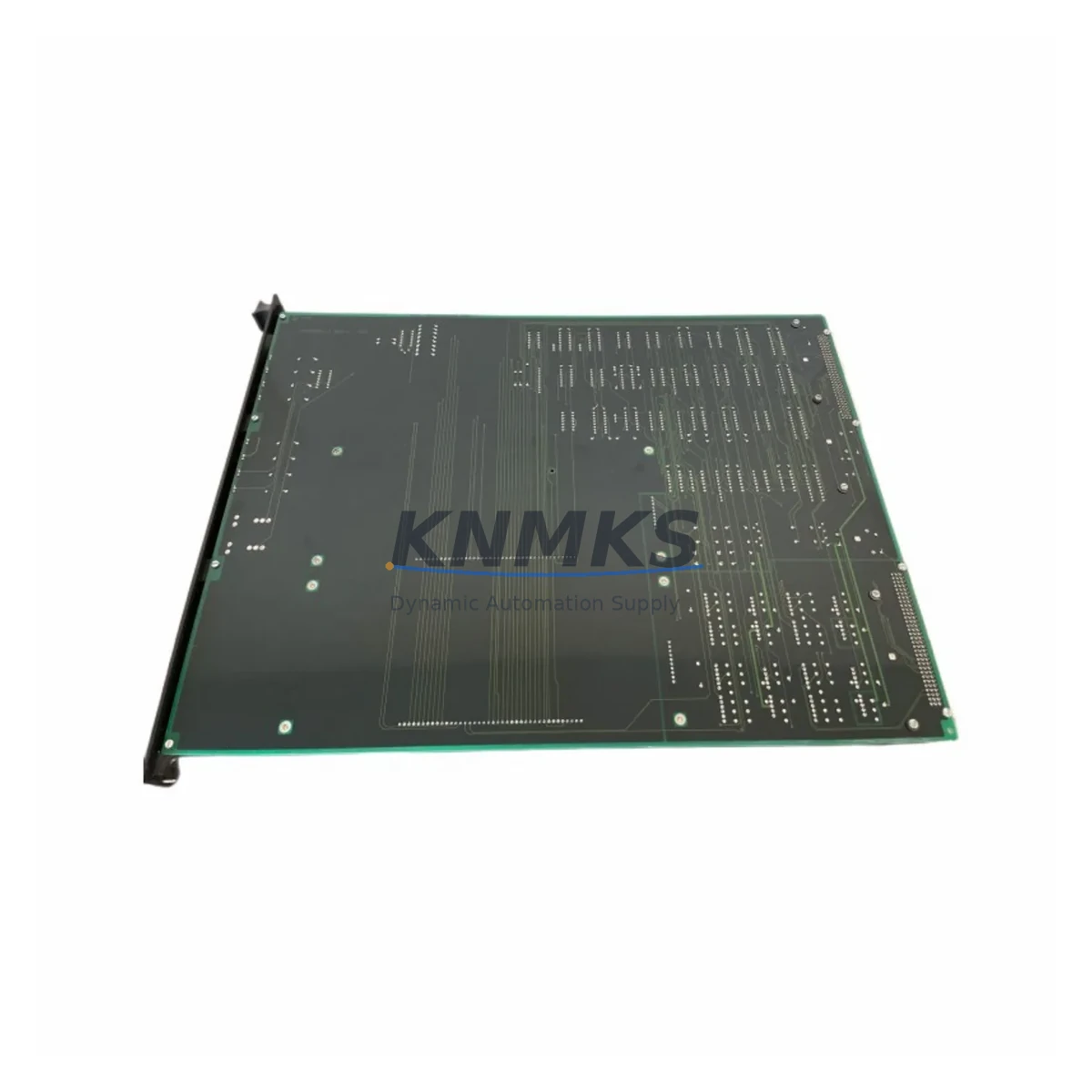

The ABB 6227BZ10200 is an original field bus communication module designed for ABB’s SC Controller platform, widely deployed in Advant OCS, AC450, and AC460 distributed control systems. As a critical communication interface between the controller backplane and field bus network, this module directly governs real-time I/O data exchange, process signal integrity, and system-wide synchronization. Sourcing a verified original spare — not a counterfeit or untested substitute — is the single most important factor in achieving a fast, reliable recovery when this module fails in service.

For maintenance engineers managing aging DCS infrastructure, the 6227BZ10200 represents a high-priority line item on any annual spare parts checklist. Field bus communication failures are among the most disruptive fault categories in process automation: they can cascade across multiple I/O stations, trigger spurious alarms, and force unplanned shutdowns that cost far more than the module itself. Keeping at least one verified spare on the shelf — pre-tested, properly stored, and ready to swap — is standard practice in petrochemical, power generation, pulp and paper, and heavy manufacturing environments where this ABB SC Controller generation remains in active service.

Every 6227BZ10200 unit shipped from KNMKS undergoes pre-shipment functional verification, is packaged in anti-static ESD-safe materials, and is covered by a support terms confirmed by quotation. We maintain long-term supply capability for this module to support customers running extended lifecycle programs on legacy ABB DCS platforms.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6227BZ10200 field bus communication module is flagged for replacement during a scheduled outage or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component that warrants attention. A thorough cabinet inspection at the same time significantly reduces the risk of a repeat shutdown.

Start with the SC Controller backplane (such as the ABB DSBC 176 or equivalent SC backplane assembly): check for bent connector pins, oxidation on the backplane bus contacts, and any signs of heat stress near the communication slot. A degraded backplane can cause a new 6227BZ10200 to exhibit the same fault symptoms as the failed unit, leading to misdiagnosis.

Next, inspect the 24 VDC controller power supply module — typically an ABB DSQC or DSSR series unit in this platform. Voltage ripple or marginal output under load is a common root cause of intermittent field bus communication errors that are incorrectly attributed to the communication module itself. Verify output voltage under full I/O load before completing the replacement.

The field bus cable and termination resistors connecting the SC Controller to remote I/O stations (such as ABB S800 I/O or Advant S100 I/O clusters) should be checked for continuity, correct termination impedance, and shield grounding. A single improperly terminated segment can degrade bus signal quality across all connected stations.

If the system includes ABB CI810 or CI820 field bus interface modules at the remote I/O end, verify their firmware revision and communication parameter settings match the replacement 6227BZ10200 configuration. Mismatched baud rate or node address settings will prevent the bus from re-establishing after module swap.

For sites running ABB Advant Station 500 series operator interfaces or legacy HMI panels connected via the same control network, confirm that the HMI communication path is restored and all process displays are updating correctly after the module replacement. Communication module faults sometimes leave HMI subscription tables in an inconsistent state that requires a soft reset to clear.

Finally, review the cabinet fusing and surge protection on the field bus circuit. An upstream fuse that has been operating near its rated current, or a surge arrester that has absorbed a transient event, may have contributed to the original module failure. Replacing these low-cost protective components at the same time as the 6227BZ10200 is sound preventive maintenance practice.

Site Replacement Workflow

Step 1 — Verify compatibility before ordering. Confirm the installed module part number against the SC Controller system documentation. The 6227BZ10200 and 6227BZ10200F are functionally equivalent variants; both are supported by this listing. Cross-reference the system’s field bus configuration file to confirm node addressing requirements.

Step 2 — Prepare for controlled shutdown. Coordinate with operations to schedule the replacement during a planned maintenance window where possible. If an emergency replacement is required, ensure the process is in a safe hold state before de-energizing the controller cabinet. Document the current field bus node configuration and I/O station status before removing the module.

Step 3 — Module swap procedure. De-energize the SC Controller rack following ABB lockout/tagout procedures. Remove the failed 6227BZ10200 by releasing the module locking lever and sliding it clear of the backplane connector. Inspect the backplane slot for debris or damage. Insert the replacement module firmly until the connector seats fully and the locking lever engages. Re-energize the rack and observe the module status LEDs during initialization.

Step 4 — Communication restoration and verification. Monitor the field bus communication status from the operator station or engineering workstation. Confirm that all remote I/O stations re-establish communication within the expected initialization time. Run a full I/O check on all connected stations before returning the process to automatic control.

Step 5 — Update maintenance records. Log the replacement date, module serial number, and any observations about the failed unit’s condition. This data supports future lifecycle planning and helps identify patterns of premature failure that may indicate an underlying power quality or environmental issue in the cabinet.

Spare Parts Support FAQ

Q: Is the 6227BZ10200F variant fully interchangeable with the 6227BZ10200?
A: Yes. The “F” suffix denotes a minor revision that is functionally and mechanically compatible with the base part number. Both variants are covered by this listing and are suitable for direct replacement in SC Controller systems without configuration changes.

Q: How do you verify the module is genuine ABB before shipment?
A: Each unit is inspected for authentic ABB labeling, correct part number markings, and original manufacturing quality indicators. Functional testing is performed prior to dispatch. We do not source from unauthorized channels, and all units are stored in controlled conditions to prevent ESD damage or environmental degradation.

Q: What is your long-term supply commitment for this module?
A: KNMKS maintains ongoing procurement channels for legacy ABB SC Controller components. We support customers running extended lifecycle programs and can accommodate blanket purchase orders for sites that require guaranteed spare availability over a multi-year maintenance horizon. Contact admin@knmks.com to discuss volume and scheduling requirements.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. If a unit fails within the confirmed support period under normal use, we will provide a replacement at no charge. The support terms does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s specified operating parameters.
