ABB 6138/11-83-500 Migration-Ready KNX Room Controller

Overview

ABB 6138/11-83-500 Migration-Ready KNX Room Controller for Legacy Control Systems

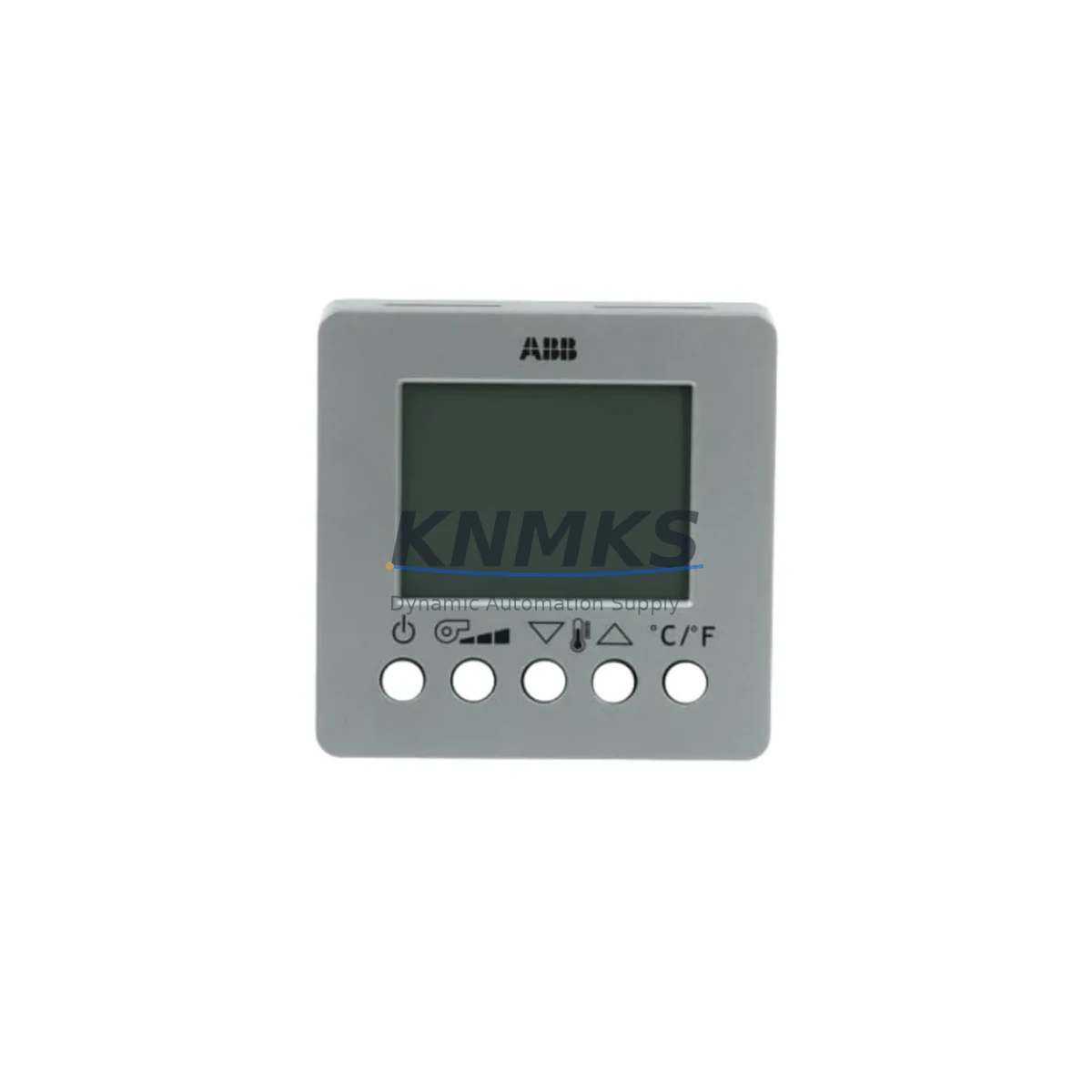

The ABB 6138/11-83-500 (also referenced as 6138-0-0005) is a KNX i-bus Room Temperature Controller designed for direct integration into existing KNX TP (Twisted Pair) building automation networks. As aging room controller units reach end-of-life or become unavailable through standard distribution channels, the 6138/11-83-500 serves as a validated, migration-ready replacement that preserves existing KNX group address structures, ETS project configurations, and room-level control logic without requiring full system redesign.

This unit is engineered for surface-mount or flush-mount installation in standard European wall boxes, making it a drop-in candidate for facilities that originally deployed ABB i-bus KNX room controllers in hotel guest rooms, office zones, hospital wards, or industrial welfare areas. The controller supports setpoint adjustment, operating mode switching (comfort, standby, economy, frost protection), and fan coil output control — all communicated over the KNX TP bus without additional gateways or protocol converters.

For retrofit projects involving older ABB 6120 or 6136 series room controllers, the 6138/11-83-500 provides a compatible upgrade path. Engineers should verify the existing ETS application version and confirm that group addresses assigned to temperature setpoint, operating mode, and valve output objects are correctly remapped during commissioning. In most cases, the ETS5 or ETS6 application file for the 6138/11-83-500 can be loaded and group addresses transferred from the legacy device database with minimal rework.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 6138/11-83-500 into a legacy KNX installation requires a structured pre-retrofit assessment. Begin by auditing the existing KNX line topology: confirm bus load, line coupler positions, and the number of active devices on the affected TP segment. The ABB SV/S 30.640.5 power supply unit or equivalent should be verified to have sufficient current headroom after the new controller is added — KNX bus power budgets are frequently overlooked during room-by-room controller replacements in large hotel or office refurbishments.

Before physical removal of the legacy room controller, export the full ETS project file and document all group addresses linked to the existing device. This is critical for preserving HVAC setpoint logic, fan speed control, and window contact interlock functions. If the facility uses an ABB i-bus KNX IP router (such as the IPR/S 3.5.1) for remote access or visualization, confirm that the router’s group address filter tables are updated to reflect any new physical address assignments for the 6138/11-83-500.

For facilities running Modbus RTU or BACnet MS/TP alongside KNX — common in mixed-protocol industrial welfare buildings or process plant control rooms — an ABB KNX/Modbus gateway or third-party protocol converter may already be present in the control cabinet. Verify that the gateway’s KNX group address mapping table does not need updating when the room controller physical address changes. In parallel, check that any ABB M2M KNX actuator modules (such as SA/S switching actuators) wired to the room controller’s output objects are still correctly parameterized for the new device’s communication objects.

Wall-box depth and cutout dimensions should be confirmed before ordering, particularly in retrofit scenarios where the original controller was installed in a non-standard enclosure or a proprietary hotel room unit. The 6138/11-83-500 follows the standard 55 mm European format, but installation depth and terminal block access may vary depending on the existing wall construction. Where space is constrained, consider whether the ABB 6120/xx flush-mount accessory frames are still compatible or whether new installation frames are required.

For projects involving multiple zones — such as a full floor refurbishment in a commercial building — it is advisable to stage the controller replacement room by room, maintaining KNX bus continuity on the line throughout the process. Use the ETS diagnostic tool to verify bus communication after each device replacement before proceeding to the next zone. This approach minimizes the risk of cascading group address conflicts and allows the building management system (BMS) to remain operational during the retrofit window.

Downtime Control During System Migration

Minimizing operational disruption during KNX room controller replacement requires careful sequencing of physical swap, ETS recommissioning, and BMS verification steps. The ABB 6138/11-83-500 is bus-powered, which means the KNX TP line must remain energized during installation — a significant advantage over systems requiring auxiliary 24 V AC/DC supplies, as it eliminates the need to de-energize the entire bus segment during the swap.

The recommended procedure is to download the new ETS application to the 6138/11-83-500 before physical installation using a KNX USB interface or IP interface connected to the same TP line. Pre-programming the device off-site or at a staging area — with all group addresses, setpoint limits, operating mode defaults, and FCU output parameters already configured — reduces on-site commissioning time to a bus address assignment and functional verification, typically achievable within 15–30 minutes per room.

Original program logic residing in the BMS or in upstream KNX logic modules (such as ABB LM/S logic controllers) does not need modification, provided that the group address structure is preserved. HMI panels or touchscreen room units connected to the same KNX line will continue to function normally as long as their group address bindings remain unchanged. If the facility uses a visualization system (such as ABB Busch-Jaeger free@home or a third-party SCADA), confirm that the room controller’s data points are correctly mapped in the visualization layer after recommissioning.

For critical environments — such as hospital patient rooms, data center support areas, or process plant control rooms — schedule the controller swap during a planned maintenance window and have a pre-tested spare unit on hand. All units supplied by KNMKS are pre-shipment tested for bus communication, setpoint response, and output switching before dispatch, reducing the risk of commissioning failures on site.

Retrofit Support FAQ

Q1: Is the ABB 6138/11-83-500 a direct replacement for the ABB 6136/xx series room controllers?
The 6138/11-83-500 uses the same KNX TP communication protocol and standard KNX group address objects as the 6136 series, making it functionally compatible in most installations. However, the ETS application file is device-specific, so group addresses must be remapped in ETS5 or ETS6 after installation. Physical dimensions follow the standard 55 mm European format, consistent with the 6136 series. Confirm terminal block wiring (bus connection polarity and any auxiliary contacts) before finalizing the swap.

Q2: What commissioning steps are required after installing the 6138/11-83-500 in an existing KNX system?
After physical installation, connect ETS5 or ETS6 via a KNX USB or IP interface. Load the 6138/11-83-500 application, assign the physical address, and download the parameterized application. Verify all group address bindings for temperature setpoint, operating mode, fan speed, and valve output objects. Perform a functional test by cycling through all operating modes and confirming correct FCU response. Update any BMS or visualization group address tables if the physical address has changed.

Q3: Does KNMKS perform pre-shipment testing on the ABB 6138/11-83-500?
Yes. All units are functionally tested for KNX bus communication, setpoint adjustment response, and output switching prior to dispatch. Units are shipped with original ABB packaging where available. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and bus communication failures under normal operating conditions.

Q4: What is the lead time and stock availability for the ABB 6138/11-83-500?
KNMKS maintains stock of the 6138/11-83-500 to support urgent retrofit and spare parts requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For large-quantity orders or multi-site refurbishment projects, contact our sales team to confirm availability and arrange staged delivery schedules aligned with your retrofit timeline.
