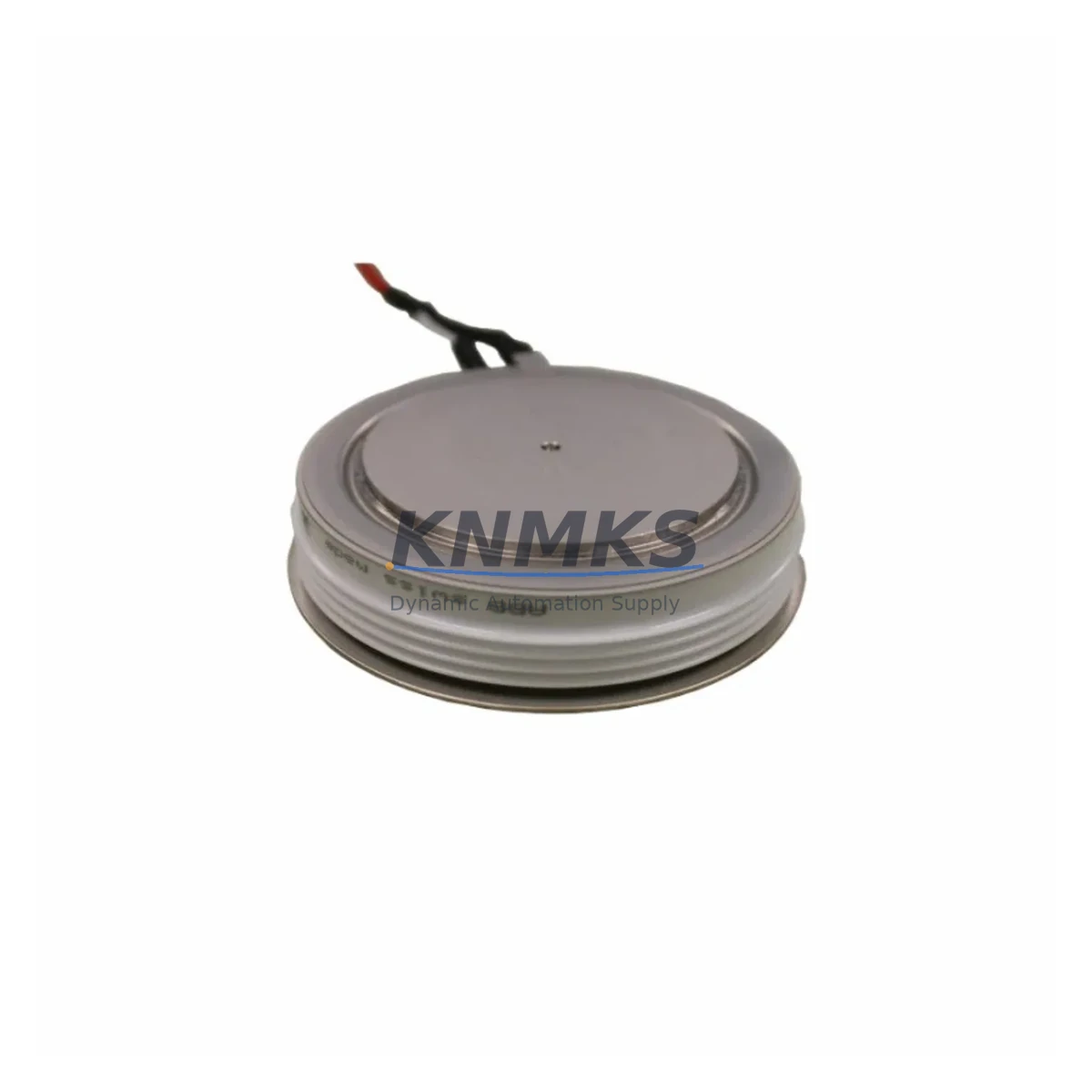

ABB 5STP33L2800 Fail-Safe Phase Control SCR Module

Overview

ABB 5STP33L2800 Fail-Safe Phase Control SCR Module for Industrial Control Reliability

The ABB 5STP33L2800 is a high-power phase control thyristor (SCR) module rated at 2800V repetitive peak off-state voltage (VDRM) and 3300A average on-state current (IT(AV)). Engineered for continuous-duty industrial power conversion, this module is a cornerstone component in critical drive systems, rectifier stacks, and high-current power controllers where unplanned downtime carries severe operational and safety consequences.

In heavy industrial environments — including petrochemical plants, metallurgical furnaces, port crane drives, mining hoists, water treatment pump stations, and continuous steel rolling mills — the 5STP33L2800 delivers the fail-safe switching performance required to maintain stable control loops under extreme electrical and environmental stress. Its robust press-pack construction ensures low thermal resistance, uniform current sharing, and long-term mechanical integrity even under high-vibration and high-temperature cabinet conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB 5STP33L2800 within a high-current rectifier or phase control cabinet demands a coordinated protection architecture. In practice, this SCR module operates alongside a matched ABB 5STP12L4200 or 5STP16L4200 thyristor in parallel or series stacks to achieve the required current or voltage ratings for large drive systems. Gate pulse integrity is maintained by a dedicated ABB SDCS-CON-4 or equivalent gate driver board, which ensures precise firing angle control and prevents false triggering under high electromagnetic interference conditions common in arc furnace and rolling mill environments.

To protect the 5STP33L2800 from voltage transients and commutation spikes, RC snubber networks and ABB SKIM or equivalent fast-acting semiconductor fuses (such as the Bussmann 170M series) are installed in series with each thyristor arm. These fuses provide the sub-cycle fault clearing speed necessary to prevent catastrophic SCR failure during short-circuit events — a critical safety requirement in continuous process industries where a single component failure can trigger a full line shutdown.

On the power supply side, the control cabinet typically incorporates a ABB CP-E or CP-S series 24VDC SMPS to power gate driver logic and protection relay circuits. Stable auxiliary power is non-negotiable: any voltage sag or dropout in the control supply can cause misfiring, loss of synchronization, or uncontrolled conduction — all of which represent serious safety hazards in high-current DC drive applications. Surge protection devices (SPDs) at the cabinet entry point further reduce the risk of transient-induced gate damage.

For communication and supervisory integration, the drive system connected to this SCR stack may interface via ABB RDCO-03 DDCS fiber-optic link or Profibus DP adapters, isolating the control network from the high-voltage power section and eliminating ground loop interference. This architecture is particularly important in offshore, mining, and chemical plant installations where cable runs are long and EMI levels are severe.

Critical Industrial Safety Applications

The ABB 5STP33L2800 is specified and stocked as a critical spare part across a wide range of heavy industrial sectors:

Petrochemical & Refinery: Used in large compressor drive rectifiers and electrostatic precipitator (ESP) power supplies. Fail-safe SCR performance is essential to prevent uncontrolled discharge events and maintain continuous process flow in hazardous area classifications.

Metallurgy & Steel: Core component in DC arc furnace electrode regulators and rolling mill main drive converters. The 3300A current rating supports the extreme load cycling and surge demands of melt-shop operations, where a drive trip causes immediate production loss and potential equipment damage.

Mining & Hoisting: Installed in winder drive rectifier stacks for shaft hoists and conveyor systems. Reliable phase control is a safety-critical function — any misfiring or loss of control in a loaded hoist represents a direct personnel safety risk.

Power Generation & Utilities: Applied in excitation systems for large synchronous generators and in HVDC converter valve assemblies. The 2800V blocking voltage rating provides adequate margin for grid-connected applications with transient overvoltage exposure.

Port & Marine: Used in crane drive converters and ship propulsion rectifiers operating in high-humidity, salt-laden environments. The press-pack construction of the 5STP33L2800 provides superior reliability compared to wire-bonded module types under the vibration and thermal cycling conditions of marine service.

Water Treatment & Pumping Stations: Installed in variable-speed pump drive rectifiers for large municipal and industrial water infrastructure. Continuous availability is a public safety obligation — planned spare parts inventory of the 5STP33L2800 is standard practice for critical pump station operators.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 5STP33L2800?
The support terms confirmed by quotation cover manufacturing defects and electrical performance failures under normal operating conditions from the date of shipment. Each unit undergoes full pre-shipment electrical testing — including blocking voltage verification, gate trigger current measurement, and on-state voltage drop confirmation — before dispatch. Support requests are supported with replacement or credit, subject to failure analysis.

Q2: How is the 5STP33L2800 tested before shipment?
Every unit is individually tested for VDRM/VRRM blocking integrity, IGT gate sensitivity, VT(TO) on-state threshold, and thermal continuity. Test records are available upon request. This pre-shipment verification process ensures that field installation proceeds without latent defects that could cause early failure in critical drive applications.

Q3: Is the 5STP33L2800 compatible with existing ABB drive and rectifier systems?
Yes. The 5STP33L2800 is a direct replacement for the same ABB part number and is dimensionally and electrically compatible with all ABB press-pack thyristor stacks designed for this device. It is also cross-compatible with equivalent press-pack SCRs from Infineon (formerly Eupec) and Westcode where the electrical ratings and package dimensions match. Always verify gate drive requirements and clamping force specifications before installation.

Q4: Can long-term spare parts supply be committed for maintenance planning?
Yes. We maintain dedicated inventory of the ABB 5STP33L2800 to support planned maintenance schedules, emergency breakdown replacement, and multi-year spare parts agreements. For critical infrastructure operators requiring guaranteed availability, supply commitment arrangements can be discussed. Contact our technical sales team to confirm current stock levels and lead times for your project requirements.

—
© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

5STP33L2800

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 5STP33L2800
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
