ABB 5SHY35L4520 Migration-Ready IGCT for Legacy ACS6000 Control Systems

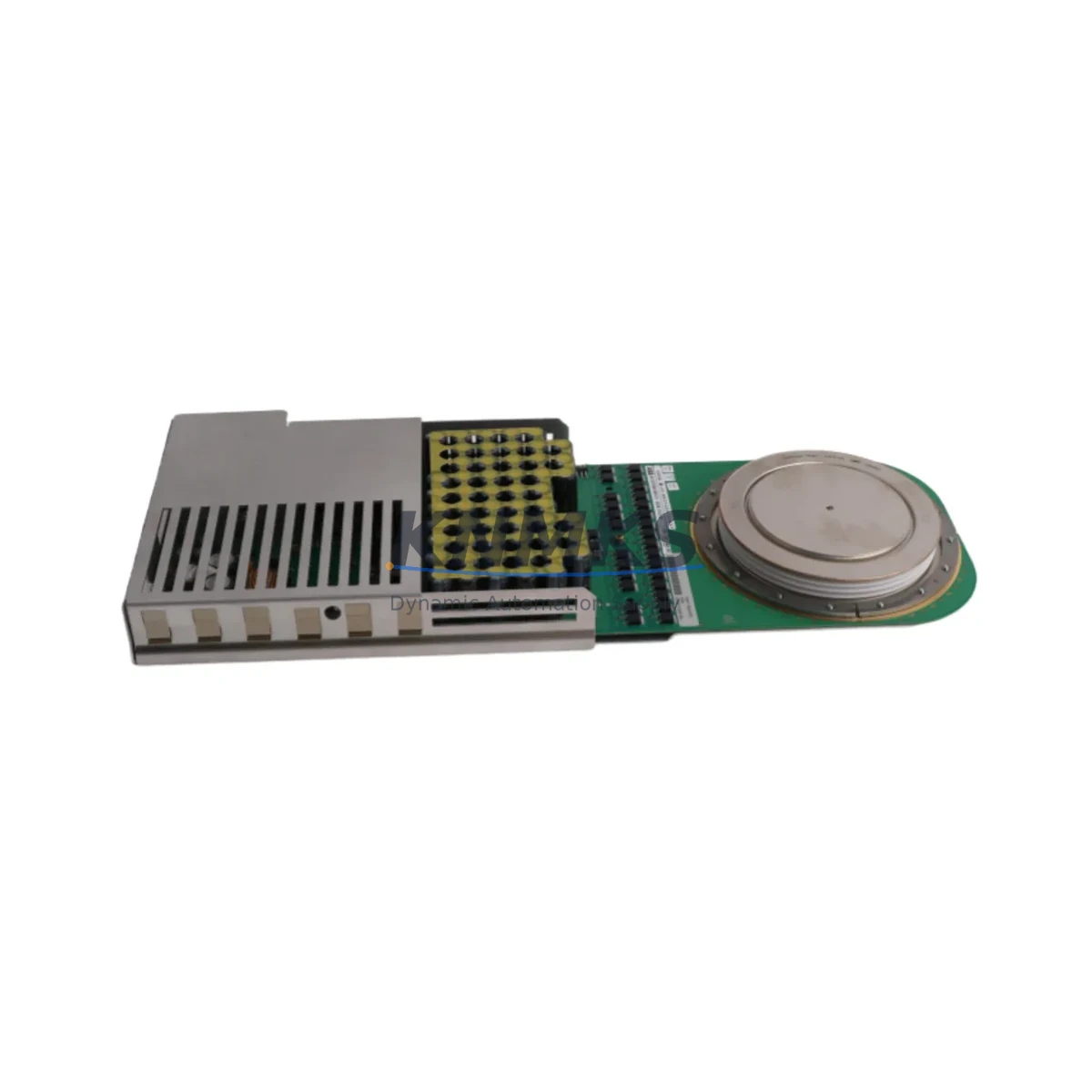

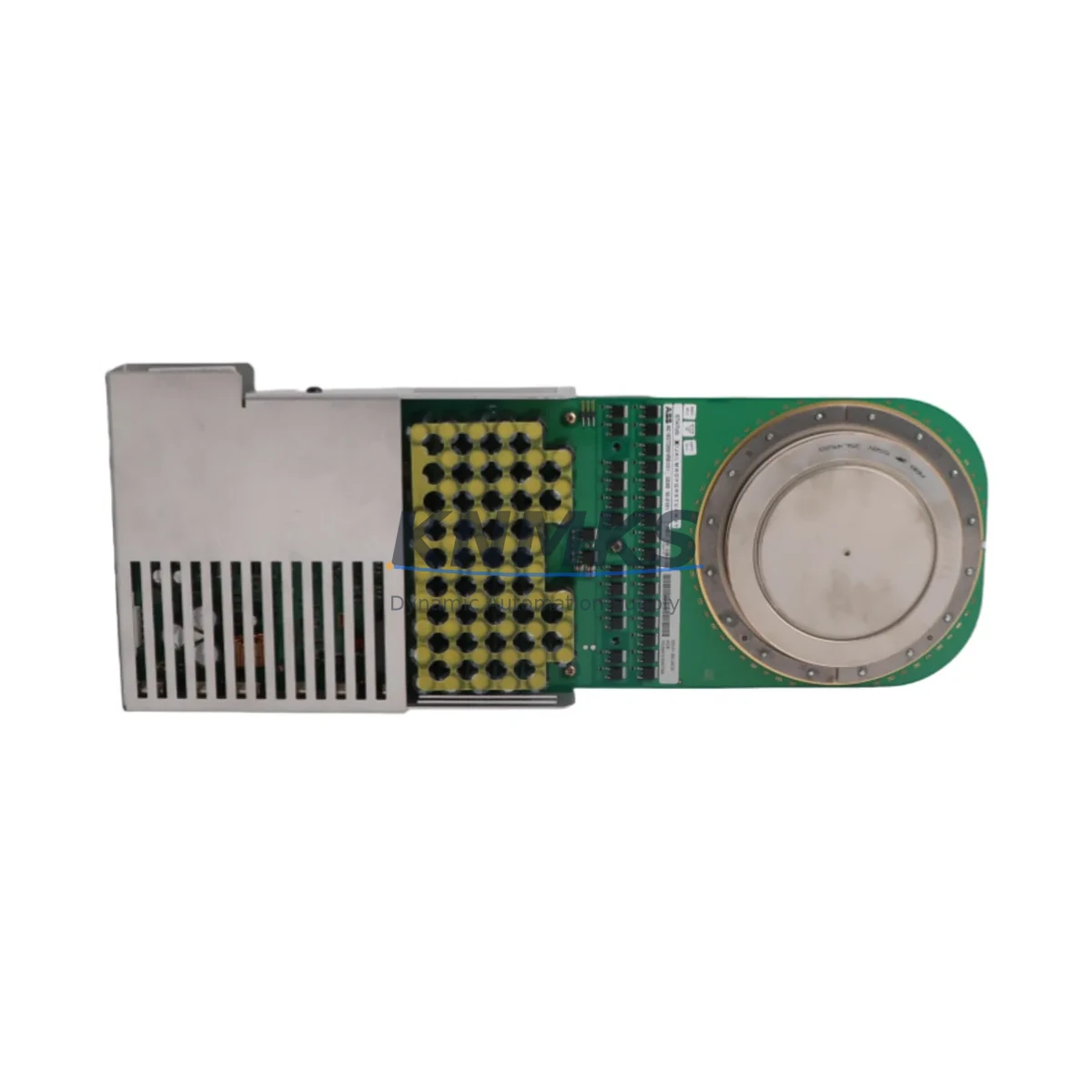

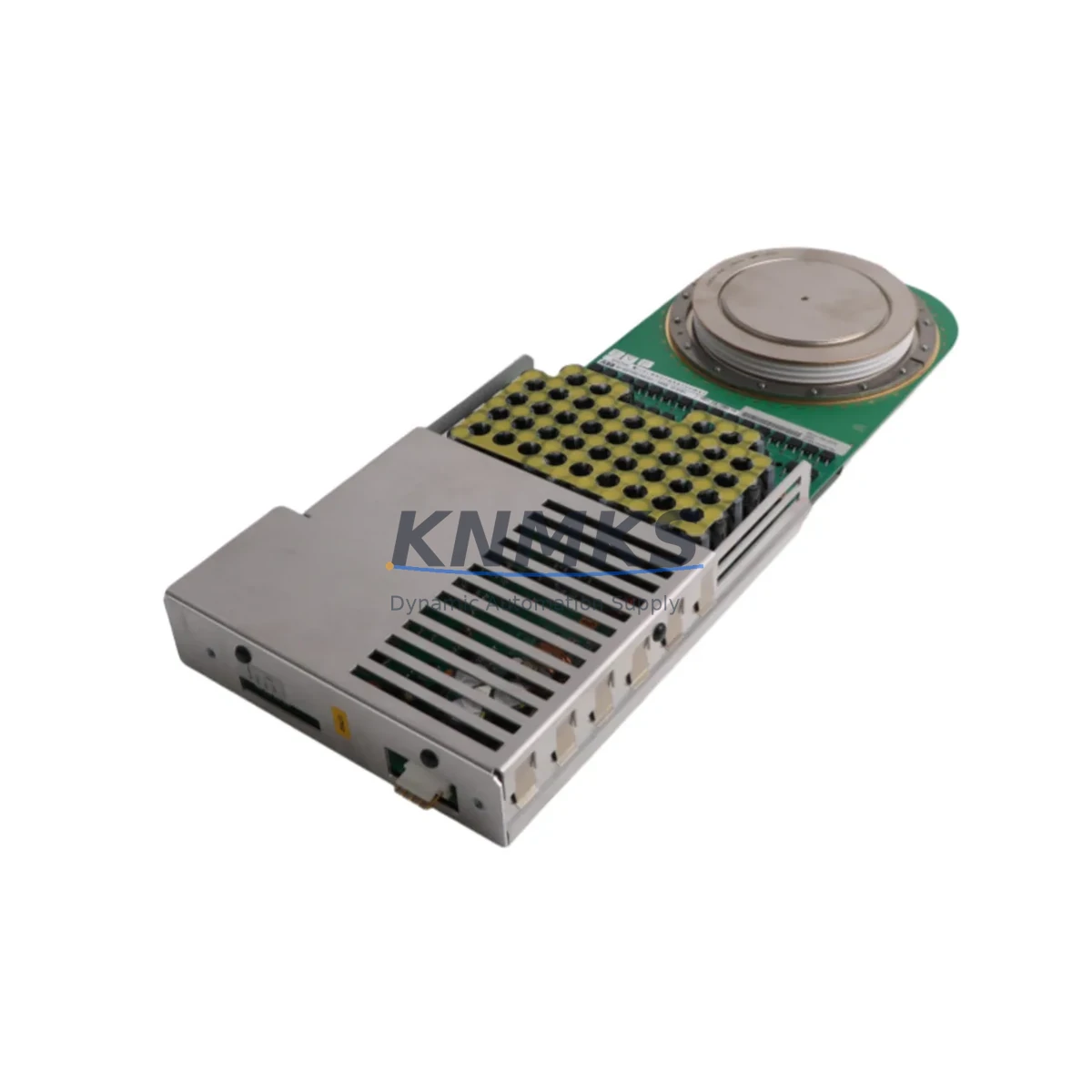

The ABB 5SHY35L4520 (also referenced as 5SXE10-0181, AC10272001R0101) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module engineered for the ABB ACS6000 medium-voltage drive platform. Rated at 4500V blocking voltage and 3500A average on-state current, this module serves as the primary switching element in the ACS6000 power stack and is a direct replacement for end-of-life units in legacy installations across steel mills, mining hoists, marine propulsion systems, and large-scale pump and compressor drives.

As ABB progressively phases out first-generation ACS6000 power components, maintenance engineers and retrofit planners face increasing pressure to source verified replacement IGCTs before scheduled overhauls or unplanned failures. The 5SHY35L4520 remains the correct drop-in replacement for the original power stack position, preserving the existing gate driver interface, snubber circuit layout, and DC bus connection geometry without requiring mechanical rework of the power cabinet.

Each unit supplied by KNMKS is pre-shipment tested under load conditions, verified for gate trigger response, forward voltage drop, and reverse blocking integrity. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 5SHY35L4520 within an operational ACS6000 installation requires a structured approach that accounts for the full power stack architecture. The ACS6000 power module typically houses multiple IGCT positions per phase leg; before ordering, engineers should confirm the exact stack configuration using the drive’s nameplate data and the ABB ACS6000 hardware manual to determine whether a single-unit or multi-unit replacement is required.

During retrofit planning, the gate unit board — often referenced as the 5SXE10-0181 gate driver assembly — must be inspected alongside the IGCT itself. A degraded gate unit can cause premature failure of a new IGCT, so replacement of both components in tandem is recommended when the drive has accumulated significant operating hours. Similarly, the snubber capacitor bank and snubber resistors associated with each IGCT position should be measured for capacitance drift and resistance tolerance before the new module is commissioned.

The ACS6000 DC link capacitor bank and the charging circuit should also be evaluated during any IGCT replacement outage. Capacitor aging in long-running installations can produce voltage imbalance across the power stack, which accelerates stress on replacement IGCTs. If the drive is equipped with an ABB RDCO-03 or RDCO-04 DDCS communication adapter, verify that the fiber optic links to the control unit remain intact and that no fault codes related to gate failure or overcurrent are latched in the drive’s fault history before returning to service.

For installations where the ACS6000 interfaces with an ABB AC800M controller or an older AC70 / AC80 series programmable controller via DDCS or PROFIBUS, the replacement procedure does not require any changes to the control program or communication configuration. The IGCT module is transparent to the control layer — all logic, speed references, torque limits, and protection parameters remain unchanged after the power module swap.

Where the ACS6000 drives a high-inertia load such as a mine hoist or a large centrifugal compressor, a controlled ramp-up sequence after IGCT replacement is strongly advised. This allows the cooling system to stabilize, confirms that the new module’s thermal interface is correctly established, and verifies that the drive’s current regulators are responding symmetrically across all phases before full-load operation resumes.

Downtime Control During System Migration

Minimizing production downtime during an IGCT replacement in an ACS6000 system depends on preparation quality before the maintenance window opens. The most effective approach is to stage all replacement components — including the 5SHY35L4520 IGCT, gate driver board, snubber components, and cooling circuit consumables — at the site before the planned outage begins. Waiting for parts after the drive has been taken offline is the single largest source of extended downtime in medium-voltage drive maintenance.

Before de-energizing the ACS6000, download and archive the current drive parameter set using the ABB DriveWindow or Drive Composer tool connected to the control unit. This preserves all tuning data, protection thresholds, speed and torque references, and application-specific parameters. If the drive is controlled by an external PLC or DCS, confirm that the control system will hold the last valid output state or switch to a safe fallback mode during the drive outage to prevent uncontrolled process disturbances.

During the physical replacement, follow ABB’s press-pack clamping procedure precisely. Incorrect clamping force — either too low or too high — is a leading cause of early IGCT failure after replacement. Use a calibrated torque wrench and refer to the specific clamping force values in the ACS6000 hardware service manual for the 5SHY35L4520 stack position. After reassembly, flush and refill the deionized water cooling circuit, verify conductivity is within the specified range, and confirm flow rate before applying DC bus voltage.

A phased recommissioning sequence — applying low DC bus voltage first, then performing a gate test at reduced voltage before full-power operation — allows the maintenance team to confirm correct IGCT firing without exposing the new module to full load stress during initial verification. This approach protects both the replacement component and the connected load equipment, and is consistent with ABB’s recommended commissioning procedure for ACS6000 power module replacements.

Retrofit Support FAQ

Q1: Is the 5SHY35L4520 a direct replacement for the original IGCT in my ACS6000 without any hardware modification?
Yes. The 5SHY35L4520 is the correct OEM-equivalent replacement for the ACS6000 power stack. It uses the same press-pack form factor, gate interface, and DC bus connection geometry as the original unit. No busbar modification, gate driver board change, or cabinet rework is required for a standard replacement. Confirm the exact stack position and clamping hardware against the ABB ACS6000 hardware manual before installation.

Q2: What pre-shipment testing is performed on each unit, and what does the support terms confirmed by quotation cover?
Every 5SHY35L4520 supplied by KNMKS is individually tested for gate trigger response, forward voltage drop (VT), and reverse blocking voltage integrity before dispatch. The support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions. It does not cover damage resulting from incorrect clamping, cooling circuit contamination, overvoltage events, or installation errors. Test records are available upon request.

Q3: Can I replace only the failed IGCT, or should I replace the gate driver board at the same time?
If the gate driver board (5SXE10-0181) shows any signs of degradation — including erratic gate pulse timing, elevated gate current draw, or fault history indicating gate failure — it should be replaced simultaneously with the IGCT. A faulty gate driver is a common root cause of IGCT failure and will damage a new module if left in service. For drives with high accumulated operating hours, proactive replacement of both components during the same maintenance window is the recommended practice.

Q4: What is the typical lead time, and do you maintain stock for urgent replacement requirements?
KNMKS maintains inventory of the 5SHY35L4520 to support urgent replacement and planned maintenance requirements. Contact admin@knmks.com or call +86 18359268345 to confirm current stock availability and lead time. For critical production environments, we recommend confirming stock and placing a reservation order in advance of your scheduled maintenance window to eliminate supply risk.
