ABB 5SHX14H4502 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 5SHX14H4502 Maintenance-Proven Spare Part for Factory Uptime

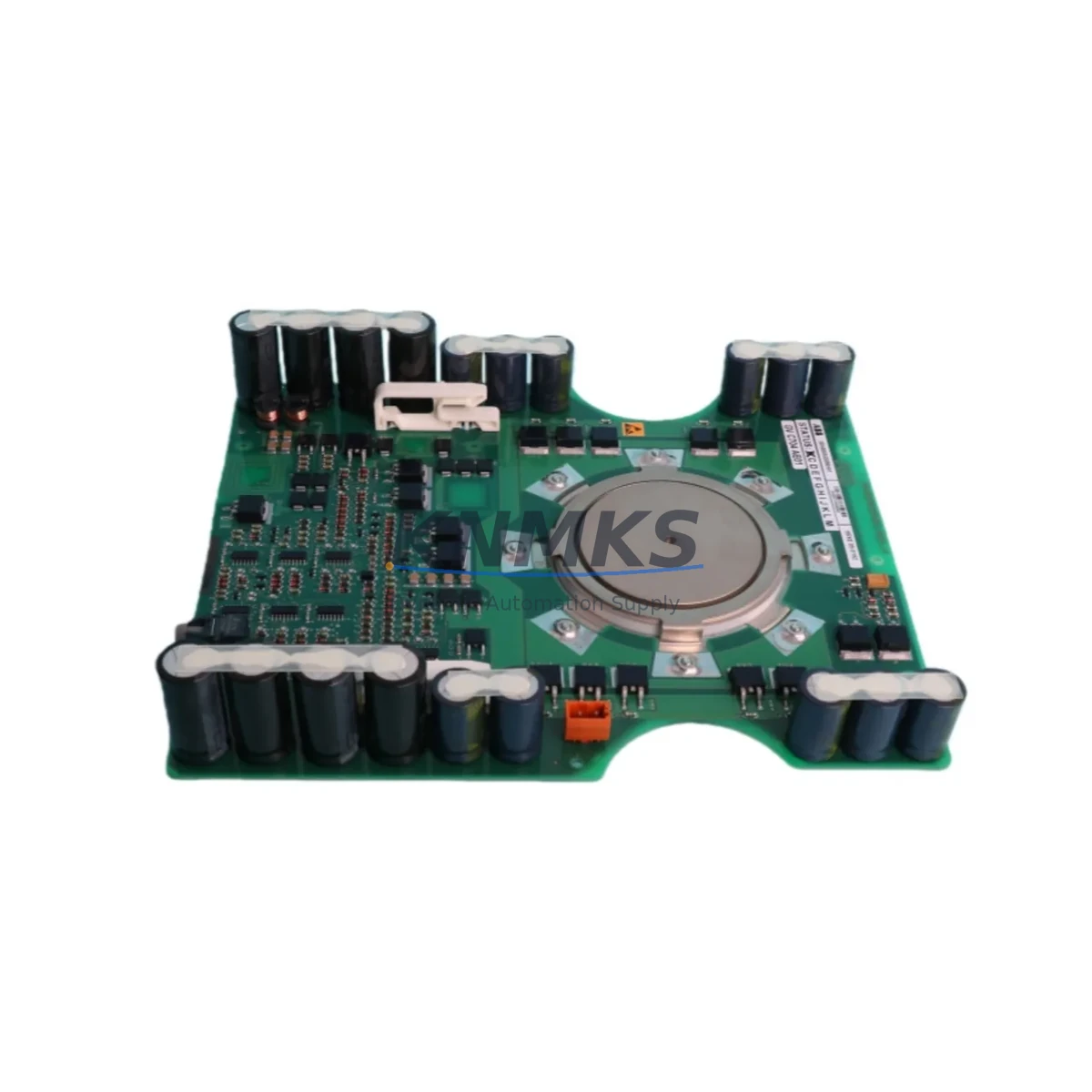

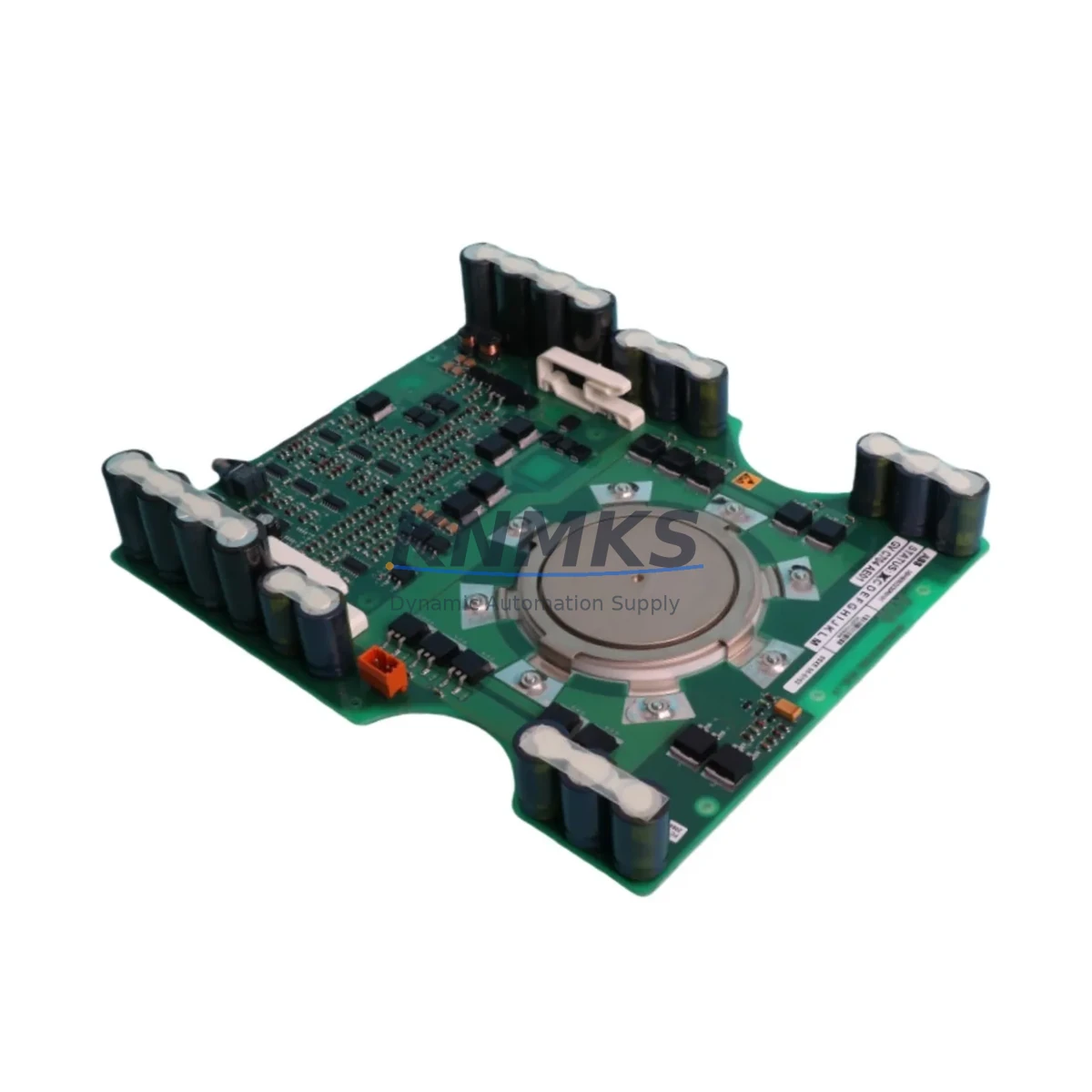

The ABB 5SHX14H4502 (part number 3BHB003230R0101, series GVC704 AE01) is an original Integrated Gate-Commutated Thyristor (IGCT) module engineered for ABB medium-voltage drive systems including the ACS6000 and PCS6000 platforms. As a core power semiconductor in the converter stack, this module directly governs the switching performance, thermal stability, and fault-ride-through capability of the entire drive. Sourcing a genuine, tested replacement is not optional — it is the foundation of any credible maintenance strategy for high-availability industrial operations.

At KNMKS, every 5SHX14H4502 unit is inspected, function-tested, and shipped with a support terms confirmed by quotation. We maintain long-term inventory to support planned shutdowns, emergency breakdowns, and annual spare parts replenishment programs across steel mills, cement plants, offshore platforms, and large-scale water treatment facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the ABB 5SHX14H4502 IGCT module, the scope of work should never be limited to the semiconductor alone. The IGCT operates within a tightly coupled electrical and thermal system, and adjacent components are subject to the same stress cycles, aging, and contamination that triggered the original failure.

Begin with the GVC704 gate control board — the direct driver for the 5SHX14H4502. Inspect for capacitor aging, solder joint fatigue, and firmware version compatibility before reinstalling. If the gate board shows any sign of thermal discoloration or component drift, replace it concurrently to avoid a repeat trip. Next, evaluate the snubber capacitor and resistor network mounted adjacent to the IGCT stack; these components absorb switching transients and degrade in parallel with the thyristor. A failed snubber can destroy a new IGCT within hours of commissioning.

The deionized water cooling circuit deserves particular attention. Check coolant conductivity, flow rate, and hose integrity. Blocked or degraded cooling directly shortens IGCT service life. While the converter cell is open, inspect the DC link capacitor bank — capacitance drift or elevated ESR in the DC bus capacitors creates voltage spikes that stress the new module from the first power-on. Many sites also use this opportunity to verify the fiber optic communication links between the gate unit and the main control board (typically an RDCU or RMIO control unit in ABB drive architecture), as fiber degradation causes spurious gate signals that mimic IGCT failure.

On the AC input side, confirm that the input transformer and line reactor are within specification and that the main contactor and pre-charge circuit are functioning correctly — a slow or arcing contactor can subject the new IGCT to abnormal inrush conditions. Finally, review the protection relay settings and overcurrent trip thresholds in the drive control system. Overly sensitive or miscalibrated protection can cause nuisance trips on a healthy new module, while under-sensitive settings leave it exposed to genuine fault currents.

For procurement engineers building annual spare parts lists, the 5SHX14H4502 should be paired with at minimum one spare GVC704 gate board, a set of snubber components, and a replacement fiber optic cable set for the converter cell. Sites running multiple ACS6000 or PCS6000 drives should consider holding two IGCT modules to cover both planned and emergency scenarios without waiting on international lead times.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Discharge the DC link capacitor bank fully and verify zero voltage with a calibrated meter before opening the converter cell. The DC bus in MV drives retains lethal charge for several minutes after shutdown.

Step 2 — Documentation and photography: Record the existing wiring, fiber routing, and torque marks on the IGCT stack before disassembly. This is especially important on older ACS6000 units where field modifications may not be reflected in the current revision of the circuit diagram.

Step 3 — Stack disassembly: Release the clamping pressure on the press-pack stack according to ABB service documentation. Remove the failed 5SHX14H4502 and inspect the contact surfaces (anode and cathode heat sinks) for pitting, arcing marks, or contamination. Clean and resurface as required before installing the new module.

Step 4 — Installation and torque: Install the new ABB 5SHX14H4502 with the specified clamping force. Incorrect clamping — too loose or too tight — is a leading cause of premature IGCT failure in press-pack assemblies. Reconnect gate driver cables and fiber optic links, verifying polarity and seating.

Step 5 — Pre-energization checks: Perform insulation resistance tests on the power circuit. Verify gate trigger signals using the drive’s built-in diagnostics or an external gate tester before applying DC bus voltage. Confirm coolant flow is restored and within specification.

Step 6 — Commissioning and monitoring: Energize the drive in a controlled sequence. Monitor IGCT junction temperature, gate current waveform, and DC link voltage ripple during the first load cycle. Log baseline data for future predictive maintenance reference. A successful first-load run with stable thermal readings confirms the replacement is complete.

This workflow applies equally to emergency breakdown recovery and planned annual overhaul scenarios. The key difference is preparation time: emergency replacements benefit enormously from having a tested, warranted 5SHX14H4502 already on the shelf, reducing mean time to repair (MTTR) from days to hours.

Spare Parts Support FAQ

Q1: Is the 5SHX14H4502 compatible with all ACS6000 drive variants, or only specific voltage/current ratings?
The 5SHX14H4502 is designed for specific converter cell configurations within the ACS6000 and PCS6000 families. Compatibility depends on the drive’s rated current, voltage class, and the number of IGCT modules per phase leg. Always cross-reference the drive’s circuit diagram and the original BOM (bill of materials) using the full part number 3BHB003230R0101 before ordering. KNMKS technical support can assist with compatibility verification based on your drive serial number and nameplate data.

Q2: How does KNMKS verify the condition of 5SHX14H4502 units before shipment?
Every unit undergoes a multi-step inspection process: visual examination for physical damage, gate trigger and turn-off function testing, insulation resistance measurement, and thermal interface surface inspection. Units that do not pass all checks are quarantined and not offered for sale. A test report summary is available upon request. All shipped units are covered by a support terms confirmed by quotation from the date of delivery.

Q3: What is the recommended inventory strategy for sites operating multiple ABB medium-voltage drives?
For sites with two or more ACS6000 or PCS6000 drives, industry best practice is to hold a minimum of one spare IGCT module per drive type on-site, with a second unit at a regional warehouse or distributor. Given the 5SHX14H4502’s role as a critical single-point-of-failure component, the cost of holding a spare is negligible compared to the production loss from an unplanned multi-day shutdown. KNMKS offers long-term supply agreements and reserved stock programs for high-volume or multi-site customers.

Q4: Can the 5SHX14H4502 replace older or superseded ABB IGCT part numbers in the same drive?
Direct substitution between IGCT part numbers requires careful engineering review. While ABB has issued supersession notices for some legacy IGCT types, physical dimensions, gate characteristics, and clamping specifications may differ between generations. KNMKS recommends using the exact OEM part number specified in your drive’s maintenance manual. If your original part number is no longer available, contact our technical team with your drive model and serial number for a verified cross-reference assessment before committing to a substitution.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

5SHX14H4502?3BHB003230R0101?GVC704?AE01

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 5SHX14H4502?3BHB003230R0101?GVC704?AE01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
