ABB 5SHX0845F0001 Maintenance-Ready Spare for ACS MV Automation

Overview

ABB 5SHX0845F0001 Maintenance-Ready Spare for ACS MV Automation

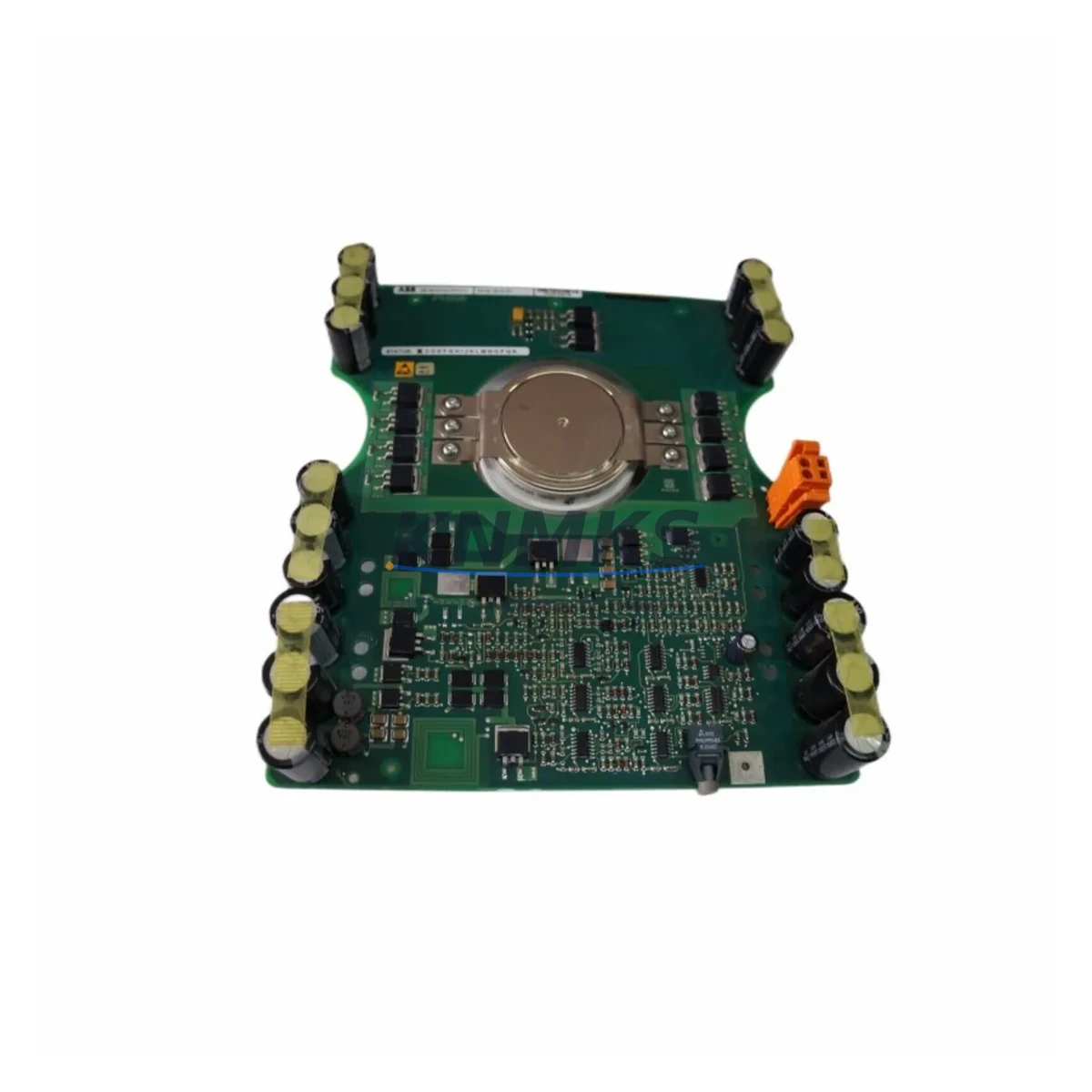

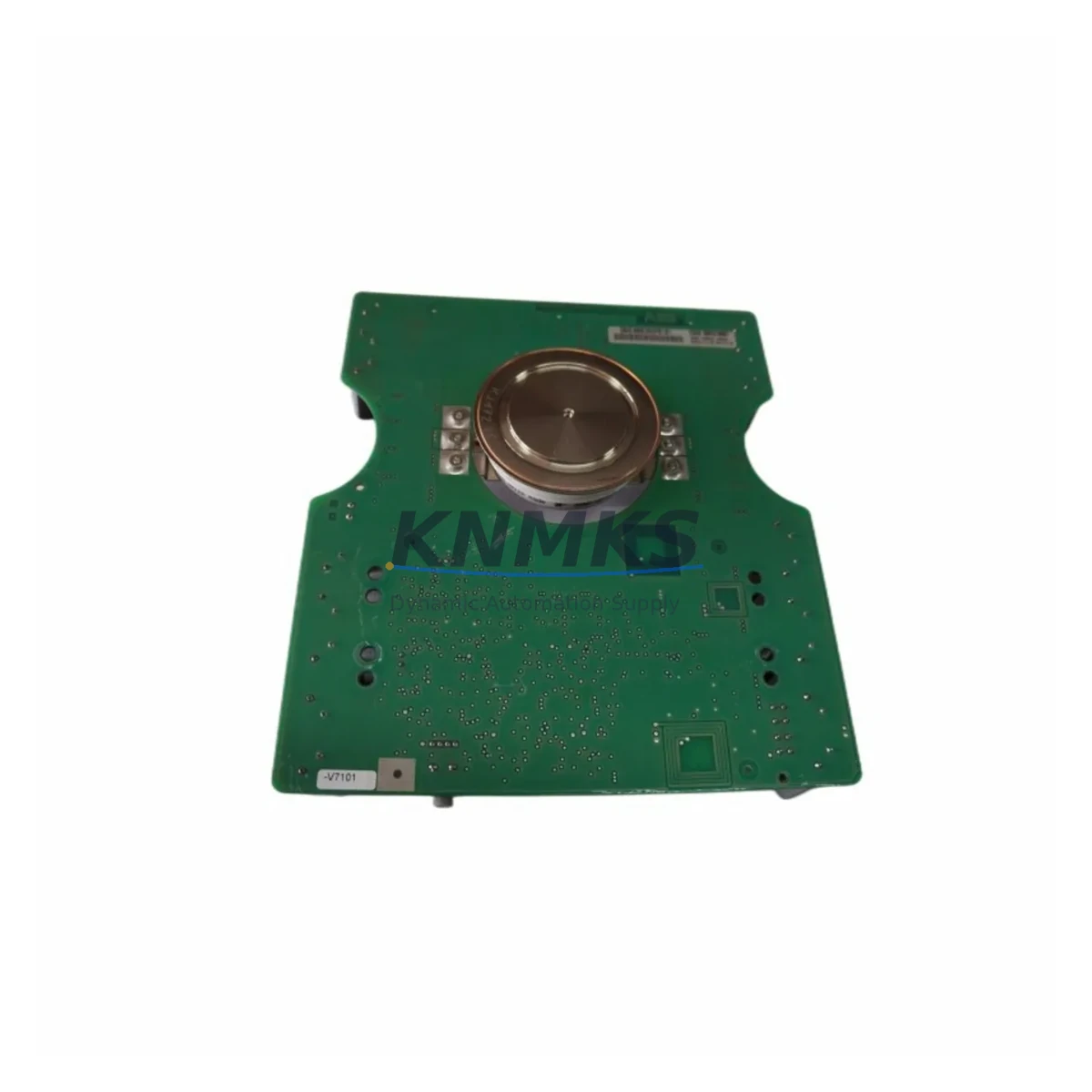

The ABB 5SHX0845F0001 (alternate part number 3BHL000385P0101) is a press-pack Integrated Gate-Commutated Thyristor (IGCT) module engineered for ABB ACS medium-voltage variable-speed drives. In continuous-process industries — cement, mining, oil & gas, pulp and paper, water treatment — an unplanned MV drive outage can cost tens of thousands of dollars per hour. Holding a verified, factory-tested 5SHX0845F0001 in your critical-spare inventory is the single most effective insurance policy against extended downtime on ACS MV platforms.

Every unit supplied by KNMKS is sourced from authorised channels, subjected to pre-shipment electrical verification, and backed by a support terms confirmed by quotation covering manufacturing defects. Our long-term supply commitment means you can plan multi-year maintenance cycles without the risk of obsolescence-driven line stoppages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules an IGCT replacement on an ACS MV drive, the 5SHX0845F0001 swap is rarely an isolated task. A disciplined site inspection should extend to every component that shares the same power loop and control circuit.

Begin with the DC link capacitor bank and the snubber capacitors mounted adjacent to the IGCT stack — capacitor degradation is a leading cause of repeat IGCT failures and must be ruled out before the new device is energised. Inspect the gate unit board (ABB GU board, series-specific) that drives the IGCT gate signal; a faulty gate unit can destroy a replacement IGCT within minutes of first firing.

Move to the deionised water cooling circuit: check pump flow rate, conductivity of the coolant, and condition of the heat-sink seals. Inadequate cooling is the second most common root cause of IGCT degradation in field service. While the cabinet is open, verify the fibre-optic communication links between the control board and the gate unit — any cracked or contaminated fibre connector will produce erratic firing and nuisance trips after the new IGCT is installed.

On the control side, confirm that the ACS MV control board (RMIO or equivalent) is logging no persistent fault codes related to overcurrent or gate-failure events. If the drive uses an ABB DDCS communication module for fieldbus integration (PROFIBUS, Modbus, or DDCS ring), verify that the module firmware is current and that the communication cycle is stable before returning the drive to service.

Finally, inspect the main input fuses or HRC fuse links in the MV incoming section and the output contactor or bypass switch. A fuse that has experienced a partial fault event may test within spec on a simple continuity check yet fail under full load. Replacing the IGCT without auditing these protection components leaves the new spare exposed to the same fault conditions that damaged the original device.

Procurement engineers should consider holding a minimum of one 5SHX0845F0001 per installed ACS MV drive as a critical-spare line item, with annual replenishment tied to the plant’s scheduled shutdown calendar. KNMKS supports blanket purchase orders and can provide long-term supply agreements to stabilise your spare-parts budget across multi-year maintenance cycles.

Site Replacement Workflow

1. Isolate and lock out. Follow your site LOTO procedure for MV equipment. Confirm that the DC link is fully discharged (measure with a calibrated HV probe) before opening the IGCT stack assembly.

2. Document the existing installation. Photograph the press-pack clamp assembly, torque markings, and fibre-optic routing before disassembly. Record the gate unit serial number and firmware version.

3. Remove the failed IGCT. Release clamp pressure in the sequence specified in the ABB ACS MV service manual. Handle the press-pack disc by its edges; contamination of the contact surfaces will compromise thermal performance.

4. Inspect mating surfaces. Clean the heat-sink contact faces with isopropyl alcohol. Check for pitting, corrosion, or uneven wear that could indicate a cooling or clamping problem.

5. Install the 5SHX0845F0001. Apply the manufacturer-specified clamp force using a calibrated torque tool. Reconnect gate unit cables and fibre-optic links. Verify coolant connections are leak-free before energisation.

6. Functional verification. Power up the drive in local/test mode. Confirm gate firing signals on the drive’s diagnostic display, check for fault codes, and run a no-load test before returning the motor to process load.

7. Update maintenance records. Log the replacement date, new part serial number, and any ancillary components inspected or replaced. Schedule the next planned inspection interval per your MTBF data for this drive type.

This workflow is compatible with legacy ACS MV installations where the original ABB 5SHX0845F0001 has reached end-of-life or is no longer available through OEM channels. KNMKS maintains stock of this and related IGCT types to support system life extension without requiring a full drive upgrade.

Spare Parts Support FAQ

Q1: Is the 5SHX0845F0001 supplied by KNMKS an original ABB component?
Yes. All units are sourced from authorised supply channels. Each 5SHX0845F0001 is an original ABB press-pack IGCT — not a third-party replica or remanufactured device. Pre-shipment electrical testing is performed on every unit before dispatch.

Q2: What is the support terms coverage and how is a claim handled?
KNMKS provides a support terms confirmed by quotation from the date of shipment, covering manufacturing defects under normal operating conditions. To initiate a support terms claim, contact admin@knmks.com with the order reference, installation date, and a description of the fault. Our technical team will advise on return logistics and replacement dispatch.

Q3: Can KNMKS supply multiple units for a planned annual shutdown or blanket stock programme?
Yes. We accept multi-unit orders, blanket purchase orders, and annual supply agreements for the 5SHX0845F0001 and related ACS MV spare parts. Contact our sales team at +86 18359268345 to discuss volume pricing, lead times, and scheduled delivery options aligned to your maintenance calendar.

Q4: How do I confirm compatibility before ordering if my drive model is an older ACS MV variant?
Provide your drive model number, nameplate data, and the existing IGCT part number (or a photograph of the installed device) to admin@knmks.com. Our engineering support team will cross-reference the 5SHX0845F0001 / 3BHL000385P0101 against your specific drive configuration and confirm compatibility before the order is placed.
