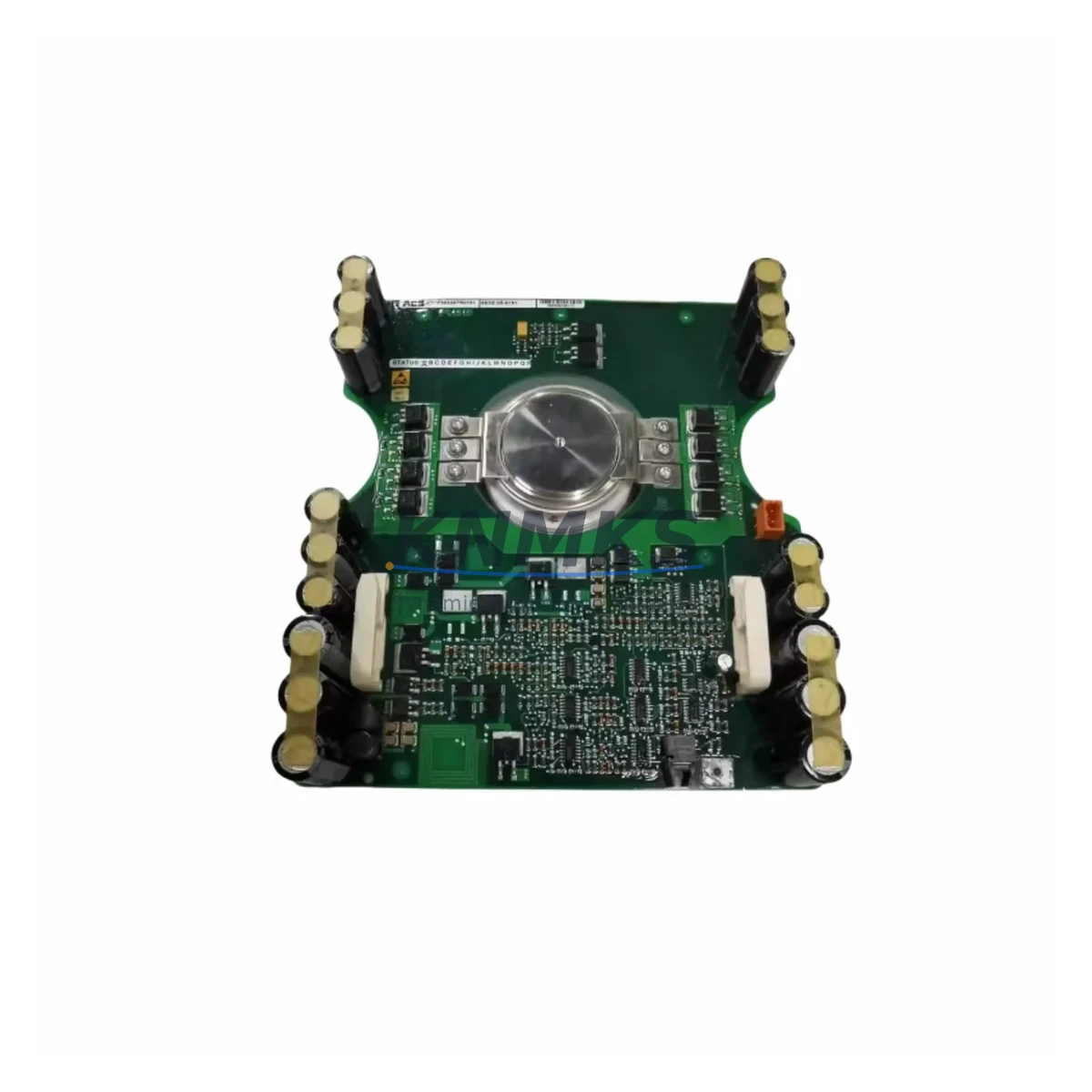

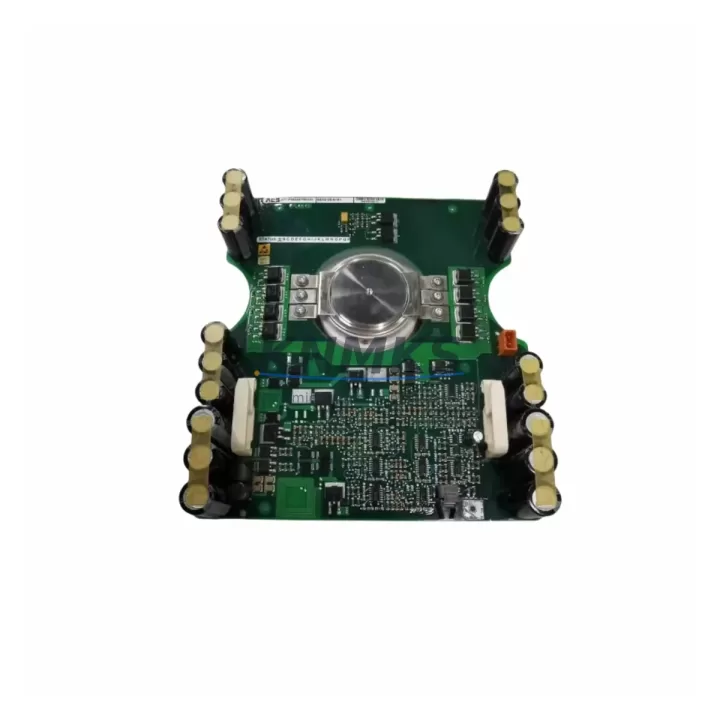

ABB 5SHX 0445D0001 Migration-Ready IGBT Gate Drive

Overview

ABB 5SHX 0445D0001 Migration-Ready IGBT Gate Drive for Legacy Control Systems

The ABB 5SHX 0445D0001 (also referenced as 3BHL000382P0101) is a high-performance IGBT Gate Drive Board engineered for the ACS800 and ACS6000 variable speed drive platforms. As ABB progressively phases out legacy drive components, plant engineers and maintenance teams face increasing pressure to source verified replacement boards that maintain full electrical and functional compatibility with existing drive cabinets. This unit addresses that challenge directly — it is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation, making it a reliable solution for both emergency replacements and planned retrofit programs.

The 5SHX 0445D0001 gate drive board interfaces directly with the IGBT power module stack in the ACS800 drive cabinet. During a replacement or upgrade, engineers must confirm the DC bus voltage rating, gate signal timing parameters, and fiber optic interface compatibility with the existing AINT, RDCU, or RMIO control boards. Incorrect gate drive selection can result in IGBT desaturation faults, overcurrent trips, or permanent module damage — making verified sourcing and pre-installation testing essential steps in any retrofit workflow.

When planning a migration from an older ACS800 generation to a current-generation ACS880 platform, the gate drive board is one of several components that must be evaluated in sequence. The AINT-02C interface board, RDCU-02C drive control unit, and RMIO-11C I/O extension module are commonly reviewed alongside the gate drive to ensure the full signal chain — from the control board through the fiber optic link to the IGBT stack — remains intact and correctly configured. In parallel, the APBU-44C pulse encoder interface and NDBU-95C branching unit may require firmware version alignment to maintain compatibility with updated drive software.

For ACS6000 medium-voltage applications, the replacement process involves additional steps: confirming the cooling circuit integrity, verifying the gate drive’s compatibility with the specific IGBT module type installed in the power cell, and ensuring the fiber optic cable routing meets the original cabinet layout. The 5SHX 0445D0001 is designed to fit the original mounting footprint, reducing installation time and minimizing the risk of wiring errors during cabinet reassembly.

In retrofit scenarios where the original ACS800 drive is being retained but upgraded with new control hardware, the gate drive board must be validated against the updated firmware loaded on the RDCU or RMIO module. Firmware mismatches between the control board and gate drive can cause intermittent fault codes that are difficult to diagnose without access to the original drive documentation. Our pre-shipment testing protocol includes functional verification under simulated load conditions, ensuring the board performs correctly before it leaves our facility.

Stock is maintained across multiple warehouse locations to support urgent dispatch requirements. Orders placed for emergency plant recovery are prioritized, with same-day or next-business-day shipping available for in-stock units. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ACS800 drive system begins well before the replacement board arrives on site. Maintenance engineers should start by documenting the existing drive configuration: the firmware version loaded on the RDCU-02C drive control unit, the I/O mapping defined in the RMIO-11C module, and the parameter set stored in the drive’s memory. This parameter backup is critical — if the replacement gate drive board triggers a drive reset or parameter loss, having a verified backup allows the system to be restored to its pre-fault operating state without requiring a full recommissioning cycle.

The AINT-02C interface board, which manages the fiber optic communication between the control section and the IGBT power stage, should be inspected for contamination or connector wear during the same maintenance window. Replacing the 5SHX 0445D0001 gate drive board while the drive cabinet is open provides an efficient opportunity to clean fiber optic connectors, verify the APBU-44C pulse encoder interface wiring, and check the NDBU-95C branching unit for any signs of thermal stress or connector fatigue.

For plants operating multiple ACS800 drives in a common DC bus configuration, the gate drive replacement must be coordinated across the affected drive units to avoid imbalanced switching behavior. The BAMU-01 bus adapter module and associated DC bus capacitor banks should be discharged and verified safe before any work begins on the gate drive or IGBT stack. Terminal block wiring, cable ferrule condition, and grounding continuity should all be confirmed before the replacement board is powered up for the first time.

Where the retrofit scope extends to upgrading the HMI or SCADA interface, the replacement gate drive board’s behavior must be validated against the updated control logic. Changes to drive parameter sets — particularly speed reference scaling, torque limit settings, and fault response configurations — can affect how the gate drive responds to control signals, and these interactions should be verified during the commissioning phase before the drive is returned to production service.

Downtime Control During System Migration

Minimizing unplanned downtime during a gate drive replacement requires a structured approach that begins with pre-staging the replacement board and all associated tools before the maintenance window opens. The 5SHX 0445D0001 should be inspected upon receipt, and its part number and revision marking should be confirmed against the drive’s original bill of materials before the scheduled replacement date.

During the replacement procedure, the original program logic stored in the RDCU-02C or RMIO-11C should not be modified. The gate drive board replacement is a hardware swap that should not require changes to the drive’s parameter set, provided the replacement unit is a verified compatible part. If the drive was previously operating with a customized parameter set — for example, with application macros loaded for pump, fan, or compressor control — these settings should be backed up to a PC tool such as DriveWindow or Drive Composer before the maintenance window begins.

After installation, the drive should be powered up in a controlled sequence: first verifying the DC bus voltage is within specification, then enabling the gate drive signals, and finally running the drive at reduced speed to confirm correct IGBT switching behavior before returning to full production load. This staged commissioning approach reduces the risk of a second fault event and allows the maintenance team to confirm the replacement was successful before the production line is restarted.

For sites where continuous operation is critical, a spare 5SHX 0445D0001 gate drive board held in local inventory provides insurance against extended lead times for future failures. Given the age profile of many ACS800 installations, proactive spare parts stocking is a cost-effective strategy for avoiding unplanned production losses.

Retrofit Support FAQ

Q: Is the 5SHX 0445D0001 a direct drop-in replacement for the original ABB gate drive board in the ACS800?
A: Yes. The 5SHX 0445D0001 (3BHL000382P0101) is designed as a direct replacement for the original gate drive board in compatible ACS800 and ACS6000 drive cabinets. No mechanical modifications are required, and the fiber optic interface connections are identical to the original configuration.

Q: Does the replacement board require firmware updates or parameter changes after installation?
A: In most cases, no parameter changes are required. However, it is strongly recommended to verify the firmware version on the RDCU-02C or RMIO-11C control board before installation, as certain firmware revisions may affect gate drive behavior. Our technical team can advise on known compatibility considerations for specific drive configurations.

Q: What pre-shipment testing is performed on the 5SHX 0445D0001 before dispatch?
A: Each unit undergoes functional verification under simulated operating conditions before shipment. This includes gate signal integrity testing, fiber optic interface verification, and visual inspection for component condition. A test report is available upon request.

Q: What support terms coverage is provided, and what does it include?
A: All units are supplied with a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the confirmed support period will be repaired or replaced at no additional cost, subject to inspection confirming the failure is not the result of incorrect installation or external damage.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

5SHX 0445D0001 3BHL000382P0101
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 5SHX 0445D0001 3BHL000382P0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
