ABB 4006L4101AB G002 Migration-Ready Drive Control for Legacy Control Systems

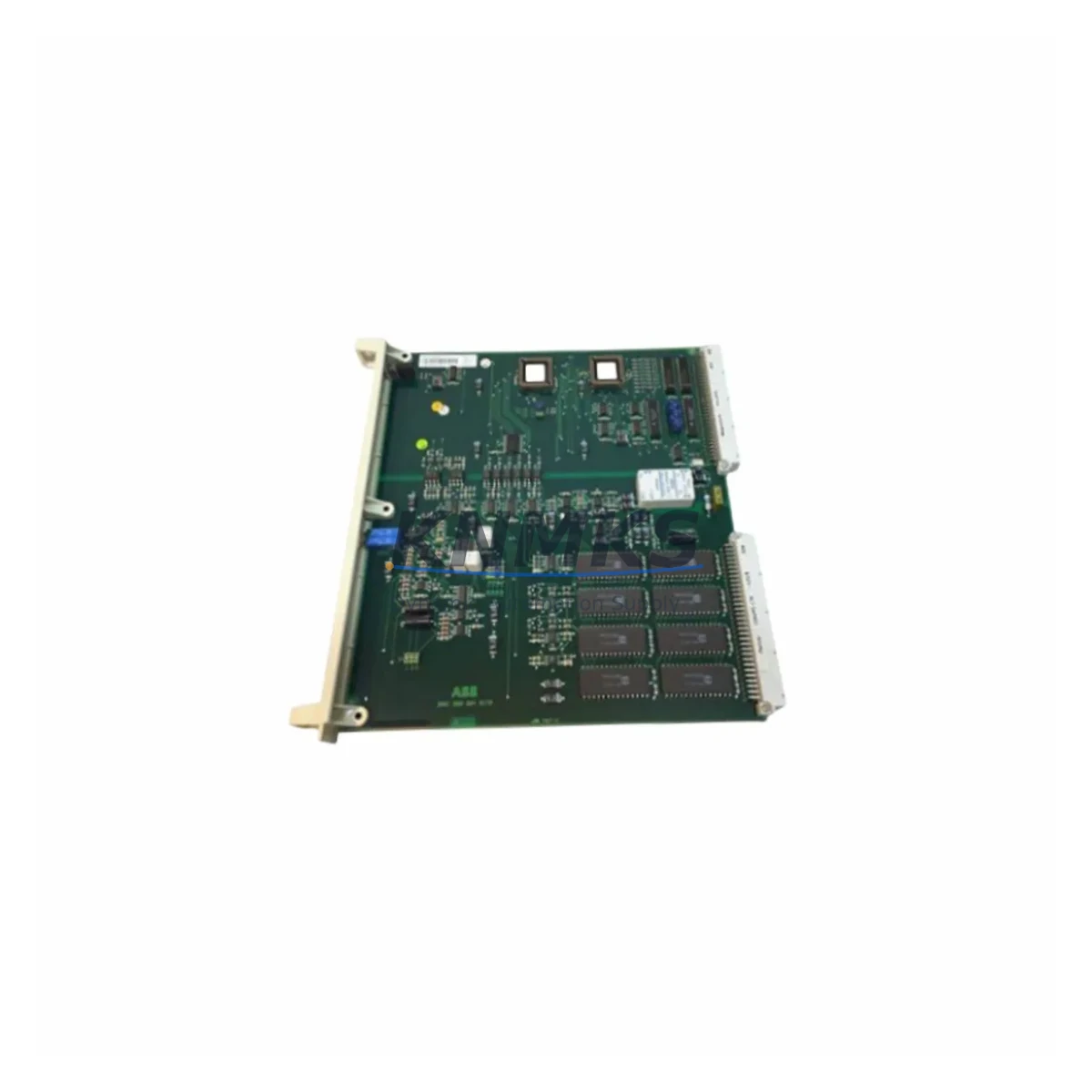

The ABB 4006L4101AB G002 (also referenced as 166C7875AA-0) is a migration-ready drive control board engineered as a direct replacement for legacy ACS800 series variable frequency drive systems. As industrial facilities face increasing pressure to modernize aging automation infrastructure, this module provides a reliable, cost-effective path to extend operational life or execute a controlled platform migration without full drive replacement. Whether your facility is managing a planned retrofit, responding to an obsolescence notice, or sourcing emergency spare parts to minimize unplanned downtime, the 4006L4101AB G002 delivers verified compatibility with the ACS800 drive family and is backed by a support terms confirmed by quotation covering both parts and workmanship.

This control board governs the core drive logic of the ACS800 platform, managing pulse-width modulation output, IGBT gate drive signals, fault diagnostics, and communication with the drive’s control panel and external supervisory systems. When replacing a failed or degraded unit, engineers must confirm that the replacement board matches the firmware revision currently loaded in the drive, as mismatched firmware versions can cause parameter incompatibility or prevent the drive from completing its self-commissioning sequence. The 4006L4101AB G002 ships pre-tested and is compatible with standard ACS800 firmware branches; however, customers are advised to verify the active firmware version on the existing drive before installation to ensure seamless parameter restoration from backup.

Before installation, technicians should also confirm the DC bus voltage rating, the IGBT module type installed in the power stage, and the current rating of the existing drive chassis. The 4006L4101AB G002 is designed for specific ACS800 power frame sizes, and installing it in an incompatible frame will result in incorrect gate drive timing and potential hardware damage. Terminal block wiring on the control board — including the XPOW power supply connector, the XINT interface ribbon cable, and the XSTO safe torque-off circuit — must be reconnected in the correct sequence during reassembly. Refer to the ACS800 hardware manual for torque specifications on all terminal screws to prevent intermittent contact faults during operation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 drive control board replacement requires coordinated planning across multiple system layers. The 4006L4101AB G002 typically operates within a broader automation architecture that may include an ABB ACS800-01 or ACS800-04 drive chassis, an RDCO-04 DDCS communication adapter for fiber optic connectivity to an AC800M controller or a Freelance DCS, and an AINT-02 or AINT-14 inverter control interface board mounted in the same control section. During retrofit planning, engineers should audit all boards in the control section simultaneously — a degraded AINT board or a failing APOW-01 auxiliary power supply board can produce fault codes that mimic control board failure, leading to unnecessary replacement of the 4006L4101AB G002.

For facilities running PROFIBUS DP or Modbus RTU fieldbus topologies, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter mounted on the drive’s fieldbus slot must be re-initialized after the control board swap, as the node address and baud rate settings are stored in the adapter’s own non-volatile memory and are not affected by the control board replacement. However, the drive’s parameter set — including motor nameplate data, speed reference scaling, PID tuning, and protection thresholds — must be restored from a previously saved backup using the ACS800 DriveWindow Light software or the CDP-312R control panel. Facilities without a current parameter backup should extract and document all parameters from the existing board before removal, even if the board is partially functional.

In control cabinet environments where the ACS800 shares a backplane or common DC bus with other drives, the replacement sequence must account for the shared DC bus pre-charge circuit. Isolating the affected drive from the common bus before removing the control board prevents inadvertent energization of the DC bus through adjacent drives. After reinstallation, the drive should be powered up in local control mode first, with the motor uncoupled from the load if possible, to verify correct rotation direction, speed reference response, and fault-free operation before returning to remote or fieldbus control mode.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 control board replacement requires a structured pre-outage preparation protocol. Before the maintenance window begins, the engineering team should complete a full parameter backup, document all active fault history codes, photograph the existing wiring harness and terminal connections, and confirm that a tested replacement 4006L4101AB G002 unit is on-site and verified against the drive’s serial number and firmware version. Having the ACS800 hardware manual and the relevant AINT or APOW board documentation available during the outage reduces diagnostic delays if unexpected issues arise during reassembly.

The physical replacement procedure for the control board typically requires 45 to 90 minutes for a trained technician familiar with the ACS800 platform. The majority of unplanned time extensions during control board replacements result from undocumented wiring modifications made during previous service events, corroded terminal connections on the XPOW power connector, or difficulty restoring parameters due to an outdated or incomplete backup file. Addressing these risks during the pre-outage preparation phase is the most effective strategy for keeping the maintenance window within the planned duration.

After the replacement board is installed and the drive is powered up, the commissioning sequence should include verification of the STO (Safe Torque-Off) circuit continuity, confirmation that the drive recognizes the motor nameplate parameters correctly, a no-load run at low speed to verify encoder feedback or open-loop speed stability, and a full-load test run under process conditions before returning the drive to automatic control. All test results should be documented in the facility’s maintenance management system to support future troubleshooting and support requests. The 4006L4101AB G002 is covered by a support terms confirmed by quotation from the date of shipment, and all units undergo functional testing prior to dispatch.

Retrofit Support FAQ

Q1: Is the ABB 4006L4101AB G002 a direct replacement for the original ACS800 control board?
Yes. The 4006L4101AB G002 (166C7875AA-0) is a direct form-fit-function replacement for the original ABB ACS800 drive control board. All connector positions, mounting points, and interface signals are identical to the original. No mechanical modifications to the drive chassis are required. Customers should verify the firmware version compatibility before installation to ensure parameter compatibility.

Q2: What commissioning steps are required after installing the replacement board?
After installation, restore the drive’s parameter set from a backup file using DriveWindow Light or the CDP-312R panel. Verify the STO wiring continuity, re-initialize any fieldbus adapters (RPBA-01, RMBA-01, or RDCO-04) if present, and perform a no-load test run before returning the drive to production. Document all commissioning results for support terms and maintenance records.

Q3: How do I confirm wiring compatibility before replacing the control board?
Compare the terminal designations on the existing board against the replacement unit using the ACS800 hardware manual. Key connectors to verify include XPOW (auxiliary power input), XINT (internal interface ribbon), XSTO (Safe Torque-Off), and the control panel communication bus. Photograph all wiring before disconnection and use the photographs as a reference during reassembly to prevent miswiring.

Q4: What is the support terms coverage and lead time for the 4006L4101AB G002?
All 4006L4101AB G002 units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units are dispatched from stock after functional testing and are typically available for same-day or next-business-day shipment. For urgent requirements, contact our sales team to confirm current inventory availability and expedited shipping options.
