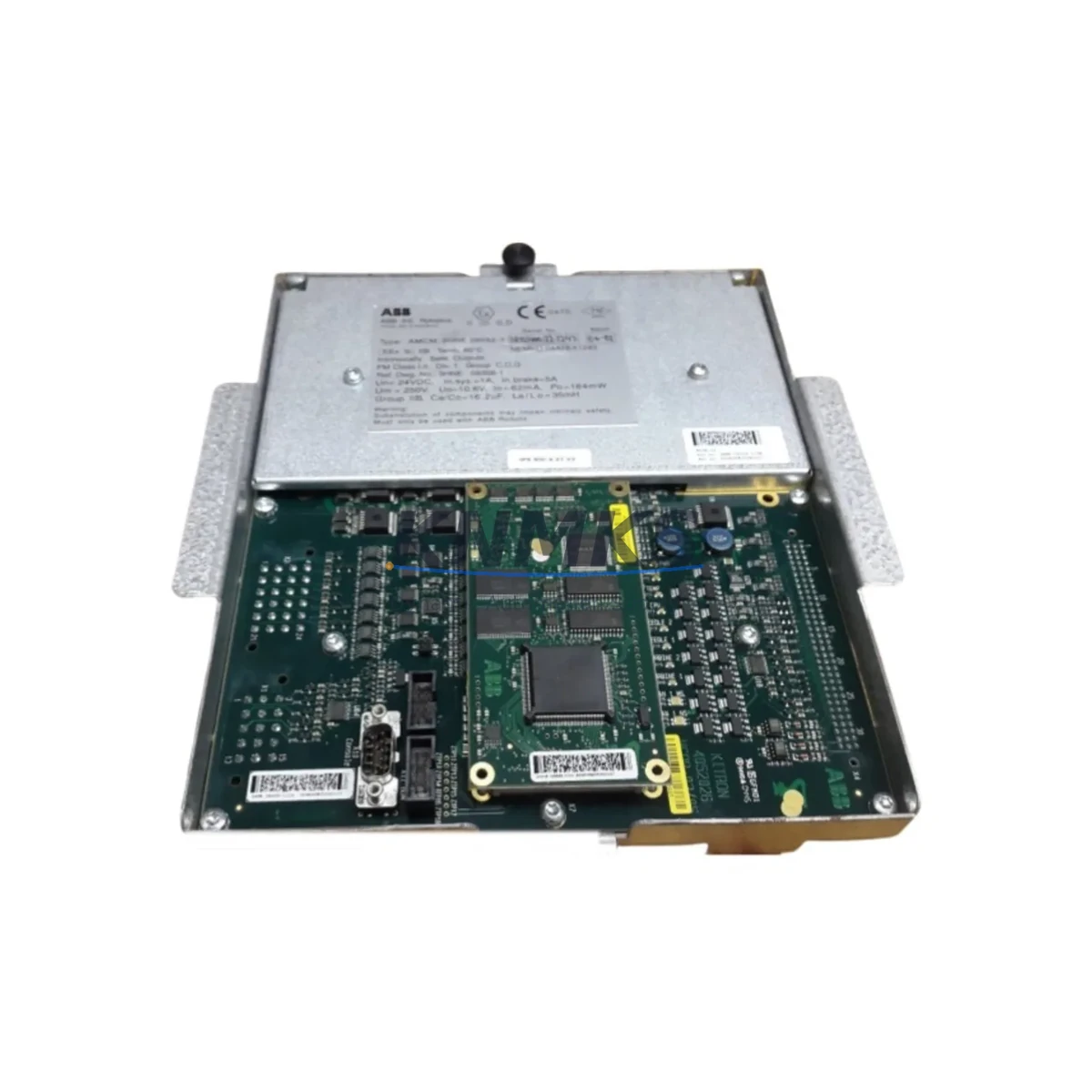

The ABB 3HNE09204-1 is an original Controller Panel Unit designed for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robot control systems in automotive, electronics, and general manufacturing environments. For maintenance engineers managing aging IRC5 cabinets, this panel unit is a critical spare that directly impacts operator interface availability, emergency stop response, and manual jogging capability during commissioning and fault recovery. Sourcing a verified original 3HNE09204-1 from a reliable spare parts supplier eliminates the risk of interface incompatibility, firmware mismatch, and unplanned downtime caused by counterfeit or refurbished substitutes.

At KNMKS, every ABB 3HNE09204-1 unit is individually tested prior to shipment, covered by a support terms confirmed by quotation, and supported by long-term stock availability to meet both emergency replacement and planned annual maintenance requirements. Whether you are restoring a production robot after a panel failure, building a preventive spare inventory for a multi-robot cell, or replacing an end-of-life unit during a scheduled shutdown, the 3HNE09204-1 is available for fast global dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB 3HNE09204-1 Controller Panel Unit in an IRC5 cabinet, a disciplined maintenance engineer will not stop at the panel unit itself. The IRC5 controller architecture integrates multiple interdependent subsystems, and a panel failure is frequently a symptom of upstream electrical stress rather than an isolated component fault.

Begin by inspecting the IRC5 main computer unit (DSQC 639 or DSQC 1000), which manages all communication between the panel unit, the drive system, and the robot axes. A degraded main computer can cause erratic panel behavior that mimics a panel unit fault. Simultaneously, check the IRC5 axis computer (DSQC 668) for fault logs that may indicate whether the panel failure was preceded by axis communication errors.

The IRC5 power supply unit (DSQC 661) should be measured for output voltage stability — an under-voltage condition on the 24 VDC rail is a common root cause of panel unit resets and display failures. If the power supply shows any ripple or voltage sag under load, replace it as part of the same maintenance window to prevent repeat failures.

Inspect the FlexPendant cable assembly (3HAC028357-001 or equivalent) for jacket damage, connector pin corrosion, and strain relief integrity. A damaged pendant cable can cause intermittent panel communication faults that are misdiagnosed as panel unit failures. The cable should be replaced on a 3–5 year cycle in high-cycle robot cells.

For cabinets operating in environments with high vibration or thermal cycling, also inspect the IRC5 I/O unit (DSQC 652) and associated terminal blocks for loose connections. Loose I/O wiring can generate spurious fault signals that trigger emergency stops and place abnormal demand on the panel unit’s fault acknowledgment logic.

Finally, verify the integrity of the IRC5 safety board (DSQC 400) and its associated safety relay outputs. If the safety chain has been compromised — for example, by a worn door interlock or a degraded safety relay — the panel unit will repeatedly enter safe-stop mode, accelerating wear on the panel interface components. Addressing the safety board and relay condition as part of the same corrective maintenance action ensures a durable repair rather than a temporary fix.

Site Replacement Workflow

Replacing the ABB 3HNE09204-1 in the field follows a structured sequence to minimize downtime and ensure system compatibility:

1. Pre-replacement verification: Confirm the replacement unit’s part number matches 3HNE09204-1 exactly. Check the IRC5 controller’s software version (RobotWare) to ensure the panel unit firmware is compatible. For IRC5 systems running RobotWare 5.x or 6.x, the 3HNE09204-1 is the correct panel unit specification — no firmware flashing is required for a like-for-like replacement.

2. Safe isolation: Place the robot cell in a safe state, engage the main isolator, and follow your site’s lockout/tagout procedure before opening the IRC5 cabinet. Verify zero energy state on the drive system before touching any internal components.

3. Cable disconnection and panel removal: Disconnect the panel bus connector and any auxiliary cables from the existing panel unit. Note the cable routing and connector orientation before removal to ensure correct reinstallation. Remove the panel unit from its mounting position using the appropriate tool — avoid applying lateral force to the connector housing.

4. Installation of 3HNE09204-1: Seat the replacement panel unit firmly in the mounting position, reconnect all cables in the correct orientation, and verify that the panel bus connector is fully engaged. Restore power and perform a controlled power-on sequence.

5. Functional verification: Confirm that the panel unit displays the correct system status, that the FlexPendant (if connected) communicates normally, and that all emergency stop and enabling device functions respond correctly. Log the replacement in the maintenance record with the date, part number, and technician ID.

This workflow is applicable to IRC5 Single Cabinet and IRC5 Dual Cabinet configurations. For IRC5 Compact installations, verify cabinet access procedures specific to the compact form factor before beginning work.

Spare Parts Support FAQ

Q1: Is the ABB 3HNE09204-1 compatible with all IRC5 controller variants?
The 3HNE09204-1 is designed for the ABB IRC5 platform and is compatible with IRC5 Single Cabinet, IRC5 Dual Cabinet, and IRC5 Compact configurations. It is suitable for use with IRB series robots that use the IRC5 controller, including IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 models. If you are unsure about compatibility with a specific robot model or RobotWare version, contact our technical team with your controller serial number for confirmation before ordering.

Q2: How is each unit tested before shipment?
Every ABB 3HNE09204-1 unit supplied by KNMKS undergoes a functional verification test prior to dispatch. This includes power-on testing, interface communication check, and visual inspection for connector and housing integrity. Units that do not pass the full test protocol are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim handled?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, electrical overstress, or unauthorized modification. To initiate a support terms claim, contact [email protected] with your order reference, a description of the fault, and photographic evidence of the failure. KNMKS will arrange a replacement or repair within the agreed service timeline.

Q4: Can KNMKS support long-term or blanket order requirements for the 3HNE09204-1?
Yes. KNMKS maintains stock of the ABB 3HNE09204-1 to support both emergency replacement and planned annual maintenance programs. For customers managing multi-robot facilities or operating under a preventive maintenance schedule, blanket orders and reserved stock arrangements are available. Contact [email protected] or call +86 18359268345 to discuss volume pricing, lead times, and long-term supply agreements.
