ABB 3HNE00442-1 Migration-Ready FlexPendant for IRC5

Overview

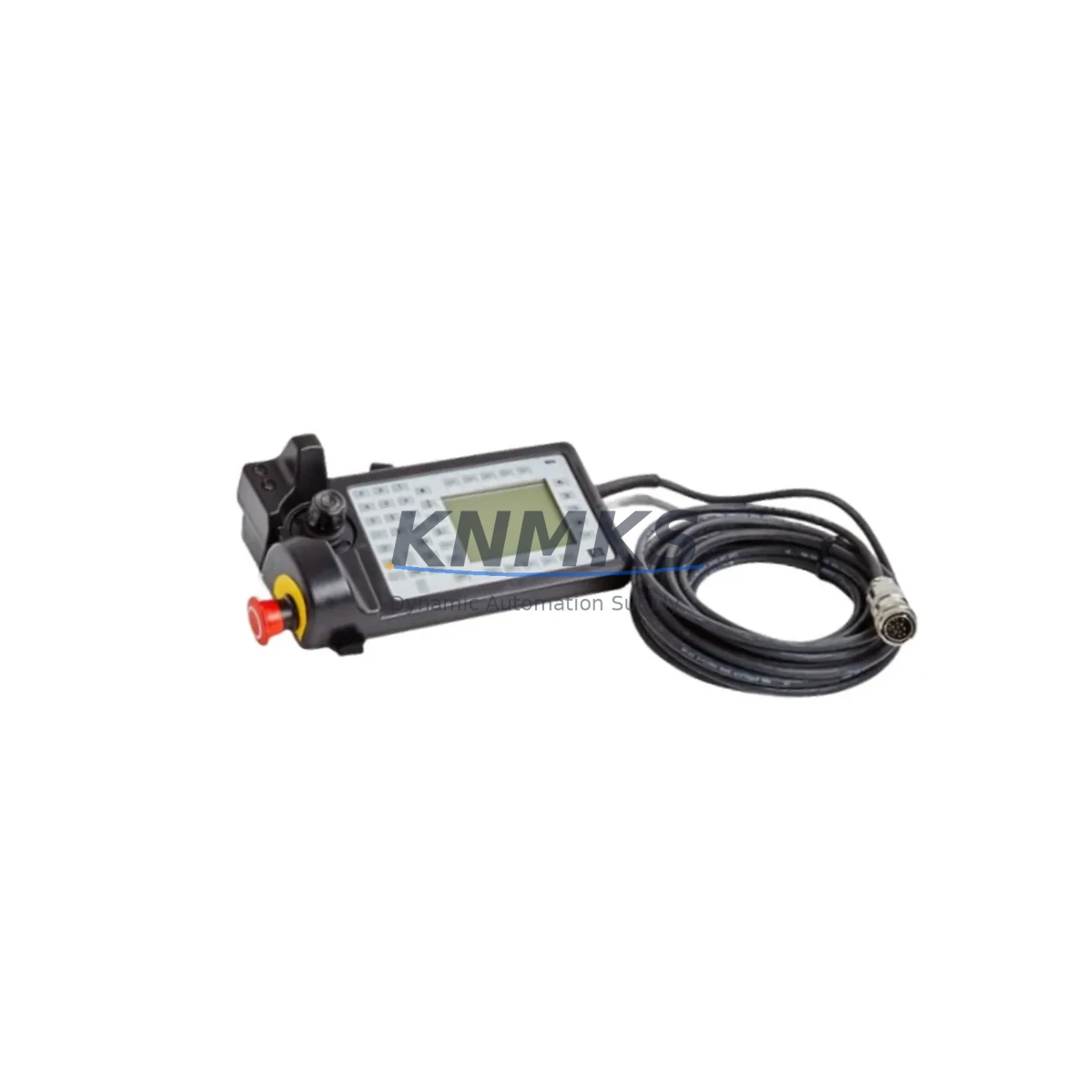

ABB 3HNE00442-1 Migration-Ready FlexPendant for Legacy IRC5 Control Systems

The ABB 3HNE00442-1 FlexPendant is a critical operator interface component for ABB IRC5 robot controllers, widely deployed across automotive, metal fabrication, food processing, and general manufacturing automation lines. As legacy IRC5 installations age and OEM support windows close, procurement teams and system integrators face increasing pressure to source verified replacement units that maintain full operational continuity without requiring controller reprogramming or HMI screen redesign. The 3HNE00442-1 addresses this challenge directly: it is a direct-fit, firmware-compatible teach pendant engineered for drop-in replacement in existing IRC5 single-cabinet and multi-move configurations.

When planning a FlexPendant replacement within an active production environment, engineers must verify several compatibility parameters before installation. The 3HNE00442-1 connects to the IRC5 controller via the standard FlexPendant interface port, which carries both power and data over a single ruggedized cable assembly. Confirm that the existing cable harness — typically terminated at the X9 connector on the IRC5 main computer unit DSQC 639 — is undamaged and that the enabling device circuit is intact. The pendant draws power directly from the controller; no external power supply is required. Verify that the IRC5 system firmware version is compatible with the 3HNE00442-1 hardware revision installed; units shipped from KNMKS are pre-tested against current RobotWare 5.x and 6.x firmware branches to ensure seamless handshake on first boot.

For sites running coordinated motion or multi-robot cells, the IRC5 MultiMove controller shares the same FlexPendant interface standard, meaning the 3HNE00442-1 can serve as a unified replacement across both single-cabinet IRC5 and MultiMove rack configurations. This is particularly valuable during phased retrofit programs where maintenance teams need a single spare SKU to cover multiple robot stations. The DSQC 679 teach pendant interface board inside the IRC5 cabinet does not require replacement when swapping the FlexPendant unit, reducing both parts cost and downtime exposure.

Integrators migrating from older S4C+ or S4Cplus robot generations to IRC5 should note that the FlexPendant architecture changed significantly between generations. The 3HNE00442-1 is IRC5-native and is not backward compatible with S4C+ controllers, which use the earlier TPU (Teach Pendant Unit) with a different connector and communication protocol. If your retrofit scope includes controller generation upgrades — for example, replacing an S4Cplus M2000 cabinet with an IRC5 compact controller — the 3HNE00442-1 should be specified as part of the IRC5 controller package, alongside the DSQC 1000 main computer and appropriate I/O modules such as the DSQC 652 digital I/O unit or DSQC 378B fieldbus adapter for DeviceNet or PROFIBUS migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 FlexPendant retrofit begins well before the unit arrives on site. Maintenance planners should pull the current IRC5 system backup — stored on the controller’s CompactFlash card or USB media — and confirm that the RAPID program, system parameters, and safety configuration files are archived and version-stamped. This backup protects against any configuration loss during the pendant swap and serves as the restore point if commissioning reveals unexpected behavior.

During the physical replacement, the enabling device (deadman switch) circuit must be verified operational before any motion is commanded. The 3HNE00442-1 incorporates a three-position enabling device compliant with ISO 10218-1 safety requirements, which the IRC5 safety controller monitors continuously. If the site also operates a SafeMove safety module — mounted on the DSQC 647 or DSQC 1015 safety board inside the IRC5 cabinet — confirm that the safety configuration does not reference pendant-specific hardware identifiers that would require re-validation after the swap.

For lines where the IRC5 communicates upstream to a SCADA or DCS via PROFIBUS DP or DeviceNet — typically through a DSQC 378B or DSQC 667 fieldbus adapter — the pendant replacement has no impact on the fieldbus link, as that communication path is independent of the FlexPendant interface. However, if the HMI screens on the FlexPendant display live process data pulled from the fieldbus, verify that the data mapping in the FlexPendant application remains intact after the unit swap. In multi-robot cells coordinated through a PLC — for example, a Siemens S7-300 or Allen-Bradley ControlLogix acting as the cell master — the IRC5 I/O signals routed through the DSQC 652 digital I/O module are unaffected by the pendant replacement, and no PLC program changes are required.

Where the retrofit scope extends beyond the pendant to include controller board replacements or power supply upgrades, the IRC5 axis computer DSQC 668 and drive units should be inspected for capacitor aging and thermal damage, particularly in high-cycle foundry or press-tending applications. Addressing these components during the same maintenance window minimizes repeat downtime and extends the effective service life of the IRC5 platform by several additional years.

Downtime Control During System Migration

Minimizing production interruption during a FlexPendant replacement requires a structured swap protocol. The IRC5 controller does not require a full power-down to disconnect the FlexPendant — the pendant can be hot-swapped while the controller is in motors-off state, provided the site safety procedure permits this approach. Confirm with the local safety officer before proceeding. In practice, most facilities schedule the swap during a planned shift break or tool-change window, targeting a total intervention time of under 15 minutes for an experienced technician.

Upon reconnection, the IRC5 will detect the new FlexPendant and may prompt a firmware compatibility check. If the RobotWare version on the controller predates the firmware embedded in the replacement pendant, the controller will initiate an automatic pendant firmware update over the pendant cable — a process that typically completes in under five minutes and requires no operator input beyond confirming the prompt on the FlexPendant screen. All RAPID programs, system parameters, and I/O configurations remain intact on the controller’s CompactFlash storage throughout this process; no program reload is required.

For facilities operating under continuous production schedules where even a 15-minute window is difficult to secure, KNMKS recommends maintaining one 3HNE00442-1 unit as a cold-standby spare, pre-tested and firmware-matched to the site’s RobotWare version. This eliminates the firmware update step entirely and reduces the swap-to-production time to under five minutes. Given the support terms confirmed by quotation coverage on all units shipped from KNMKS, the carrying cost of a standby spare is offset by the risk reduction it provides against unplanned pendant failure causing extended line stoppage.

Retrofit Support FAQ

Q: Is the ABB 3HNE00442-1 a direct replacement for my existing IRC5 FlexPendant?
A: Yes. The 3HNE00442-1 is the standard IRC5 FlexPendant and connects directly to any IRC5 single-cabinet, compact, or MultiMove controller via the dedicated pendant interface port. No wiring modifications or adapter cables are required. All existing RAPID HMI screens and operator programs are retained on the controller and will display correctly on the replacement unit.

Q: What pre-shipment testing does KNMKS perform on the 3HNE00442-1?
A: Every unit undergoes a full functional test prior to dispatch, including power-on verification, touchscreen calibration check, enabling device circuit continuity, and firmware boot confirmation. Units are shipped with a test record and are covered by a support terms confirmed by quotation from the date of shipment against manufacturing defects.

Q: Do I need to reconfigure my IRC5 safety system after replacing the FlexPendant?
A: In most standard IRC5 configurations, no safety reconfiguration is required. The enabling device on the 3HNE00442-1 is electrically compatible with the IRC5 safety circuit. If your system uses ABB SafeMove with pendant-specific safety parameters, consult your SafeMove configuration file to confirm no pendant hardware identifiers are referenced before completing the swap.

Q: What is the lead time and stock availability for the 3HNE00442-1?
A: KNMKS maintains stock of the ABB 3HNE00442-1 for immediate dispatch. Contact [email protected] or call +86 18359268345 to confirm current inventory levels and arrange expedited shipping for urgent maintenance requirements.
