ABB 3HNA024941-002 Fail-Safe Teach Pendant IRC5: Fault Protection and Critical Industrial Field Reliability

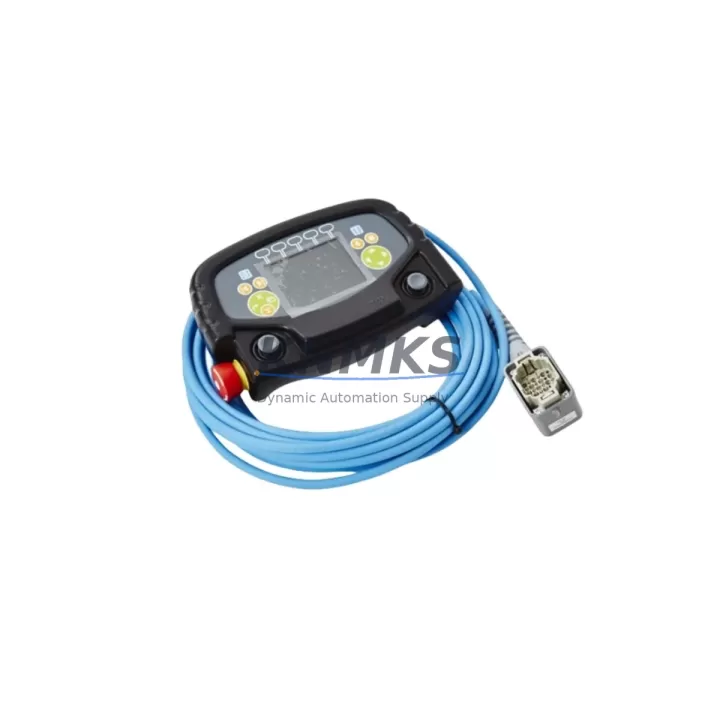

The ABB 3HNA024941-002 is a ruggedized, safety-rated teach pendant engineered for ABB IRC5 robot controllers operating in the most demanding industrial environments. Designed to meet the stringent requirements of continuous production lines, critical interlock circuits, and high-electromagnetic-interference (EMI) control cabinets, this pendant delivers uncompromising operator safety and control reliability where failure is not an option.

In petrochemical plants, automotive paint shops, metal foundries, and heavy manufacturing facilities, robot teach pendants are the primary human-machine interface for motion programming, fault acknowledgment, and emergency intervention. A pendant that suffers signal drift, communication dropout, or physical failure under harsh conditions does not merely cause inconvenience — it creates a safety-critical gap in the control loop. The ABB 3HNA024941-002 is purpose-built to close that gap.

Its sealed, impact-resistant housing provides robust protection against dust ingress, moisture, and mechanical shock — essential for welding bays, paint booths, and foundry floors where airborne particulates and humidity are constant threats. The integrated enabling device and emergency stop button are hardware-level safety functions that comply with IEC 62061 and ISO 13849 safety integrity requirements, ensuring that even in the event of a software fault or communication anomaly, the operator retains direct, fail-safe control over robot motion.

Communication between the 3HNA024941-002 and the IRC5 controller is handled via a dedicated, shielded cable interface that minimizes susceptibility to EMI from variable frequency drives, servo amplifiers, and high-current bus bars commonly found in the same control cabinet. This architecture prevents the signal drift and communication timeouts that can trigger unplanned robot stops or, worse, mask a genuine fault condition. When paired with the ABB IRC5 Main Computer DSQC1000 and the ABB Panel Board Unit DSQC1030, the system forms a tightly integrated safety chain from operator input to motion execution.

For facilities running multi-robot cells, the 3HNA024941-002 supports hot-swap pendant connection protocols that allow maintenance personnel to reconnect the pendant without a full controller restart — a critical capability in continuous production environments where every minute of unplanned downtime carries significant cost. This feature, combined with the pendant’s robust connector locking mechanism, eliminates the intermittent connection faults that are a leading cause of nuisance stops in high-vibration installations such as press lines and heavy stamping operations.

The pendant’s backlit display and tactile keypad remain fully operable in low-light conditions and when operators are wearing heavy industrial gloves — a practical consideration that is often overlooked in standard pendant designs but is essential for safe operation in mining, port crane, and shipyard environments. The ABB FlexPendant 3HAC028357-001 shares the same IRC5 ecosystem and can serve as a complementary interface for standard robot programming tasks, while the 3HNA024941-002 is specifically optimized for harsh-site deployment where additional environmental protection is required.

From a spare parts and lifecycle management perspective, the 3HNA024941-002 is a direct replacement component for IRC5 Paint and IRC5 Standard controllers across ABB’s installed base. Facilities managing long-term spare parts programs for safety-critical robot cells should maintain at least one unit availability confirmed by RFQ to support rapid replacement during scheduled maintenance windows or unplanned failures. KNMKS maintains in-stock inventory of this pendant and can support global shipping with short lead times — a critical advantage for operations that cannot tolerate extended downtime waiting for factory-direct supply chains.

Every unit shipped by KNMKS undergoes pre-shipment functional testing to verify pendant communication, enabling device operation, emergency stop circuit continuity, and display functionality. This testing protocol ensures that the unit arriving on-site is ready for immediate deployment, reducing commissioning time and eliminating the risk of receiving a defective unit during a critical maintenance window. The ABB Teach Pendant Cable 3HNA015030-001 and ABB IRC5 I/O Board DSQC652 are recommended companion components to complete the pendant integration and ensure full I/O signal integrity within the control cabinet.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB 3HNA024941-002 as part of a comprehensive control cabinet protection strategy requires attention to the full signal and power chain. Within the IRC5 control cabinet, the pendant interfaces directly with the ABB Panel Board Unit DSQC1030, which manages the safety circuit routing between the pendant’s emergency stop and enabling device outputs and the controller’s motion supervision logic. Ensuring this interface board is in serviceable condition is a prerequisite for reliable pendant operation.

Power quality within the control cabinet directly affects pendant communication stability. Voltage transients from servo drive switching, solenoid valve actuation, or external power grid disturbances can introduce noise on the pendant communication bus. Installing a dedicated ABB UPS module or surge protection device on the IRC5 power supply input — such as those compatible with the ABB DSQC609 Power Supply Unit — provides a stable voltage reference that protects both the pendant interface and the main computer from surge-induced communication faults.

For facilities where the IRC5 cabinet is located in high-vibration zones — such as near press lines, compressors, or heavy conveyor drives — periodic inspection of the ABB Teach Pendant Cable 3HNA015030-001 connector seating and cable routing is recommended. Vibration-induced connector loosening is a leading cause of intermittent pendant communication errors that are difficult to diagnose and can be mistaken for software faults. Securing the cable with appropriate strain relief and routing it away from high-current conductors significantly extends service life and maintains signal integrity.

I/O signal integrity across the broader robot cell is maintained by the ABB IRC5 I/O Board DSQC652, which handles digital and analog I/O routing between the robot controller and field devices such as safety light curtains, area scanners, and interlock relays. Maintaining a spare DSQC652 alongside the 3HNA024941-002 pendant in the site’s critical spare parts inventory ensures that both the human interface and the field I/O layer can be restored rapidly in the event of a concurrent failure — a scenario that, while rare, is most likely to occur during high-stress production periods.

Critical Industrial Safety Applications

The ABB 3HNA024941-002 teach pendant is deployed across a wide range of safety-critical industrial applications where robot control reliability directly impacts personnel safety and production continuity.

In petrochemical and refinery facilities, robots equipped with IRC5 controllers perform inspection, valve actuation, and material handling tasks in zones classified as potentially explosive atmospheres. The pendant’s hardware emergency stop provides operators with a direct, hardwired intervention capability that does not depend on software or network availability — a fundamental requirement in ATEX-adjacent control architectures.

In automotive paint shops and body-in-white welding lines, the 3HNA024941-002 is the standard interface for IRC5 Paint robot programming and fault recovery. Its resistance to paint mist, solvent vapors, and high-humidity environments makes it the only appropriate pendant choice for these installations. Unplanned pendant failures in paint booths result not only in production downtime but also in paint quality defects that require costly rework.

In mining and mineral processing facilities, robots handle ore sampling, explosive loading assistance, and heavy material transfer in environments characterized by extreme dust, vibration, and temperature cycling. The 3HNA024941-002’s sealed housing and robust connector system maintain reliable operation under these conditions, supporting safe robot intervention and maintenance programming without exposing operators to hazardous areas.

In port and shipyard automation, IRC5-controlled robots perform welding, cutting, and surface treatment on large structural components. The pendant’s glove-compatible interface and backlit display ensure that operators can safely program and monitor robot motion even in low-light, outdoor, or high-noise environments where standard pendants would be impractical.

In metallurgical and foundry operations, robots handle molten metal pouring, die casting, and heat treatment loading in environments with extreme radiant heat and airborne particulates. The 3HNA024941-002’s thermal operating range and sealed construction support reliable operation in these conditions, ensuring that robot motion can be safely supervised and interrupted at any point in the production cycle.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the ABB 3HNA024941-002?
All ABB 3HNA024941-002 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers functional defects identified under normal operating conditions consistent with the product’s rated specifications. KNMKS provides replacement or repair support within the confirmed support period to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes a comprehensive pre-shipment functional test that verifies: pendant-to-controller communication link establishment, emergency stop circuit continuity and response, three-position enabling device operation across all positions, display functionality and backlight operation, and connector integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 3HNA024941-002 compatible with all IRC5 controller variants?
The 3HNA024941-002 is specifically designed for ABB IRC5 Paint and IRC5 Standard controllers. Compatibility with IRC5 Compact or MultiMove configurations should be verified against the specific controller software version and hardware revision. KNMKS technical support can assist with compatibility verification prior to order placement to ensure the correct pendant variant is supplied for your installation.

Q4: Can KNMKS support long-term spare parts supply for this pendant?
Yes. KNMKS maintains ongoing inventory of the ABB 3HNA024941-002 and can support scheduled spare parts programs for facilities managing IRC5 robot fleets. Long-term supply agreements, consignment stock arrangements, and priority allocation for critical production sites are available. Contact our sales team to discuss a spare parts program tailored to your maintenance strategy and robot population.
