ABB 3HNA011788-001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HNA011788-001 Maintenance-Proven Spare Part for Factory Uptime

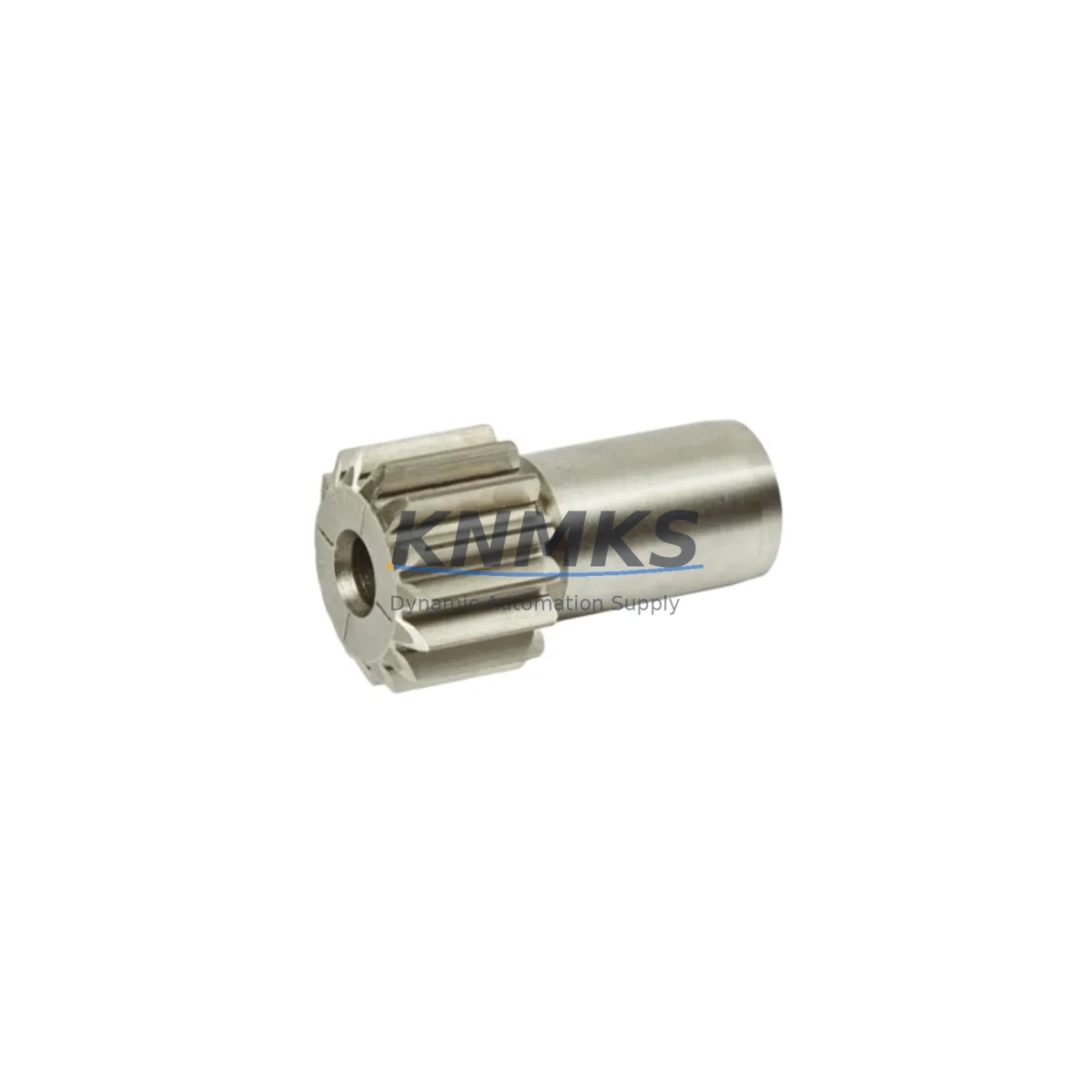

The ABB 3HNA011788-001 is an OEM cycloidal pinion gear designed for the IRB6700 series industrial robot platform — one of ABB’s most widely deployed heavy-payload articulated robots in automotive, metal fabrication, foundry, and general manufacturing environments. This axis drive component is a critical mechanical spare that directly governs joint precision, load transfer, and positional repeatability across the robot’s operational lifecycle.

For maintenance engineers managing aging IRB6700 fleets, sourcing a verified 3HNA011788-001 replacement is essential to restoring full axis performance without compromising system calibration or safety margins. At KNMKS, every unit is sourced from authorized supply chains, inspected prior to dispatch, and backed by a support terms confirmed by quotation — ensuring your production line returns to full uptime with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3HNA011788-001 cycloidal pinion gear is rarely an isolated task. In a structured maintenance workflow, this replacement should trigger a broader inspection of the robot’s mechanical and electrical subsystems to prevent cascading failures and unplanned downtime.

During axis drive replacement, maintenance engineers should simultaneously inspect the ABB IRC5 controller cabinet for any fault logs related to axis overload, motor current deviation, or encoder mismatch — conditions that may have accelerated gear wear. The ABB DSQC661 or DSQC662 drive units powering the affected axis should be checked for thermal stress indicators and output voltage stability, as a degraded drive can cause premature wear on a newly installed gear.

The SMB (Serial Measurement Board) — typically the ABB 3HAC044168-001 or equivalent — should be verified for resolver signal integrity, since axis position errors can mask mechanical wear symptoms. If the robot has been operating with intermittent axis alarms, the motor power cables and resolver cables running to the affected joint should be inspected for insulation fatigue, connector corrosion, or pinch damage at the cable management arm.

For robots in high-cycle foundry or press-tending applications, the axis brake assembly and gearbox lubrication system should be serviced concurrently. Grease degradation in the cycloidal drive is a leading cause of pinion gear wear, and neglecting lubrication during a gear replacement will shorten the new component’s service life significantly.

Procurement engineers building annual spare parts kits for IRB6700 fleets should consider stocking the 3HNA011788-001 alongside axis motor seals, gearbox oil drain plugs, and the corresponding axis motor unit (e.g., 3HAC17484-1 or series-equivalent) to enable complete axis overhaul capability without waiting on long OEM lead times. A buffer stock of one to two units per robot generation is recommended for facilities running three-shift production schedules.

Site Replacement Workflow

The 3HNA011788-001 is a direct OEM replacement for the cycloidal pinion gear in the IRB6700 axis drive assembly. The following workflow is recommended for field replacement to minimize downtime and ensure system integrity:

Step 1 — Pre-Replacement Verification: Confirm the fault code on the IRC5 controller (typically axis position error or mechanical stop alarm). Cross-reference the robot’s service log to determine if the failure is gear-related or driven by upstream electrical faults. Verify the 3HNA011788-001 part number against the robot’s serial number and axis configuration using ABB’s spare parts catalog or RobotStudio documentation.

Step 2 — Safe Isolation: Place the robot in maintenance mode via the IRC5 teach pendant. Engage all axis brakes and apply mechanical locking pins per ABB safety procedures. Isolate the controller cabinet power and discharge any residual capacitor energy in the drive units before opening the axis housing.

Step 3 — Component Removal and Inspection: Remove the worn cycloidal pinion gear and inspect the mating surfaces, bearing seats, and housing bore for secondary damage. If the housing shows scoring or the bearing race is damaged, a housing replacement should be planned before reinstalling the new gear.

Step 4 — Installation and Lubrication: Install the 3HNA011788-001 per ABB torque specifications. Apply the correct grade of cycloidal drive grease (per ABB lubrication specification) and verify gear mesh clearance before closing the axis housing.

Step 5 — Axis Calibration: After mechanical reassembly, perform a full axis calibration using the IRC5 teach pendant or ABB RobotStudio. Verify positional accuracy against the robot’s calibration reference marks. Run a low-speed test cycle before returning the robot to full production speed.

Step 6 — Documentation: Record the replacement in the robot’s maintenance log, including the new part serial number, installation date, and post-calibration results. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 3HNA011788-001 compatible with all IRB6700 variants?
The 3HNA011788-001 is designed for the IRB6700 series axis drive assembly. Compatibility varies by axis number and payload configuration. Please provide your robot’s serial number and axis specification when contacting KNMKS to confirm fitment before ordering.

Q2: What is the support terms coverage and what does it include?
All 3HNA011788-001 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. The support terms does not cover damage resulting from improper installation, incorrect lubrication, or operation outside ABB’s specified load and speed parameters.

Q3: How is the unit tested before shipment?
Each unit undergoes visual inspection, dimensional verification, and packaging integrity checks prior to dispatch. Units sourced as surplus new are additionally verified against ABB part number markings and date codes. A test report is available upon request for critical applications.

Q4: Can KNMKS support long-term supply for multi-robot facilities?
Yes. KNMKS maintains buffer stock of high-demand IRB6700 spare parts and can support blanket purchase orders and scheduled delivery programs for facilities managing large robot fleets. Contact admin@knmks.com to discuss volume pricing, lead time commitments, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HNA011788-001

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3HNA011788-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
