ABB 3HNA008698-001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HNA008698-001 Maintenance-Proven Spare Part for Factory Uptime

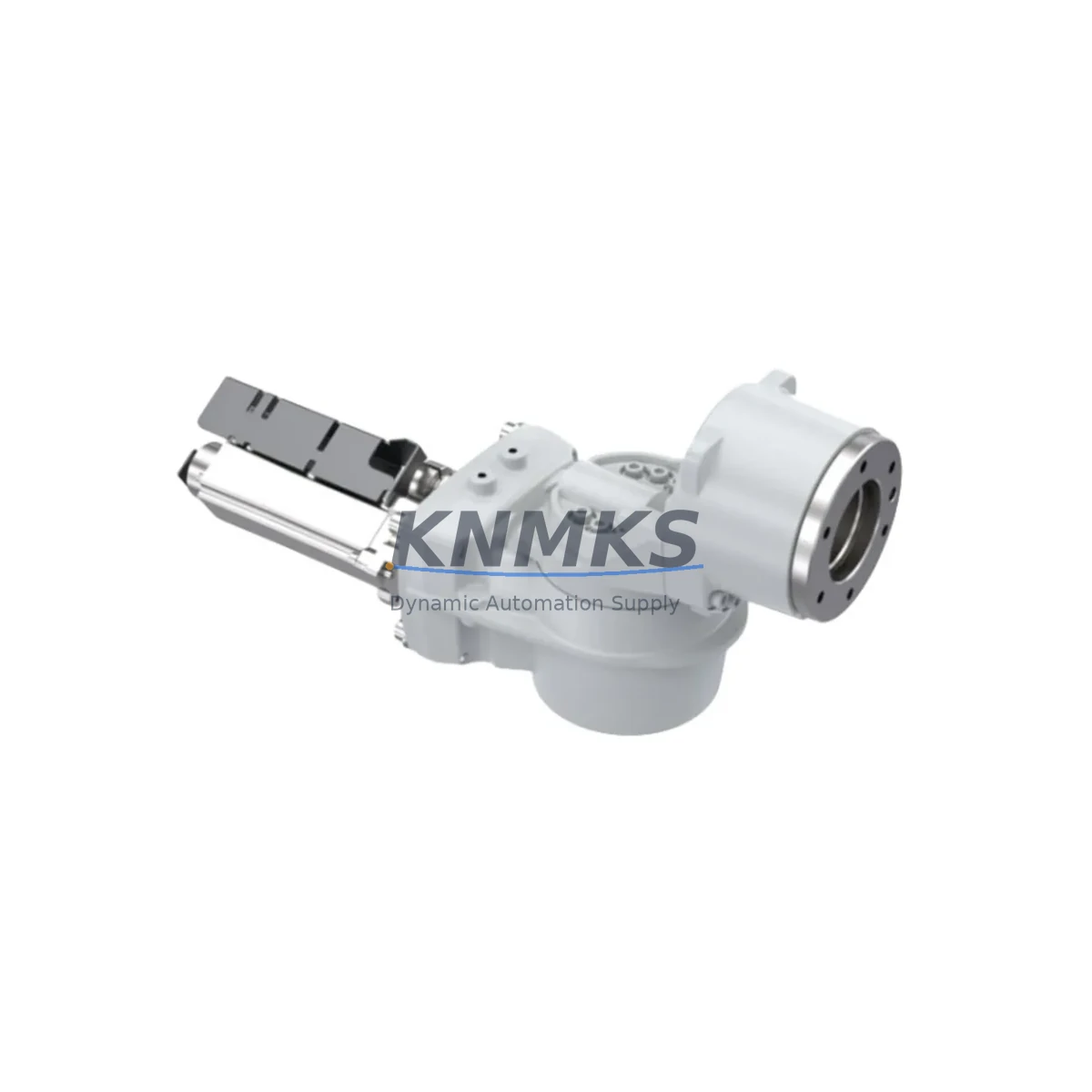

The ABB 3HNA008698-001 is an original process wrist assembly engineered for the ABB IRB 6700-300 and IRB 1600LD robot series — two of the most widely deployed articulated arm platforms in automotive body shops, foundry lines, arc welding cells, and heavy-payload material handling installations worldwide. As a precision mechanical sub-assembly, the process wrist transmits torque and motion to the end-of-arm tooling while maintaining the positional accuracy and repeatability that ABB robots are specified for. When this component degrades or fails, the entire robot cell is offline, making rapid access to a verified, tested spare the single most important factor in minimizing mean time to repair (MTTR).

KNMKS stocks the 3HNA008698-001 as a ready-to-ship spare, pre-inspected and function-tested prior to dispatch. Every unit is backed by a support terms confirmed by quotation covering manufacturing defects and verified compatibility with the declared robot variants. Whether you are managing a planned annual overhaul, responding to an unscheduled breakdown, or building a strategic spare parts buffer for a multi-robot cell, this listing provides the procurement path with the shortest lead time and the lowest technical risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A process wrist failure on an ABB IRB 6700-300 rarely occurs in isolation. Maintenance engineers conducting a wrist replacement should treat the event as a trigger for a broader inspection of the robot’s axis 4–6 drive train and the surrounding control infrastructure. During the same maintenance window, it is best practice to inspect the ABB 3HAC055451-004 gear unit (the primary axis 5 reduction gear interfacing with this wrist assembly) and the 3HAC059444-002 wrist housing sub-assembly to confirm no secondary wear has propagated from the failed component.

Beyond the mechanical sub-assemblies, the IRC5 controller cabinet should be audited in parallel. The ABB DSQC661 main computer board and the DSQC662 I/O unit are common age-related failure points in long-running IRB 6700 installations; a robot that has accumulated enough operating hours to require a wrist replacement has almost certainly placed equivalent stress on its controller electronics. Inspecting the DSQC1000 drive module for capacitor aging and verifying the integrity of the 3HAC026254-001 SMB (Serial Measurement Board) battery backup unit are low-cost steps that prevent a second unplanned outage within weeks of the wrist repair.

For installations where the IRB 6700 is integrated into a welding cell, the ABB JOKAB PLUTO safety PLC and associated safety relay modules should be re-validated after any mechanical intervention on the robot arm, as wrist replacement requires breaking and re-making the robot’s safety-rated mechanical stops and axis calibration. Procurement engineers building a 12-month spare parts plan for a multi-robot cell should include at minimum one 3HNA008698-001 wrist assembly, one set of axis 4–6 gear oils, one DSQC661 board, and one SMB battery unit per four robots as a statistically sound buffer against unplanned downtime.

Site Replacement Workflow

Replacing the 3HNA008698-001 on an ABB IRB 6700-300 follows the standard ABB wrist exchange procedure documented in the robot’s product manual (document ID 3HAC044266-001). The key steps for minimizing downtime are:

1. Pre-replacement verification: Confirm the incoming spare’s part number and cross-reference against the robot’s serial number plate. The IRB 6700-300 and IRB 1600LD share compatible wrist interfaces, but axis calibration offsets differ — ensure the correct calibration data file is loaded in the IRC5 controller before powering the robot after reassembly.

2. Controlled shutdown: Use the IRC5 FlexPendant to bring the robot to its mechanical zero position, then engage the motor brake release and follow the lockout/tagout procedure for the controller cabinet. Disconnect the process media (welding wire, air, or signal cables) at the wrist interface before unbolting the assembly.

3. Assembly and torque: Install the 3HNA008698-001 using the torque values specified in the ABB service manual. Do not substitute generic fasteners — the wrist mounting bolts are grade-specific to maintain the dynamic load rating of the joint.

4. Calibration and test run: After reassembly, perform a full axis 4–6 calibration using the ABB CalibWare tool or the IRC5 built-in calibration routine. Run the robot through its full working envelope at reduced speed before returning it to production speed. Log the calibration data and update the maintenance record.

This workflow typically achieves a complete wrist replacement in 4–8 hours for a trained ABB-certified technician, compared to 2–5 days for OEM field service dispatch — a critical advantage when production continuity is the priority.

Spare Parts Support FAQ

Q1: Is the 3HNA008698-001 compatible with both the IRB 6700-300 and IRB 1600LD?
Yes. The 3HNA008698-001 is the designated process wrist assembly for both the IRB 6700-300 (300 kg payload, 2.6 m reach) and the IRB 1600LD (foundry/wash-down variant). Cross-reference part numbers 3HAC055451-004 and 3HAC059444-002 are associated sub-assemblies within the same wrist system. Always verify against your robot’s serial number and the ABB spare parts catalog before ordering if you are unsure of your exact variant.

Q2: What pre-shipment testing is performed on this spare?
Every 3HNA008698-001 unit dispatched by KNMKS undergoes dimensional inspection and functional verification prior to packaging. Units are checked for bearing play, gear mesh backlash within ABB tolerance, and external seal integrity. A test report is available upon request. All units are shipped in anti-static, impact-protected packaging to prevent transit damage.

Q3: What is the support terms coverage and how is a claim handled?
KNMKS provides a support terms confirmed by quotation from the date of shipment covering manufacturing defects and verified compatibility failures. If a unit fails within the confirmed support period under normal operating conditions, contact [email protected] with the order reference and a fault description. Replacement units are prioritized for dispatch to minimize your downtime exposure. Support terms does not cover damage resulting from incorrect installation, overload, or use outside the declared robot variants.

Q4: Can KNMKS support long-term supply for multi-robot fleet maintenance programs?
Yes. KNMKS operates regional inventory hubs across Europe, North America, and Asia-Pacific specifically to support fleet-level spare parts programs for industrial automation customers. For customers managing 10 or more ABB IRB 6700 or IRB 1600LD robots, we offer reserved stock agreements, priority allocation during high-demand periods, and consolidated shipment scheduling to reduce per-unit logistics costs. Contact [email protected] or call +86 18359268345 to discuss a tailored supply arrangement.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HNA008698-001 3HAC055451-004 lRB6700-300 3HAC059444-002 lRB1600lD
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3HNA008698-001 3HAC055451-004 lRB6700-300 3HAC059444-002 lRB1600lD
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
