ABB 3HNA007719-001 Maintenance Spare Part for Factory Uptime

Overview

ABB 3HNA007719-001 Maintenance-Proven Spare Part for Factory Uptime

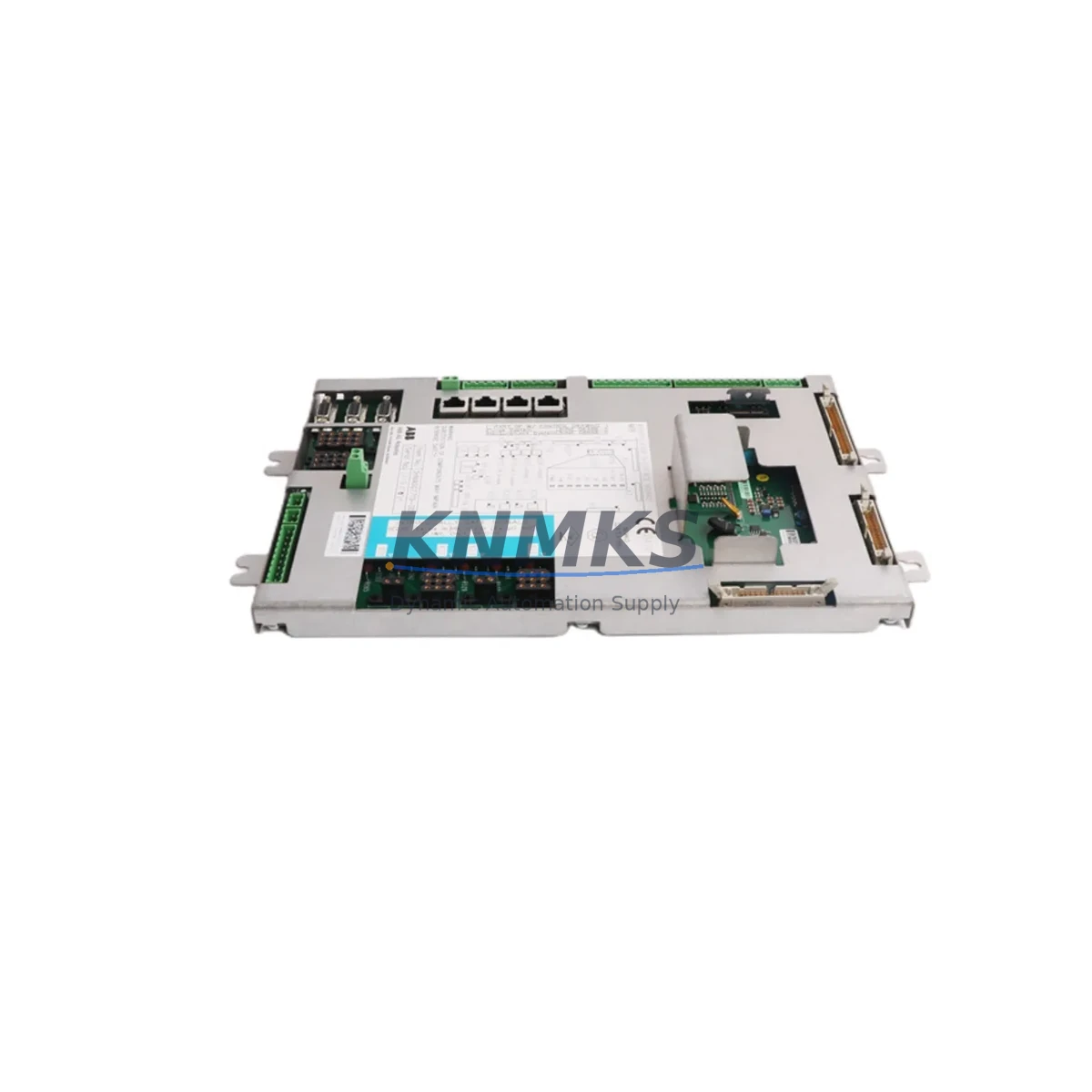

The ABB 3HNA007719-001 is an original Manipulator Interface Board designed for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robot control systems in automotive, electronics, and general manufacturing environments. Maintaining a verified spare of this board is a critical element of any proactive maintenance strategy for facilities running ABB IRB series robots. Unplanned downtime caused by a failed interface board can halt an entire production cell; having a tested, shelf-ready 3HNA007719-001 on hand reduces mean time to repair (MTTR) and protects factory uptime commitments.

This board serves as the primary communication and signal interface between the IRC5 controller cabinet and the robot manipulator arm. It handles encoder feedback, axis control signals, and safety interlock communications. When this component degrades — due to electrical transients, thermal cycling, or age-related capacitor wear — symptoms typically include axis fault alarms, erratic motion, loss of encoder reference, or complete robot stop. Early identification and rapid board swap are essential to minimizing production impact.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3HNA007719-001 Manipulator Interface Board is flagged for replacement during a scheduled IRC5 cabinet inspection or after an unplanned fault event, maintenance engineers should treat the intervention as an opportunity to audit the full robot controller assembly. The IRC5 cabinet integrates multiple interdependent subsystems, and a board failure is often preceded or accompanied by stress on adjacent components.

Begin by verifying the IRC5 main computer board (DSQC 639 / 3HAC031670-001) — the primary CPU that coordinates all axis and I/O operations. A degraded main computer can generate spurious signals that accelerate wear on the manipulator interface board. Simultaneously, inspect the axis computer board (DSQC 668 / 3HAC025338-001), which directly manages drive commands to each robot axis; mismatched firmware or hardware faults here can cause the same axis alarm symptoms as a failed 3HNA007719-001.

The IRC5 drive unit and rectifier module should be checked for DC bus voltage stability — voltage ripple or transient spikes are a leading cause of premature PCB failure in manipulator interface boards. If the facility operates multiple IRC5 cabinets, standardizing on a common spare set that includes the SMB (Serial Measurement Board, 3HAC031670-001 series) is strongly recommended, as SMB faults are frequently misdiagnosed as manipulator interface failures.

For facilities with high-cycle welding or press-tending robots, the IRC5 I/O board (DSQC 652 / 3HAC025917-001) and associated digital I/O terminal units should be included in the annual spare parts review. These components share the same backplane bus and are subject to the same thermal and electrical stress cycles. Additionally, the FlexPendant (teach pendant) interface cable and connector should be inspected — a degraded pendant connection can generate false fault codes that implicate the manipulator interface board when the root cause is upstream.

Procurement engineers sourcing the 3HNA007719-001 should confirm cross-compatibility with the 3HNA006145-001 revision before placing orders, and request pre-shipment functional test documentation. Establishing a minimum stock level of one board per robot cell — or one per three cells for high-availability lines — is a widely adopted practice in automotive Tier 1 facilities.

Site Replacement Workflow

Replacing the 3HNA007719-001 on an IRC5 controller follows a structured procedure to ensure system compatibility and minimize re-commissioning time:

1. Fault Isolation: Confirm the fault via the FlexPendant error log. Record all active fault codes before powering down. Axis faults 50056, 50057, or encoder reference loss errors are typical indicators of manipulator interface board failure.

2. Safe Shutdown: Execute a controlled program stop, engage the motor-off state, and isolate the IRC5 cabinet from mains power. Follow lockout/tagout (LOTO) procedures per site safety policy.

3. Board Removal: Open the IRC5 cabinet rear panel. Disconnect the manipulator cable harness connectors from the 3HNA007719-001 board — note connector positions and label if necessary. Remove the board from its mounting rail.

4. Replacement Installation: Install the new 3HNA007719-001 (or compatible 3HNA006145-001). Reconnect all harness connectors in the correct sequence. Verify no bent pins or unseated connectors.

5. System Restart and Verification: Power up the IRC5 cabinet. Perform a warm start. Verify all axes home correctly and no fault codes are present. Run a slow-speed test cycle before returning the robot to production speed.

6. Documentation: Log the replacement in the maintenance management system (CMMS) with the part number, serial number of the replaced board, and date. Update the spare parts inventory accordingly.

This workflow supports legacy IRC5 systems that may no longer be covered by OEM service contracts, enabling in-house maintenance teams to extend robot service life and defer capital replacement costs.

Spare Parts Support FAQ

Q1: Is the 3HNA007719-001 directly interchangeable with the 3HNA006145-001?
These two part numbers represent successive revisions of the ABB IRC5 Manipulator Interface Board and are functionally compatible in most IRC5 configurations. However, firmware version alignment between the manipulator interface board and the IRC5 main computer should be verified before installation. Contact our technical team with your IRC5 cabinet serial number for confirmation prior to ordering.

Q2: How is the 3HNA007719-001 tested before shipment?
Each unit undergoes functional bench testing covering signal continuity, connector integrity, and board-level power rail verification before dispatch. A test report is available upon request. All units are shipped with ESD-protective packaging and carry a support terms confirmed by quotation from the date of delivery.

Q3: What is the recommended spare parts stocking strategy for IRC5-based robot cells?
For production lines with two or more IRC5 robots, maintaining one 3HNA007719-001 per three robot cells is a common industry benchmark. For single-robot critical cells (e.g., welding, dispensing, or press-tending), a dedicated one-to-one spare ratio is advisable. Pairing this board with a spare SMB and axis computer board provides comprehensive coverage for the most common IRC5 fault scenarios.

Q4: Can long-term supply of the 3HNA007719-001 be guaranteed for aging IRC5 systems?
We maintain ongoing sourcing channels for ABB IRC5 spare parts, including the 3HNA007719-001, to support facilities operating legacy robot systems beyond OEM support windows. Blanket purchase orders and scheduled delivery programs are available for customers requiring multi-year supply assurance. Contact our sales team to discuss long-term supply agreements.
