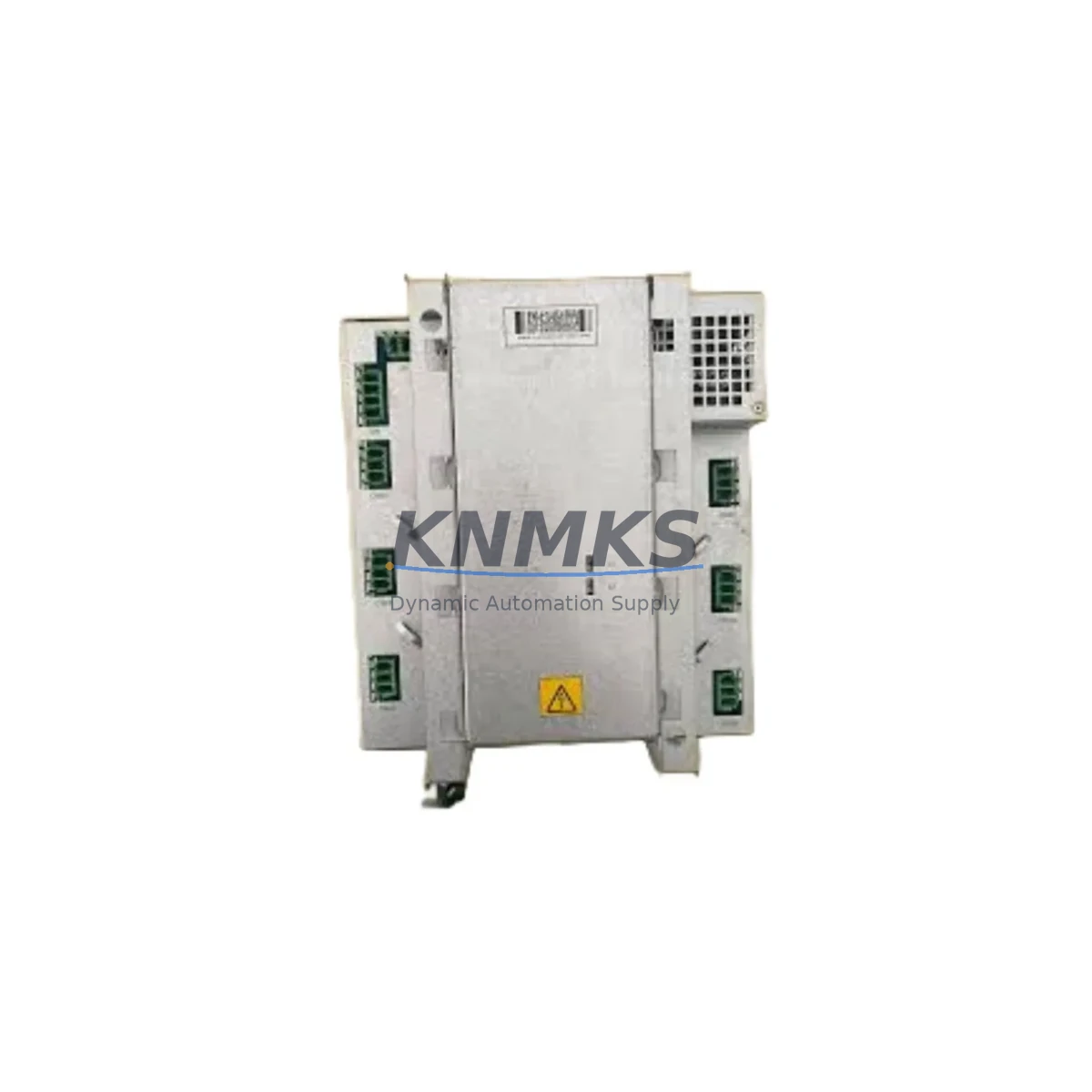

ABB 3HNA006144-001 Migration-Ready Process Interface Board for IRC5

Overview

ABB 3HNA006144-001 Migration-Ready Process Interface Board for IRC5: Legacy System Retrofit & Compatibility Upgrade

The ABB 3HNA006144-001 is a Process Interface Board (PIB) designed for the IRC5 robot controller platform, one of ABB’s most widely deployed industrial robot control architectures. As production lines built around IRC5 controllers age into their second decade of operation, maintenance engineers and automation integrators increasingly face the challenge of sourcing discontinued or end-of-life interface boards without disrupting active production. The 3HNA006144-001 addresses this directly: it is a migration-ready, drop-in replacement board that restores full process interface functionality to IRC5 cabinets without requiring controller replacement, PLC reprogramming, or HMI screen redesign.

This board occupies the standard IRC5 backplane slot and communicates over the DSQC internal bus, maintaining full compatibility with RobotWare 5.x and RobotWare 6.x software environments. Engineers migrating from earlier IRC5 variants or consolidating spare parts inventories across multi-robot cells will find the 3HNA006144-001 a reliable, pre-tested solution that eliminates the risk of firmware mismatch or signal mapping errors during changeover.

Each unit is pre-shipment tested under load conditions and ships with a support terms confirmed by quotation, supporting maintenance teams that need documented quality assurance for safety-critical robot cell environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 process interface board replacement requires a structured pre-swap checklist that goes beyond simply sourcing the correct part number. Before removing the legacy board, maintenance engineers should document the current I/O mapping using RobotStudio offline backup or a FlexPendant system export. This preserves the signal assignments between the 3HNA006144-001 and connected field devices — including safety interlocks, conveyor triggers, and weld process signals — so that the replacement board can be validated against the original configuration without relying on memory or informal notes.

Power supply capacity within the IRC5 cabinet should be confirmed before installation. The DSQC 662 or DSQC 661 power distribution board, which supplies regulated DC voltage to backplane-mounted modules, must have sufficient headroom to support the 3HNA006144-001 alongside any co-installed I/O modules such as the DSQC 652 digital I/O board or DSQC 378B analog I/O module. Overloading the internal power rail is a common cause of intermittent faults in retrofitted cabinets and should be ruled out during the planning phase.

Communication link integrity is equally important. If the IRC5 cell communicates with a supervisory PLC or SCADA system via DeviceNet, PROFIBUS, or Ethernet/IP — typically through a DSQC 688 fieldbus adapter or equivalent — the process interface board swap must not interrupt the fieldbus node address or MAC-layer configuration. Verify that the fieldbus adapter firmware is compatible with the installed RobotWare version before proceeding.

For cells where the IRC5 controller drives an ABB FlexPendant (TP) or a third-party HMI panel, screen layouts and signal tag references should be reviewed after the board replacement to confirm that no process variable has been remapped. In multi-robot cells sharing a common IRC5 MultiMove configuration, the replacement sequence should be planned to keep at least one controller active during the swap to maintain supervisory communication continuity.

Finally, installation space within the cabinet should be measured against the board’s physical dimensions before ordering, particularly in Panel Mounted Controller (PMC) configurations where backplane depth clearance is tighter than in standard single-cabinet IRC5 enclosures.

Downtime Control During System Migration

Minimizing unplanned downtime during a process interface board replacement on an IRC5 controller requires preparation that begins well before the maintenance window opens. The most effective approach is to perform a full RobotWare system backup — including module files, configuration files, and RAPID program files — to a USB drive or network share immediately before the swap. This backup serves as both a recovery point and a commissioning reference, allowing the replacement 3HNA006144-001 to be validated against a known-good system state.

During the physical swap, the IRC5 main computer board (typically a DSQC 1000 or DSQC 639 depending on the controller generation) should remain undisturbed. The process interface board is a backplane-mounted module and can be replaced without removing the main computer, preserving the RobotWare license and system identity stored on the main board’s compact flash or SD card. This is a critical distinction from a full controller replacement, which would require RobotWare re-licensing and full system recommissioning.

After installing the 3HNA006144-001, perform a warm restart from the FlexPendant and navigate to the I/O panel to verify that all configured signals are present and correctly mapped. Run the robot through a slow-speed dry cycle — with safety outputs monitored — before returning to production speed. If the cell includes a safety PLC or safety relay module connected to the IRC5 safety chain, verify that the emergency stop circuit and safeguard inputs are correctly recognized by the new board before releasing the cell to production.

With a pre-tested replacement unit, a documented backup, and a structured commissioning checklist, most IRC5 process interface board swaps can be completed within a single planned maintenance shift, keeping production impact to a minimum.

Retrofit Support FAQ

Q: Is the ABB 3HNA006144-001 a direct drop-in replacement for the original IRC5 process interface board?
A: Yes. The 3HNA006144-001 is designed to fit the standard IRC5 backplane slot and communicates over the DSQC bus without requiring hardware modification. Terminal wiring should be verified against the original IRC5 wiring diagram before power-up to confirm pinout compatibility with your specific cabinet revision.

Q: What RobotWare versions are compatible with this board?
A: The 3HNA006144-001 is compatible with RobotWare 5.x and RobotWare 6.x. Confirm your installed RobotWare version via the FlexPendant system information screen before installation. If your system runs an earlier RobotWare 4.x environment, contact our technical team to confirm compatibility before ordering.

Q: Is pre-shipment testing included, and what does the support terms confirmed by quotation cover?
A: Every 3HNA006144-001 unit undergoes a functional load test before shipment. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Units showing damage from incorrect installation, overvoltage, or environmental exposure outside ABB’s specified operating range are not covered under support terms.

Q: How quickly can this board be sourced, and is stock available?
A: We maintain in-stock inventory of the 3HNA006144-001 to support urgent maintenance requirements. Standard lead time for in-stock units is 1–3 business days for international shipment. Contact [email protected] or call +86 18359268345 to confirm current stock availability and arrange expedited shipping if required.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HNA006144-001
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3HNA006144-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
