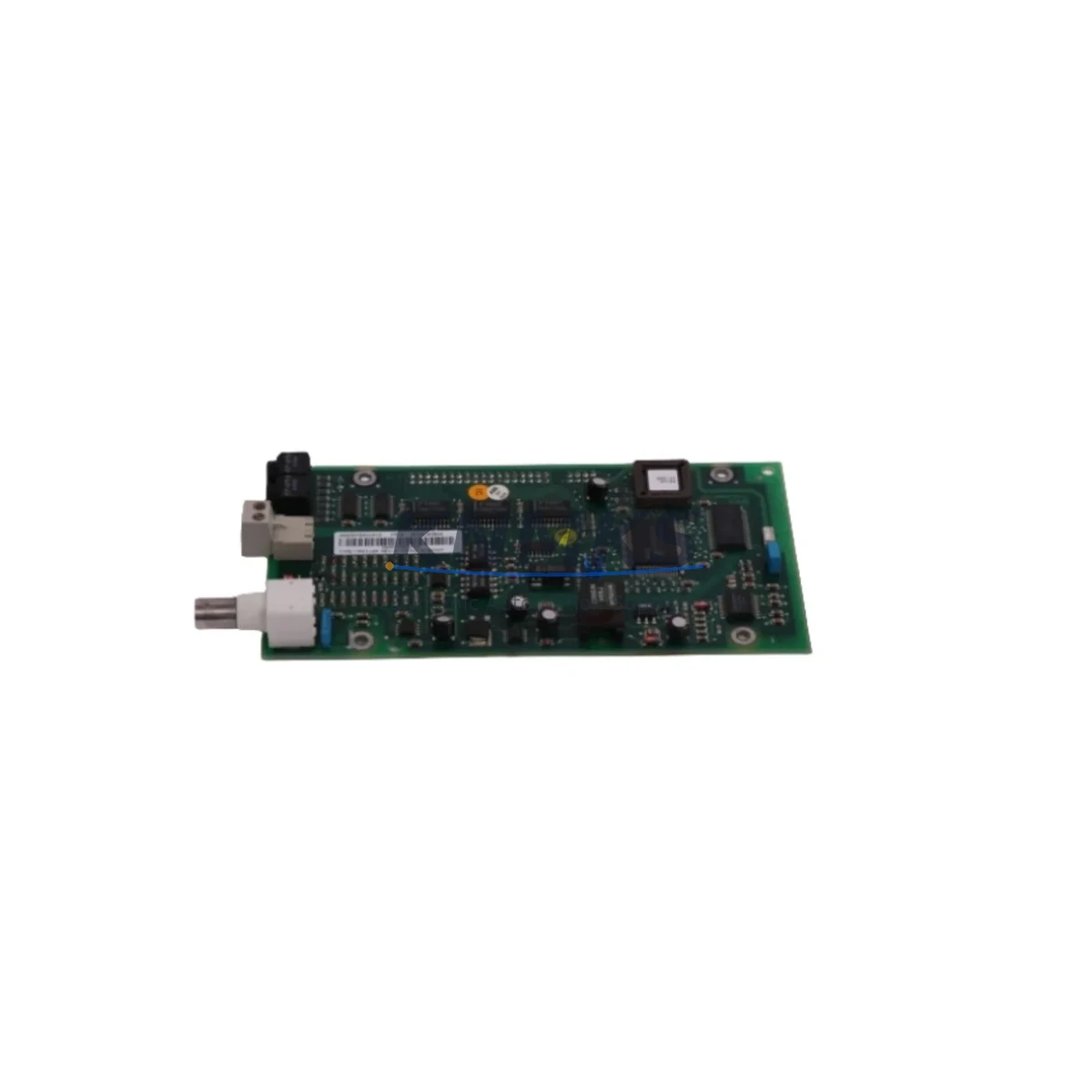

ABB 3HAC55438-001/02 Migration-Ready Drive Unit for IRC5

Overview

ABB 3HAC55438-001/02 Migration-Ready Drive Unit for IRC5 Legacy Control Systems

The ABB 3HAC55438-001/02 is a migration-ready Drive Unit designed for direct replacement and retrofit integration within ABB IRC5 robot controller cabinets. As legacy IRC5 systems approach end-of-support milestones and original drive units become increasingly difficult to source, the 3HAC55438-001/02 provides a verified, drop-in upgrade path that preserves existing program logic, minimizes downtime, and extends the operational life of your automation infrastructure. Each unit is pre-shipment tested, backed by a support terms confirmed by quotation, and available from in-stock inventory for immediate global dispatch.

Whether you are managing a planned retrofit of an aging robotic cell, responding to an unplanned drive failure on a production line, or executing a phased control cabinet modernization, the 3HAC55438-001/02 is engineered to slot into the IRC5 single-cabinet and dual-cabinet configurations without requiring structural modifications to the controller enclosure. Compatibility has been verified against the IRC5 M2004 and M2006 hardware generations, making this unit a reliable choice for facilities that have been operating ABB IRB series robots for a decade or more.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 drive unit replacement requires a structured approach that accounts for the interdependencies between the drive unit and the broader control architecture. Before removing the failed or aging 3HAC55438-001/01, engineers should export all RAPID program modules and system parameters using RobotStudio or the FlexPendant backup utility. This ensures that axis calibration data, tool center point definitions, and work object configurations are preserved and can be restored immediately after the new unit is seated.

The 3HAC55438-001/02 interfaces directly with the IRC5 computer unit — typically the DSQC1000 main computer — via the internal drive bus. If your cabinet also houses a DSQC652 digital I/O module or a DSQC679 FlexPendant interface unit, confirm that these modules are properly seated and that their ribbon cable connections are undisturbed during the drive unit swap. In cabinets where a DSQC688 fieldbus adapter is installed for PROFIBUS or DeviceNet communication, the fieldbus configuration does not need to be re-entered, as it is stored in the system parameters rather than the drive unit itself.

Power supply capacity is a critical verification step. The IRC5 power supply unit — such as the DSQC609 — must be confirmed to be within its rated output capacity after the new drive unit is installed. If the existing power supply shows signs of aging (capacitor bulge, output voltage drift, or thermal discoloration), it is advisable to replace it concurrently with the drive unit to avoid a secondary failure shortly after the retrofit is complete. Similarly, if the robot is an IRB 6700 or IRB 4600 series with high-inertia axes, confirm that the drive unit’s current rating matches the motor specifications documented in the robot’s product manual.

For facilities running multiple IRC5 cabinets in a coordinated cell, the MultiMove configuration should be reviewed to ensure that the replaced drive unit’s axis numbering and logical drive assignment remain consistent with the cell controller’s task configuration. Any mismatch in drive assignment will prevent the robot from completing its homing sequence and will generate a drive unit mismatch error on the FlexPendant.

Downtime Control During System Migration

Minimizing production downtime during a drive unit replacement on an IRC5 robot requires preparation that begins before the maintenance window opens. The most effective strategy is to stage the replacement unit on-site in advance, so that the physical swap can be completed within a single shift. With the 3HAC55438-001/02 available from in-stock inventory and dispatched via express freight, most customers in Asia, Europe, and North America receive their unit within two to five business days, allowing the maintenance team to schedule the intervention without an extended unplanned outage.

During the replacement, the IRC5 cabinet should be de-energized following the lockout/tagout procedure specified in the IRC5 product manual. The drive unit is secured by standard fasteners and connects via the backplane bus connector; no soldering or custom wiring is required. After the new unit is installed and the cabinet is re-energized, the system will perform a self-diagnostic sequence. Engineers should monitor the FlexPendant for any axis-specific error codes that may indicate a calibration offset discrepancy, and use the calibration pendulum or fine calibration routine to restore axis accuracy if required.

To protect original program logic, never perform a factory reset of the IRC5 system during a drive unit replacement. The RAPID programs and system parameters reside on the main computer’s CompactFlash card, not on the drive unit itself, so they are preserved through the hardware swap. Restoring from the pre-maintenance backup is recommended as a final verification step to confirm that all program modules, I/O signal definitions, and safety configurations are intact before returning the robot to production.

Retrofit Support FAQ

Q1: Is the 3HAC55438-001/02 a direct replacement for the 3HAC55438-001/01?
Yes. The /02 revision is the current production revision and is a direct, drop-in replacement for the /01 revision. No wiring modifications, adapter brackets, or firmware changes are required. The unit installs in the same drive bay position and connects to the same backplane interface.

Q2: What commissioning steps are required after installation?
After seating the new drive unit and powering up the IRC5 cabinet, verify that the FlexPendant displays no drive unit fault codes. Restore the system backup taken before the swap, confirm axis calibration values against the robot’s calibration certificate, and run a slow-speed test cycle through the full working envelope before returning to production speed. If the robot is equipped with SafeMove, re-verify the safety configuration after the drive unit replacement.

Q3: Has this unit been tested before shipment?
Yes. Every 3HAC55438-001/02 unit shipped by KNMKS undergoes a pre-shipment functional test and load verification. A test report is available upon request. The unit is covered by a support terms confirmed by quotation from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and do you maintain stock?
The 3HAC55438-001/02 is maintained availability confirmed by RFQ for immediate dispatch. Standard express shipping delivers to most destinations in Asia within two to three business days, and to Europe or North America within three to five business days. For urgent requirements or bulk orders, contact our sales team directly to confirm current stock levels and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC55438-001/02
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3HAC55438-001/02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
