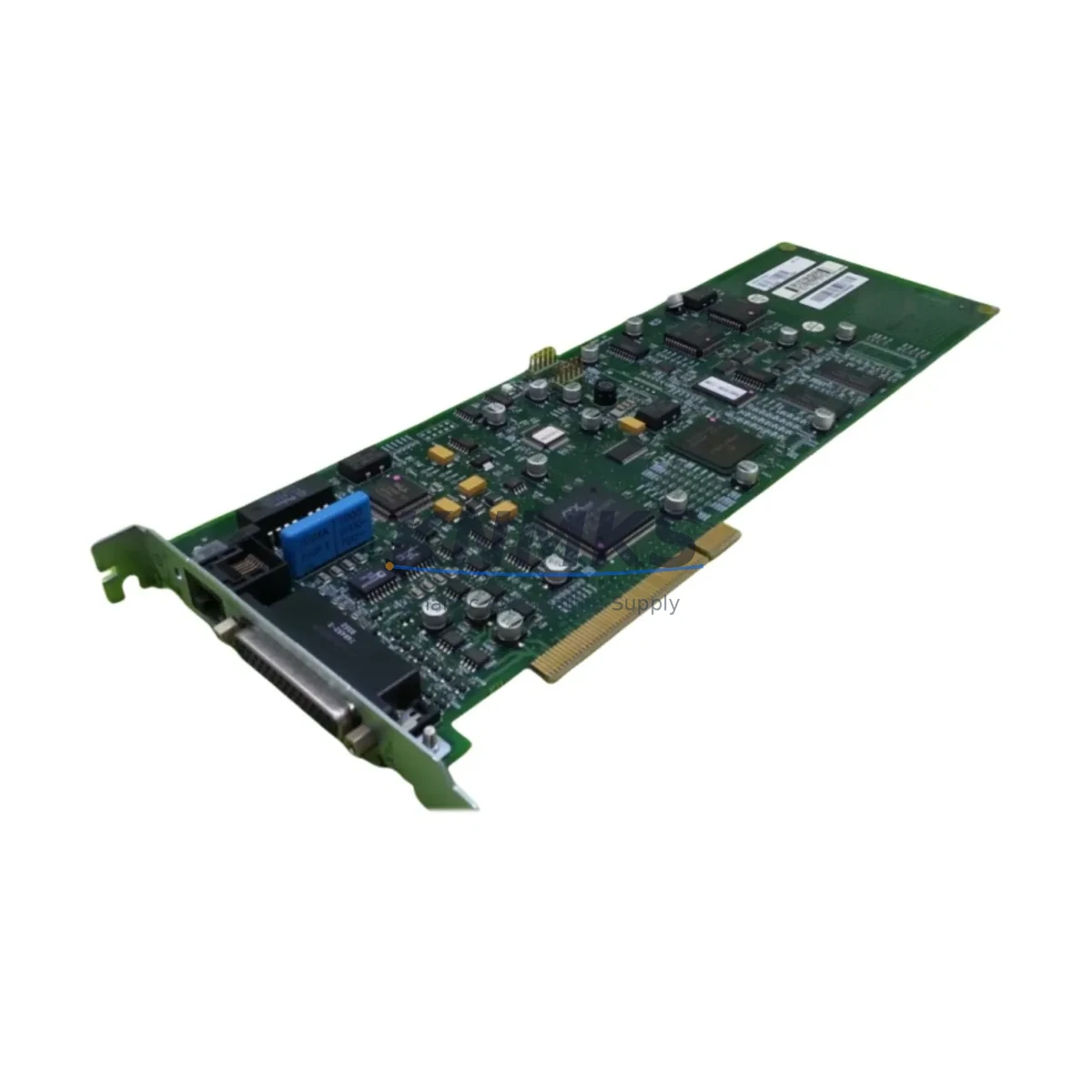

The ABB 3HAC18158-1 is an original axis computer board designed for ABB IRC5 robot controllers, serving as a critical processing unit that governs axis motion control, interpolation, and real-time communication between the robot’s drive system and the main computer. For maintenance engineers managing ABB robotic cells on automotive, foundry, food processing, or general manufacturing lines, keeping a verified 3HAC18158-1 in the spare parts cabinet is a proven strategy to eliminate unplanned downtime and accelerate fault recovery. This board is sourced as an original ABB component, fully tested prior to shipment, and backed by a support terms confirmed by quotation — giving procurement engineers the confidence to stock it as a long-term supply asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3HAC18158-1 axis computer board fails or degrades, the IRC5 controller typically generates axis-related fault codes — motion deviation errors, drive communication loss, or interpolation faults — that halt the robot cell immediately. A structured maintenance plan that anticipates this failure mode should extend beyond the board itself. Maintenance engineers should simultaneously inspect the ABB DSQC 661 main computer board, which coordinates higher-level task execution and communicates directly with the axis computer; a degraded main computer can cause symptoms that mimic axis board failure and lead to misdiagnosis.

The IRC5 drive unit (DSQC 663 or equivalent axis drive module) should be checked for overcurrent events or thermal stress that may have contributed to axis board degradation. Drive modules and axis computer boards share a tightly coupled signal path, and replacing one without inspecting the other risks repeat failures within weeks. Similarly, the backplane assembly inside the IRC5 cabinet should be examined for bent pins, oxidized contacts, or mechanical damage — a compromised backplane connector is a common root cause of intermittent axis computer faults that are otherwise difficult to reproduce.

Power supply integrity is equally critical. The ABB DSQC 609 power supply unit provides regulated 24 VDC to the controller’s logic boards; voltage ripple or marginal output from an aging DSQC 609 can cause axis computer resets and erratic servo behavior. Procurement engineers stocking the 3HAC18158-1 should consider pairing it with a DSQC 609 as a complementary spare to cover the most common IRC5 power-related failure scenarios.

For systems with fieldbus or external communication dependencies, the DSQC 652 DeviceNet or DSQC 658 PROFIBUS communication board should be verified for correct operation after any axis computer replacement, as controller reboots can occasionally expose latent communication faults. Additionally, the teach pendant cable and FlexPendant interface unit should be inspected — a damaged pendant cable can generate misleading axis fault signals that are incorrectly attributed to the axis computer board. Completing the inspection with a review of the cabinet’s 24 VDC fuse block and terminal strip connections ensures that no upstream wiring fault is left unaddressed after the board swap.

Site Replacement Workflow

Replacing the 3HAC18158-1 on-site follows a structured sequence to minimize downtime and avoid secondary faults. Begin by placing the IRC5 controller in a safe, de-energized state: execute a controlled program stop, engage the main circuit breaker lockout, and allow the drive capacitors to discharge fully before opening the cabinet door. Document the existing axis configuration parameters from the FlexPendant or RobotStudio backup — axis calibration offsets, fine calibration data, and system parameters must be preserved and reloaded after the board swap, as the replacement board will not retain the previous unit’s calibration memory.

Remove the faulty 3HAC18158-1 by releasing the backplane retention clips and carefully disconnecting all ribbon and signal cables, labeling each connector to prevent reassembly errors. Install the replacement board, verify all connectors are fully seated, and restore power in sequence. After boot, reload the system backup, verify axis calibration, and perform a low-speed test cycle across all axes before returning the robot to production speed. This workflow is applicable across IRC5 single cabinet and compact variants and is compatible with ABB RobotWare 5.x and 6.x software environments, making the 3HAC18158-1 a reliable drop-in replacement that preserves system compatibility without requiring controller reconfiguration beyond calibration restoration.

For aging IRC5 systems approaching end-of-support lifecycle, stocking the 3HAC18158-1 alongside complementary boards provides a cost-effective path to extending operational life by 3–5 years, deferring capital expenditure on new robot systems while maintaining production throughput.

Spare Parts Support FAQ

Q1: Is the 3HAC18158-1 compatible with all IRC5 controller variants?
The 3HAC18158-1 is designed for the ABB IRC5 controller platform and is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. Compatibility with specific robot models (IRB 1600 through IRB 7600 IRC5 variants) should be confirmed against the controller’s hardware revision. Contact our technical team with your controller serial number for pre-purchase compatibility verification.

Q2: What testing is performed before shipment?
Every 3HAC18158-1 unit undergoes functional testing prior to dispatch, including power-on verification, communication interface checks, and visual inspection for component-level defects. A test report is available on request. Units are shipped in ESD-safe anti-static packaging with protective foam inserts to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are supported with a return-and-replace process; our team will provide a replacement unit or documented resolution support upon fault confirmation.

Q4: Can you support long-term or blanket order supply for the 3HAC18158-1?
Yes. We maintain standing inventory of the 3HAC18158-1 and can support blanket purchase orders for maintenance programs requiring scheduled quarterly or annual replenishment. Long-term supply agreements are available for OEMs, system integrators, and plant maintenance teams managing multiple IRC5 robot cells. Contact our procurement team to discuss volume pricing and lead time commitments.
