ABB 3HAC17811-1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC17811-1 Maintenance-Proven Spare Part for Factory Uptime

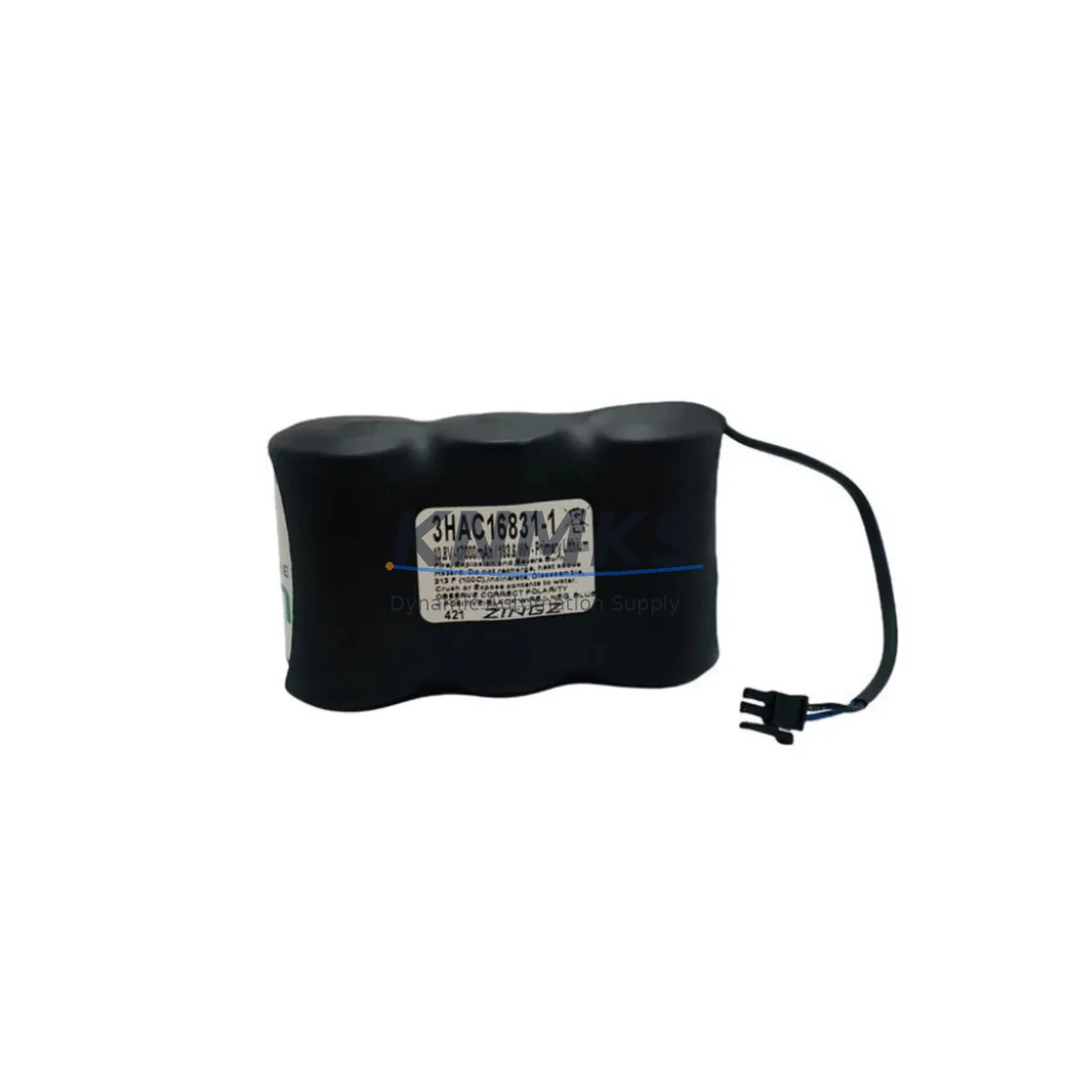

The ABB 3HAC17811-1 is the original memory backup battery designed for ABB IRC5 robot controllers, providing critical protection for program memory, system parameters, and calibration data during power interruptions or planned shutdowns. In high-throughput manufacturing environments — automotive body shops, foundries, palletizing lines, and precision assembly cells — loss of robot memory due to a failed backup battery can result in hours of unplanned downtime, recalibration labor, and production loss. Stocking the 3HAC17811-1 as a verified spare is a fundamental element of any proactive IRC5 maintenance program.

This battery supports the full IRC5 controller family, including single-cabinet and dual-cabinet configurations used with IRB 7600, IRB 6640, IRB 4600, IRB 2600, and IRB 1600 robot models. It maintains volatile memory retention during controller power-off cycles, ensuring that RAPID programs, tool center point (TCP) data, system parameters, and I/O configurations are preserved without requiring full recommissioning after each maintenance window.

Each unit supplied by KNMKS is sourced from authorized distribution channels, individually inspected, and dispatched only after passing pre-shipment electrical verification. A support terms confirmed by quotation is included as standard, covering manufacturing defects and premature capacity loss under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 3HAC17811-1 memory backup battery during a planned IRC5 maintenance window, maintenance engineers should treat the battery swap as part of a broader controller health inspection rather than an isolated task. The IRC5 cabinet houses multiple components that age in parallel and should be evaluated simultaneously to avoid repeat interventions.

Begin by inspecting the IRC5 main computer unit (DSQC 639 or DSQC 1000 depending on generation) for firmware currency and memory integrity. A degraded backup battery is often accompanied by corrupted system logs or intermittent boot errors — symptoms that may also indicate aging capacitors on the main board. Alongside the battery, verify the condition of the IRC5 power supply unit (PSU), such as the ABB DSQC 661 or DSQC 662, which provides regulated DC power to the controller backplane; a failing PSU can accelerate battery drain and cause false low-battery alarms.

Check all I/O modules installed in the IRC5 cabinet — particularly ABB DSQC 652 digital I/O boards and any DSQC 378B fieldbus adapter modules — for secure seating, connector integrity, and absence of fault LEDs. Loose I/O connections during a battery replacement can introduce new faults that are difficult to distinguish from pre-existing issues. Inspect terminal blocks and internal wiring harnesses for insulation wear, especially in high-vibration foundry or press-shop environments.

For robots operating in safety-critical cells, confirm that the ABB SafeMove configuration and safety I/O parameters are backed up externally before the battery is removed, as some IRC5 configurations store safety supervision data in volatile memory. Review the teach pendant (FlexPendant) cable and connector for wear — the ABB 3HAC028357-001 FlexPendant is a common co-replacement item during major IRC5 PM cycles.

Finally, inspect the IRC5 cooling fan assemblies and air filter mats. Blocked airflow raises internal cabinet temperature, which directly shortens battery service life and accelerates degradation of other electronic components. A complete PM visit that addresses the battery, PSU, I/O modules, safety configuration, and thermal management will maximize the interval before the next intervention and protect production continuity.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Before powering down the IRC5 controller, perform a full system backup via RobotStudio or the FlexPendant backup function. Save the backup to an external USB drive or network location. Confirm that RAPID programs, system parameters, TCP data, and I/O configurations are all included in the backup archive.

Step 2 — Controller Shutdown and Isolation: Set the IRC5 main switch to OFF and apply lockout/tagout (LOTO) per site safety procedures. Wait a minimum of 5 minutes for internal capacitors to discharge before opening the cabinet door.

Step 3 — Battery Location and Removal: Locate the 3HAC17811-1 battery on the IRC5 main computer board. Disconnect the battery connector carefully — do not pull on the cable. Note the orientation and connector keying before removal.

Step 4 — New Battery Installation: Install the replacement 3HAC17811-1 in the correct orientation. Reconnect the battery connector until it clicks securely. Verify no other connectors were disturbed during the procedure.

Step 5 — Power-On and Verification: Restore power to the IRC5 controller. Confirm that the system boots without battery fault alarms. Verify that all RAPID programs, system parameters, and I/O configurations are intact. If a backup restore is required, use the backup created in Step 1.

Step 6 — Documentation: Record the replacement date, battery serial number, and technician name in the equipment maintenance log. Set a calendar reminder for the next recommended battery inspection at 3 years or per the ABB IRC5 preventive maintenance schedule.

This workflow applies equally to IRC5 single-cabinet and dual-cabinet configurations. For IRC5 Compact controllers, access to the battery compartment may differ — consult the ABB IRC5 Product Manual (document 3HAC021313-001) for model-specific disassembly guidance.

Spare Parts Support FAQ

Q1: How do I confirm the 3HAC17811-1 is compatible with my specific IRC5 controller generation?
The 3HAC17811-1 is the standard memory backup battery for IRC5 controllers across multiple production generations, including those paired with IRB 7600, IRB 6640, and IRB 4600 robots. To confirm compatibility for your specific cabinet serial number and software version, cross-reference the ABB IRC5 spare parts list (available in ABB’s Robotics documentation portal) or contact KNMKS with your controller serial number for verification before ordering.

Q2: What is the recommended replacement interval for the 3HAC17811-1 battery?
ABB recommends replacing the IRC5 memory backup battery every 3 to 5 years as part of the standard preventive maintenance schedule, or immediately upon appearance of a battery fault alarm on the FlexPendant. In environments with frequent power cycling, high ambient temperature, or extended idle periods, earlier replacement is advisable. Proactive replacement during scheduled downtime is always preferable to reactive replacement after a memory loss event.

Q3: Is the 3HAC17811-1 supplied by KNMKS an original ABB part, and what pre-shipment checks are performed?
Yes. All 3HAC17811-1 units supplied by KNMKS are original ABB spare parts sourced through authorized distribution channels. Each unit undergoes individual electrical verification — including voltage check and connector integrity inspection — before dispatch. Units that do not meet specification are quarantined and not shipped. A support terms confirmed by quotation is provided as standard, covering manufacturing defects and premature capacity failure under normal operating conditions.

Q4: Can KNMKS support long-term or blanket purchase orders for the 3HAC17811-1?
Yes. KNMKS maintains standing stock of the 3HAC17811-1 and can support scheduled blanket orders, annual maintenance contracts, and multi-site procurement programs. For maintenance teams managing fleets of IRC5 robots across multiple production lines or facilities, consolidated spare parts agreements reduce per-unit cost, simplify procurement administration, and ensure supply continuity for critical components. Contact [email protected] to discuss volume pricing and delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
