ABB 3HAC16035-1 Fail-Safe Brake Release for IRC5 Control

Overview

ABB 3HAC16035-1 Fail-Safe Brake Release for IRC5 Control: Fault Protection and Critical Industrial Reliability

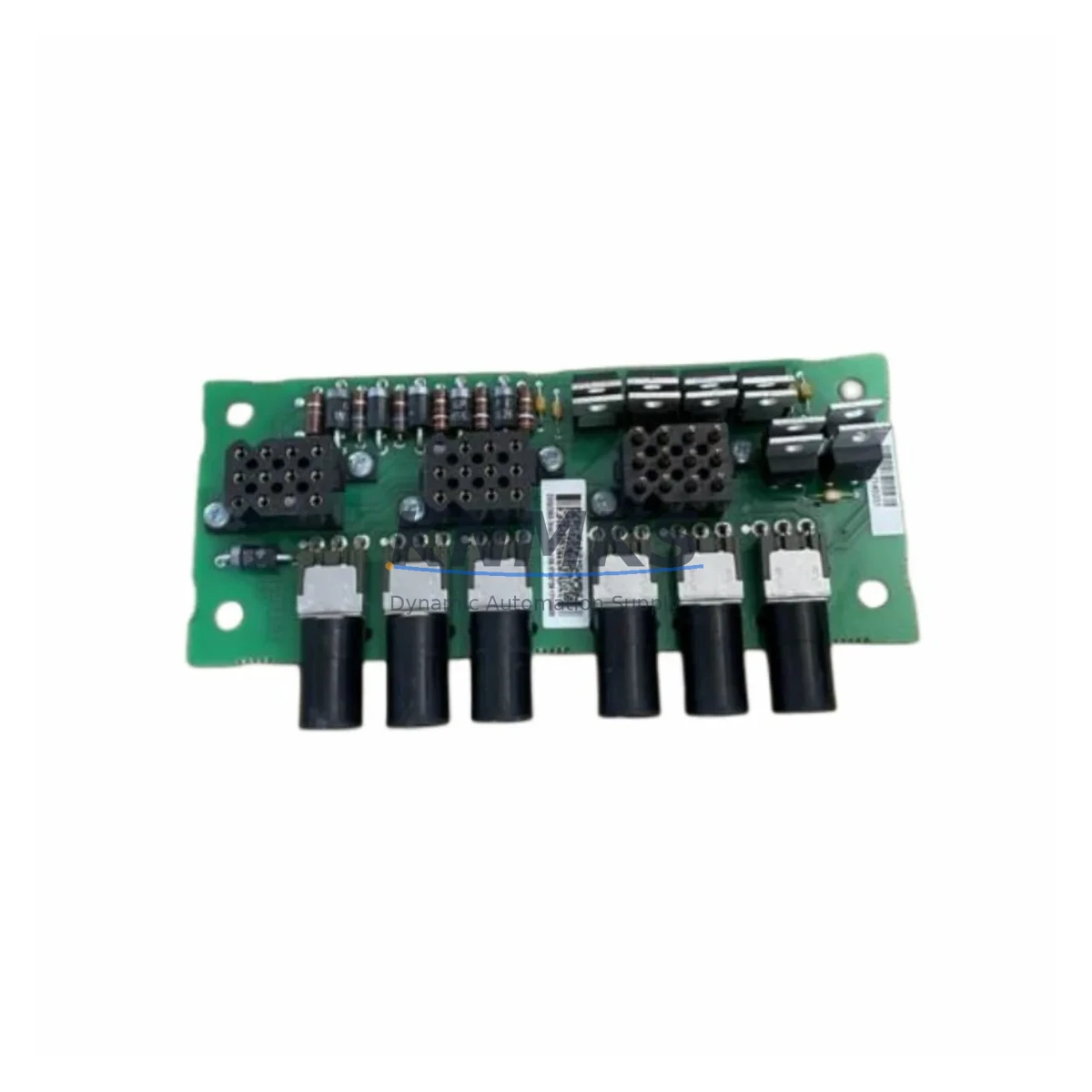

The ABB 3HAC16035-1 is a precision-engineered brake release module designed for ABB IRC5 robot controllers operating in demanding industrial environments. As a core safety component within the robot drive and axis control architecture, this module governs the controlled release and engagement of servo motor brakes across all robot axes — a function that is directly tied to personnel safety, process continuity, and equipment protection in critical automation cells.

In continuous production environments — including automotive body shops, foundry lines, palletizing systems, and heavy-load handling cells — an unreliable brake release module can trigger uncontrolled axis drop, servo fault cascades, or emergency stop lockouts that halt entire production lines. The 3HAC16035-1 is built to eliminate these failure modes through robust circuit design, surge-hardened inputs, and stable signal conditioning that maintains brake control integrity even under high electromagnetic interference (EMI), power fluctuations, and thermal stress inside densely packed control cabinets.

This module integrates directly into the IRC5 single-cabinet or dual-cabinet controller, interfacing with the ABB DSQC series drive units and the robot’s safety supervision logic. Its fail-safe design ensures that brake engagement is maintained during power loss or fault conditions — preventing unintended axis movement and protecting both operators and tooling from collision or drop hazards. This behavior is essential in applications governed by ISO 10218, IEC 62061, or SIL-rated safety architectures.

In high-EMI environments such as resistance welding cells, plasma cutting stations, or induction heating lines, signal integrity on brake control lines is frequently compromised by conducted and radiated interference. The 3HAC16035-1 incorporates filtering and isolation that maintains clean brake command signals even when adjacent frequency converters, servo drives such as the ABB DSQC663 or DSQC668, and high-current contactors generate significant electrical noise. This makes it a reliable choice for mixed-technology control cabinets where multiple drive systems share a common enclosure.

Thermal management is another critical reliability factor. Control cabinets in foundry, cement, and steel mill environments routinely exceed 40°C ambient, and internal cabinet temperatures can climb significantly higher during peak production cycles. The 3HAC16035-1 is rated for operation across the full industrial temperature range, maintaining stable brake control output without thermal derating or signal drift — a failure mode that can cause intermittent brake faults and unpredictable axis behavior in lesser components.

For facilities operating under dusty, humid, or chemically aggressive conditions — such as food processing plants, water treatment stations, port logistics terminals, or offshore installations — the module’s sealed construction and conformal-coated PCB provide protection against particulate ingress and moisture-induced leakage currents that degrade control circuit performance over time. When paired with the IRC5 controller’s ABB DSQC1000 main computer and the DSQC643 I/O unit, the 3HAC16035-1 forms part of a fully integrated, environmentally hardened control architecture.

From a maintenance and lifecycle perspective, the 3HAC16035-1 is a direct OEM-equivalent replacement for worn or failed brake release modules in existing IRC5 installations. Each unit supplied by KNMKS undergoes pre-shipment functional testing covering brake command response, output voltage stability, surge withstand, and insulation resistance — ensuring that field installation is a direct swap with no calibration required. This reduces planned maintenance windows and eliminates the risk of commissioning delays caused by out-of-spec replacement parts.

Long-term spare parts availability is a persistent concern for facilities running ABB IRC5 robots beyond their original support lifecycle. KNMKS maintains verified inventory of the 3HAC16035-1 alongside complementary IRC5 components including the ABB DSQC661 axis computer, DSQC662 drive unit, and 3HAC026254-001 power supply module — enabling single-source procurement for complete controller restoration or preventive spare kitting. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable brake control does not operate in isolation — it depends on the stability of the entire IRC5 control cabinet ecosystem. The 3HAC16035-1 works in concert with several critical subsystems to deliver uninterrupted robot operation. The ABB DSQC1000 main computer provides the supervisory logic that issues brake commands; any instability in this unit propagates directly to brake behavior. The ABB DSQC663 and DSQC668 drive units govern axis power delivery and must maintain clean DC bus voltage to support consistent brake release timing. The ABB 3HAC026254-001 power supply module provides the regulated 24VDC rail that powers brake solenoids — voltage sag or ripple on this rail is a leading cause of intermittent brake faults in aging IRC5 installations.

For safety interlock circuits, the ABB DSQC643 I/O unit handles the digital safety signals that coordinate brake state with the robot’s safety supervision chain. In cells with external safety PLCs or light curtain controllers, the integrity of this I/O interface is critical to ensuring that brake engagement commands are executed within the required response time for SIL-rated safety functions. Maintaining verified spare inventory of the 3HAC16035-1 alongside these complementary modules is a best practice for facilities with zero-tolerance downtime requirements.

Critical Industrial Safety Applications

The ABB 3HAC16035-1 is deployed across a wide range of safety-critical industrial environments where robot axis control directly impacts personnel safety and process integrity:

Automotive Manufacturing: In body-in-white welding and assembly cells, robots handle heavy tooling and structural components. Brake failure during a hold position can result in tooling drop onto fixtures or personnel. The 3HAC16035-1’s fail-safe engagement ensures that all axes remain locked during power interruptions, E-stop events, or safety door openings.

Foundry and Metal Processing: High-temperature, high-vibration environments in die casting and forging lines place extreme thermal and mechanical stress on control electronics. The module’s temperature-stable design and vibration-resistant construction maintain reliable brake control in these conditions, preventing axis drift that could damage molds or endanger operators.

Mining and Mineral Processing: Automated loading, sorting, and conveyor systems in mining operations require continuous, unattended robot operation. Brake module failures in these remote installations result in extended downtime due to limited on-site spare parts. KNMKS’s in-stock availability and delivery details confirmed by RFQ directly address this operational risk.

Water Treatment and Chemical Plants: Humid, chemically aggressive atmospheres accelerate PCB corrosion and connector degradation. The conformal-coated construction of the 3HAC16035-1 provides long-term protection in these environments, reducing the frequency of brake-related faults caused by insulation breakdown.

Port Logistics and Heavy Lifting: Robotic crane assist and container handling systems require absolute brake reliability during load suspension. Any brake release anomaly in these applications presents immediate safety and liability risks. The 3HAC16035-1’s surge-hardened design protects against the high transient voltages generated by large motor starts and crane drive systems common in port electrical infrastructure.

Continuous Process Manufacturing: In petrochemical, pharmaceutical, and food processing plants where production runs 24/7, unplanned robot downtime is unacceptable. The 3HAC16035-1’s pre-tested, drop-in replacement design minimizes mean time to repair (MTTR) and supports rapid restoration of automated processes without extended recommissioning.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 3HAC16035-1?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal industrial operating conditions from the date of shipment. If the module fails to perform its brake release and engagement functions within specification during this period, KNMKS will provide a replacement unit. The support terms applies to units installed in compatible ABB IRC5 controllers and operated within the module’s rated environmental and electrical parameters.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC16035-1 supplied by KNMKS undergoes a multi-point functional test prior to shipment. This includes verification of brake command response timing, output voltage stability under load, surge withstand performance, and insulation resistance measurement. Test results confirm that each unit meets OEM functional specifications before it leaves our facility, eliminating the risk of receiving a non-functional replacement part.

Q3: Is this module compatible with all IRC5 controller variants?
The 3HAC16035-1 is designed for use in ABB IRC5 single-cabinet and dual-cabinet controllers across the standard IRC5 product family. It is compatible with IRC5 controllers paired with ABB IRB series robots including the IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 families. If you are uncertain about compatibility with a specific robot model or controller revision, contact our technical team with your robot serial number and controller software version for confirmation.

Q4: Can KNMKS support long-term supply of this module for multi-robot facilities?
Yes. KNMKS maintains ongoing inventory of the 3HAC16035-1 and related IRC5 spare components to support facilities with large robot fleets or extended maintenance contracts. We can provide volume pricing, consignment stock arrangements, and scheduled delivery programs for customers requiring predictable spare parts availability. Contact our sales team to discuss a supply agreement tailored to your facility’s maintenance strategy.
