ABB 3HAC14551-2 Migration-Ready Capacitor Unit for IRC5

Overview

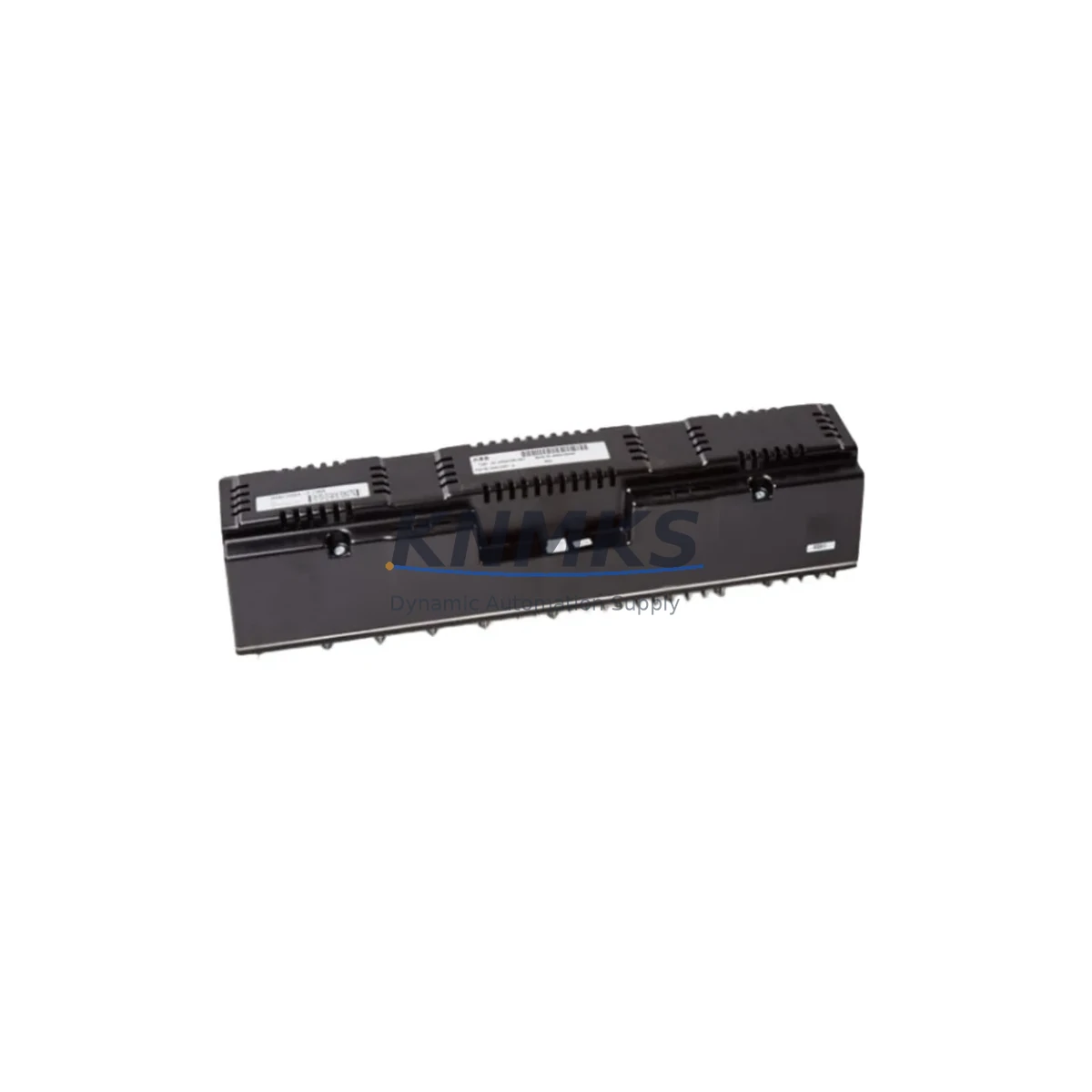

ABB 3HAC14551-2 Migration-Ready Capacitor Unit for IRC5 Control Systems

The ABB 3HAC14551-2 is a factory-specification capacitor unit designed for the ABB IRC5 robot controller family, serving as a direct replacement for aging or failed capacitor modules in legacy robotic automation systems. As ABB progressively phases out older IRC5 sub-components, sourcing a verified, pre-tested 3HAC14551-2 becomes critical for maintenance engineers managing long-lifecycle production lines in automotive, electronics, and general manufacturing environments.

This capacitor unit functions as the energy buffer within the IRC5 drive system, ensuring controlled deceleration and safe axis braking during power interruptions or emergency stops. When the original 3HAC14551-2 degrades — typically indicated by fault codes such as 38215 (Capacitor charge error) or unexpected axis drift during power-down sequences — a verified replacement unit allows the IRC5 controller to resume normal operation without requiring a full drive module overhaul.

Before installation, engineers should confirm the existing IRC5 cabinet variant: the standard IRC5 single-cabinet, the IRC5 Compact, or the IRC5 Panel Mounted Controller each have distinct internal layouts and backplane connector positions. The 3HAC14551-2 is compatible with the standard IRC5 single-cabinet configuration. Verify that the drive unit — typically the DSQC 661 or DSQC 662 axis computer — is seated correctly and that the capacitor module connector aligns with the designated port on the drive section before securing the module.

During retrofit planning, engineers should also audit the condition of adjacent components. The ABB DSQC 604 power supply unit, which provides regulated 24 VDC to the controller logic board and I/O modules, is a common concurrent failure point in aging IRC5 cabinets and should be inspected or replaced as part of the same maintenance window. Similarly, the ABB DSQC 652 digital I/O board — responsible for interfacing field signals with the controller — should be checked for firmware version compatibility if the system is being upgraded to RobotWare 6.x from an earlier release.

For systems where the IRC5 is networked via DeviceNet or PROFIBUS, confirm that the ABB DSQC 658 DeviceNet master/slave module or the DSQC 667 PROFIBUS adapter remains functional after the capacitor replacement, as power cycling during module swap can occasionally reset communication node addresses. Document all node IDs and baud rate settings before beginning work. If the facility is migrating from an older S4C+ controller platform to IRC5, the 3HAC14551-2 is not backward compatible with S4C+ drive hardware; in that scenario, a full drive section replacement including the DSQC 609 power unit is required.

Wiring adaptation is straightforward for like-for-like replacement: the 3HAC14551-2 uses the same connector pinout as its predecessor revision, so no terminal rewiring is required in standard IRC5 cabinets. However, if the cabinet has been field-modified or if a third-party energy recovery module has been installed, verify that no additional wiring has been routed through the capacitor module bay before insertion. Confirm available clearance — the module requires approximately 40 mm of vertical clearance above the drive section for safe extraction and reinsertion.

Firmware compatibility should be validated prior to commissioning. The 3HAC14551-2 is supported under RobotWare 5.12 and later. If the IRC5 system is running an earlier RobotWare version, a firmware update via the ABB RobotStudio FlexPendant interface is recommended before the replacement unit is powered on. After installation, run the IRC5 self-test routine from the FlexPendant to confirm capacitor charge status and verify that no residual fault codes remain active.

All units supplied by KNMKS are pre-shipment tested under load conditions to confirm capacitor charge retention, connector integrity, and dimensional compliance with ABB IRC5 mechanical specifications. Each 3HAC14551-2 is covered by a support terms confirmed by quotation from the date of shipment, with in-stock availability supporting urgent maintenance and unplanned downtime scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan minimises risk when replacing the 3HAC14551-2 in an active production environment. Begin with a full cabinet audit: inspect the DSQC 604 power supply for output voltage stability, check the DSQC 652 digital I/O board for any latched fault states, and confirm that the FlexPendant cable and teach pendant are functioning correctly before initiating any module swap.

If the IRC5 cabinet is part of a multi-robot cell coordinated via an ABB IRC5 MultiMove configuration, ensure that the affected robot is isolated from the cell network before the capacitor module is removed. Removing the 3HAC14551-2 while the drive section is energised can trigger emergency stop conditions across the entire cell. Follow ABB’s lockout/tagout procedure and confirm zero-energy state using a calibrated voltage probe at the drive section terminals.

For facilities upgrading from legacy S4C+ platforms, the migration path typically involves replacing the entire controller cabinet rather than individual modules. In this context, the 3HAC14551-2 is a component of the target IRC5 system, and its availability as a verified spare part supports the long-term serviceability of the upgraded platform. Pair the capacitor unit replacement with an audit of the IRC5 axis computer (DSQC 661 or DSQC 662) and the system fan assembly to maximise the service interval of the upgraded cabinet.

Where the IRC5 cabinet interfaces with a legacy PROFIBUS network, confirm that the DSQC 667 PROFIBUS adapter firmware is compatible with the network master’s GSD file version. Communication mismatches after power cycling are a common post-maintenance issue and can be resolved by re-importing the GSD file and re-commissioning the network node from the IRC5 configuration interface.

Downtime Control During System Migration

Minimising unplanned downtime during a 3HAC14551-2 replacement requires preparation before the maintenance window opens. Back up the IRC5 system configuration — including all RAPID program modules, system parameters, and I/O configuration files — to a USB drive via the FlexPendant backup function. This ensures that if a fault occurs during the swap, the system can be restored to its pre-maintenance state without manual re-entry of program logic.

With a verified replacement 3HAC14551-2 availability confirmed by RFQ and a pre-prepared commissioning checklist, the physical swap can typically be completed within 30–60 minutes for a trained technician familiar with IRC5 cabinet layout. The primary time variables are capacitor discharge wait time (allow a minimum of 5 minutes after power-off before handling the drive section) and the IRC5 self-test cycle duration after power-on.

To protect original program logic, do not perform a factory reset or system restore during the replacement procedure unless fault diagnostics specifically require it. The 3HAC14551-2 is a hardware component and does not affect stored RAPID programs or system parameter files. After the replacement unit is installed and the self-test confirms normal capacitor charge status, resume production with a supervised test cycle before returning the robot to full automatic mode.

KNMKS maintains in-stock inventory of the 3HAC14551-2 to support urgent maintenance requests, with same-day dispatch available for orders confirmed before the daily cut-off. This inventory posture is specifically designed to support maintenance teams managing unplanned failures in safety-critical and high-throughput automation environments.

Retrofit Support FAQ

Q1: Is the 3HAC14551-2 a direct drop-in replacement for the 3HAC14551-1?
Yes. The 3HAC14551-2 is the current revision and is a direct mechanical and electrical replacement for the earlier 3HAC14551-1 in standard IRC5 single-cabinet configurations. No wiring modifications are required for like-for-like replacement.

Q2: What pre-shipment testing is performed on each unit?
Each 3HAC14551-2 supplied by KNMKS is load-tested to verify capacitor charge retention, connector integrity, and dimensional compliance with ABB IRC5 mechanical specifications before dispatch. A test record is available on request.

Q3: How do I confirm compatibility with my specific IRC5 cabinet variant?
Provide your IRC5 cabinet serial number and RobotWare version to [email protected]. Our technical team will confirm compatibility and advise on any firmware or configuration steps required before installation.

Q4: What support terms coverage applies to this unit?
All 3HAC14551-2 units are covered by a support terms confirmed by quotation from the date of shipment. Support requests are supported by KNMKS directly, with replacement units dispatched from in-stock inventory to minimise any secondary downtime impact.
