ABB 3HAC10828-15 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC10828-15 Maintenance-Proven Spare Part for Factory Uptime

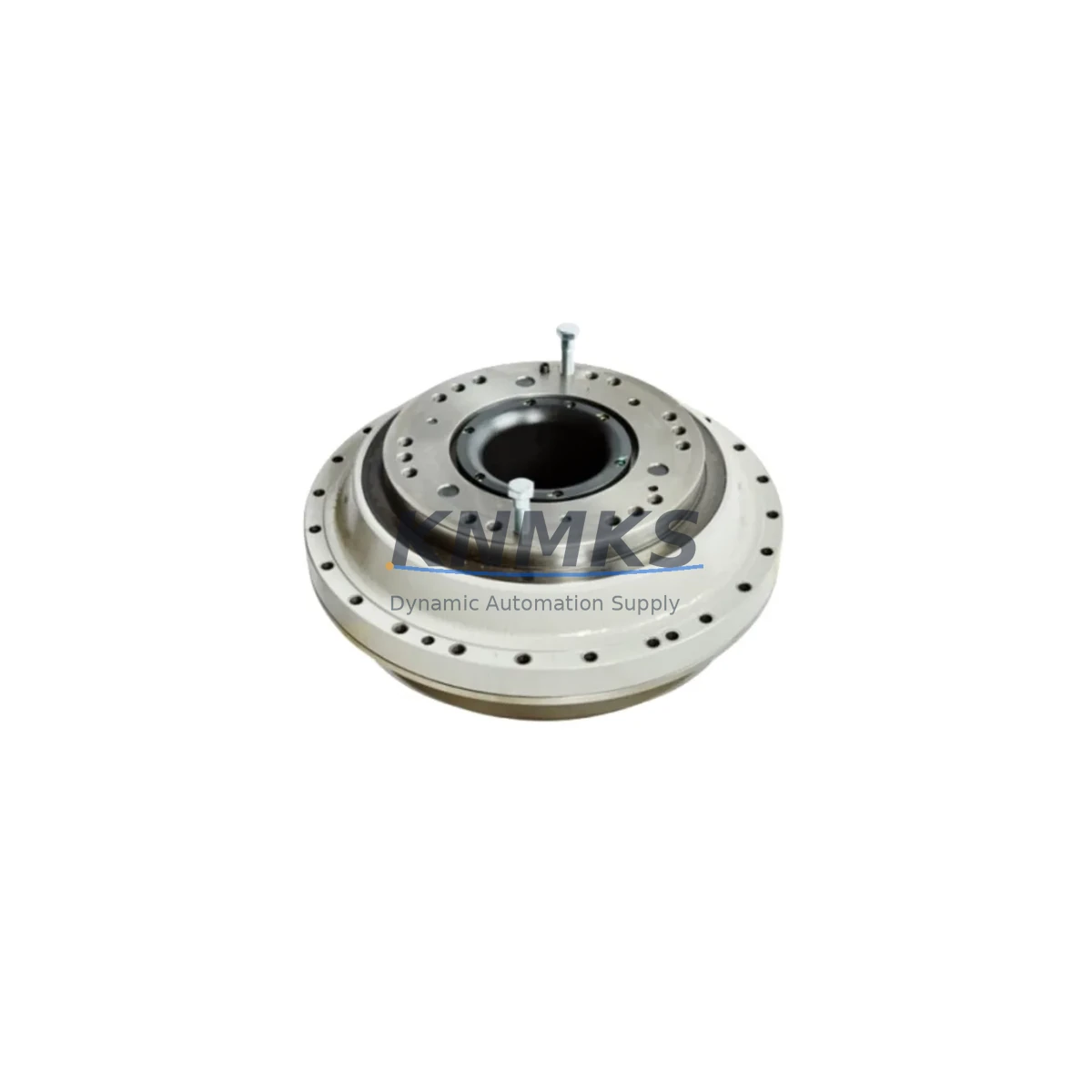

The ABB 3HAC10828-15 is an original OEM RV (Rotate Vector) reduction gear designed for Axis-1 of the ABB IRB6600 heavy-duty industrial robot series. As a precision cycloidal gearbox, it is a safety-critical drivetrain component responsible for the primary rotational axis of the robot arm. Failure or excessive wear in this unit directly causes positional drift, vibration, abnormal noise, and ultimately unplanned production downtime. Stocking a verified replacement unit is the single most effective measure a maintenance team can take to protect IRB6600 uptime in high-cycle automotive, foundry, and heavy-payload automation environments.

This unit is sourced as an original ABB spare, individually inspected and tested before shipment, and backed by a support terms confirmed by quotation covering manufacturing defects. Global logistics support ensures delivery to plant sites across Asia, Europe, and the Americas with full documentation for customs clearance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 3HAC10828-15 Axis-1 reduction gear on an IRB6600, experienced maintenance engineers treat the intervention as a full drivetrain audit rather than a single-component swap. The Axis-1 gearbox is mechanically coupled to the ABB motor unit for Axis-1 (typically a 3HAC17484-1 or equivalent series motor), and both components share the same lubrication circuit and mounting flange. If the gearbox shows wear, the motor encoder and motor brake should be inspected simultaneously — a worn gearbox often masks encoder signal degradation that only becomes apparent after the new gear is installed.

The robot controller cabinet should be checked in parallel. For IRB6600 systems running on the ABB IRC5 controller, verify the drive module for Axis-1 (Drive Unit 3HAC025338-001 or equivalent) for any stored fault codes related to motor current overload, which is a common downstream symptom of a failing reduction gear. The Axis Computer board and the SMB (Serial Measurement Board, 3HAC14550-2 series) should also be confirmed functional, as positional feedback errors from a worn gearbox can corrupt calibration data stored on the SMB.

At the cabinet level, inspect the 24 VDC system power supply (PSU) and the I/O modules connected to the safety chain. IRB6600 robots in press-tending or foundry cells frequently operate with external safety PLCs and light curtain interfaces; a robot downtime event is the ideal moment to verify that the safety relay modules, emergency stop circuits, and any Profibus or EtherNet/IP communication modules are functioning within specification. Replacing the gearbox while the robot is offline eliminates the need for a second planned shutdown to address these items.

For plants running multiple IRB6600 units, procurement engineers should consider holding one 3HAC10828-15 unit per two to three robots as a minimum buffer stock. Lead times for OEM reduction gears can extend to 8–14 weeks during peak demand periods; a local spare eliminates this exposure entirely. Pairing the gearbox spare with a stocked Axis-1 motor and a set of gearbox seals and O-rings (available as ABB seal kit 3HAC028845-001 or equivalent) creates a complete Axis-1 repair kit that supports same-shift restoration of robot availability.

Site Replacement Workflow

Step 1 — Fault Confirmation: Log all active and historical fault codes from the IRC5 FlexPendant. Document any 50xxx-series joint errors for Axis-1. Perform a manual brake release test to confirm the axis is not seized.

Step 2 — Safe Isolation: Place the robot in manual mode, engage all mechanical stops, and isolate the IRC5 cabinet from mains power per LOTO procedure. Allow the gearbox to cool if the robot has been running at high duty cycle.

Step 3 — Gearbox Removal: Follow ABB Product Manual 3HAC028284-001 for the IRB6600 Axis-1 gearbox removal sequence. Drain residual grease into a sealed container for disposal. Photograph the cable routing and connector positions before disconnecting the motor.

Step 4 — Inspection of Adjacent Components: Inspect the motor shaft seal, motor brake, and encoder connector for contamination or wear. Check the gearbox mounting flange on the base casting for cracks or fretting corrosion. Replace the motor if encoder feedback is outside ABB tolerance.

Step 5 — Installation of 3HAC10828-15: Install the new reduction gear using ABB-specified torque values. Apply fresh grease per the ABB lubrication specification. Reconnect the motor and route all cables per the original documentation.

Step 6 — Calibration and Verification: Perform fine calibration using the ABB CalibWare tool or the built-in calibration routine on the IRC5. Verify Axis-1 positional accuracy against the robot’s reference calibration data. Run a slow-speed test cycle before returning the robot to production speed.

Step 7 — Documentation: Update the robot maintenance log with the replacement date, new part serial number, and post-calibration results. Reset the maintenance interval counter in the IRC5 service menu.

Spare Parts Support FAQ

Q1: Is the 3HAC10828-15 compatible with all IRB6600 variants?
The 3HAC10828-15 is the Axis-1 reduction gear for the IRB6600 series. Compatibility depends on the specific payload and reach variant of your IRB6600. Always cross-reference the part number against your robot’s serial number and the ABB spare parts list in the product manual (3HAC028284-001) before ordering. Our team can assist with compatibility verification using your robot’s serial number.

Q2: What is included in the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, incorrect lubrication, operation outside ABB-specified load limits, or contamination from the operating environment. All units undergo pre-shipment dimensional and torque testing; test records are available on request.

Q3: How should the 3HAC10828-15 be stored if not immediately installed?
Store the unit in its original sealed packaging in a clean, dry environment at 5–40°C, away from direct sunlight and vibration. Do not remove the protective end caps until installation. Shelf life in sealed OEM packaging is typically 24 months; inspect the grease condition before installation if storage has exceeded 18 months.

Q4: Can you supply the 3HAC10828-15 on a long-term blanket order basis?
Yes. For customers operating fleets of IRB6600 robots, we support annual supply agreements with reserved stock allocation, fixed pricing, and priority shipment. Contact our team to discuss volume requirements and lead time commitments that align with your annual maintenance schedule.
