ABB 3HAC065726-001 Fail-Safe Counterbalance Module

Overview

ABB 3HAC065726-001 Fail-Safe Counterbalance Module: Fault Protection and Critical Industrial Field Reliability

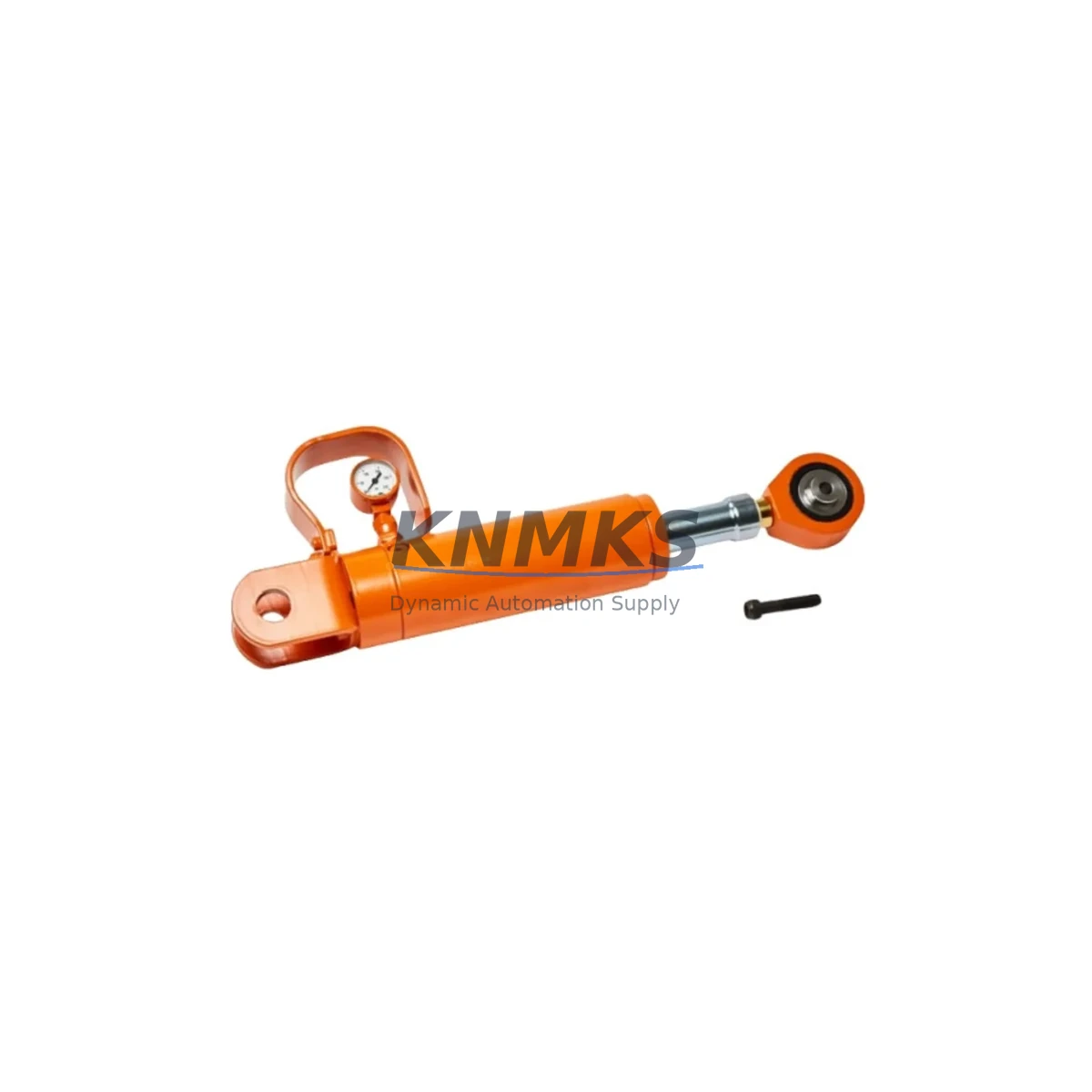

The ABB 3HAC065726-001 is a precision-engineered, safety-rated counterbalance module designed for the IRB760 FlexPalletizer series — one of ABB’s most widely deployed heavy-payload palletizing robots in continuous manufacturing environments. In high-throughput production lines where unplanned downtime carries severe operational and financial consequences, the 3HAC065726-001 plays a critical role in maintaining axis load balance, preventing gravitational drift, and protecting the mechanical integrity of the robot arm under full-load and emergency-stop conditions.

This module is engineered to sustain reliable operation across demanding industrial environments including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port logistics terminals, and continuous-process manufacturing facilities. Its robust construction ensures stable performance under high electromagnetic interference (EMI), dust ingress, humidity fluctuation, thermal cycling, and mechanical vibration — conditions that routinely compromise lesser components and trigger costly control interruptions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered IRB760 control cabinet, the 3HAC065726-001 counterbalance module does not operate in isolation — it functions as part of an integrated safety and power architecture. To ensure full-system fault protection, it is typically deployed alongside the ABB DSQC3060 drive unit, which governs axis motion commands and monitors torque feedback in real time. Any deviation in counterbalance pressure or mechanical resistance is immediately flagged by the drive system, triggering a controlled stop before mechanical damage can propagate.

Power supply stability is equally critical. The ABB DSQC661 power distribution board and associated 3HAC9897-1 capacitor module work in concert to buffer voltage transients and protect sensitive control electronics from surge events — a common failure vector in facilities with heavy motor loads or frequent switching operations. In environments with elevated EMI from welding equipment, variable frequency drives, or high-current bus bars, the 3HAC0037474-001 interface module provides additional signal isolation, preventing communication anomalies between the robot controller and field devices.

For facilities operating multiple IRB760 units in synchronized palletizing cells, the ABB IRC5 controller’s safety PLC module enforces cross-axis interlocking logic, ensuring that a counterbalance fault on one robot does not cascade into a line-wide stoppage. Complementing this, the ABB SafeMove2 safety supervision module continuously monitors axis speed, position, and standstill status — providing an additional layer of protection that is fully compatible with the 3HAC065726-001’s mechanical safety envelope.

Critical Industrial Safety Applications

The ABB 3HAC065726-001 counterbalance module is mission-critical across a broad range of heavy-industry palletizing and material handling applications:

Petrochemical and Refinery Packaging Lines: In facilities where hazardous material containers must be palletized with precision and zero mechanical failure tolerance, the 3HAC065726-001 ensures that the IRB760 arm maintains controlled positioning even during emergency shutdowns, preventing load drops that could trigger secondary safety incidents.

Power Generation and Utilities: Automated handling of heavy transformer components, cable reels, and switchgear assemblies demands consistent axis load compensation. The counterbalance module prevents gravitational creep during low-speed positioning cycles, protecting both the payload and the robot’s gearbox from premature wear.

Mining and Mineral Processing: High-dust, high-vibration environments in mining operations place extreme demands on mechanical components. The 3HAC065726-001’s robust construction maintains counterbalance integrity even under continuous vibration loads, reducing the frequency of unplanned maintenance interventions.

Water Treatment and Municipal Infrastructure: Palletizing of chemical dosing containers and filtration media in water treatment plants requires reliable, repeatable robot motion. The module’s fail-safe design ensures that axis position is maintained during power fluctuations common in utility environments.

Metallurgical and Steel Processing: In foundry and rolling mill environments, the combination of high ambient temperatures, electromagnetic interference from induction furnaces, and heavy payload cycles makes counterbalance reliability non-negotiable. The 3HAC065726-001 is rated for sustained operation in these conditions.

Port Logistics and Container Handling: High-cycle palletizing operations in port logistics centers demand components with proven longevity. The 3HAC065726-001 supports continuous multi-shift operation without performance degradation, backed by in-stock availability to minimize lead times when replacement is required.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3HAC065726-001?
Every 3HAC065726-001 unit shipped by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our support terms process is straightforward — contact our technical team and we will coordinate replacement or repair without delay.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes full functional verification prior to dispatch, including mechanical integrity checks, pressure retention testing (where applicable), and compatibility validation against IRB760 series specifications. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 3HAC065726-001 compatible with all IRB760 variants, and can it replace cross-reference SKUs?
The 3HAC065726-001 is the primary counterbalance module for the IRB760 FlexPalletizer series. It is cross-referenced with 3HAC9897-1 and 3HAC0037474-001 in certain configurations. Our technical team can confirm compatibility for your specific robot serial number and software version before shipment to eliminate installation risk.

Q4: What is the typical lead time, and is long-term supply availability guaranteed?
KNMKS maintains in-stock inventory of the 3HAC065726-001 to support urgent field replacement requirements. For facilities with planned maintenance schedules, we recommend establishing a standing spare parts agreement to ensure 12-month forward stock coverage. Contact our sales team to discuss volume pricing and supply continuity arrangements.
