ABB 3HAC059655-002 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC059655-002 Maintenance-Proven Spare Part for Factory Uptime

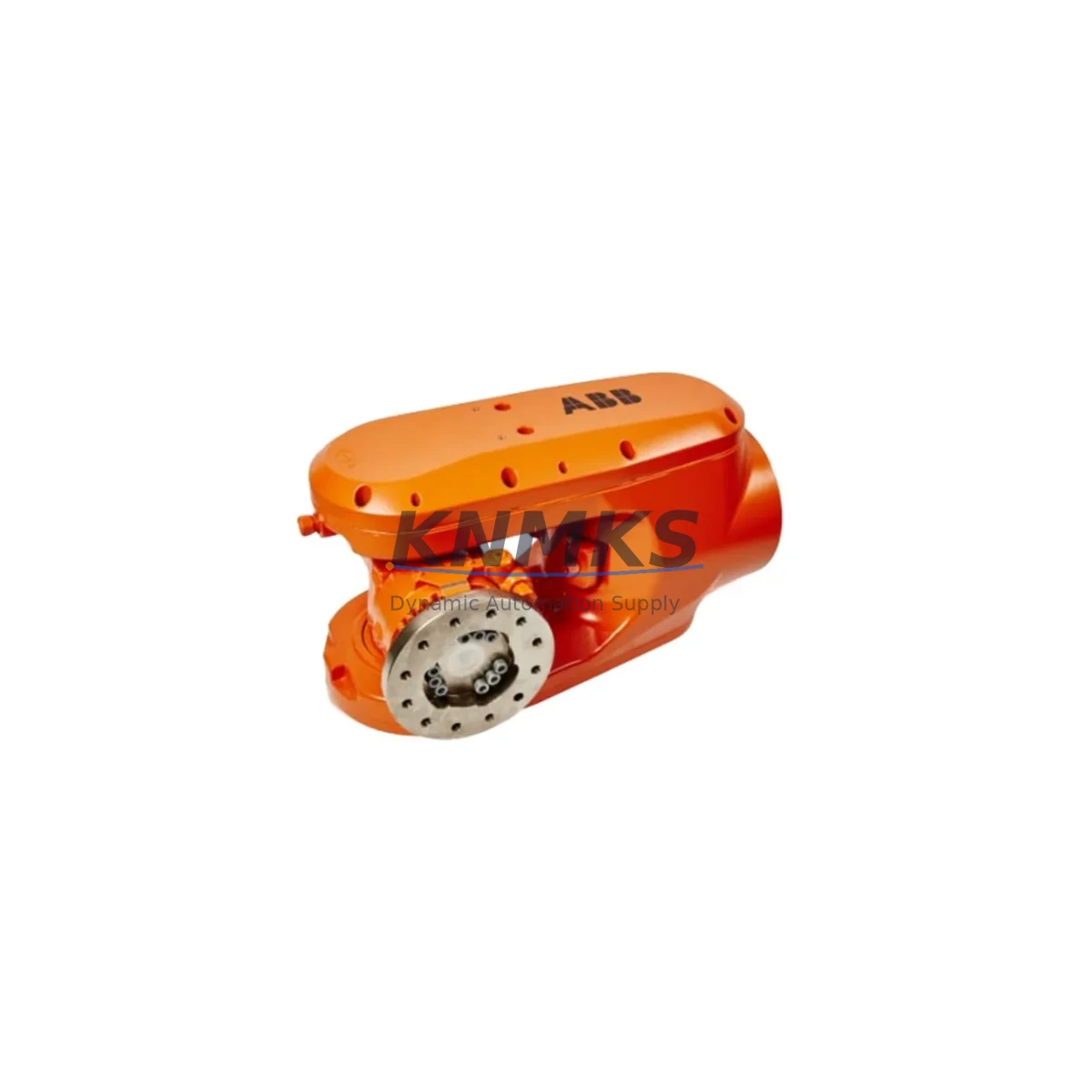

The ABB 3HAC059655-002 is an original wrist unit assembly designed for the IRB6700 series industrial robot, covering Axes 4, 5, and 6. This component is a direct replacement for the earlier 3HAC048145-002 and 3HAC048145-004 variants, making it a critical spare for maintenance teams managing ABB robot fleets in automotive, heavy manufacturing, and general automation environments. With a verified weight of 420 g and origin from ABB’s German manufacturing operations, this wrist unit meets the mechanical and electrical tolerances required for high-cycle, safety-critical robot applications.

For maintenance engineers responsible for IRB6700 uptime, the 3HAC059655-002 is a line-replaceable unit (LRU) that can be swapped during planned shutdowns or emergency interventions. Its compatibility with the IRB6700 platform — including the 150/2.85, 175/3.05, 200/2.60, 235/2.65, and 300/2.70 payload variants — means a single stock unit can cover multiple robot configurations on the same production line, reducing spare parts inventory complexity and procurement lead time.

Every unit shipped by KNMKS undergoes pre-shipment functional inspection and is covered by a support terms confirmed by quotation from the date of delivery. Long-term supply continuity is supported through established sourcing channels, ensuring availability even as ABB transitions product generations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC059655-002 wrist unit on an IRB6700, a thorough maintenance intervention should extend beyond the wrist assembly itself. Maintenance engineers should use this opportunity to inspect and, where necessary, replace adjacent components that share the same service interval or are subject to similar wear patterns.

The ABB 3HAC14550-2 motor unit for Axis 4 and the 3HAC17484-1 gearbox for Axis 5 are frequently serviced alongside the wrist unit, as mechanical wear in these assemblies can accelerate wrist unit degradation if left unaddressed. Similarly, the 3HAC026253-001 cable harness routed through the upper arm and wrist should be inspected for chafing, connector wear, and insulation integrity — a damaged harness is a common root cause of intermittent axis faults that are misdiagnosed as wrist unit failures.

On the control cabinet side, maintenance teams should verify the condition of the ABB DSQC662 drive unit and associated axis computer boards. Drive units that show elevated temperature warnings or axis current irregularities in the robot controller event log may be contributing to premature mechanical wear in the wrist assembly. The DSQC639 I/O module and any connected safety relay modules should also be checked for correct signal states, particularly the axis enable and brake release circuits that directly govern wrist axis behavior.

For facilities running multiple IRB6700 units, procurement engineers should consider stocking the 3HAC059655-002 as a standard line item in the annual spare parts budget, alongside the cable harness and at least one drive unit per robot cell. This approach aligns with ABB’s recommended preventive maintenance strategy and significantly reduces mean time to repair (MTTR) during unplanned stoppages.

Site Replacement Workflow

The 3HAC059655-002 is a direct form-fit-function replacement for the 3HAC048145-002 and 3HAC048145-004 wrist units. No mechanical adaptation or software reconfiguration is required when substituting the newer part number on an existing IRB6700 installation. The replacement procedure follows the standard ABB wrist unit exchange workflow documented in the IRB6700 product manual:

1. Place the robot in a safe maintenance position and engage the mechanical brake. Isolate the robot controller and verify zero-energy state before opening the wrist assembly.
2. Disconnect the cable harness at the wrist connector block. Inspect the connector pins and locking mechanism before reinstalling on the new unit.
3. Remove the four mounting bolts securing the wrist unit to the upper arm casting. Note the torque specification from the ABB service manual for reinstallation.
4. Install the 3HAC059655-002, torque all fasteners to specification, and reconnect the cable harness.
5. Perform a calibration check using the ABB RobotStudio or FlexPendant calibration routine for Axes 4, 5, and 6 before returning the robot to production.
6. Log the replacement in the maintenance management system with the new part number, serial number, and installation date to support support terms tracking and future service planning.

This workflow minimizes downtime by eliminating the need for custom fitting or software parameter changes, allowing a trained maintenance technician to complete the replacement within a standard maintenance window.

Spare Parts Support FAQ

Q: Is the 3HAC059655-002 a direct drop-in replacement for the 3HAC048145-002 and 3HAC048145-004?
A: Yes. The 3HAC059655-002 is ABB’s current-generation replacement for both 3HAC048145-002 and 3HAC048145-004. It is a form-fit-function equivalent and requires no mechanical or software modification when installed on an IRB6700 robot.

Q: What compatibility verification should I perform before ordering?
A: Confirm the robot model and serial number against the IRB6700 series (all payload variants are compatible). Cross-reference the existing wrist unit part number on the robot’s nameplate or maintenance record. If the installed part is 3HAC048145-002 or 3HAC048145-004, the 3HAC059655-002 is the correct replacement.

Q: How is the unit tested before shipment?
A: Every 3HAC059655-002 unit dispatched by KNMKS undergoes a pre-shipment functional inspection to verify mechanical integrity and connector condition. Units that do not pass inspection are not shipped. A support terms confirmed by quotation is provided from the delivery date, covering manufacturing defects and component failures under normal operating conditions.

Q: Can KNMKS support long-term or repeat supply of this part?
A: Yes. KNMKS maintains established sourcing channels for ABB IRB6700 spare parts and can support scheduled procurement programs, annual maintenance contracts, and emergency orders. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for high-usage facilities.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
