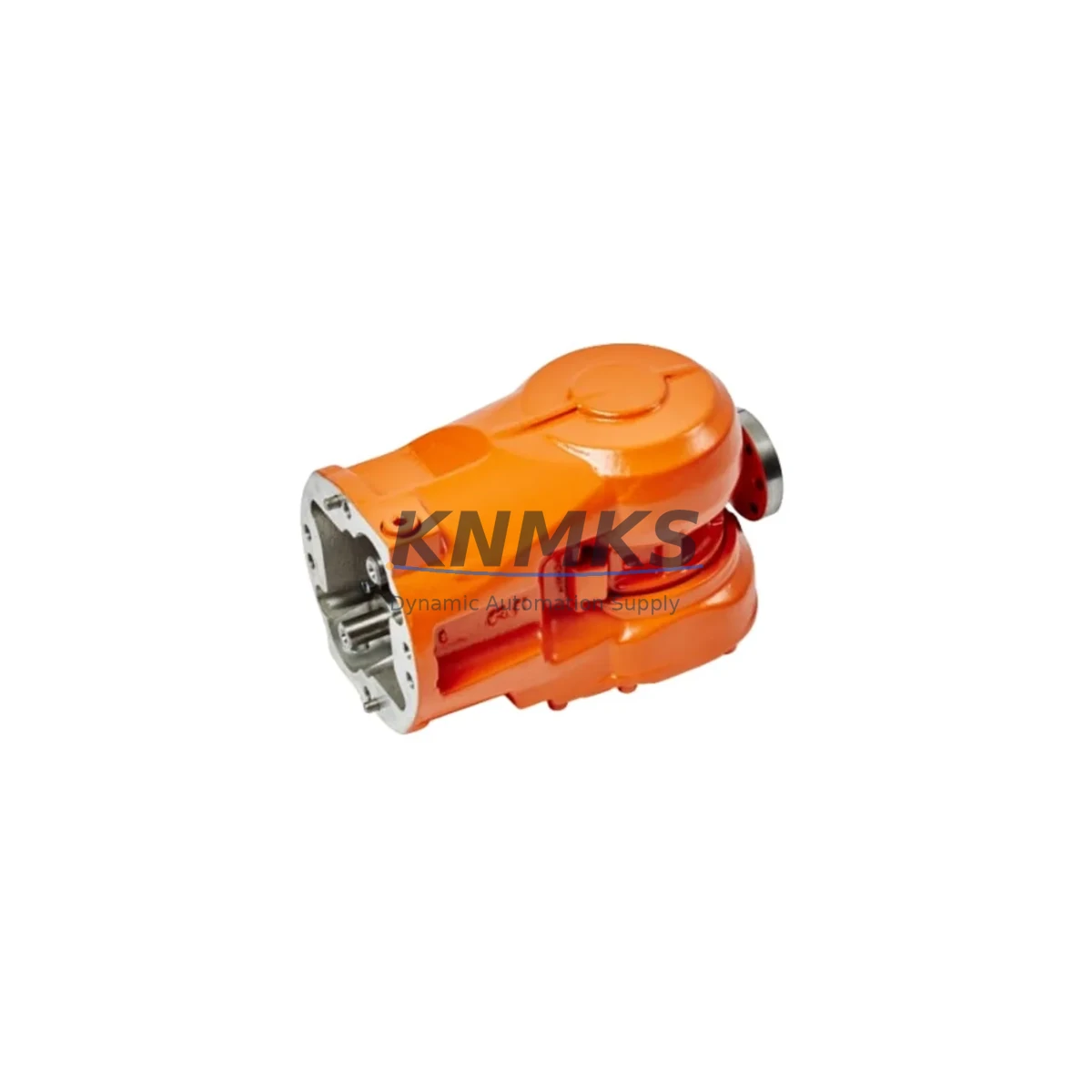

ABB 3HAC058127-010 Migration-Ready Wrist Unit for IRB6650S

Overview

ABB 3HAC058127-010 Migration-Ready Wrist Unit for IRB6650S: Legacy System Retrofit & Compatibility Upgrade

The ABB 3HAC058127-010 is a migration-ready wrist unit engineered for the IRB6650S articulated robot platform — one of ABB’s most widely deployed heavy-payload manipulators in automotive stamping, press tending, and material handling lines. As the IRB6650S fleet ages and OEM support windows narrow, facilities managers and automation engineers face increasing pressure to source reliable replacement wrist assemblies that maintain mechanical compatibility, preserve existing program logic, and minimize unplanned downtime. The 3HAC058127-010 directly addresses this challenge by serving as a verified drop-in replacement for the discontinued 3HAC058127-009 and the superseded 3HAC063644-003, enabling retrofit projects to proceed without redesigning the end-of-arm tooling (EOAT) interface or modifying the robot’s axis-6 calibration offsets.

Before committing to a wrist unit swap, retrofit planners must systematically verify several interdependent parameters. Power capacity at the wrist connector (typically 24 VDC tool supply routed through the upper arm harness) must be confirmed against the EOAT load; mismatched current ratings can trigger IRC5 controller fault codes during tool activation. Terminal wiring at the axis-6 motor connector and resolver harness must be mapped against the existing cable assembly — particularly if the installed harness is a legacy 3HAC series rather than a current-generation flex cable. The backplane interface between the wrist housing and the upper arm casting uses a precision-machined flange; any corrosion or impact damage to the mating surface must be addressed before installation to ensure correct gear mesh preload. Module addressing is not applicable to the wrist unit itself, but the axis-6 drive module within the IRC5 cabinet — often a DSQC 661 or DSQC 662 drive unit — must be confirmed as compatible with the resolver signal characteristics of the 3HAC058127-010. Program compatibility is generally maintained when the replacement wrist unit shares the same mechanical zero-position reference, but a fine calibration routine using the robot’s calibration pendulum or a laser tracker is recommended post-installation to validate TCP accuracy within ±0.1 mm. HMI screen updates on the FlexPendant (TP) are typically not required, but any custom RAPID routines referencing axis-6 torque limits or speed overrides should be reviewed against the new wrist unit’s rated torque specifications. Communication links between the IRC5 main computer and the axis computer (typically via the internal PROFIBUS or EtherNet/IP backplane) remain unaffected by a wrist unit replacement, but the system integrator should confirm that the SMB (Serial Measurement Board) battery is fresh before powering down for the swap — a depleted SMB battery will cause loss of revolution counter data and require a full axes calibration sequence. Installation space within the robot cell must accommodate the wrist unit’s removal trajectory; for press-tending applications where the IRB6650S operates in a confined bolster area, a temporary fixture may be required to support the upper arm during disassembly. Firmware version on the IRC5 controller should be at RobotWare 6.08 or later to ensure full compatibility with the 3HAC058127-010’s encoder protocol; earlier RobotWare versions may require a patch update available through ABB’s service portal. On-site commissioning should follow ABB’s standard wrist replacement procedure: torque the flange bolts to specification in a star pattern, perform a revolution counter update, run a slow-speed (10% override) dry cycle through the full work envelope, and validate TCP before returning the cell to production.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRB6650S wrist unit retrofit extends well beyond the mechanical swap. Retrofit engineers typically begin by auditing the full axis-6 drive chain: the DSQC 661 drive unit in the IRC5 cabinet should be inspected for capacitor aging and DC bus voltage stability, as a marginal drive unit may not surface faults until the new wrist unit’s encoder begins reporting at full resolution. The SMB board (3HAC14550-1) — responsible for storing revolution counter data for all six axes — must be confirmed operational with a fresh battery before any power-down sequence; failure to do so will require a full six-axis calibration, significantly extending downtime. The upper arm cable harness, often a 3HAC025562-001 or equivalent flex assembly, should be inspected for insulation fatigue at the axis-4 and axis-5 bend radii; a degraded harness replaced concurrently with the wrist unit eliminates a second planned outage. For cells integrating DeviceNet or PROFIBUS I/O modules mounted in the IRC5 cabinet, the network scan should be re-run post-restart to confirm all node addresses are intact — wrist unit replacements that involve a full controller power cycle can occasionally trigger node address conflicts on legacy fieldbus topologies. Finally, if the cell uses an ABB CP600 or CP400 HMI panel for operator interface, the maintenance team should verify that any axis-6 status indicators or torque trend displays are reading correctly after the calibration update, as stale calibration data can cause misleading HMI alarm states during the first production cycle.

Downtime Control During System Migration

Minimizing production impact during a wrist unit replacement on an active IRB6650S line requires disciplined pre-staging and a clear rollback plan. The recommended approach is to pre-configure the replacement 3HAC058127-010 on a bench fixture — torquing the flange bolts, verifying the motor connector seating, and confirming the gear mesh by hand-rotating the output flange — before the maintenance window opens. All RAPID programs should be backed up to a USB drive and to the plant’s program archive server immediately before the power-down sequence; this preserves the original TCP data and axis configuration in the event that the calibration routine produces unexpected results. During the swap, the IRC5 controller should remain in manual mode with speed override locked at 10% until the full TCP validation cycle is complete. If the cell is part of a synchronized multi-robot line — for example, paired with a second IRB6650S or an IRB7600 handling the opposing press face — the line controller (typically a PLC communicating via EtherNet/IP) should be placed in a safe hold state to prevent the adjacent robot from cycling into the work zone during the open-cell maintenance period. Post-installation, a structured commissioning checklist — covering revolution counter update, TCP measurement, payload verification, and a full-speed dry cycle — should be completed and signed off before the cell is returned to automatic mode. This structured approach consistently achieves wrist unit replacements within a 4–6 hour planned maintenance window, preserving original program logic and maintaining field control continuity without requiring PLC-side program modifications.

Retrofit Support FAQ

Q1: Is the ABB 3HAC058127-010 a direct replacement for 3HAC058127-009 and 3HAC063644-003?
Yes. The 3HAC058127-010 is the current migration-ready successor to both the 3HAC058127-009 and 3HAC063644-003. It shares the same mechanical flange interface, motor connector pinout, and resolver signal protocol, making it a verified drop-in replacement for IRB6650S robots. A revolution counter update and TCP validation are required after installation.

Q2: What commissioning steps are required after installation?
After mechanical installation, perform the following: (1) update the revolution counter via the FlexPendant, (2) run a TCP calibration using the robot’s calibration tool or a laser tracker, (3) verify axis-6 torque limits in the RAPID configuration, and (4) complete a slow-speed dry cycle through the full work envelope before returning to automatic mode. Confirm RobotWare version is 6.08 or later prior to installation.

Q3: How is the unit tested before shipment, and what support terms is provided?
Every 3HAC058127-010 unit undergoes pre-shipment functional testing covering mechanical rotation, connector integrity, and resolver signal output verification. Units are shipped with full documentation and are covered by a support terms confirmed by quotation against manufacturing defects. Expedited shipping options are available to support urgent maintenance windows.

Q4: Is inventory available for immediate dispatch?
Yes. The 3HAC058127-010 is maintained availability confirmed by RFQ across our regional distribution hubs to support urgent retrofit and breakdown replacement requirements. Contact our team to confirm current stock levels and lead times for your region. Global shipping with export documentation is available for all orders.
