ABB 3HAC057981-003 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC057981-003 Maintenance-Proven Spare Part for Factory Uptime

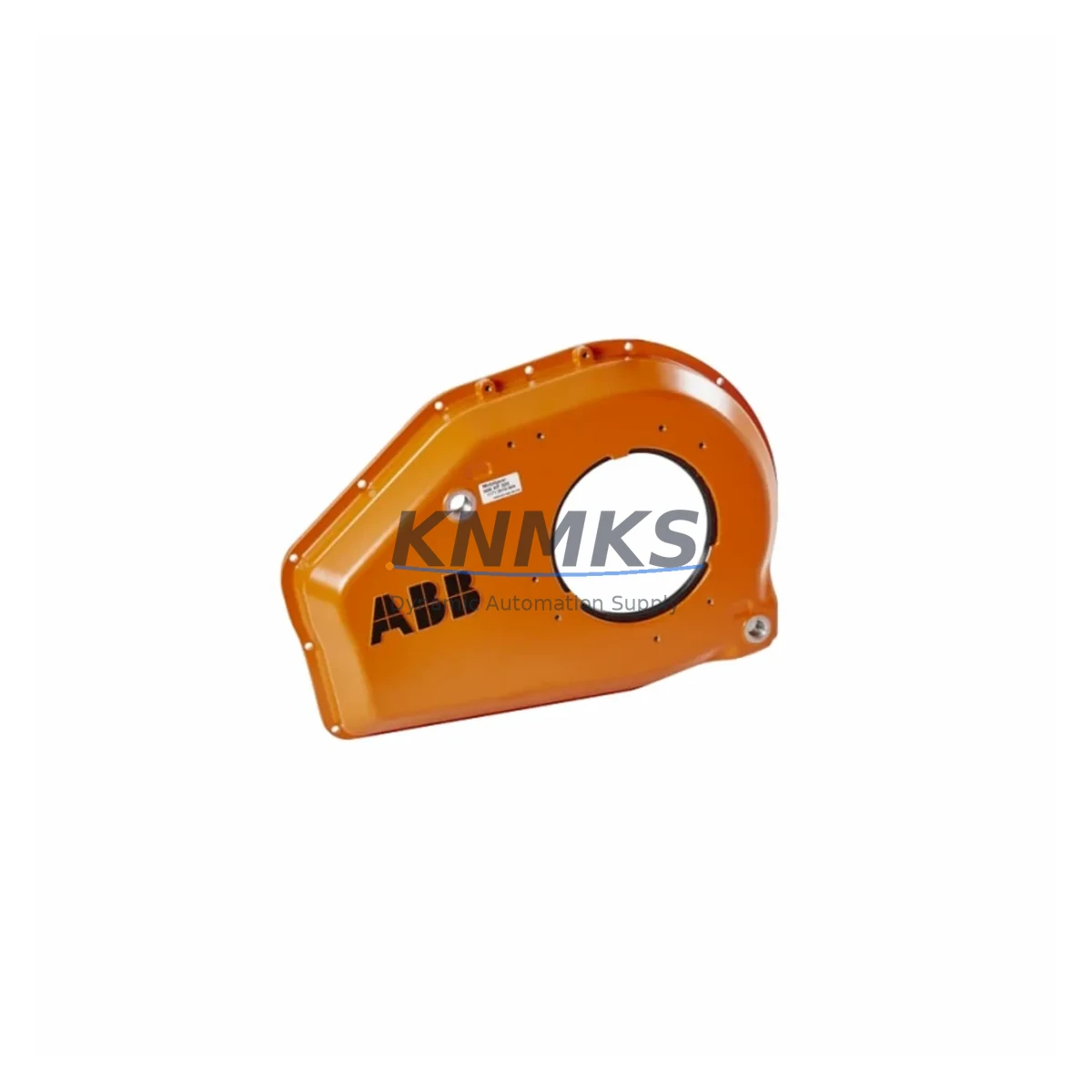

The ABB 3HAC057981-003 Cover AX4 Sealing is a critical original spare part designed for ABB IRC5 and IRB series industrial robots. In high-cycle manufacturing environments — automotive body shops, foundries, food processing lines, and electronics assembly — the AX4 axis sealing cover plays a direct role in protecting the robot’s wrist joint from contamination, coolant ingress, and mechanical wear. Replacing this component on schedule is one of the most cost-effective preventive maintenance actions available to maintenance engineers managing ABB robot fleets.

Sourced as an original ABB spare, the 3HAC057981-003 is manufactured to OEM tolerances and is fully compatible with IRC5 controller-driven IRB robot arms. Each unit is inspected and tested before shipment, and is backed by a support terms confirmed by quotation from date of delivery. For procurement engineers managing multi-robot facilities, stocking this part as a buffer spare eliminates unplanned downtime risk during annual overhauls or emergency callouts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 3HAC057981-003 Cover AX4 Sealing, experienced maintenance engineers treat this as a trigger point for a broader AX4 and wrist assembly inspection. The sealing cover interfaces directly with the AX4 gearbox and wrist harness routing, meaning that contamination at this joint can propagate to adjacent components if not caught early.

During the same maintenance window, it is best practice to inspect the ABB 3HAC020929-006 (a commonly associated wrist harness or cable assembly for IRC5 IRB robots), which routes signal and power cables through the AX4 zone. Harness chafing or connector wear at this location is a frequent secondary fault after sealing failure. Similarly, the ABB 3HAC020079-001 — a motor or mechanical assembly component in the IRB wrist drive train — should be checked for abnormal vibration signatures or grease contamination that may indicate seal breach.

At the controller level, the ABB DSQC623 I/O module (Digital I/O unit for IRC5 cabinets) should be included in any planned cabinet inspection concurrent with robot arm maintenance. Dust ingress into the IRC5 cabinet — often correlated with degraded robot sealing — can cause intermittent I/O faults that are misdiagnosed as PLC or fieldbus issues. Cleaning the DSQC623 module, verifying terminal block seating, and checking 24 VDC supply rail integrity takes less than 30 minutes and prevents nuisance faults during production restart.

The ABB 3HAC049789-001, another associated spare in the IRC5/IRB ecosystem, should also be verified during the maintenance cycle — particularly if the robot has accumulated more than 20,000 operating hours. Long-lifecycle installations benefit from a documented spare parts checklist that includes sealing covers, harness assemblies, I/O modules, and drive components, ensuring that a single planned shutdown addresses multiple wear items rather than triggering repeated unplanned stoppages.

For cabinet-level maintenance, also verify the IRC5 main computer fan filters, the teach pendant cable condition, and the 24 VDC PSU output stability. These low-cost checks, performed alongside the 3HAC057981-003 replacement, significantly extend mean time between failures (MTBF) for the entire robot cell.

Site Replacement Workflow

Replacing the ABB 3HAC057981-003 Cover AX4 Sealing is a straightforward field procedure when the correct spare is on hand. The following workflow is recommended for maintenance engineers performing the replacement on IRC5-controlled IRB robots:

1. Pre-shutdown verification: Confirm robot serial number and IRC5 cabinet revision against the ABB spare parts catalog to validate 3HAC057981-003 compatibility. Cross-reference with the robot’s maintenance logbook for previous AX4 service history.

2. Safe isolation: Place the IRC5 controller in MOTORS OFF state. Apply lockout/tagout (LOTO) per site safety procedure. Allow the AX4 joint to cool if the robot has been in recent operation.

3. Access and removal: Position the robot arm to the recommended service posture (typically AX4 at 0°). Remove the retaining fasteners on the existing cover. Inspect the underlying seal groove and mating surface for contamination or corrosion before fitting the new part.

4. Installation: Fit the 3HAC057981-003 cover, torque fasteners to ABB specification, and verify seal seating. Apply fresh grease to the joint if required per the robot’s maintenance manual.

5. Functional test: Restore power, run the robot through a slow-speed AX4 range-of-motion test, and confirm no abnormal noise, vibration, or fault codes on the IRC5 FlexPendant before returning to production.

This workflow minimizes downtime to under two hours for a trained technician and eliminates the risk of incorrect part fitment that can occur when using non-OEM alternatives.

Spare Parts Support FAQ

Q1: Is the 3HAC057981-003 compatible with all IRC5 cabinet variants?
The 3HAC057981-003 is designed for ABB IRC5-controlled IRB robot series. Compatibility depends on the specific IRB model and revision. Always verify the robot serial number and cabinet revision against the ABB spare parts catalog or contact our technical team with your robot nameplate data before ordering.

Q2: What is the recommended stock quantity for a multi-robot facility?
For facilities operating 5 or more ABB IRB robots on a continuous production schedule, we recommend maintaining a minimum buffer stock of 2 units per robot model variant. This covers both planned annual maintenance and emergency replacement scenarios without requiring expedited international shipping.

Q3: How is each unit tested before shipment?
Every 3HAC057981-003 unit undergoes dimensional verification, seal integrity inspection, and OEM part number confirmation prior to dispatch. Units are individually packaged to prevent transit damage. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and part conformance.

Q4: Can you support long-term supply for legacy IRC5 systems?
Yes. KNMKS maintains dedicated stock of ABB IRC5 and IRB series spare parts to support long-lifecycle installations. For facilities running legacy systems beyond the standard ABB service lifecycle, we offer scheduled procurement agreements to ensure continuous spare parts availability without dependence on OEM lead times, which can extend to 16–24 weeks for obsolete references.
