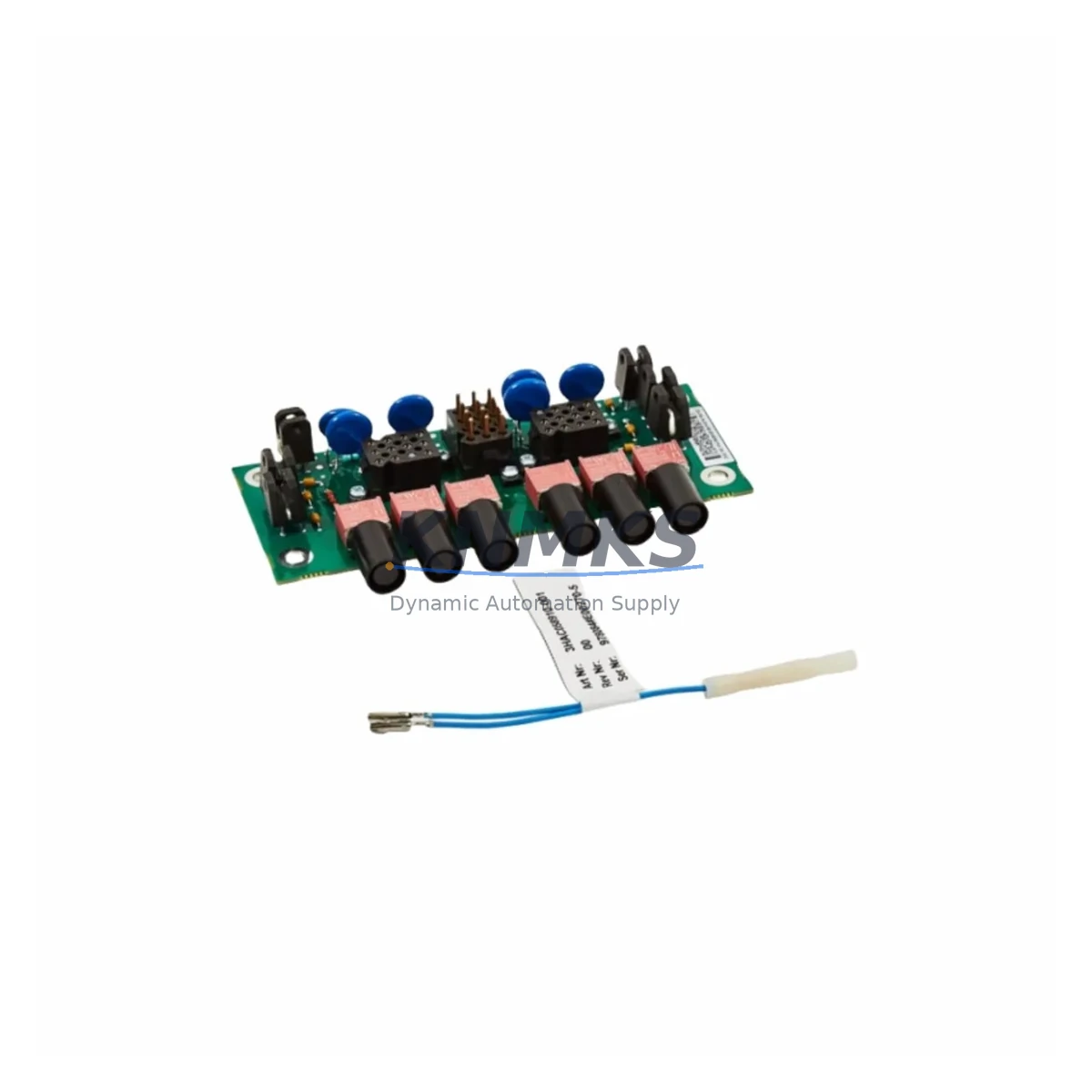

ABB 3HAC046642-001 DSQC1052 Fail-Safe Backup Module

Overview

ABB 3HAC046642-001 DSQC1052 Fail-Safe Backup Module: Fault Protection and Critical Industrial Reliability

The ABB 3HAC046642-001 (DSQC1052) is a safety-enhanced backup and restore module engineered for ABB IRC5 robot controller cabinets operating in demanding industrial environments. Designed to eliminate unplanned downtime caused by controller memory corruption, firmware failure, or catastrophic software faults, this module provides a hardware-level fail-safe layer that protects critical automation programs, safety parameters, and system configurations. In continuous production lines — where a single controller failure can cascade into hours of lost output — the DSQC1052 delivers the rapid recovery capability that keeps operations running.

Industrial robot controllers are exposed to a wide range of destabilizing conditions: high electromagnetic interference from variable frequency drives and servo amplifiers, voltage transients from heavy inductive loads, thermal cycling in enclosed control cabinets, and mechanical vibration from nearby presses or conveyors. The DSQC1052 is rated for these harsh-environment conditions, maintaining stable backup and restore functionality even when the surrounding cabinet environment is compromised. Its robust design ensures that backup integrity is preserved regardless of power fluctuations or EMI events that might otherwise corrupt volatile memory in standard modules.

In safety-critical interlocking applications — such as robotic welding cells, press-tending systems, and palletizing lines — the ability to restore a verified, pre-tested controller configuration within minutes rather than hours is not a convenience; it is a production continuity requirement. The DSQC1052 supports full system image backup, allowing maintenance teams to recover from controller board failures, accidental parameter overwrites, or firmware update failures without relying on manual reconfiguration from documentation. This directly reduces the risk of human error during recovery, which is itself a significant source of post-maintenance safety incidents.

When integrated into a well-structured IRC5 control cabinet, the DSQC1052 works alongside complementary ABB components to form a complete fault-tolerant architecture. The ABB DSQC1000 (3HAC044168-001) main computer board provides the primary processing environment that the DSQC1052 protects, while the DSQC662 (3HAC026253-001) fieldbus adapter ensures that communication integrity is maintained across DeviceNet or Profibus networks during and after a restore event. Power stability — a prerequisite for reliable backup operations — is supported by the DSQC609 (3HAC14265-1) power supply unit, which conditions incoming cabinet power and protects downstream modules from surge and brownout conditions. For cabinets with expanded I/O requirements, the DSQC652 (3HAC025917-001) digital I/O board and DSQC378B (3HAC6932-1) bus adapter board are commonly deployed alongside the DSQC1052 to ensure that the full I/O configuration is captured and restorable as part of the system image. Together, these components form a layered protection strategy that addresses memory, communication, power, and I/O integrity within a single IRC5 cabinet architecture.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable IRC5 control cabinet protection strategy begins with understanding the failure modes that most frequently cause unplanned downtime. Controller software corruption — whether from power interruption during a firmware update, a memory fault on the DSQC1000 main computer, or an accidental parameter overwrite during commissioning — is one of the leading causes of extended robot downtime in automotive, electronics, and heavy manufacturing environments. The DSQC1052 directly addresses this failure mode by providing a dedicated, hardware-independent backup medium that stores a complete and verified system image.

For cabinets operating in high-dust or high-humidity environments, such as foundry automation or food processing lines, the risk of gradual hardware degradation is elevated. Maintaining a current backup on the DSQC1052 ensures that even if the DSQC1000 main computer or the DSQC609 power supply unit requires emergency replacement, the replacement hardware can be restored to the exact operational state of the failed unit within a single maintenance shift. This eliminates the multi-day reconfiguration process that would otherwise be required, dramatically reducing mean time to recovery (MTTR).

In safety interlock circuits where the IRC5 controller manages emergency stop logic, speed monitoring, or zone protection in collaboration with safety PLCs, an unverified or incomplete controller configuration after a fault recovery event poses a direct safety risk. The DSQC1052 mitigates this by ensuring that the restored configuration is identical to the last verified backup, preserving all safety parameters, tool data, and zone definitions without manual re-entry. This is particularly critical in applications where the DSQC652 digital I/O board manages safety relay outputs or where the DSQC662 fieldbus adapter handles safety-rated communication with external safety systems.

Critical Industrial Safety Applications

The ABB 3HAC046642-001 DSQC1052 is deployed across a broad range of critical industrial environments where controller reliability directly impacts both production continuity and personnel safety.

In automotive body-in-white welding facilities, IRC5-controlled robots perform continuous resistance and arc welding operations across multi-shift production schedules. A controller failure without a reliable backup module can halt an entire welding cell, triggering line stoppages that affect downstream assembly operations. The DSQC1052 enables maintenance teams to restore the controller to full operational status within a single shift, minimizing production impact.

In petrochemical and refinery automation, robots and automated systems operating in classified hazardous areas rely on IRC5 controllers housed in pressurized or purged enclosures. The consequences of extended controller downtime in these environments extend beyond production loss to include process safety risks. Rapid, verified controller recovery via the DSQC1052 supports the safety case for automated operations in these facilities.

In mining and mineral processing operations, where robot controllers are exposed to extreme vibration, dust ingress, and wide temperature swings, the risk of hardware-induced controller faults is significantly elevated. The DSQC1052 provides the backup resilience needed to maintain operational continuity in these demanding conditions.

In port and logistics automation, where IRC5-controlled systems manage container handling, palletizing, and sortation operations on a 24/7 basis, any unplanned controller downtime directly impacts throughput commitments. The DSQC1052 supports rapid recovery strategies that align with the uptime requirements of high-throughput logistics operations.

In continuous process manufacturing — including paper, glass, and steel production — where stopping a line for controller recovery is operationally and economically costly, the DSQC1052 provides the fail-safe backup capability that supports maintenance strategies focused on minimizing mean time to recovery.

Safety and Quality FAQ

Q: What support terms is provided with the ABB 3HAC046642-001 DSQC1052?
A: Every unit is covered by a support terms confirmed by quotation from the date of dispatch. This covers functional defects and ensures that the module performs to ABB specification under normal operating conditions within an IRC5 controller cabinet.

Q: Is the DSQC1052 tested before shipment?
A: Yes. Each unit undergoes pre-shipment functional verification to confirm that backup and restore operations perform correctly before the module leaves our facility. This reduces the risk of receiving a non-functional unit and eliminates the need for incoming inspection testing on your end.

Q: Is the 3HAC046642-001 compatible with all IRC5 variants?
A: The DSQC1052 is designed for ABB IRC5 single-cabinet and dual-cabinet controller configurations. Compatibility should be verified against your specific IRC5 hardware revision and RobotWare version. Our technical team can assist with compatibility confirmation prior to order placement.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: We maintain stock of the 3HAC046642-001 to support ongoing spare parts programs and planned maintenance schedules. For customers with multi-site IRC5 installations or long-term maintenance contracts, we recommend discussing volume and scheduling requirements with our sales team to ensure continuous supply availability.
